BMW 3 Series G20 Wheel Repair & Painting Review

A BMW 330i Owner's Commitment to Wheel Perfection

Minor wheel damage from curbing can be easily overlooked by some drivers, but for those who meticulously care for their vehicles, it's an opportunity for improvement. The owner of this BMW G20 330i exemplifies this dedication. While maintaining the original diamond-cut finish of the stock wheels was an option, they opted for a sophisticated satin grey wheel painting to better complement the car's overall aesthetic. Let's explore this comprehensive wheel restoration process undertaken at the "Oneul-ui Ka" (Today's Car) Cheonan branch.

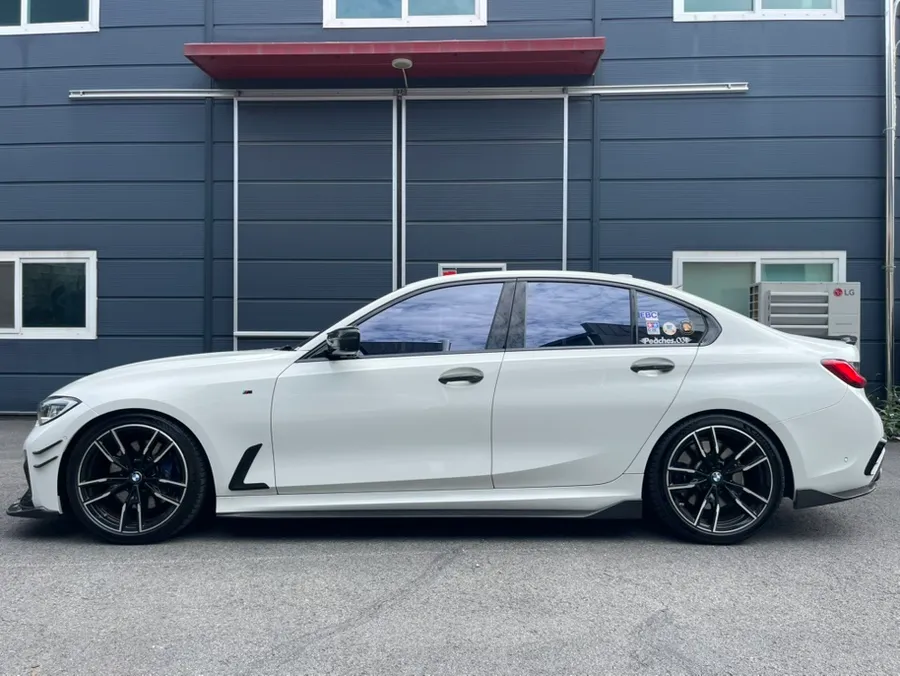

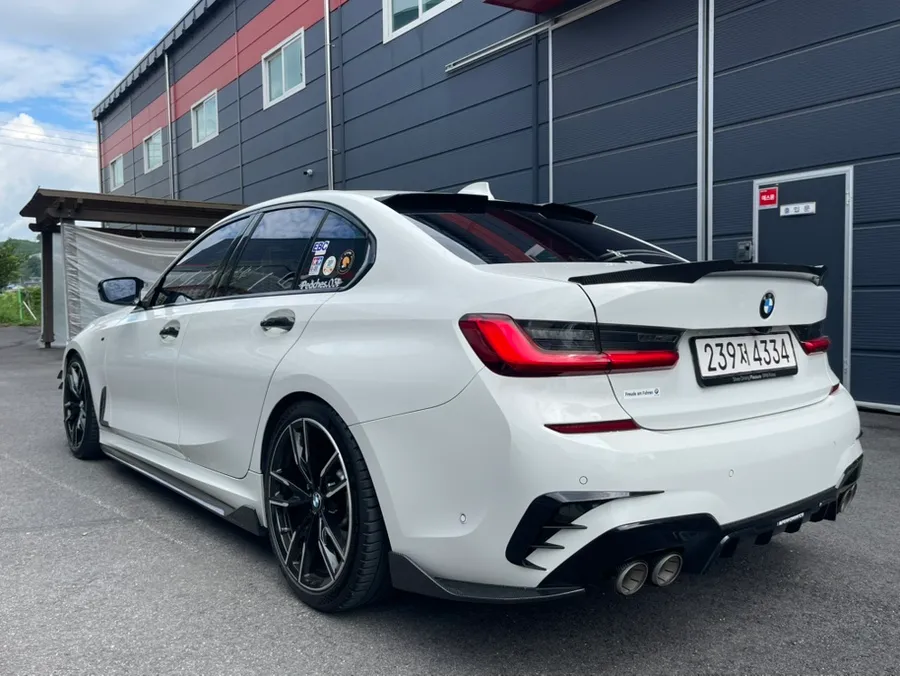

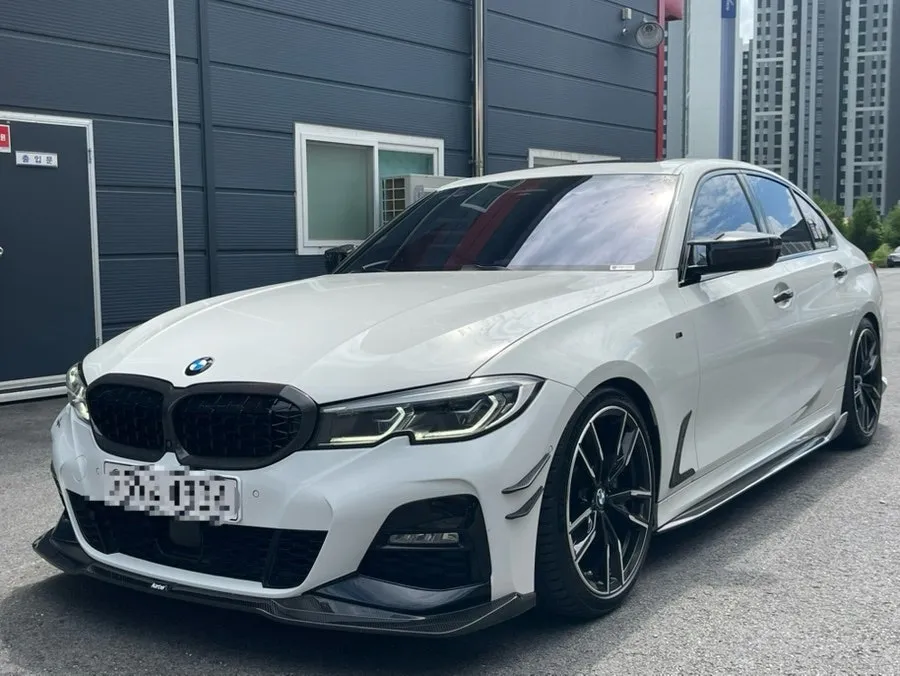

This 330i was clearly a labor of love, with its precisely fitted exterior parts and lowered stance. It was evident that the owner invested significant effort in its upkeep. However, an unfortunate encounter with a curb left a noticeable blemish on the driver's side rear wheel, marking the starting point for this project.

Analyzing the BMW 330i's Wheels: The Appeal of Satin Grey

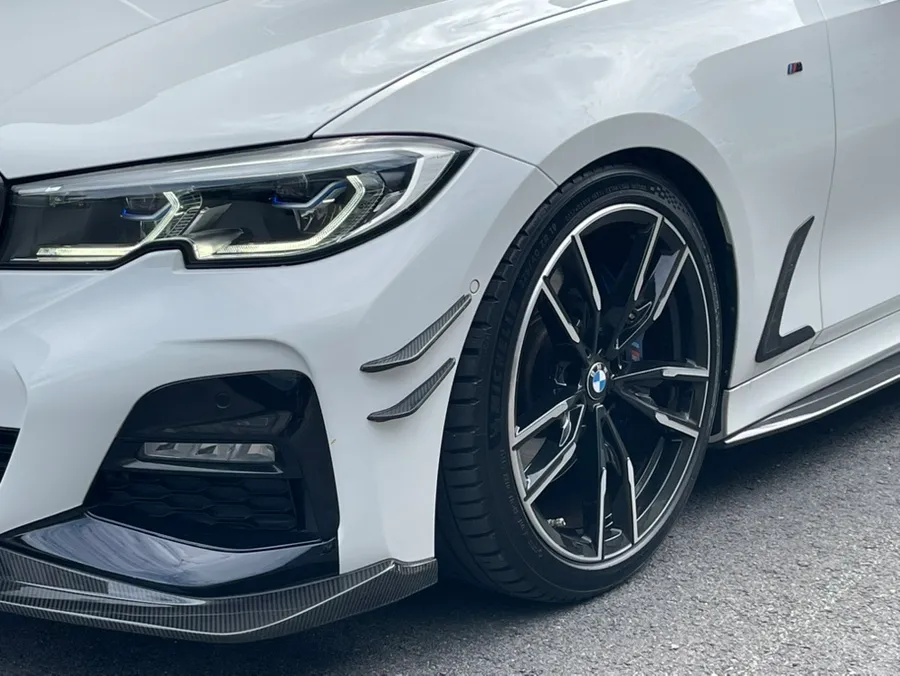

The BMW G20 330i comes standard with the 792M wheels, featuring a detailed diamond-cut finish on a black base. While attractive in their original state, the owner sought an elevated look. The goal was to harmonize the wheels with the car's existing carbon fiber components and refine the overall color scheme for a more contemporary feel.

Satin grey offers a finish between gloss and matte, providing a refined elegance without the overt flashiness of high gloss, and a more sophisticated appearance than plain black. This color choice aligns perfectly with BMW's minimalist design philosophy.

Assessing Wheel Damage and Pre-Treatment for Refinishing

Upon inspection, the curb rash on the wheel was deeper than anticipated, penetrating the paint layer and exposing the metal. Such damage cannot be effectively addressed with simple touch-up paint; a full refinishing was necessary.

The initial step involved removing the wheel balancing weights and thoroughly cleaning the surface. This was followed by sandblasting, a crucial process where abrasive particles are blasted at high pressure to completely strip the old paint and create a uniformly roughened metal surface. This preparation ensures optimal adhesion for the new coating.

The 3-Coat Powder Coating Method: Superior to Single-Coat Urethane

This stage is critical. The wheel painting at "Oneul-ui Ka" utilizes a "3-coat powder coating" technique. Let's break down the terminology:

Powder coating involves applying powdered paint electrostatically to the surface, which is then cured in a high-temperature oven. This method results in a significantly more durable finish than conventional liquid urethane and is also more environmentally friendly.

The 3-coat process unfolds as follows:

1. Primer Coat (Base): A black base layer is applied to create a foundation.
2. Mid Coat: A metallic grey base is applied to achieve the desired color.
3. Top Coat: A semi-matte liquid clear coat is applied for the final finish.

The key question is, "Why 3 coats?" Cheaper alternatives often use a single-coat urethane process to cut costs. However, this approach has drawbacks: the gloss fades quickly because there's no protective clear layer to shield the paint from UV rays, and it's highly susceptible to "rock chips" (small indentations from flying debris) due to the thin paint layer. In contrast, the 3-coat method provides sufficient thickness, and the clear coat acts as a buffer against impacts, ensuring greater longevity and resilience.

The entire process, from initial damage assessment to the final 3-coat powder coating, ensures that the BMW 330i's wheels are not only visually stunning but also robustly protected against daily wear and tear. The estimated cost for this type of service in Korea can range from 40,000 to 80,000 KRW per wheel, approximately $30-$60 USD, depending on the complexity and extent of the damage.
