BMW 530d F10: Resolving Adaptive Headlight Faults

The BMW 530d F10, a popular model known for its performance and luxury, can sometimes encounter issues with its advanced lighting systems. Many owners reach out to us regarding common problems like NBT head unit repairs or, as in this case, headlight malfunctions. A recent 530d F10 came in with a specific complaint: the passenger side daytime running lights (DRLs) were not illuminating, accompanied by an "Adaptive Headlight Fault" warning on the dashboard. This meant that neither the DRLs nor the signature "angel eyes" were functioning, even when they should have been active.

Vehicle: BMW 530d F10
Service: LED Headlight Repair (Adaptive)
Symptoms: Passenger side DRL failure, Adaptive Headlight Fault warning.
Location: Today's Car Daejeon Branch
Estimated Time: 3-4 hours

Understanding Adaptive Headlight Issues

BMW's adaptive headlight system is designed to dynamically adjust the beam's direction based on driving conditions, enhancing visibility and safety. However, its complex nature means components can fail. In this particular F10, the root cause was identified as a fault within the DRL module on the passenger side. This not only prevents the lights from working but can also lead to a failed vehicle inspection and persistent, annoying dashboard warnings such as "Adaptive Headlight Fault," "Right Front Light System Fault," or "Beam Control Fault." These messages can cause significant driver anxiety.

Technical Note: DRLs (Daytime Running Lights) are designed to make vehicles more visible during the day. The "angel eyes" refer to BMW's distinctive circular DRLs.

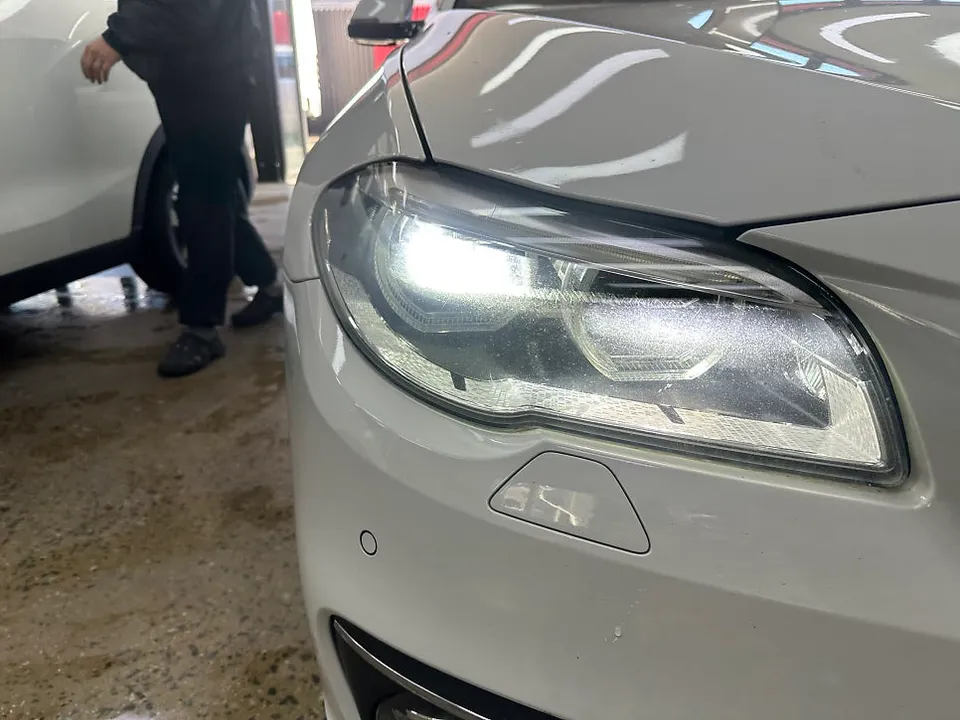

Before Repair:

[IMAGE_1]

Upon starting the vehicle, the "Adaptive Headlight Fault" warning immediately appeared. The passenger side angel eye and side marker LED were completely dark, failing to function as DRLs.

Targeted Repair for Headlight Modules

Replacing the entire headlight assembly can be a costly endeavor. Fortunately, the issue with this BMW 530d F10 was isolated to the DRL module. This allowed for a targeted, partial repair, avoiding the need for a full replacement and saving the owner significant expense. After the repair, both the DRLs and side marker lights on the passenger side were functioning perfectly. We also confirmed that the dimming feature, which reduces glare at night, was working correctly.

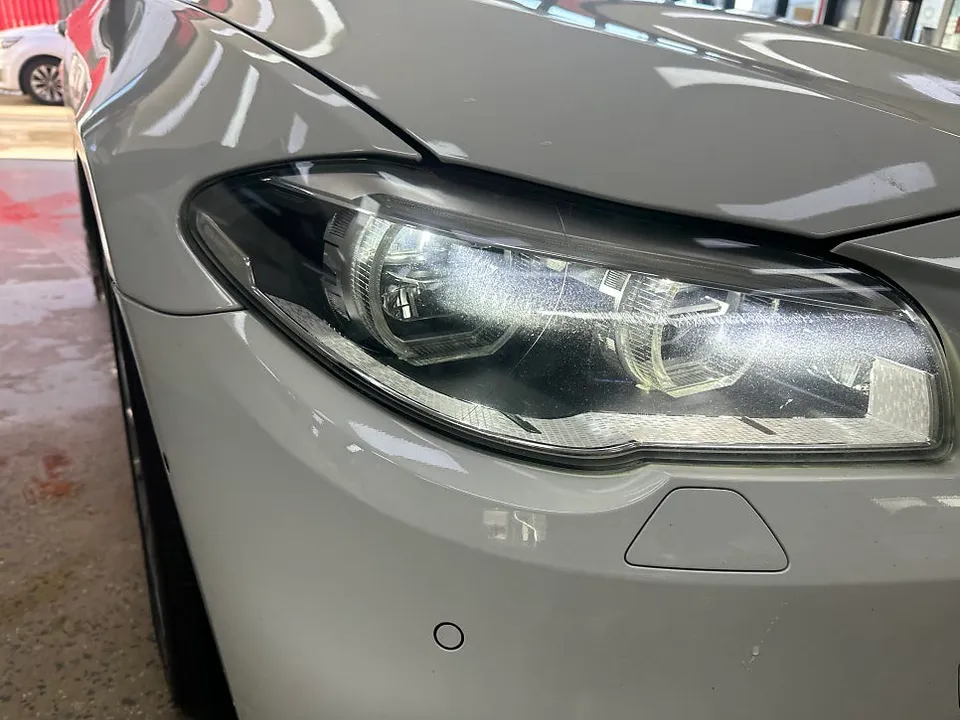

After Repair:

[IMAGE_2]

The passenger side DRL is now illuminated correctly, with the angel eye and side marker LEDs shining brightly, restoring the vehicle's presence and safety.

Technical Note: Dimming (Dimming) is a feature that adjusts light intensity, used in adaptive headlights to minimize glare for oncoming drivers at night.

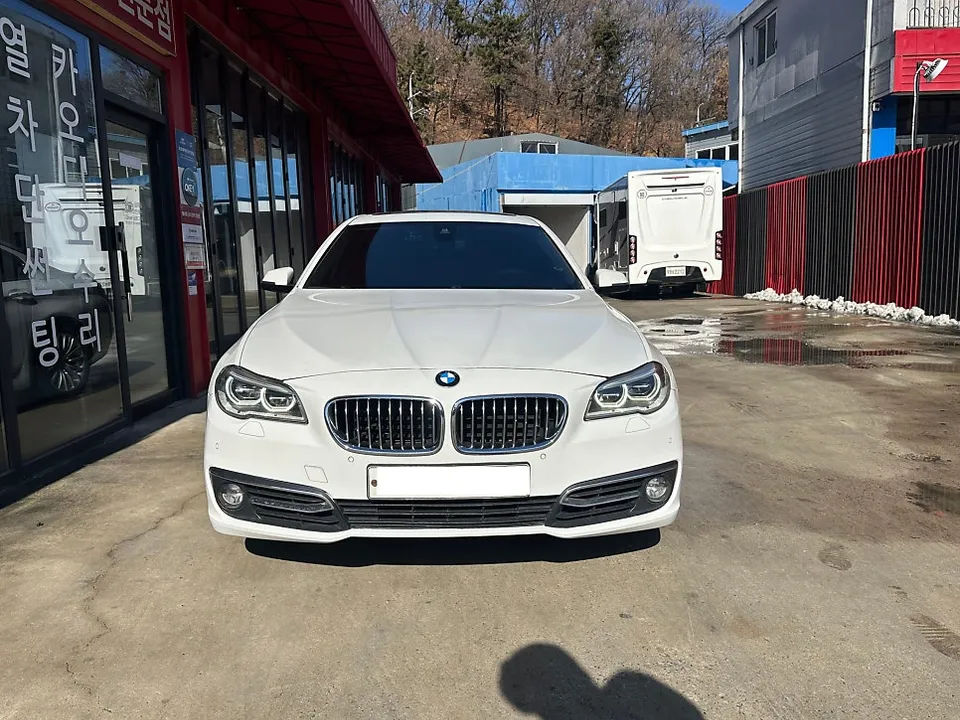

Repair Process Overview:

[IMAGE_3]

The repair process involves precise diagnosis of the faulty module, followed by the replacement of the specific defective component. Our skilled technicians ensure meticulous work to prevent future issues.

Finalizing with Coding

A simple component swap isn't always enough for a complete fix. For BMWs, coding is often a crucial step after component replacement to ensure the new module integrates seamlessly with the vehicle's systems. This involves updating the car's software to recognize the repaired or replaced part, ensuring all functions, including adaptive features and error reporting, work as intended. This final step guarantees the repair is not just functional but also fully integrated.
