BMW 5 Series F10 Wheel Repair & Painting Review
Service Price
$approx. $750–1,150
Estimated price · Actual price may vary by shop
Before
After
Process photos
BMW 5 Series F10 gloss black wheel refinishing: approx. $750–1,150. Restores appearance and durability.
Restoring Your BMW 5 Series F10 Wheels: More Than Just Aesthetics
The BMW 5 Series F10, a sophisticated sedan, comes equipped with high-quality wheels that, unfortunately, are susceptible to everyday wear and tear. Its complex, multi-curved designs, common on 19-inch and larger factory wheels, make even minor scratches and curb rash highly noticeable. Given that many F10 models are now over a decade old, paint peeling and corrosion are frequent issues. Wheel repair and painting, particularly a gloss black powder coating, isn't just about cosmetic enhancement; it's a vital maintenance step to extend the life of your wheels. This review details a gloss black powder coating restoration for a BMW F10 5 Series, highlighting the importance of thorough preparation and advanced coating techniques. Powder coating, which involves electrostatically applying powdered paint and then curing it at high temperatures, offers significantly superior durability compared to standard liquid paint.
The Wheel Restoration Process: From Damaged to Dazzling
The restoration process for the BMW F10 wheels involved several key stages. First, the tires were removed, followed by a blasting process to completely strip the old paint and surface contaminants. This initial preparation, taking about 1-2 hours, is crucial for ensuring proper adhesion of the new coating. Next, meticulous cleaning and degreasing were performed to remove any residual metal dust or oils, a step that takes around 30 minutes and prevents adhesion issues. The wheels were then moved to the powder coating booth. Here, the gloss black powder coating was applied evenly to all surfaces, including the inner barrels, using electrostatic sprayers while the wheels rotated. This coating stage lasts about 20-30 minutes. The most critical phase is the curing process, where the coated wheels are heated in an oven at over 250°C (482°F) for 10-15 minutes. This high temperature melts the powder, forming a single, hard, and durable layer with a hardness of at least 3H. After cooling and a final inspection, tires were remounted and the wheels were precisely balanced. The entire process typically takes 6-8 hours, allowing for same-day completion.
Durability, Maintenance, and Value: Is It Worth It?

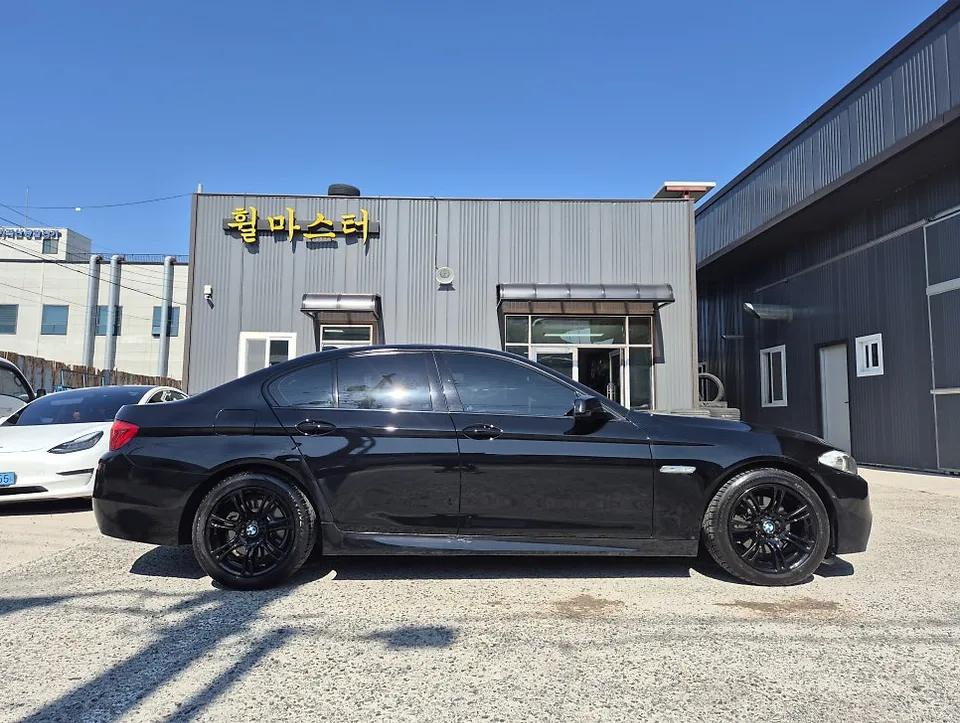

The result of this Wheel Repair & Painting service on the BMW F10 was a dramatic transformation. The previously damaged wheels, showing peeling paint and numerous scratches, were replaced by a deep, lustrous gloss black finish that perfectly complemented the car's body. The complex design of the F10 wheels was accentuated by the new coating, giving the car a more refined and premium appearance. Powder-coated wheels offer superior hardness (3H pencil hardness and above) and impact resistance compared to liquid paint, making them ideal for the harsh conditions wheels face. Durability is typically 3-5 years without significant fading, and potentially longer with proper care. Maintenance involves regular washing with mild car shampoo and avoiding harsh chemicals, especially during winter months when road salt (calcium chloride) can cause corrosion. Promptly rinsing wheels after driving on salted roads is recommended. While the cost for a set of four wheels can range from approximately $750 to $1,150 in the US (based on the Korean context of 500,000-700,000 KRW for this specific model), the value lies in restoring the vehicle's aesthetic appeal and protecting the wheels from further degradation. This investment can significantly enhance the overall look and perceived value of your BMW 5 Series F10.
Frequently Asked Questions
Q. How much does wheel repair cost for a BMW 5 Series F10?
In Korea, the gloss black powder coating for a BMW F10 5 Series typically costs between 500,000 and 700,000 KRW (approximately $370-$520 USD). In the US, expect prices to range from $750 to $1,150 for a set of four wheels, depending on size and damage.
Q. Can curb rash be fully repaired on BMW 5 Series F10 wheels?
Yes, curb rash and other surface damage can be effectively repaired and refinished through processes like powder coating, restoring the wheel's appearance and structural integrity. Proper maintenance, including regular washing and avoiding harsh chemicals, especially road salt, is key to long-term durability.
Q. Is wheel repair or replacement cheaper for a BMW 5 Series F10?
Wheel repair and refinishing are significantly more cost-effective than replacing damaged wheels, especially for high-end vehicles like the BMW 5 Series F10. Refinishing offers a cost-effective way to restore both the look and protective qualities of your existing wheels.
Q. How is wheel curb rash repaired on a BMW 5 Series F10?
Wheel repair for curb rash typically involves several steps: 1. Complete removal of old paint and damage via blasting. 2. Thorough cleaning and degreasing. 3. Application of a new coating, such as gloss black powder coat, using electrostatic methods. 4. Curing the coating in a high-temperature oven to create a durable finish.
Q. What is the difference between wheel refinishing and full replacement for a BMW 5 Series F10?
Wheel refinishing restores your original wheels to a like-new condition, often with an upgraded finish like gloss black powder coating, at a fraction of the cost of replacement. Full replacement involves purchasing entirely new wheels, which is considerably more expensive and often unnecessary if the original wheels are structurally sound.
Q. What should I know before getting Wheel Repair & Painting on a BMW 5 Series F10? (common regrets and mistakes)
The most common mistake is choosing low-cost services that skip crucial preparation steps like blasting and degreasing, leading to premature coating failure. To avoid this, opt for reputable shops that detail their multi-step process and offer warranties.
