BMW 5 Series Dash Cam Installation: 4-Channel Recording

Why a Dash Cam with a Power Bank is Essential for Your BMW 5 Series

Owning a premium sedan like the BMW 5 Series G30 means you want to capture high-quality video, not just while driving, but also when parked. In today's world, with increasing incidents of traffic accidents and hit-and-runs, having reliable video evidence is crucial. However, standard dash cams can drain your car's battery over time, leading to starting issues. That's why a 'dash cam + power bank' combination is the ideal solution. This guide details a recent installation of a 4-channel dash cam and a high-capacity power bank on a BMW 5 Series in Busan, South Korea.

Choosing Between 4-Channel and 2-Channel Dash Cams

The first decision when selecting a dash cam is the number of channels. While a 2-channel system (front and rear) is standard, 4-channel systems, which include side cameras, are gaining popularity. For larger sedans like the BMW 5 Series, the risk of side-impact collisions makes adding left and right cameras highly beneficial.

2-Channel Dash Cams record only the front and rear views. They are generally more affordable and quicker to install (around 1-1.5 hours) due to simpler wiring. However, they cannot capture evidence from side accidents. Prices typically range from ₩300,000 to ₩800,000 (approximately $220-$580 USD) for mid-range domestic models.

4-Channel Dash Cams cover the front, rear, left, and right sides. This comprehensive coverage is excellent for recording minor scrapes or collisions that occur during left or right turns, or when parked. Installation takes longer, usually 2-3 hours, due to the more complex wiring. Prices generally range from ₩800,000 to ₩1,500,000 (approximately $580-$1090 USD), increasing with the number of channels.

The BMW 5 Series in this case study opted for a 4-channel model due to its larger size and numerous blind spots, especially around the side mirrors. Premium vehicles often have limited visibility in these areas, making the side cameras particularly valuable.

The Necessity and Lifespan of Dash Cam Power Banks

A common concern after dash cam installation is battery drain. Dash cams continuously consume power, especially when recording 24/7. If left running solely on the car's main battery during parking, it can lead to a dead battery and prevent the car from starting.

This is where a high-capacity power bank becomes essential. Acting as a dedicated battery for the dash cam, it powers the device during parking without drawing from the vehicle's main battery. The unit installed in this example is a high-capacity model designed for extended recording of high-definition 4-channel footage.

The typical lifespan of a dash cam power bank is 3-5 years, though this can vary based on usage and environmental conditions. Frequent parking in extreme heat or prolonged periods of inactivity in winter can shorten its lifespan, so be mindful of these factors.

The Professional Installation Process

Installation involves careful planning and execution to ensure optimal performance and a clean finish.

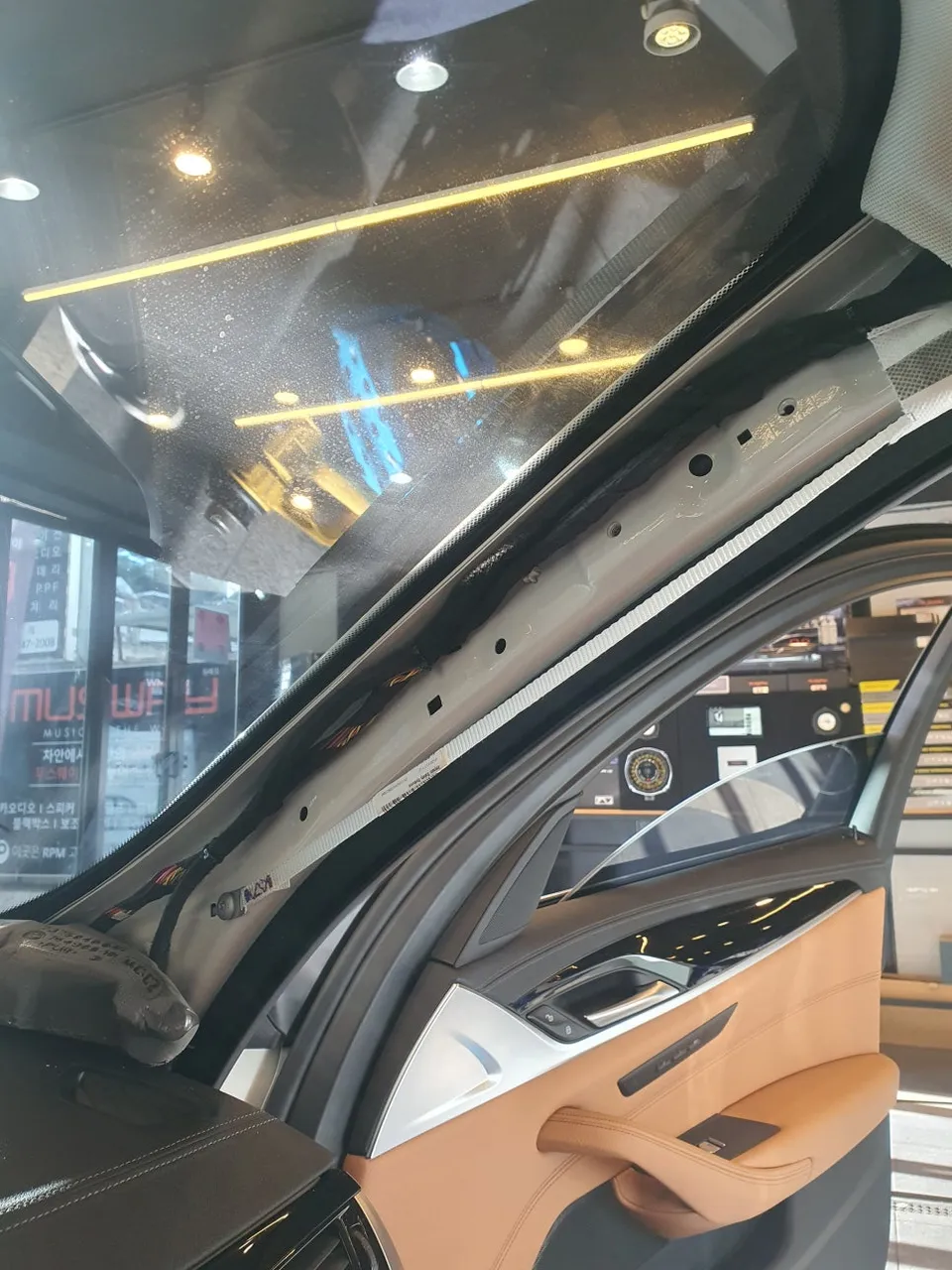

1. Wiring Plan and Camera Placement: Considering the BMW 5 Series's interior structure, the front camera was mounted on the upper center of the windshield, the rear camera on the rear windshield, and the left and right cameras near their respective side mirrors. A key aspect of this installation was utilizing the vehicle's original wiring harnesses and conduits wherever possible to avoid damaging the car's electrical system and ensure a neat appearance.
2. Camera Mounting and Connection: The front camera was attached to the windshield, adjusted to avoid obstructing the driver's view. The rear camera was similarly positioned on the rear glass. Side cameras were carefully mounted near the mirrors, ensuring they captured the necessary angles without being obtrusive. All cameras were then connected to the main dash cam unit and the power bank.

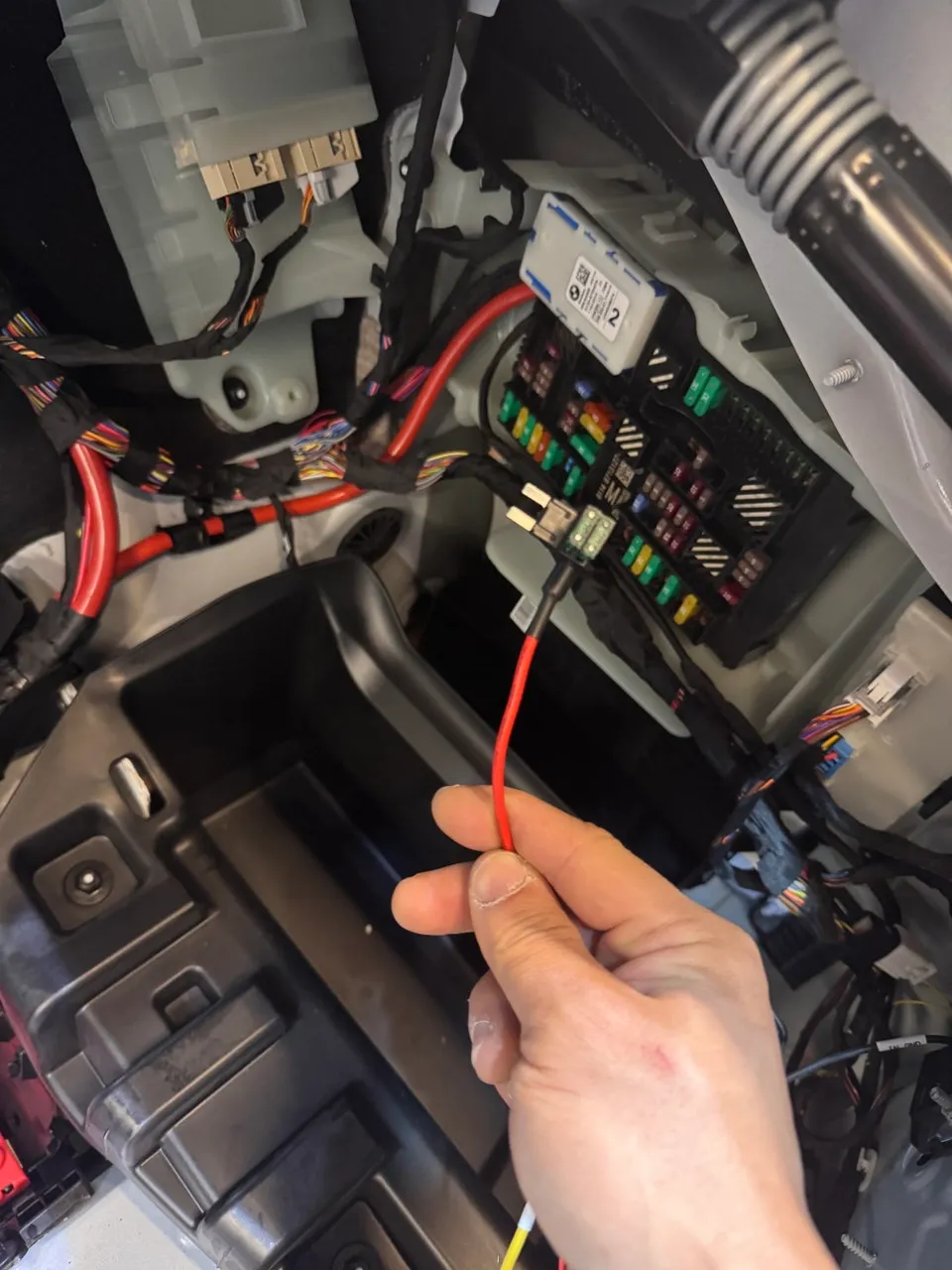

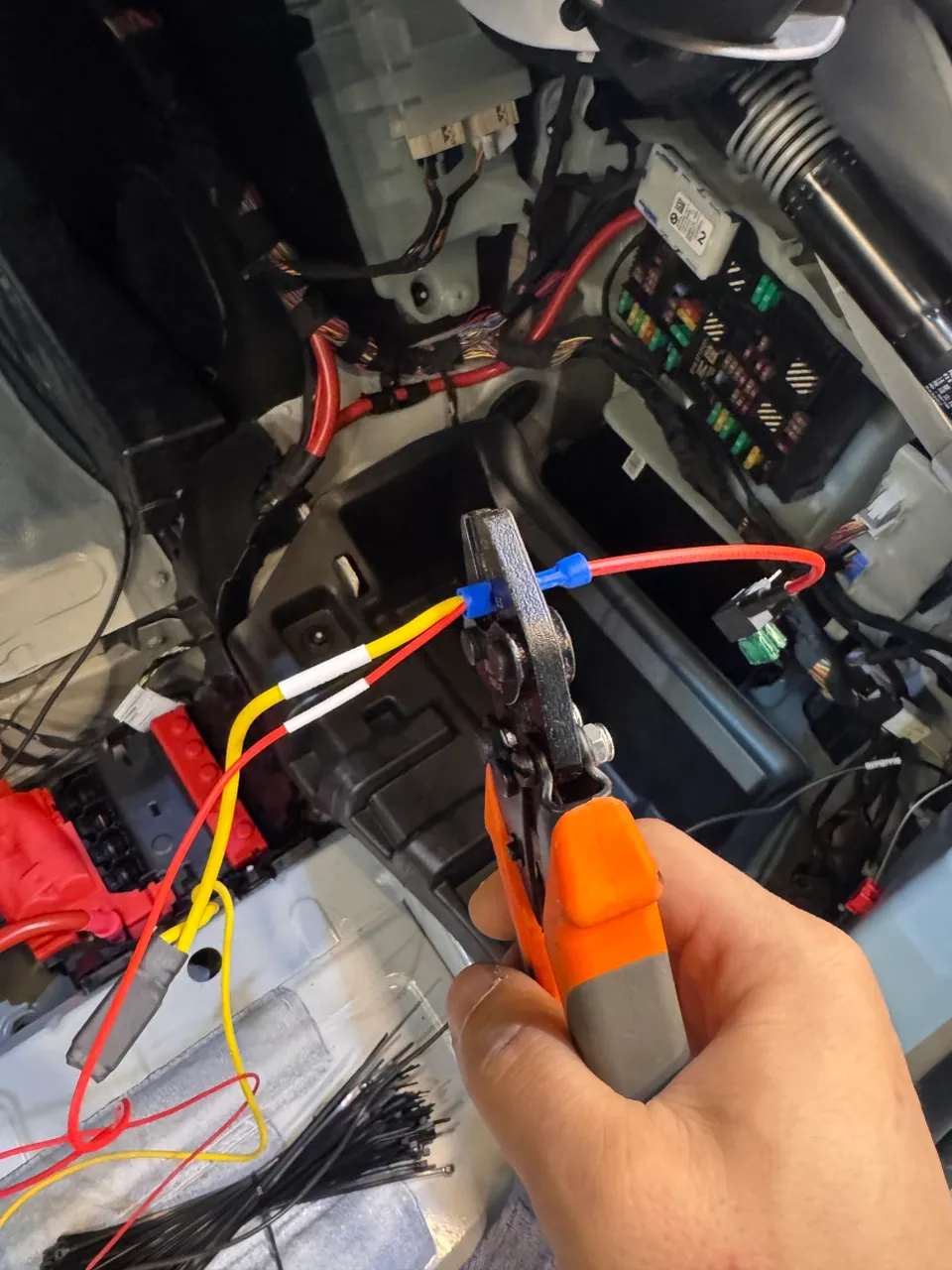

3. Power Bank Integration: The power bank was discreetly installed, often under the dashboard or in a similar hidden location, and connected to the vehicle's power source for charging when the engine is running. It was then wired to power the dash cam system.
4. System Testing and Final Touches: After all connections were made, the system was powered on to test all camera feeds, recording functions, and the power bank's charging and discharging capabilities. Any excess wiring was neatly secured and hidden, completing the installation for a seamless look and reliable operation.
