BMW 5 Series G30 360 Camera Review: Cost & Results

Why Retrofit a Surround View Camera on Your BMW 5 Series G30?

For a premium sedan like the BMW 5 Series G30, a 360-degree Surround View Camera system is becoming a standard feature. This technology, which visualizes blind spots using multiple cameras, is often included as an option in newer vehicles. However, if your G30 model, especially an earlier one or one without the top-tier options, didn't come equipped with it, a retrofit is a viable solution. The most critical aspect of this upgrade is using genuine BMW parts combined with precise electronic integration. Opting for used parts or non-compatible ECUs can lead to system errors, distorted video feeds, and even impact your vehicle's safety functions. This review of a BMW G30 Surround View Camera installation highlights why a genuine parts retrofit is essential.

The Importance of Genuine Parts for Your 360 Camera

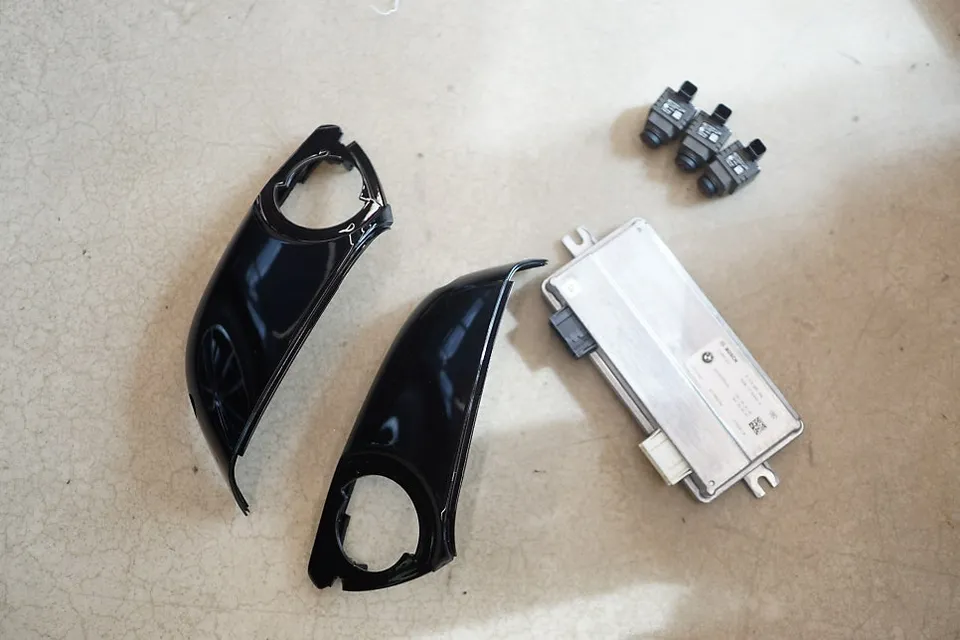

The core of any reliable Surround View system lies in the precision of its components and software compatibility. Using low-cost, aftermarket cameras can result in lens distortion, inconsistent sensor signals, and frequent ECU errors. In the case of this BMW G30 installation, all components—including the front grille camera housing, ECU control unit, and side mirror covers—were genuine BMW parts. The ECU, acting as the system's brain, processes real-time video data from three cameras to render a 3D bird's-eye view. A poorly compatible ECU can destabilize the entire system. If your vehicle already has a rear camera, it can often be integrated, but its angle and sensor signals must be recalibrated for the Surround View system. This ensures seamless interaction between the existing rear camera and the new front and side cameras. The camera lenses themselves are crafted from high-quality optical glass, offering superior resistance to moisture, dust, and light distortion. This ensures clear video output in various weather conditions, crucial for accurately detecting obstacles during parking and enhancing overall safety.

BMW G30 Surround View Camera Installation Process

The installation involves several key steps to ensure a factory-like finish and optimal performance:

1. Front Grille Modification: This is a delicate process requiring precise drilling of the front grille. The hole must be perfectly centered and sized to accommodate the front camera without compromising the vehicle's aesthetics. A skilled technician ensures the camera is flush-mounted within a custom bracket, making it appear as if it were a factory-installed option. The exterior quality is determined at this stage.

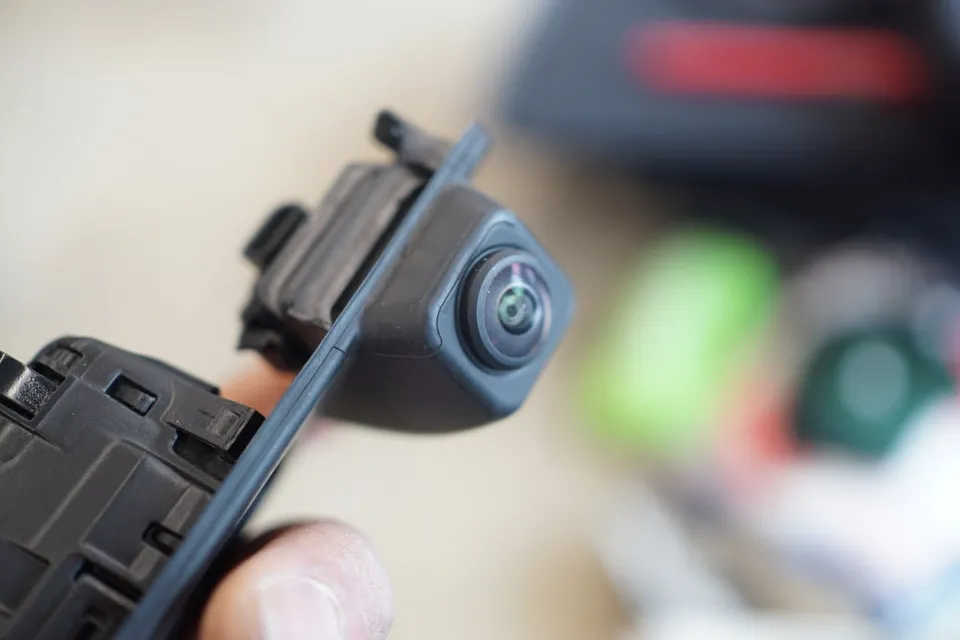

2. Side Camera Installation: Wide-angle cameras are mounted beneath the side mirrors. These cameras capture the vehicle's flanks, providing crucial distance information in tight spaces like narrow alleys or during valet parking. If a rear camera was pre-existing, its integration requires recalibrating its angle and sensor signals to synchronize with the new system. This step showcases the technician's experience and understanding of the vehicle's electrical system.
3. Interior Wiring: Door panels are carefully removed to route the signal cables from each camera to the trunk-mounted ECU. This internal wiring is concealed to maintain the car's interior appearance.
4. ECU Integration and Calibration: The new ECU is installed and integrated with the vehicle's existing systems. Software calibration is performed to ensure all cameras work together seamlessly, displaying a cohesive 360-degree view on the infotainment screen. This step is vital for system stability and accurate image rendering.

This comprehensive installation ensures that the Surround View Camera system functions flawlessly, providing enhanced visibility and confidence for the BMW G30 driver.
