BMW 6 Series GT Lighting Upgrade Review: Cost & Results

BMW 6GT Daytime Running Light Issues and Solutions

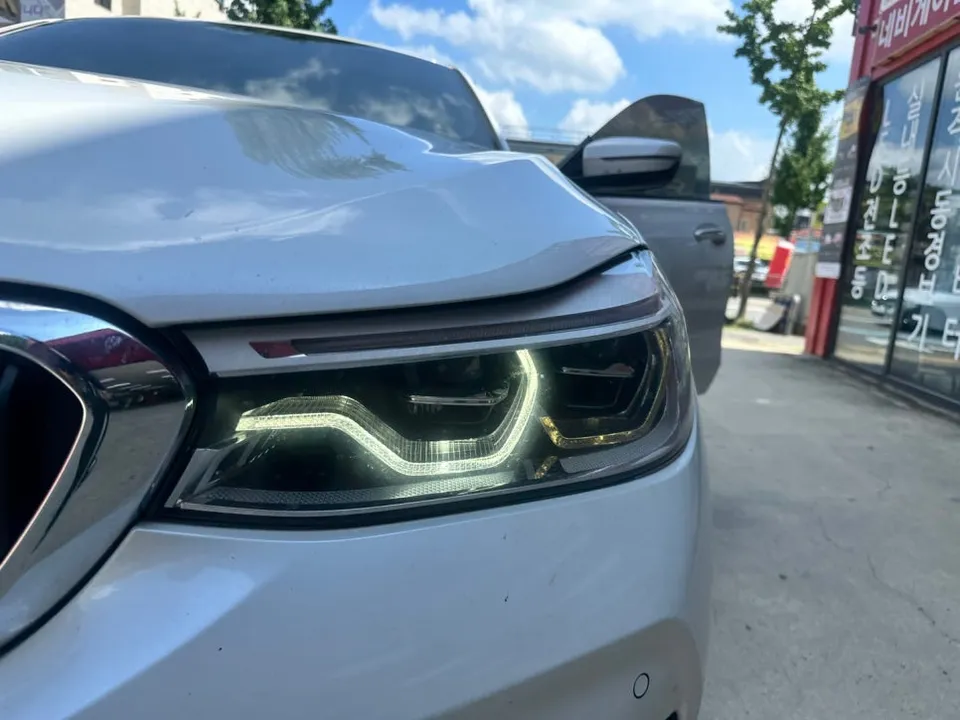

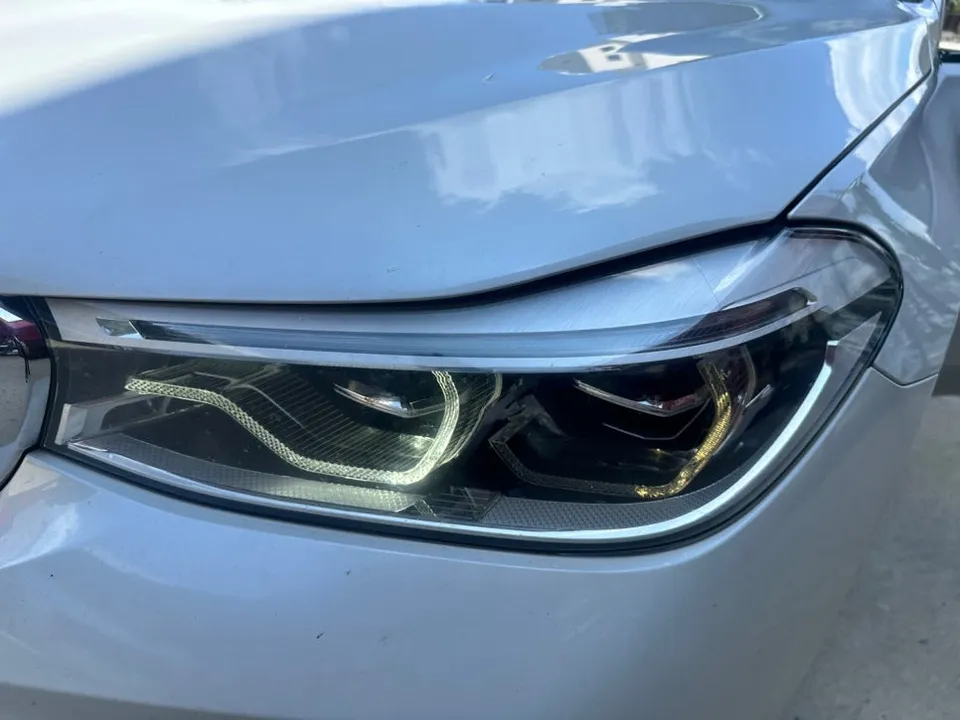

Many BMW G-series owners, including those with the 2018 BMW 640d F06 model, encounter common issues with their daytime running lights (DRLs). These problems often manifest as a dim or uneven glow, with only half the light strip illuminating, or a noticeable yellowing (hazing) across the entire unit. When you start the car, the lights might appear faint, and the outer LED line often looks significantly dimmer than the inner section. This degradation is primarily caused by the acrylic material used in the DRLs becoming discolored and the internal LEDs failing over time due to prolonged exposure to heat and the elements. While dealerships or general repair shops might quote a full headlight assembly replacement, which is very expensive, many owners seek more cost-effective repair solutions. This review details a precise repair method performed at the 'O-neul-ui-ka' (Today's Car) Daejeon branch in Korea, offering a significantly cheaper alternative to full replacement.

Precise DRL Repair Instead of Full Headlight Replacement

At 'O-neul-ui-ka' Daejeon, the focus is on repairing only the faulty DRL section without replacing the entire headlight unit. Two main repair approaches are available: replacing the discolored acrylic with new material or modifying the existing acrylic and replacing the internal LEDs. For this BMW 6GT, the team opted for the 'acrylic modification and LED replacement' method. This approach is more cost-effective than a full acrylic replacement. The process involves precisely shaping the melted and discolored acrylic sections and then swapping out only the failed LEDs. While this method offers significant cost savings, it's important to note potential drawbacks. There might be a slight reduction in brightness compared to the original state, and achieving a perfectly white, like-new light can be challenging due to the acrylic's history of heat exposure and discoloration. If only one headlight's acrylic is replaced with a new one, a noticeable color difference between the left and right sides can occur, making the car look unnatural. Therefore, considering the condition of both DRLs, the acrylic modification method is often chosen for its economic benefits. While recurrence is possible, adjustments to the DRL brightness through coding can minimize these issues, preventing unnecessary rework and enhancing customer satisfaction.

BMW 6GT DRL Repair Process

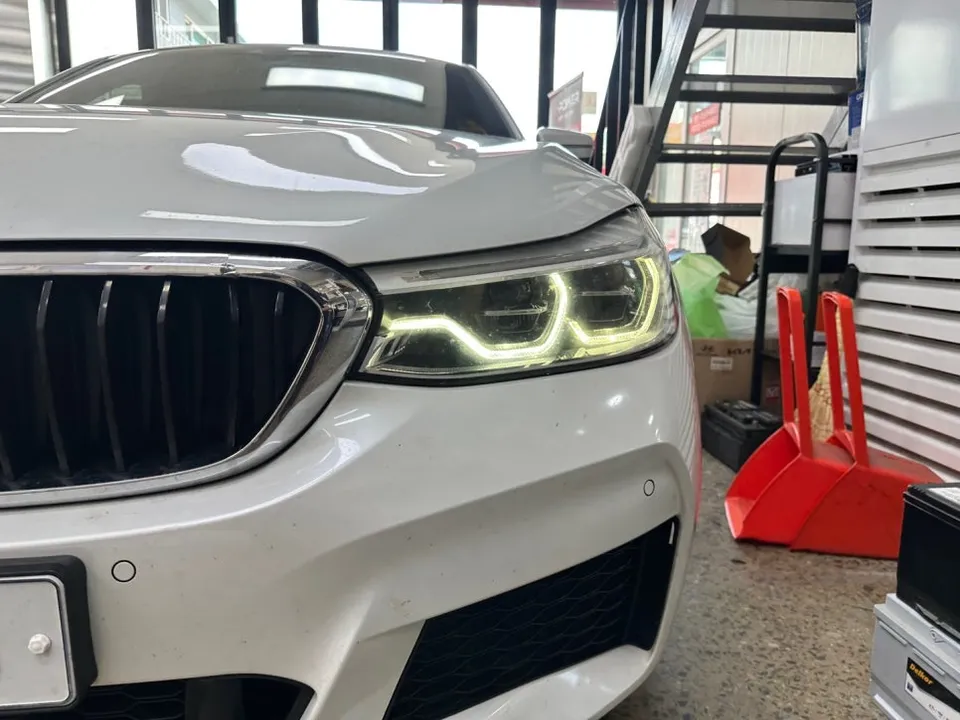

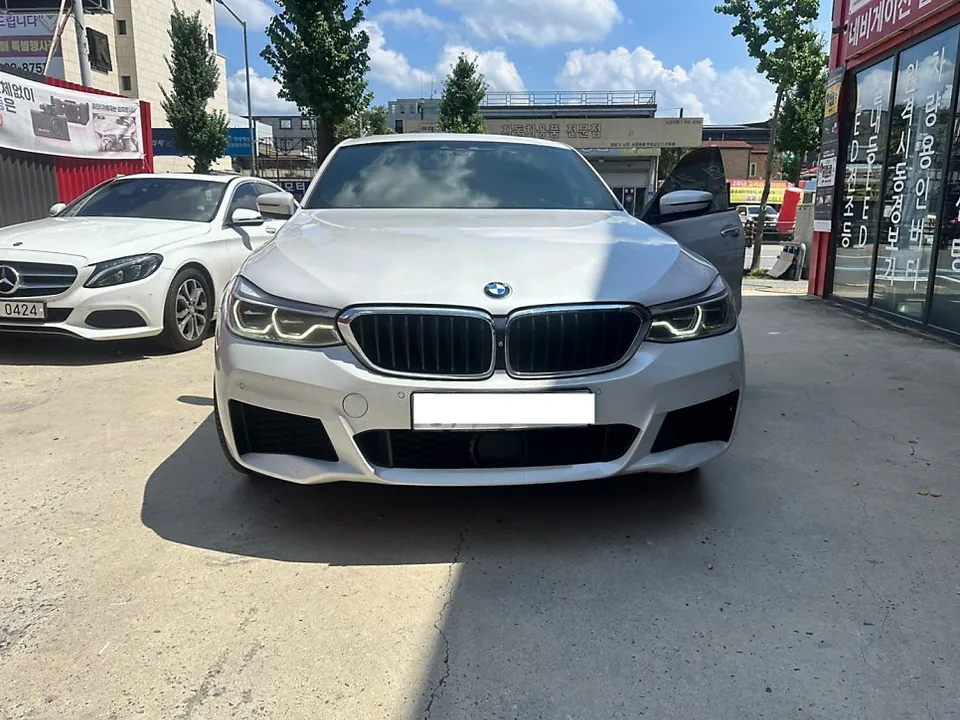

The repair process begins with a thorough inspection of the vehicle's DRLs. For the BMW 6GT, the driver's side DRL was examined, noting the dim or non-functional outer LED line and the overall yellowed appearance. For safety, the headlight assembly is carefully removed from the vehicle. Inside, the discolored acrylic sections are precisely machined, and the faulty LED modules are detached. Following this, new LEDs are installed, and the assembly is sealed to ensure it's weatherproof. Finally, the repaired headlight unit is reinstalled on the vehicle, and a post-repair check confirms the DRLs are functioning correctly, with both the inner and outer LED lines illuminated evenly and brightly. The entire process typically takes around 2 to 3 hours.

Installation process:

1. Carefully remove the headlight assembly from the BMW 6GT.
2. Precisely machine the discolored acrylic sections of the DRL.
3. Remove and replace the faulty LED modules within the DRL.
4. Reassemble and seal the headlight unit to ensure weatherproofing.
5. Reinstall the headlight assembly onto the vehicle and perform a final function check.
