BMW i5 Wheel Repair Review: Powder Coating for Deep Damage

BMW i5 Wheel Repair: Why It's Essential

The BMW i5, built on an advanced electric platform, boasts a sophisticated design where the wheels play a crucial role. However, like any vehicle, the i5 is susceptible to wheel damage from road debris or accidental contact with curbs. Deep scratches and paint chips on the alloy wheels, especially on complex designs, cannot be resolved with a simple wash. This review details the comprehensive wheel repair and painting process for a BMW i5 at 'Today's Car Busan' in Korea, focusing on how deep damage was perfectly restored using powder coating.

Vehicle: BMW i5 (G60)
Service: Wheel Damage Restoration (Powder Coating)

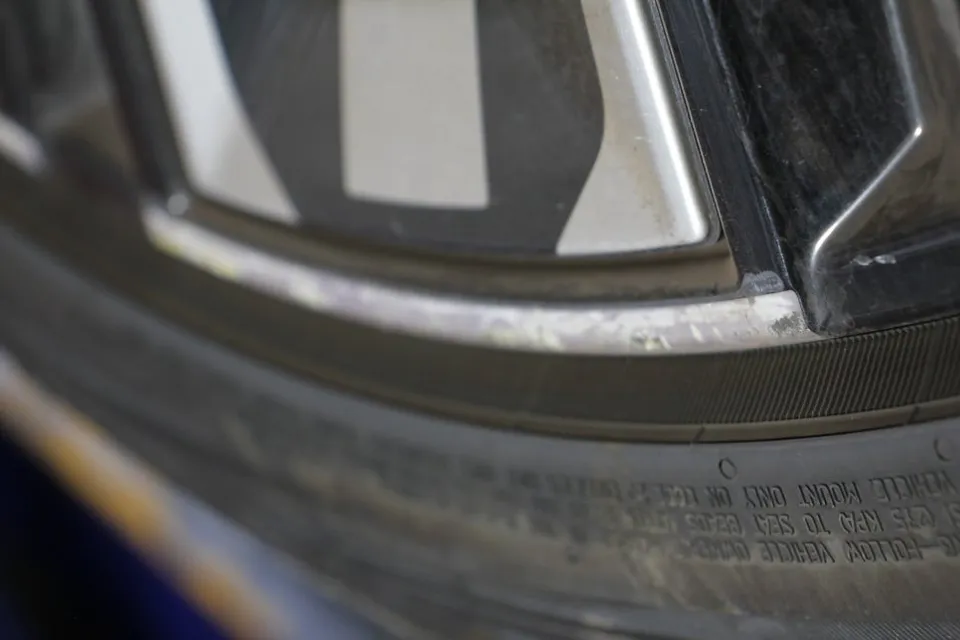

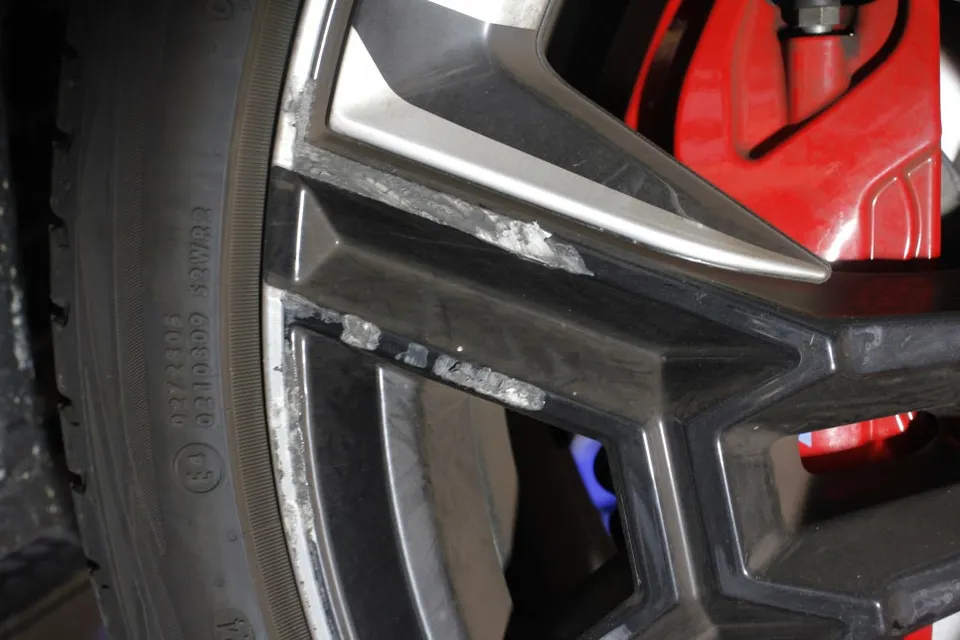

Damage Type: Deep scratches, paint peeling
Method: Powder Coating
Affected Area: All 4 wheels
Location: Today's Car Busan
Duration: Approx. 12-14 hours (including drying)

Why Choose Powder Coating for Wheel Repair?

Wheel damage typically stems from two common scenarios: small stones and debris encountered during driving, and curb contact during parking. Modern wheel designs, like those on the BMW i5, often feature intricate curves, increasing the likelihood of multi-point damage from a single incident. For damage that goes beyond superficial paint scuffs to expose the metal substrate, standard spray painting has limitations. Spray paint offers only a surface coating that may not last. Powder coating, a process where powdered paint is electrostatically applied and then cured at high temperatures, creates a significantly thicker and harder protective layer. This results in superior durability against everyday wear, scratches, and car washes compared to conventional paint methods.

The Powder Coating Process: Step-by-Step

1. Damage Assessment: Specialists meticulously inspect the wheel to determine the extent and depth of the damage. In this BMW i5 case, both the alloy disc and plastic trim components were affected. While plastic parts can be challenging to refinish, the alloy sections are ideal candidates for powder coating restoration.

2. Wheel Disassembly & Surface Preparation: The damaged wheels are removed from the vehicle, and any attached components are detached. The surface is then thoroughly cleaned, with old paint, rust, and damaged material meticulously removed using grinders and sandpaper. This critical step ensures optimal adhesion and finish, often involving over 200 sanding passes to achieve a perfectly smooth surface.

3. Powder Application & Curing: The prepared wheel surface is electrostatically coated with powdered paint, ensuring an even layer approximately 80-150 micrometers thick. The wheel is then placed in an oven and heated at 190-250°C for about 10-15 minutes. This high temperature melts and fuses the powder into a robust, hard coating, typically achieving a hardness of 3H-4H, surpassing standard automotive paint hardness.

4. Cooling & Finishing: After curing, the wheels undergo a slow, natural cooling process for at least 2-3 hours to prevent stress cracks in the newly formed coating. Once cooled, the wheels are inspected for quality and reassembled before being refitted to the vehicle, restoring the BMW i5's aesthetic appeal and protecting the wheels from future damage.
