BMW X5 G05 Wheel Repair & Painting Review

Why Your BMW X5 G05 Needs Wheel Repair

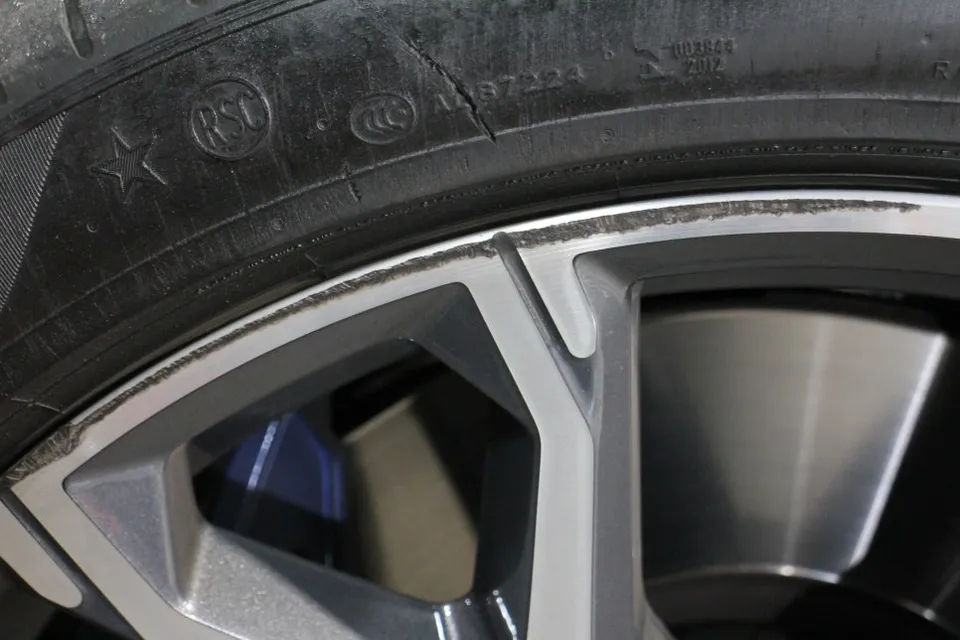

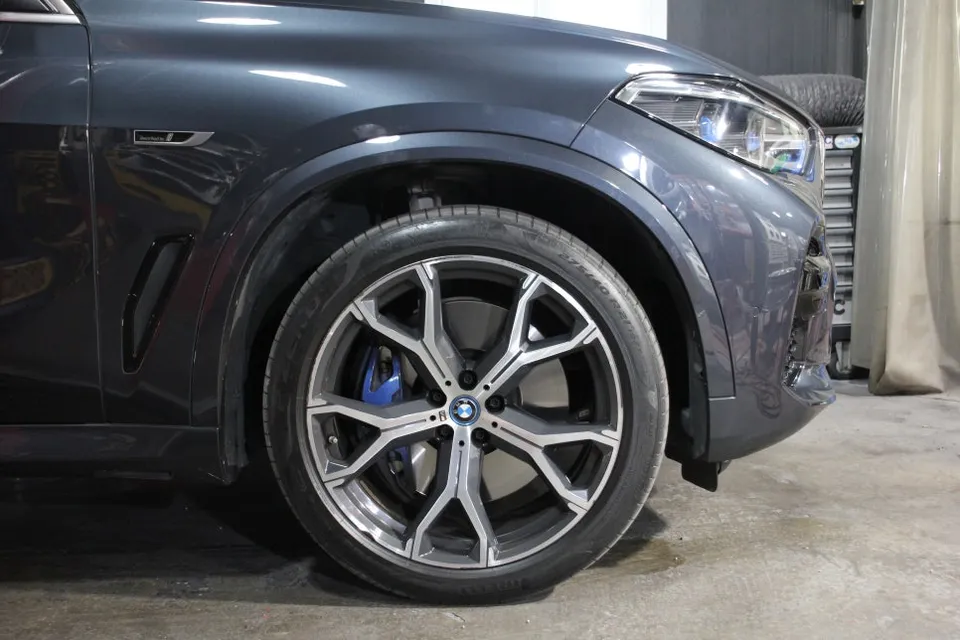

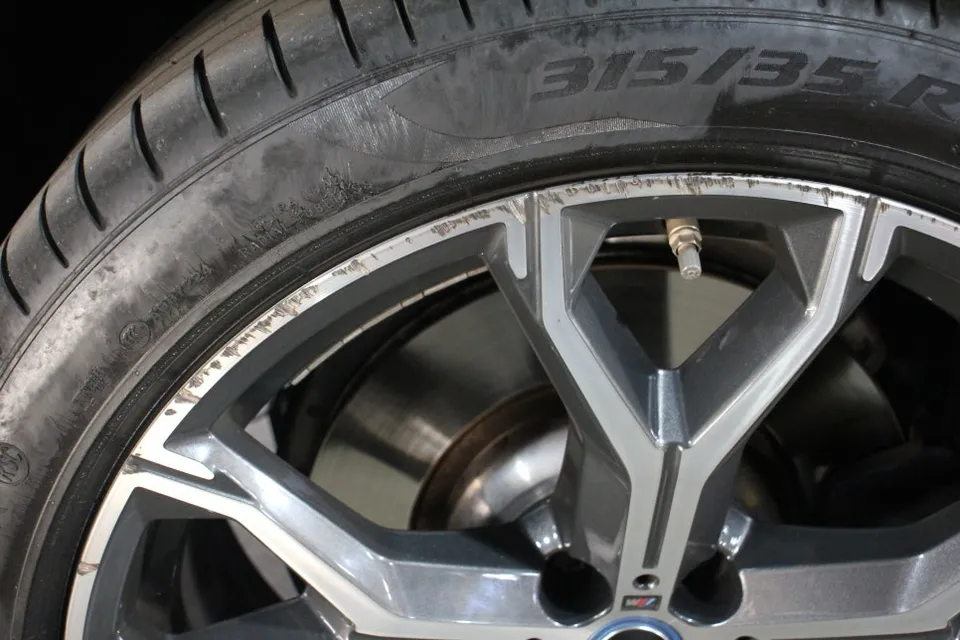

Wheel damage is an unfortunate reality of driving, especially for premium vehicles like the BMW X5. When the wheels on your X5 are compromised, it significantly detracts from the car's luxurious appearance. In this case, the vehicle had already undergone previous repairs, making a complete redesign with a new finish the primary goal rather than simply returning it to its original state.

The chosen solution was a gloss black powder coating. This wasn't just about a plain black finish; the aim was to create a look that would make the M Performance calipers and hybrid wheel caps stand out, elevating the vehicle's aesthetic.

Gloss Black Powder Coating vs. Standard Polyurethane Paint

Wheel painting methods generally fall into two categories: 'polyurethane painting,' which involves spraying liquid paint, and 'powder coating,' where powdered paint is applied electrostatically.

The key advantage of powder coating is its consistent film thickness, typically a uniform 150-200 micrometers (㎛). This results in a very hard finish, often exceeding 3H on the Mohs hardness scale. In contrast, polyurethane painting can have variations in thickness depending on the spraying technique, potentially affecting durability even under similar conditions.

Another significant difference lies in the surface finish. Powder coating produces a smooth, glossy surface that truly excels at achieving a high-gloss look. This is particularly effective when details like M logos or calipers need to pop, as seen on this BMW X5. While polyurethane can also achieve a gloss finish, it's challenging to replicate the deep, rich blackness offered by powder coating.

Finally, longevity is a crucial factor. Powder coating typically lasts between 3 to 5 years, and with proper care, can even extend beyond 5 years. Polyurethane coatings generally have a shorter lifespan, usually around 2 to 3 years.

The Wheel Restoration Process for a BMW X5 G05

This particular BMW X5 had a history of previous repairs. Therefore, the process began with 'stripping,' which completely removes the old paint layers. During this stage, any existing damage and surface imperfections on the wheel were identified, and filler was applied where necessary to ensure a perfectly flat surface.

Next came the surface preparation. The wheels were initially sanded with 800-1000 grit sandpaper, followed by a finishing polish with 1500 grit or higher. This meticulous sanding process significantly improves the adhesion of the powder coating.

Following sanding, a primer coat was applied. This is a critical step that enhances the bond between the wheel's aluminum material and the final powder coat finish.

The powder coating application itself involved using an electrostatic gun to spray the gloss black powder onto the wheels. The electrostatic charge ensures an even distribution of the coating. Precise control over the spray distance and angle is vital; too close can cause runs, while too far prevents proper adhesion.

Once coated, the wheels were placed in a curing oven and heated at 150-180 degrees Celsius for approximately 10-15 minutes. This heat causes the powder coating to melt, flow, and fully cure, forming a durable layer with a hardness of 3H or more.

While the wheels cooled, any necessary finishing touches, such as detailing around logos or valve stem holes, were completed. For this BMW X5, special attention was paid to ensure the M Performance logo and hybrid wheel caps were highlighted.

The final stage is natural curing. Even after oven curing, powder coating requires about 48 hours of natural cooling and further hardening to reach its ultimate durability.
