Hyundai i40 Lighting Upgrade Review: Cost & Results

Hyundai i40 Daytime Running Light Issues & LED Upgrade Solutions

The Hyundai i40 is known for a common, persistent problem: daytime running light (DRL) failure. Often, one side will go out first, eventually leading to both lights failing. This is a frequent reason for vehicles failing their mandatory safety inspections. If you own an i40, understanding this issue and its solutions is crucial.

Fortunately, a complete headlight replacement isn't always necessary. While many repair shops recommend replacing the entire headlight module, the issue can often be resolved by repairing or replacing just the LED components or internal parts. This partial repair significantly lowers the cost compared to a full module swap.

This guide covers: the causes of i40 DRL failure, a cost comparison between dealership and partial repair, the actual repair process and outcomes, and maintenance tips for passing inspections.

Understanding the i40 Headlight Weakness

The DRL failure in the i40 isn't just a simple LED defect. The primary cause is often moisture ingress into the headlight module. Over time, the seals can degrade, allowing water from rain or car washes to enter, leading to corrosion on the LED base or internal circuitry. Additionally, the i40's headlight design can lead to concentrated heat buildup, especially in warmer months. Significant temperature differences between the interior and exterior of the headlight can cause condensation, which, if repeated, can damage electronic components. This structural weakness explains why this fault is common in certain i40 model years, particularly those from the early to mid-2010s.

Diagnosing DRL Issues Before Repair

In typical repair cases, you might see one DRL completely out while the other flickers weakly. These symptoms indicate partially damaged LED elements or oxidized electrical contacts. Diagnosis is straightforward: if the DRLs are out or very dim when the engine is on at night, suspect a fault. A completely non-functional DRL will cause a failed inspection.

Hyundai i40 DRL Partial Repair Process

The repair process begins with removing the headlight assembly from the vehicle. For the i40, this is usually done by releasing clips located behind the bumper, allowing for straightforward removal. The work on one side typically takes about 30-40 minutes.

1. Headlight Removal: Carefully detach the headlight assembly from the vehicle.
2. Internal Cleaning & Repair: Open the headlight lens to access the internal components. Clean the LED contacts or replace damaged LEDs. Moisture is also removed at this stage. Using a high-grade contact cleaner (like isopropyl alcohol) can remove oxidation and restore conductivity to broken circuits.
3. LED Replacement (if needed): If an LED element is completely burnt out, it's replaced with a new one of the correct specification. Using LEDs with a color temperature between 4500K and 5500K ensures a consistent color match with the other lights.

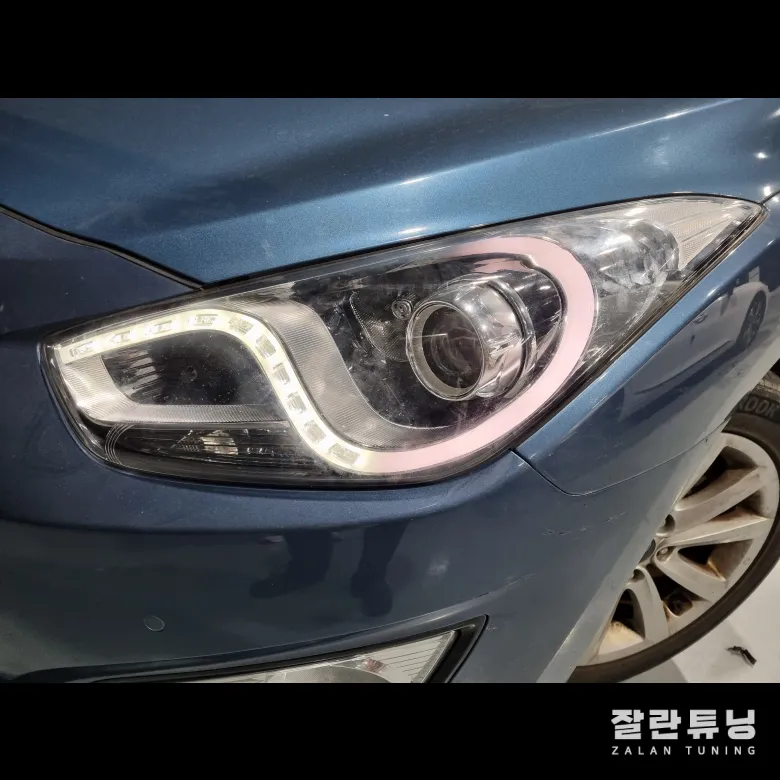

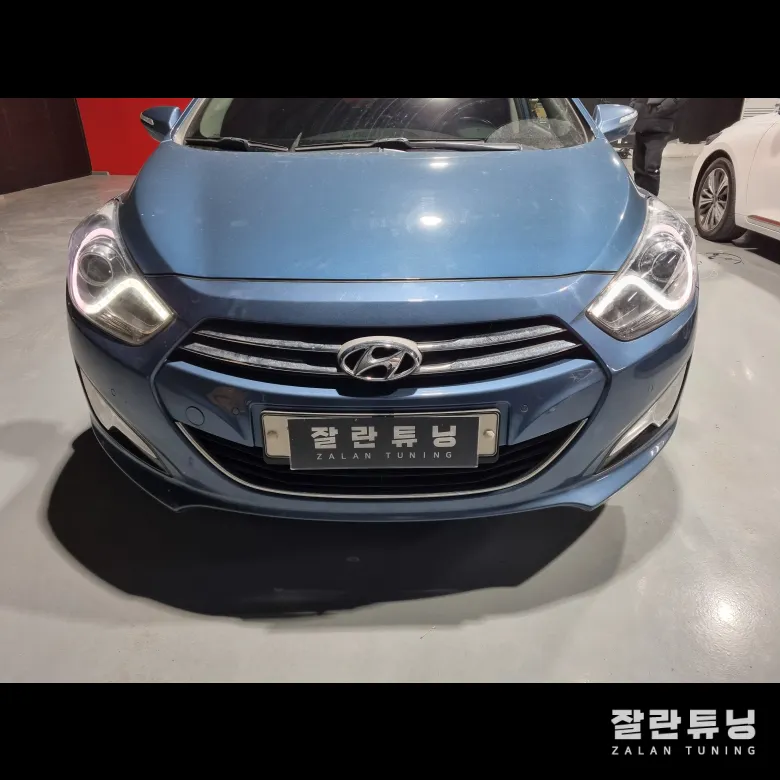

4. Reassembly & Sealing: After reassembly, a lighting test is performed to ensure both DRLs illuminate with equal brightness. To prevent future moisture intrusion, the lens mating surfaces are resealed with automotive-grade silicone sealant.

Repair vs. Replacement: Cost and Durability

Opting for a partial repair of the DRLs on your Hyundai i40 can be significantly more cost-effective than replacing the entire headlight module. While a full module replacement at a dealership could cost upwards of $500-$800 (or more, depending on the region), a partial repair typically ranges from ₩130,000 to ₩180,000 in Korea, which is approximately $115–$150 USD. This price includes labor and parts for fixing the LED elements and seals. The durability of a repaired DRL system is generally good, provided the moisture ingress issue is properly addressed and the seals are renewed. With proper maintenance, these repairs can last for several years, ensuring your i40 passes inspections and maintains its appearance.
