Kia K5 1st Gen Lighting Upgrade Review: Cost & Results

Kia K5 1st Gen Taillight Issues: Common Causes and Solutions

Many Kia K5 1st Gen owners experience recurring issues with their trunk taillights, ranging from complete darkness to flickering or one side not illuminating. These problems are not only annoying but can also lead to failure during mandatory vehicle inspections. While a cracked lens might necessitate a full replacement, internal electronic board damage often presents a more cost-effective repair opportunity. This review details a successful taillight board repair for a Kia K5 1st Gen, demonstrating how to efficiently resolve these common lighting faults.

Diagnosing and Repairing Taillight Board Failures

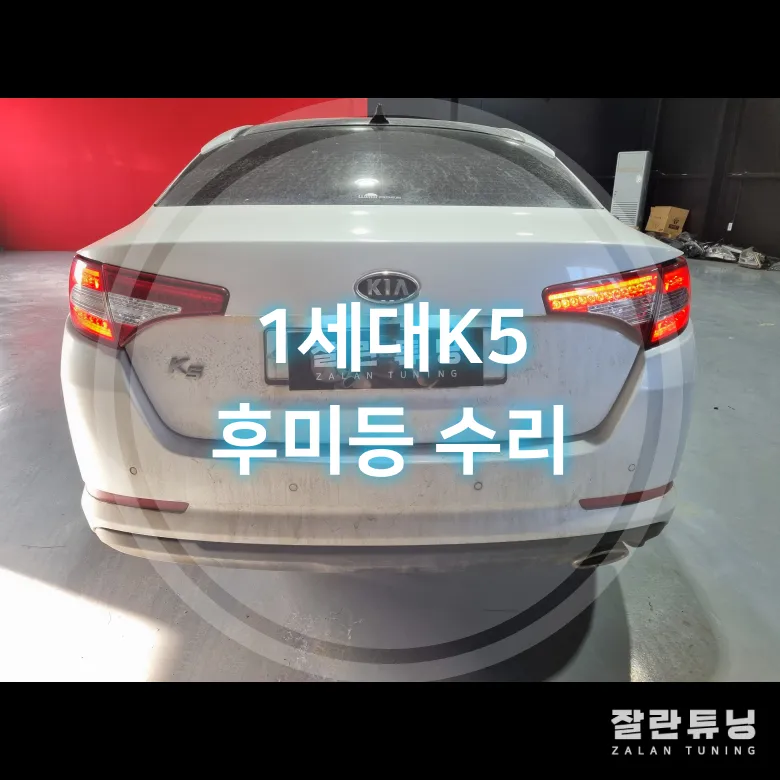

The process began with removing the entire trunk taillight assembly from the Kia K5. Inspection revealed no damage to the outer lens, indicating the issue stemmed from the internal electronic board. Upon disassembly, it was clear that the soldering points, particularly around the LED circuits, had failed, causing intermittent contact and light malfunctions. Replacing the entire taillight unit can be prohibitively expensive, making a targeted board repair a much more attractive option.

Installation process:

1. Board Cleaning: The damaged soldering points on the circuit board were meticulously cleaned to remove any dust or oxidation, ensuring a reliable new connection.
2. Resoldering: Using a specialized soldering iron at temperatures between 250-300°C, the faulty connections were carefully reworked. Precise temperature and time control (around 15-20 minutes per point) are crucial to prevent board damage. A shiny, silver finish indicates a successful solder joint.
3. Waterproofing: After successful soldering, the repaired area was coated with a transparent sealant or epoxy. This step is vital for preventing moisture ingress, which is a common cause of long-term electronic failures in taillights, especially in humid conditions.

Testing, Reassembly, and Final Verification

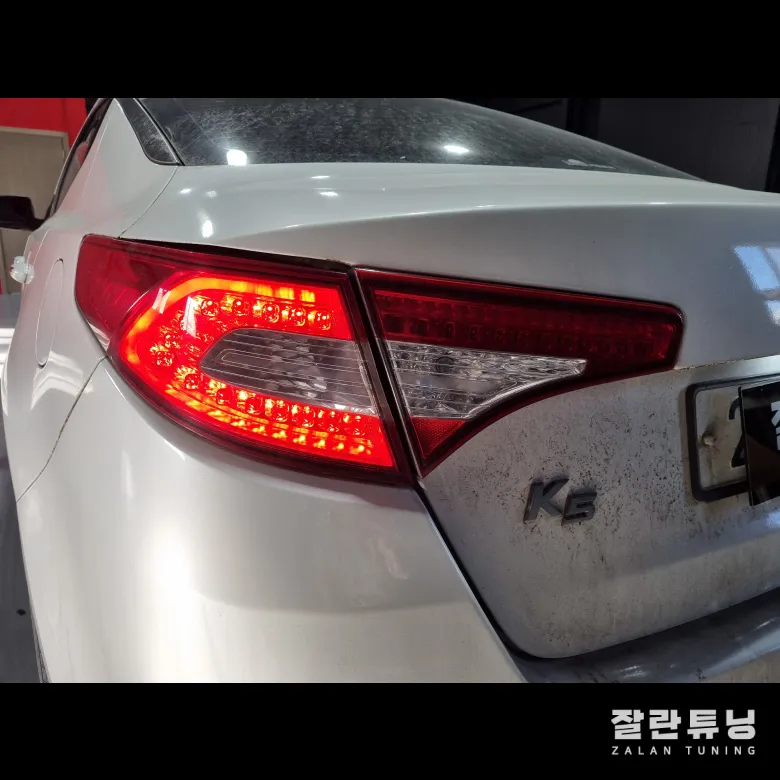

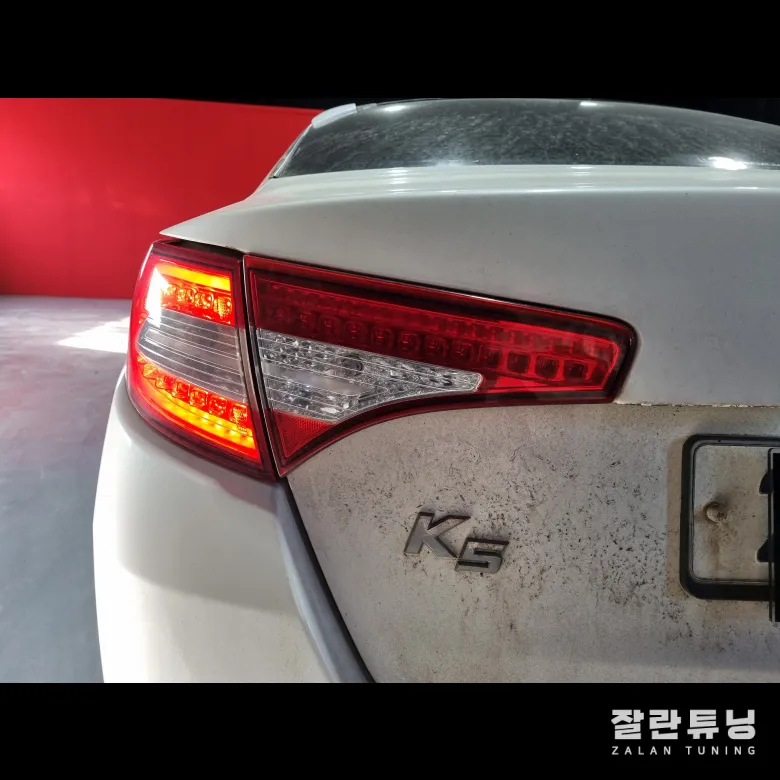

Following the board repair and waterproofing, a critical step is testing the LED circuits. A 12V power source is applied to ensure all LEDs illuminate uniformly and without flickering. If any issues persist, further resoldering is required. Once confirmed functional, the repaired board is reassembled with the taillight lens. Ensuring the rubber gasket is properly seated is essential to maintain a watertight seal and prevent future moisture problems. Finally, both taillight units were reinstalled on the Kia K5, and all functions—brake lights, running lights, and turn signals—were tested multiple times. The previous flickering and uneven illumination issues were completely resolved, confirming the success of the repair.

Cost-Effectiveness and Durability of Taillight Repair

The entire repair process for the Kia K5 1st Gen taillights took approximately 1 to 1.5 hours. While a simple fix for one side might be quicker, addressing both units or more complex damage could extend the time to around 2 hours. The cost savings are significant: while a new OEM taillight assembly can range from ₩300,000 to ₩450,000 (approximately $220-$330 USD) each, this board repair typically costs between ₩50,000 and ₩80,000 (approximately $35-$60 USD) per side. Even repairing both units would cost around ₩100,000 to ₩150,000 ($75-$110 USD), making it a far more economical choice than replacement. Furthermore, this repair does not affect the vehicle's history report, unlike a component replacement.
