Land Rover Defender Lighting Upgrade Review

Understanding Land Rover Defender LED Lamp Failures

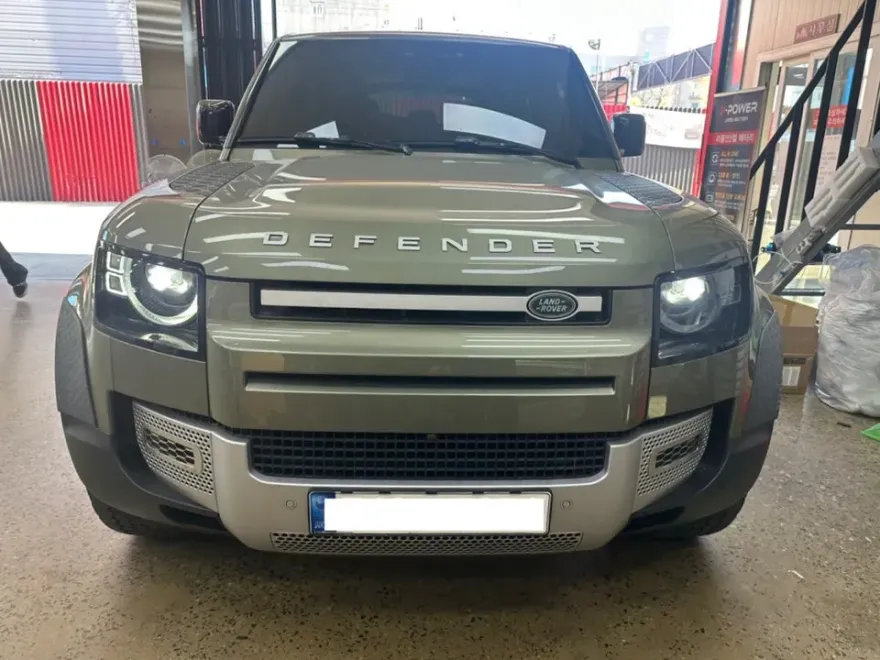

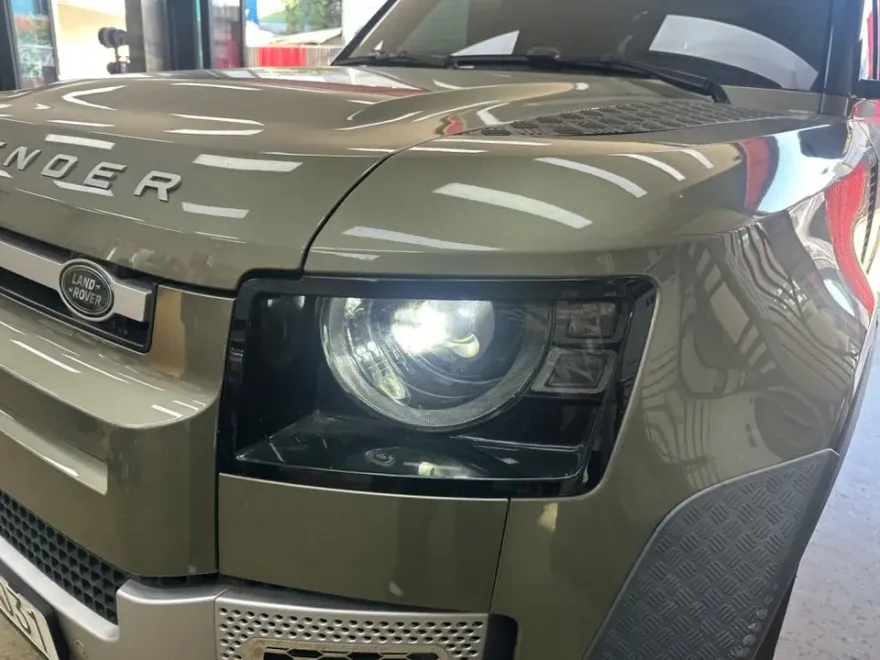

Many Land Rover Defender owners have encountered issues with their LED daytime running lights (DRLs) and other integrated lighting modules. A common symptom is one side's DRL failing completely, while the other remains functional, even when headlights are on. This often points to an internal failure within the LED module itself. Interestingly, this problem can occur even on vehicles that have previously undergone warranty repairs for similar issues. The root cause is frequently attributed to inadequate heat management within the headlight assembly, leading to the acrylic components degrading or the LED modules themselves failing. For owners outside of warranty, the high cost of replacement headlights from the dealership—sometimes approaching $3,000 USD per unit—makes professional repair a much more attractive option. As warranty periods approach expiration, even extended warranty vehicles are increasingly presenting with these same symptoms, highlighting a persistent design concern.

Cost and Time for Defender Lighting Repairs

While exact pricing varies based on the specific diagnosis and the extent of the repair needed, professional servicing for Land Rover Defender LED lamps can significantly reduce costs compared to full replacement. Based on owner feedback, a typical repair for LED lamp issues can range from approximately ₩200,000 to ₩400,000 KRW (roughly $150-$300+ USD). Factors influencing the final price include the specific Defender model, whether only the DRLs or other lighting elements like side marker lights are affected, the quality of replacement components used, and the labor rates at the chosen service center. The repair process itself can be intricate due to the sealed nature of the headlight units. However, for experienced technicians, the task of disassembling, repairing, and reassembling one headlight unit typically takes around 2.5 hours. This timeframe can fluctuate depending on the vehicle's condition and the complexity of the repair.

The LED Lamp Repair Process

Repairing the LED lighting modules in a Land Rover Defender involves more than just swapping out a bulb; it requires a meticulous disassembly and reassembly of the entire headlight unit. The process begins with carefully separating the acrylic lens from the headlight housing. This can be challenging as they are often bonded with a strong, heat-resistant silicone adhesive, demanding specialized tools and expertise to avoid damage. Once the housing is open, the damaged LED module is repaired or replaced. Following the repair, the unit must be meticulously resealed using a hot-melt adhesive to ensure a watertight and dustproof seal, crucial for long-term durability and preventing moisture ingress. After reassembly and sealing, the repaired headlight unit is reinstalled, restoring the vehicle's distinctive daytime running lights and overall lighting functionality.

Installation process:

1. Careful disassembly of the headlight unit to access internal components.
2. Repair or replacement of the faulty LED module.
3. Thorough cleaning and preparation of sealing surfaces.
4. Reassembly and sealing of the headlight unit with specialized adhesive to ensure water and dust resistance.
5. Reinstallation of the repaired headlight assembly onto the vehicle.
