Mercedes-Benz E220 Around View Monitor Installation

Mercedes-Benz E220 W213: Overcoming Parking Blind Spots

Even premium vehicles like the Mercedes-Benz E220 W213 are susceptible to blind spots, especially with their larger body styles. Many drivers experience anxiety when parking, constantly questioning if there's an obstacle behind or a pedestrian nearby. This concern intensifies in tight urban environments like narrow alleyways or busy intersections. To address this, the owner opted for an around view monitor installation for their Mercedes-Benz E220. This upgrade provides a comprehensive, premium parking solution.

The Necessity of 360-Degree Visibility

Constantly being aware of unseen areas around the vehicle is mentally taxing, particularly during demanding city driving. An around view system fundamentally resolves this issue, which is why it's a standard high-end option on many luxury cars. By displaying a real-time 360-degree view of the car's surroundings, it significantly reduces the risk of collisions. The system installed in this E220 is the domestically verified OmniView NS model. It utilizes four ultra-wide-angle cameras (185 degrees each) positioned around the vehicle to create a synthesized top-down view. Crucially, a calibration process, known as 'empty load correction,' is performed to ensure the accuracy of the camera angles and distances, resulting in a precise surround view.

Mercedes-Benz E220 Around View Monitor Installation Process

The original NTG-4500 navigation system in this E220 is not designed to display around view footage. Therefore, a supplementary 5-inch rearview mirror monitor was installed and conveniently placed next to the steering wheel for easy access. This setup ensures seamless integration of the new parking assistance technology.

Camera Placement and Calibration

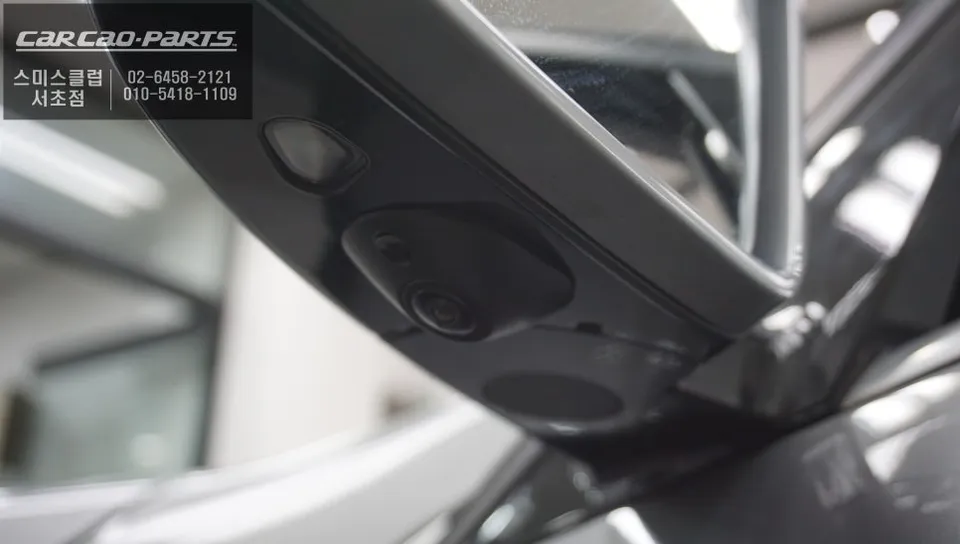

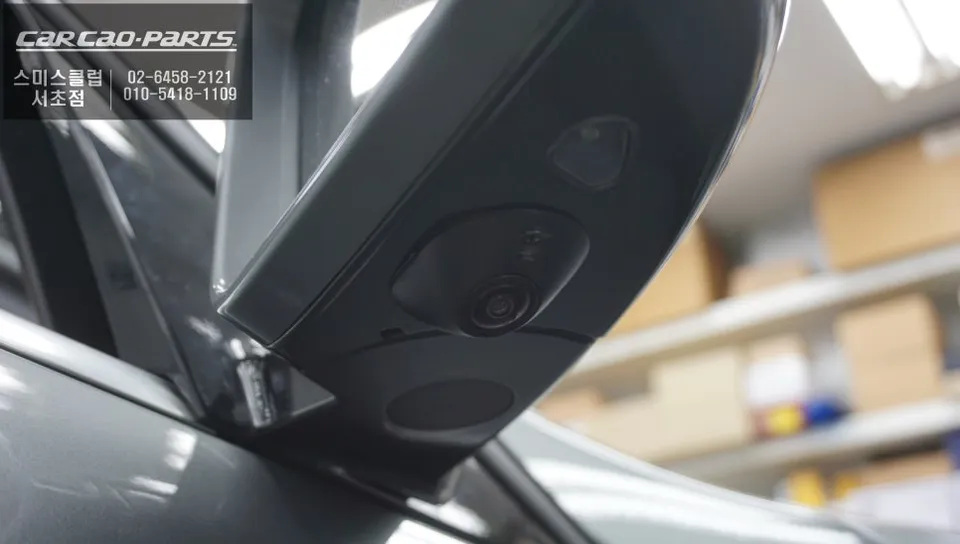

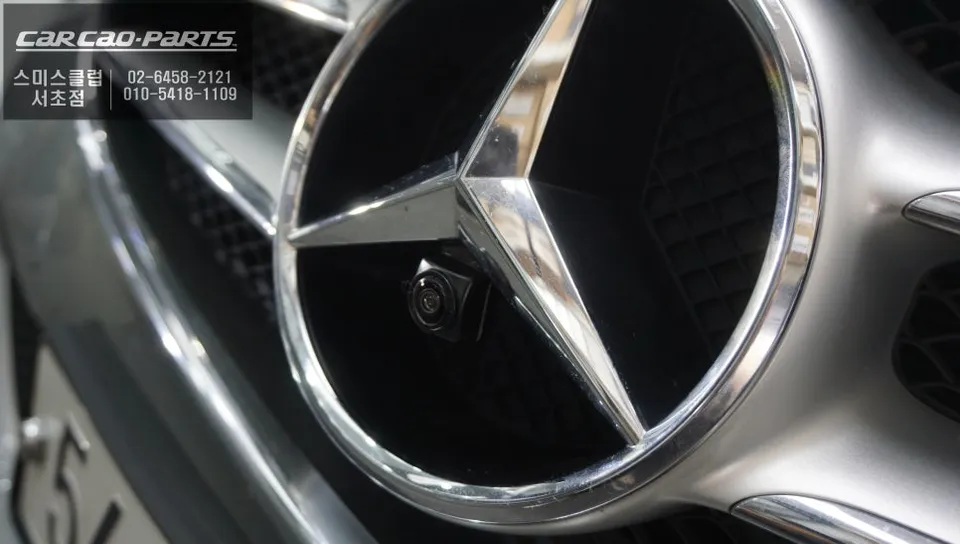

The installation begins with precisely mounting the cameras on the front, rear, and both sides of the vehicle. This is not merely an attachment process; it requires meticulous adjustment of each camera's angle and position down to the millimeter. This precision is vital for the four individual camera feeds to be accurately stitched together into a single, cohesive top-down perspective. This critical step is called empty load correction, and it directly determines the overall accuracy and usability of the surround view system.

Monitor Integration and Functionality

Integrating the around view system with the Mercedes-Benz's native electronics involves complex programming. For this E220, the system was configured to automatically display the front view when in Drive (D) and the rear view when in Reverse (R), reverting to the original display after a set period. The driver can also manually activate the 5-inch monitor by pressing a dedicated button near the steering wheel. Furthermore, tapping the car icon allows selection from eight different viewing modes, offering various perspectives and angles to maximize parking convenience and safety.

Transforming the Parking Experience

Prior to the installation, parking relied solely on the side and rearview mirrors, often leading to apprehension in confined spaces or busy traffic. With the around view monitor installed on the Mercedes-Benz E220, this is no longer an issue. A quick glance at the monitor provides a complete overview of the vehicle's surroundings, making parking effortless. The versatility of the eight viewing modes is particularly beneficial. Drivers can select a rear-view zoom for reversing, a side-view for tight parallel parking, or a front-view for navigating forward, choosing the angle that best suits the immediate situation. This adaptability significantly enhances the driving experience.

Enhanced Safety as a Standard Feature

While the convenience is undeniable, the primary benefit of this upgrade is the enhanced safety it provides. In crowded areas or narrow streets, the system helps drivers clearly see pedestrians, cyclists, and other vehicles, preventing potential accidents and minor collisions. The 360-degree perspective eliminates guesswork, offering peace of mind during all parking maneuvers.
