Mercedes-Benz S-Class W222 Wheel Repair Review

Restoring Your Mercedes-Benz S-Class W222 Wheels

The Mercedes-Benz S-Class W222, particularly the Maybach S650 variant, represents the pinnacle of automotive luxury. Its imposing 20-inch wheels are not just functional components but also critical design elements that contribute significantly to the vehicle's prestigious aesthetic. When these wheels suffer damage, such as curb rash, scratches, or wear, it detracts from the overall elegance of the car. This review details the comprehensive wheel repair and painting process undertaken on a set of 20-inch wheels from a Mercedes-Benz S650 Maybach, focusing on the meticulous steps involved, the expected costs, and the durability of the results. The original service was performed at a specialist shop in Changwon, South Korea.

The Wheel Restoration Process: From Damage to Perfection

The journey to restoring damaged wheels begins with a thorough assessment. The 20-inch wheels on the Mercedes-Benz S650 Maybach exhibited typical signs of wear and tear, including abrasion on the tire-contacting surfaces, minor dents, loss of gloss, scratches, and general contamination. Such damage, especially wear or dents near the tire bead, can compromise tire safety and necessitates professional attention. The process at the Korean specialist shop involved several key stages:

1. Stripping and Preparation: The initial and crucial step is the complete removal of the old paint, contaminants, and oils from the wheel surface. This process, known as stripping or deburring, aims to expose the bare aluminum alloy. While some shops might rush this, thorough manual inspection and hand-finishing are essential to identify and address even the most minute imperfections missed by machinery.
2. Blasting: Following stripping, a blasting process is employed to further refine the wheel surface. This stage smooths out minor scratches and imperfections acquired during the stripping phase and ensures a perfectly clean canvas for new coatings. The shop emphasized that all blasting was done manually to achieve a level of precision unattainable with automated processes, ensuring a superior finish.
3. Powder Coating: The choice of coating is paramount for durability. Instead of liquid paint, which can chip and peel easily, this facility exclusively uses powder coating. The process involves applying a primer and base coat using specialized black powder designed for wheels, followed by a top coat of high-quality imported acrylic clear powder. This is then cured at high temperatures, creating a robust and long-lasting finish that resists chipping and fading.
4. CNC Diamond Cutting: To restore the wheel's original aesthetic and enhance its design, CNC (Computer Numerical Control) diamond cutting is performed. This high-precision machining process shaves off a microscopic layer of the wheel's surface (0.1mm to 0.001mm) to eliminate any remaining damage and restore sharp, defined edges. This technique, often referred to as diamond cutting, requires sophisticated CNC machinery and skilled technicians. The shop highlighted its top-tier CNC cutting capabilities for creating a unique, factory-like finish.

Before and After: The Transformation

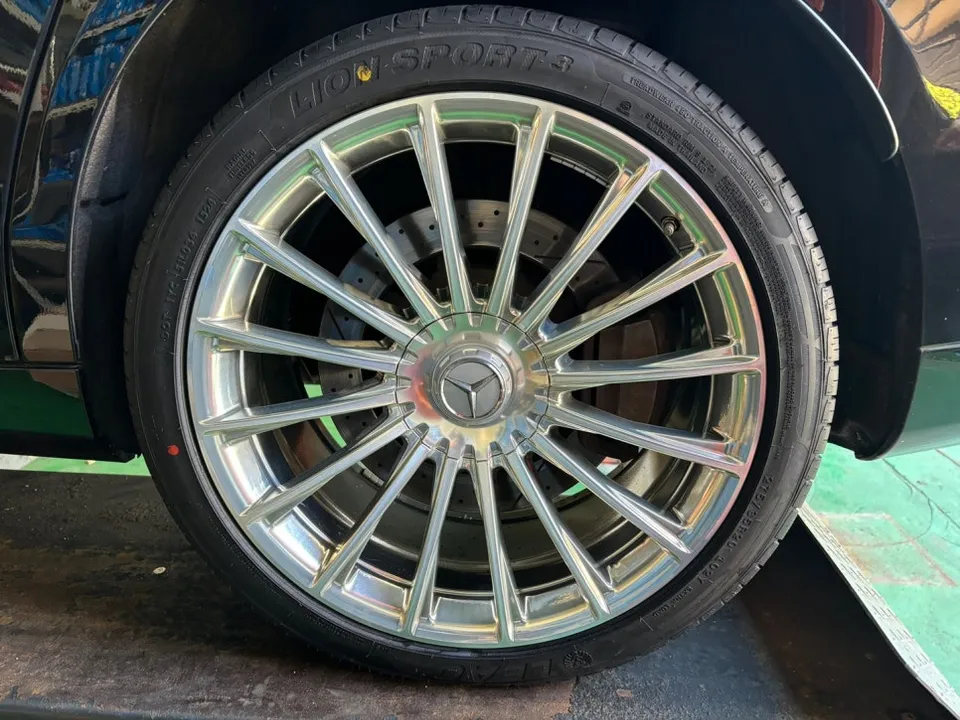

The transformation of the Mercedes-Benz S-Class W222's 20-inch wheels was dramatic. After the comprehensive restoration process, the wheels looked virtually indistinguishable from brand new. The gloss was restored, all visible scratches, dents, and abrasions were completely eliminated, and the overall finish was flawless, matching the original factory appearance. This level of restoration not only enhances the vehicle's visual appeal but also ensures the structural integrity and safety of the wheels.

Cost, Durability, and Value

In South Korea, the cost for 20-inch wheel repair and refinishing typically ranges from 300,000 to 600,000 KRW (approximately $220-$440 USD, subject to exchange rates). The price can vary based on the specific vehicle model, the extent of the damage, and the complexity of the repair, such as the inclusion of CNC diamond cutting. The powder coating process used ensures significant durability, offering resistance to road debris, chemicals, and UV exposure. With proper maintenance, such as regular cleaning with mild soap and water and avoiding harsh chemicals, the refinished wheels can maintain their appearance for several years. For owners of a luxury vehicle like the Mercedes-Benz S-Class W222, investing in professional wheel repair is often more cost-effective than purchasing new wheels, which can cost several thousand dollars. It's a worthwhile service for maintaining the vehicle's aesthetic appeal and resale value.
