MINI Countryman Surround View Camera Review: Installation & Cost

MINI Countryman Parking Confidence with 3D Surround View

Advanced parking assistance systems are no longer just optional extras; they're becoming essential safety features. For urban driving, where minor fender-benders are a constant concern, a 360-degree bird's-eye view camera system is the ideal solution. Today, we'll walk through the detailed installation process of a 3D Surround View camera system for the MINI Countryman, designed for seamless integration with its original touch monitor.

Camera Layout Design: The Key to a Flawless View

The success of any surround view camera installation hinges on precise camera placement. Improper positioning of the four cameras (front, rear, left, and right) on a MINI Countryman can lead to distorted images or blind spots in the stitched bird's-eye view. Special attention must be paid to the side cameras, where millimeter-level adjustments are crucial to account for the vehicle's curved body panels. Our technicians meticulously map out the optimal locations, ensuring the original wiring harnesses are protected while planning the routing for new cables. This complex planning phase is what makes professional installation critical.

Front Camera Installation: Grille Integration

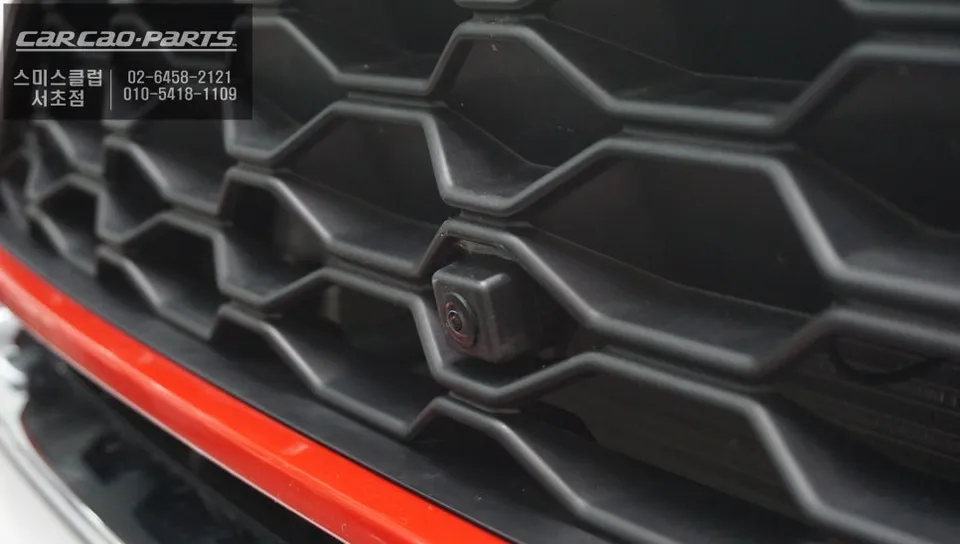

Typically, the front camera is discreetly housed within the front bumper grille. The MINI Countryman's distinctive rounded grille design presents a unique challenge for camera placement. The installer carefully disassembles the front grille to securely mount the camera bracket. Following mounting, the camera lens angle is precisely calibrated. For optimal road visibility, the front camera is usually set at a downward angle, typically between -5 to -10 degrees. Even minor adjustments here significantly impact the final video quality.

Side Camera Installation: The Most Critical Step

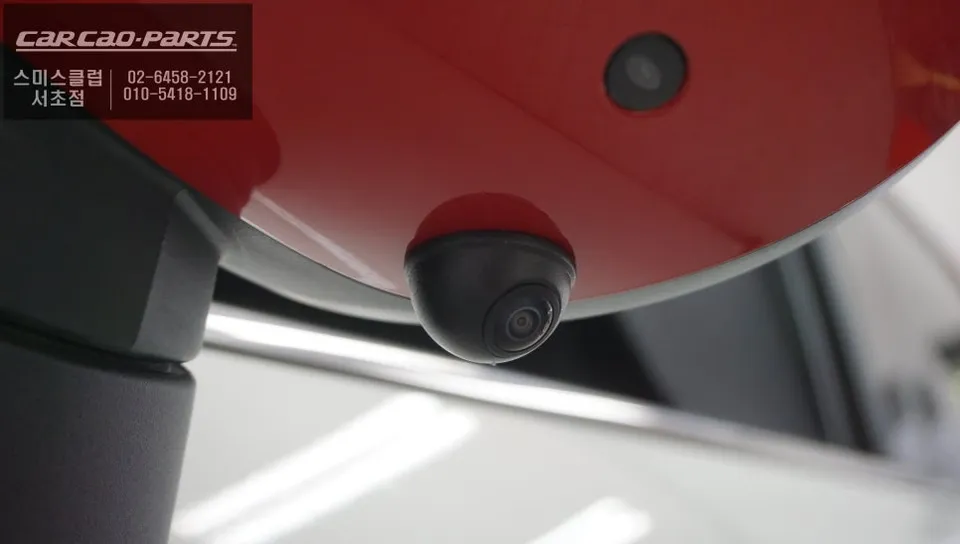

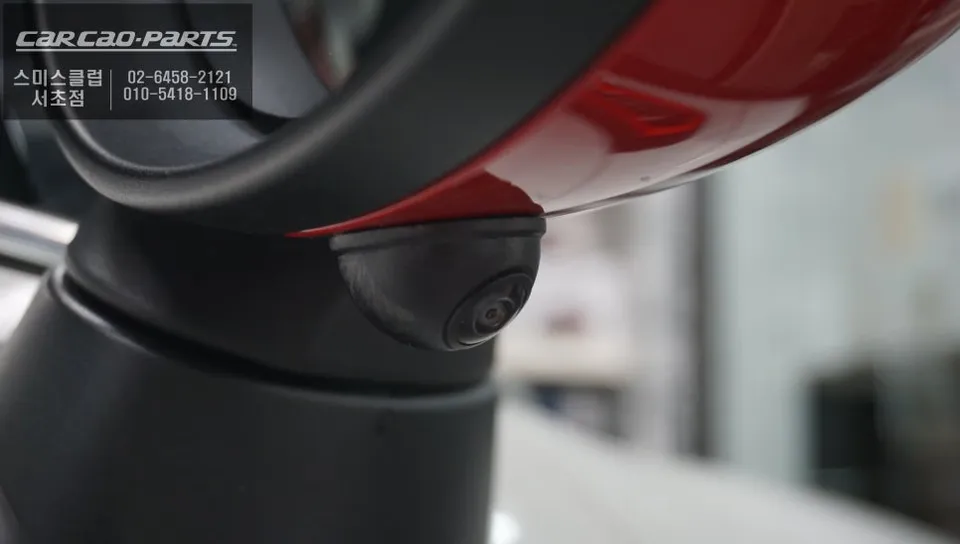

The side cameras are arguably the heart of the 3D surround view system for the MINI Countryman. They are generally positioned near the bottom of the front doors, on both the left and right sides. Because these cameras follow the car's body contours, achieving the correct downward angle (approximately -15 to -20 degrees) is paramount. Any deviation can cause the stitched image of the ground to appear misaligned or distorted. Our technicians proceed with extreme caution during this phase. Furthermore, IP67-rated waterproof connectors are utilized to prevent water ingress from rain or car washes, a vital step given the exterior exposure of these cameras.

Rear Camera and Data Connection

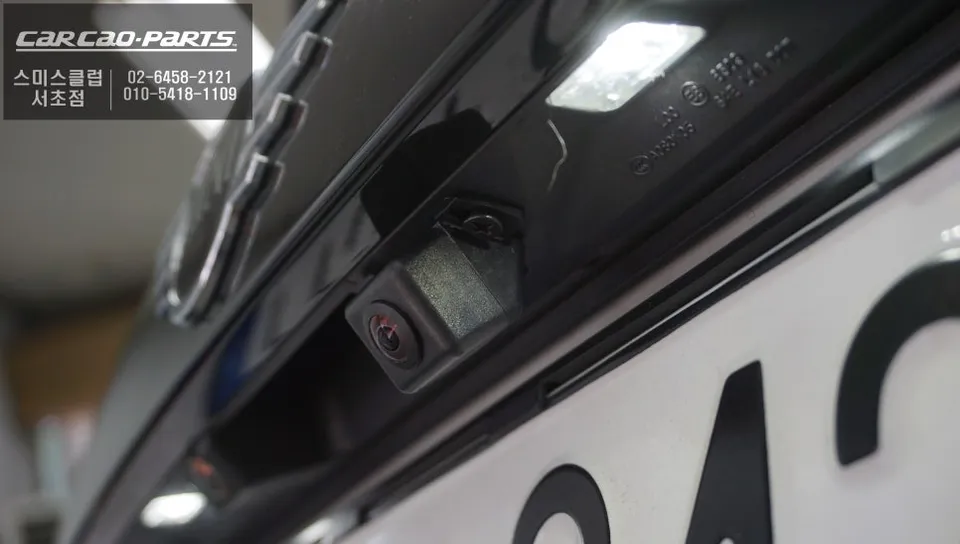

The rear camera, which activates upon reversing, also requires careful height and angle adjustment. It's often placed above or below the license plate. For this MINI Countryman installation, the space beneath the rear spoiler was utilized. Once all four cameras are mounted, the crucial step of connecting the signal cables begins. To communicate with the original MINI touch monitor, an LVDS (Low-Voltage Differential Signaling) direct connection method is employed. This approach offers the advantage of high-definition video transmission without altering the factory wiring.

Installation Process:

1. Precise camera placement and marking around the vehicle.
2. Careful disassembly of body panels (e.g., front grille, door sills) for camera mounting.
3. Securely mounting cameras and calibrating their angles for optimal field of view.
4. Routing and connecting LVDS cables to the vehicle's infotainment system.
5. Software integration and final calibration of the 360-degree view.

The result is a seamless, factory-like integration that significantly enhances parking safety and driver confidence. While this specific installation was performed in Korea, the technology and process are globally applicable. The approximate cost in Korea for this type of retrofit can range from 800,000 to 1,500,000 KRW (approximately $600 - $1100 USD), depending on the specific system and installer.
