Are you a Renault Korea QM6 owner who finds the passenger side window operation a bit cumbersome? This guide details the installation of a 'one-touch auto relay' for the passenger window, significantly boosting convenience. This upgrade allows for effortless control of the passenger window, even while focusing on driving. While it might seem complex, we'll break down the process step-by-step.

Why Upgrade Your QM6 Passenger Window?

Typically, the QM6 passenger window requires the switch to be held down for continuous operation. Installing a 'one-touch auto relay' transforms this, allowing the window to fully open or close with a single, brief press of the switch. This enhances both safety and convenience, enabling drivers to manage the window without diverting attention. It's particularly beneficial during long drives or when traveling with children. This type of automatic window relay is compatible with a wide range of domestic and imported vehicles, including the QM6.

Understanding the Wiring for the Relay System

The 'Doowontech Individual Window Relay' is used for this upgrade. This module ensures independent operation for each window, enabling the one-touch functionality for the passenger side. The installation involves removing the passenger side door trim and carefully connecting the wiring. Understanding the vehicle's electrical system is crucial for a successful installation. The key vehicle wire colors are:

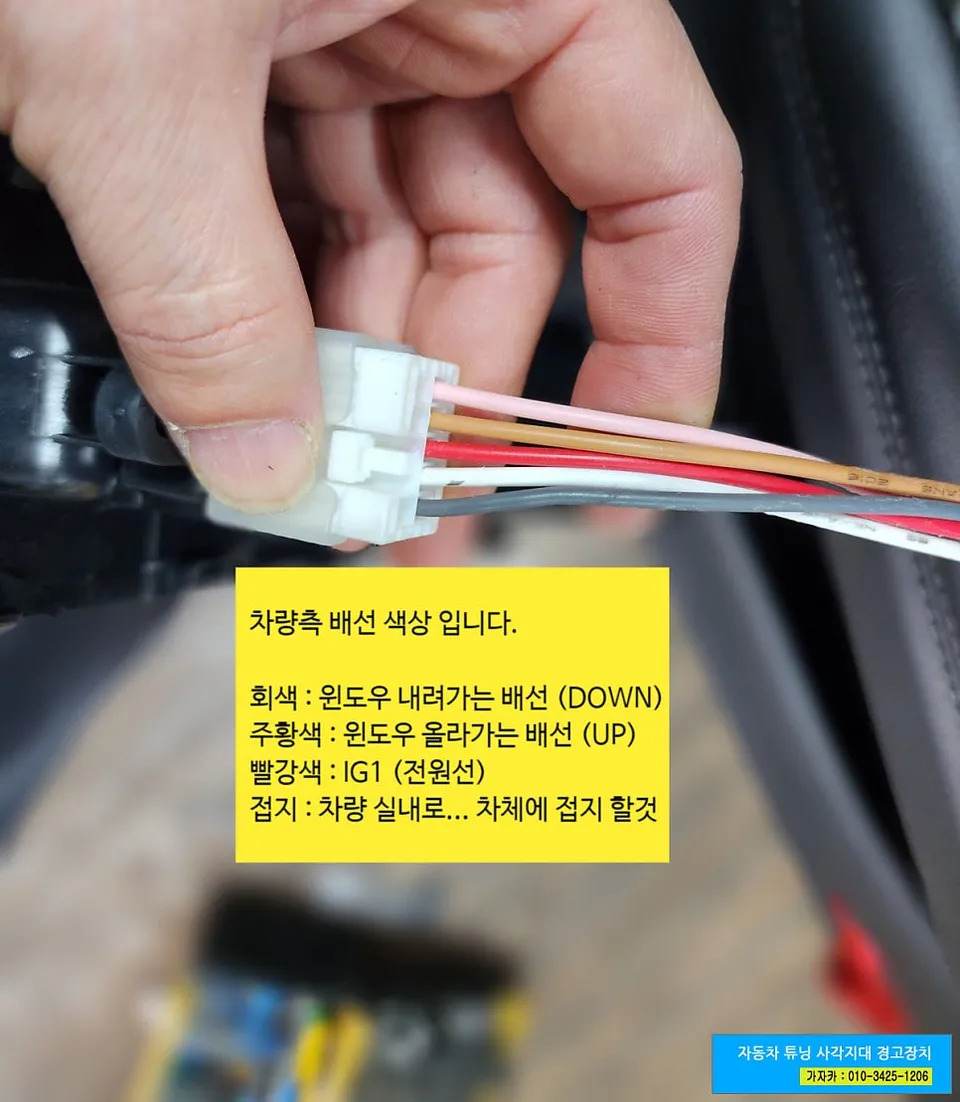

• Gray: Window Down Wire
• Orange: Window Up Wire
• Red: IG1 (Power Wire)
• Ground: Vehicle Interior Chassis Ground

These color codes are essential for correctly connecting the relay module. If you're unsure about electrical work or find the wiring diagrams daunting, seeking professional installation is highly recommended for safety and optimal performance.

QM6 Passenger Door Trim Removal

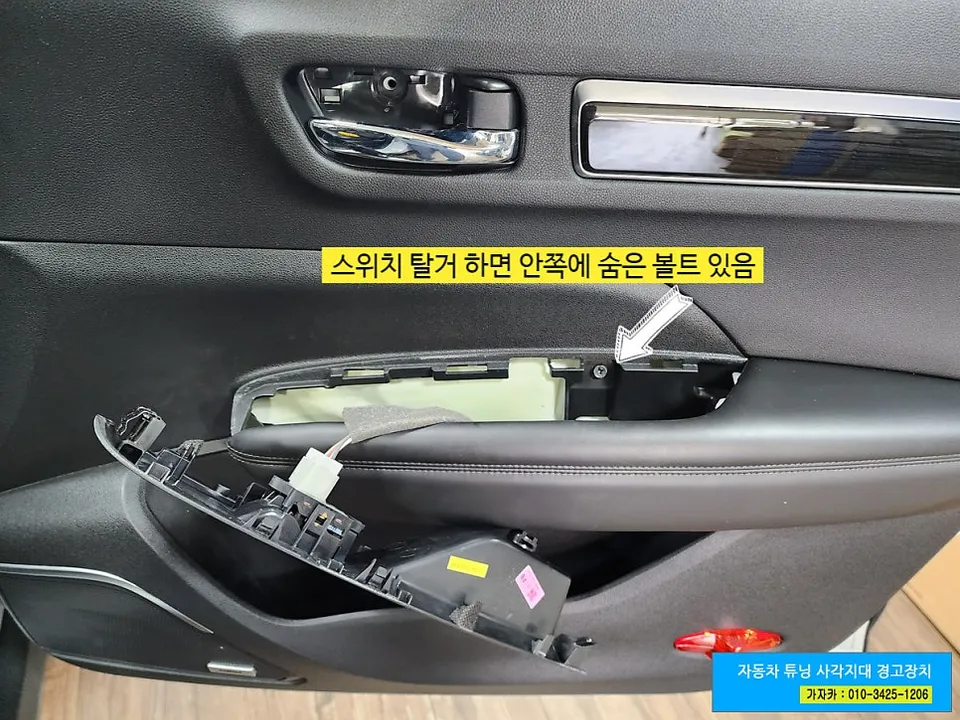

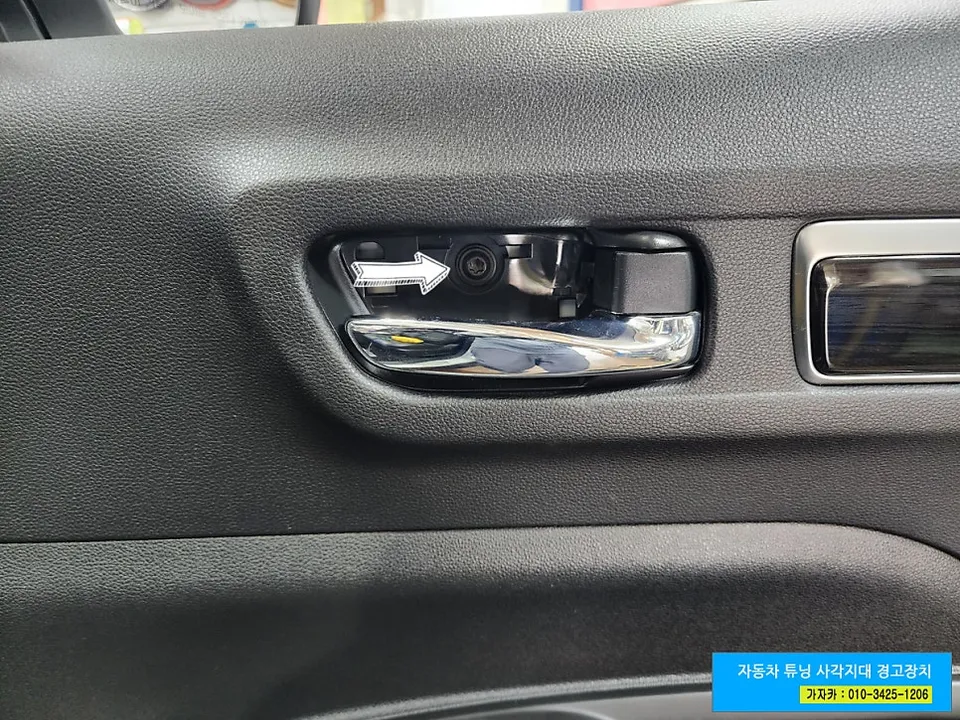

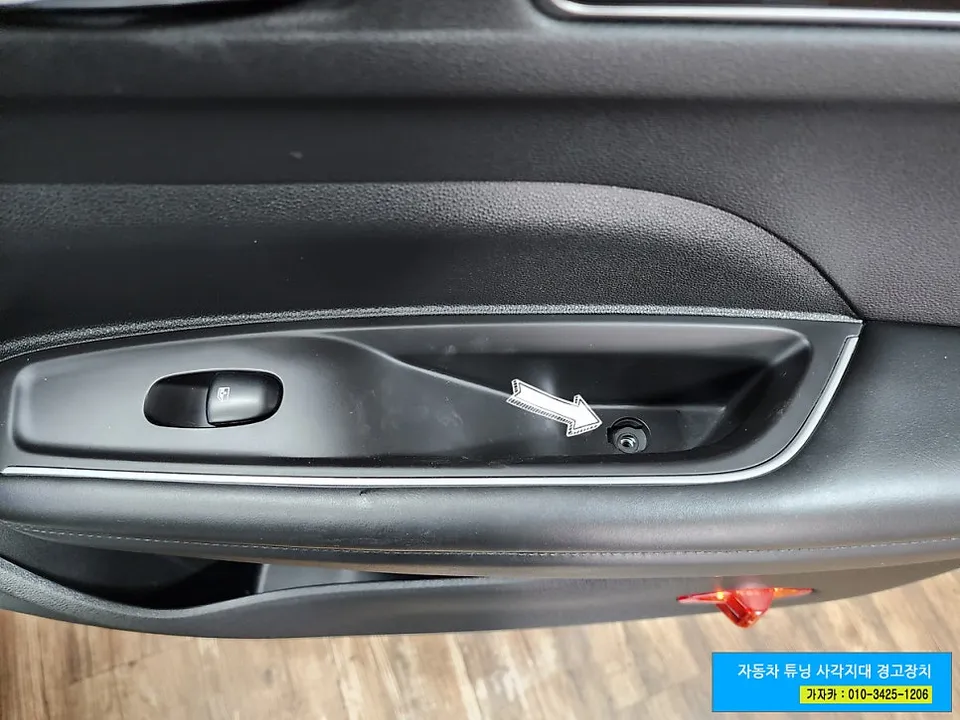

Before installing the one-touch relay, the passenger side door trim must be removed. For the QM6, this typically involves removing five star-shaped bolts. Some of these bolts may be hidden, so pay close attention, especially around the window switch panel. The window switch itself can usually be pried up gently from the switch side, rather than the handle side. Once all bolts are removed, carefully detach the door trim to access the internal wiring. This process can take approximately 30 minutes to an hour.

Detailed Wiring Connection for the Doowontech Relay

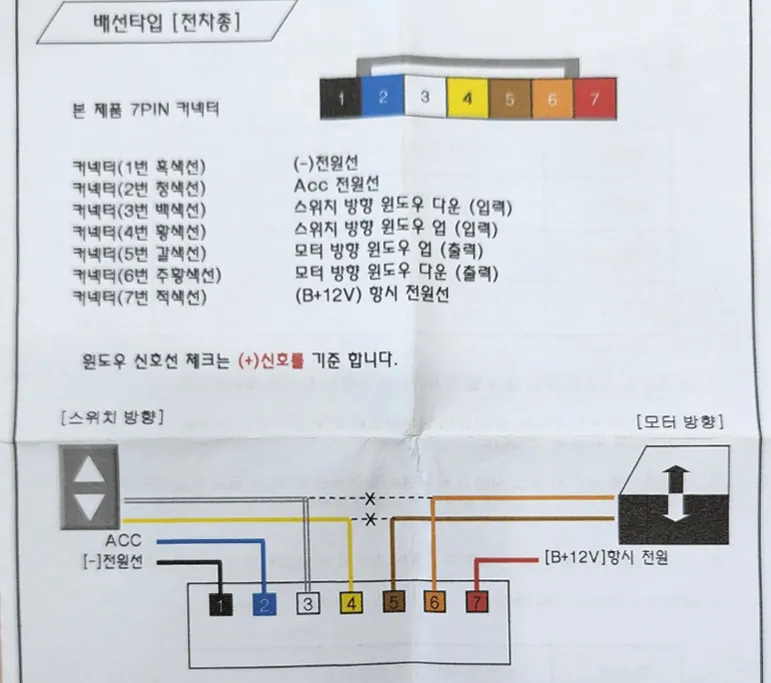

With the door trim removed, the wiring connections begin. First, the wires controlling the window's up and down movement (orange and gray) are cut. The corresponding wires from the Doowontech window relay are then connected to these cut ends. For instance, the vehicle's gray wire (down) connects to the relay's white and orange wires, while the vehicle's orange wire (up) connects to the relay's yellow and brown wires. The vehicle's red power wire (IG1) is connected to both the relay's red and blue wires to supply power. Finally, the relay's black ground wire is securely connected to the vehicle's chassis. Meticulous and accurate connections are vital, as errors can lead to relay malfunction or other electrical issues.

One-Touch Relay Installation Complete

After completing all wiring connections and ensuring they are secure, the door trim is reinstalled. The system is then tested to confirm the one-touch functionality for the passenger window. This upgrade provides a noticeable improvement in daily driving convenience for your Renault Korea QM6.
