Upgrade Your Hyundai i30 with a Surround View Camera System
Parking can be a stressful experience, especially when judging distances to other vehicles or unseen obstacles. For Hyundai i30 owners, this anxiety can be significantly reduced with the installation of a Surround View Camera system. This advanced setup, featuring a 7-inch AHD monitor and a 2D Super View package, provides a bird's-eye perspective of your vehicle, transforming parking maneuvers from a challenge into a confident task. Let's explore how this system enhances your i30.
Understanding the Benefits of Surround View Cameras
The limitations of a car's built-in visibility create blind spots, particularly in the rear and sides, which are common culprits for parking-related accidents. A Surround View Camera system addresses this by strategically placing four ultra-wide-angle cameras around the vehicle. These cameras capture simultaneous feeds that are then expertly stitched together by a central processing unit to create a seamless "Top View" or "360-degree" image. This comprehensive visual representation allows drivers to accurately gauge distances and identify potential hazards from all angles, significantly improving safety and convenience.
Key Components: 2D Super View and AHD Technology
The core of this system is the 2D Super View unit, responsible for processing and merging the feeds from the four cameras. Crucially, it performs "calibration" to correct geometric distortions, ensuring the displayed image accurately reflects real-world distances and object placement. While the 2D Super View unit supports various output formats, this installation utilized the AHD (Analog High Definition) signal. Unlike older CVBS (low-resolution analog) signals, AHD offers a significantly clearer picture, upscaling to 1080P resolution. This high-definition output is particularly beneficial in challenging lighting conditions, such as nighttime parking or bright sunlight, making small obstacles more visible. The accompanying 7-inch AHD monitor complements this by displaying the digital signal without loss of quality, offering excellent clarity and a sufficiently large screen for detailed observation.
High-Definition Cameras for Complete Coverage
The system employs four 1080P SUPER HD cameras, positioned at the front, rear, and both sides of the i30, to eliminate all blind spots. These cameras are equipped with Wide Dynamic Range (WDR) technology, which optimizes image quality by reducing glare from direct sunlight and enhancing visibility in low-light conditions. Accurate calibration is paramount; it ensures the four camera views merge into a single, cohesive top-down image without warping lane lines or distorting distances. Precision calibration is essential for the system to be a helpful aid rather than a hindrance.
Installation Process:

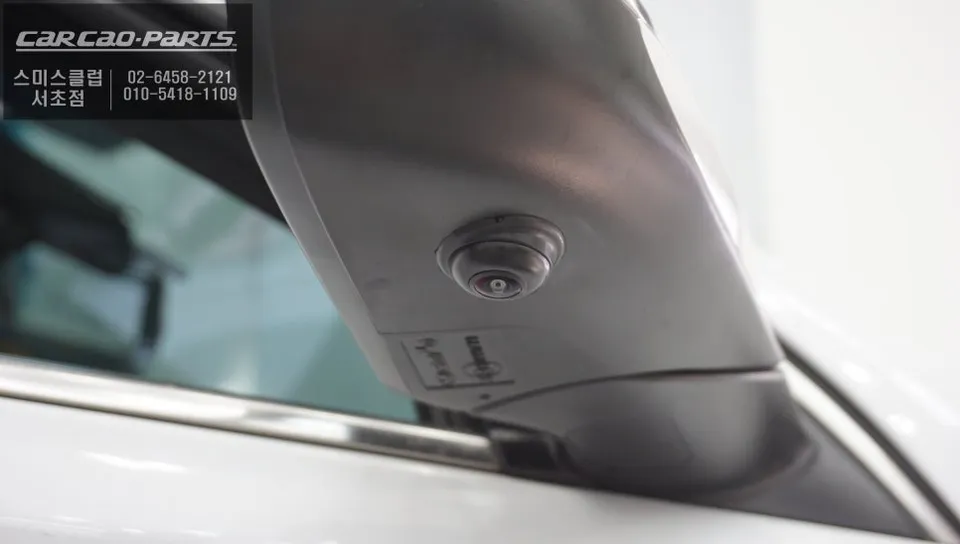

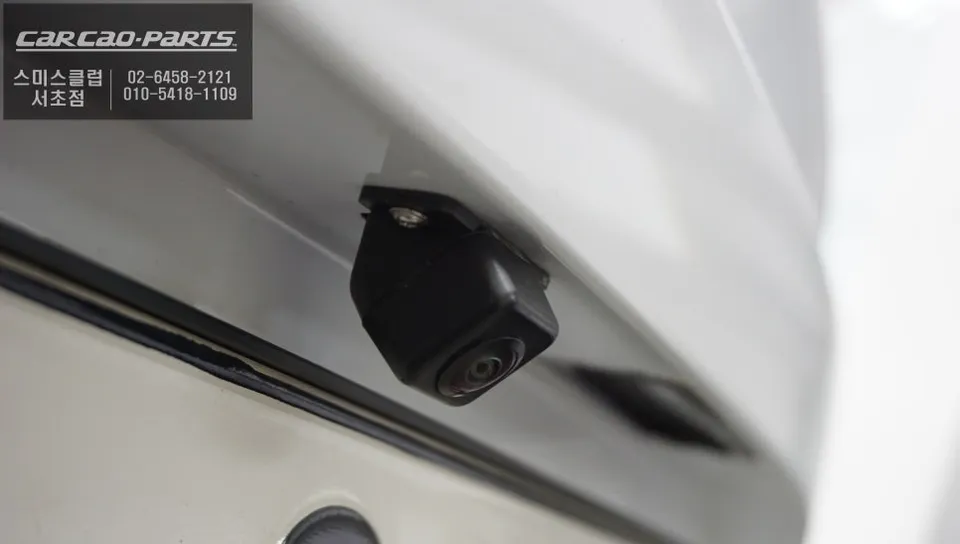

- Camera Placement: Four high-definition cameras are discreetly installed on the vehicle: one under the front bumper, one under the rear bumper, and one beneath each side mirror. The installation focuses on maintaining the vehicle's aesthetics while ensuring optimal viewing angles.
- Wiring and Connection: All camera feeds are routed to the central 2D Super View control unit, which is typically installed discreetly within the dashboard or cabin.
- Calibration: The system undergoes a critical calibration process. This involves driving the vehicle at low speeds on a flat surface while the system software adjusts for lens distortion and camera angles to create the accurate top-down view.

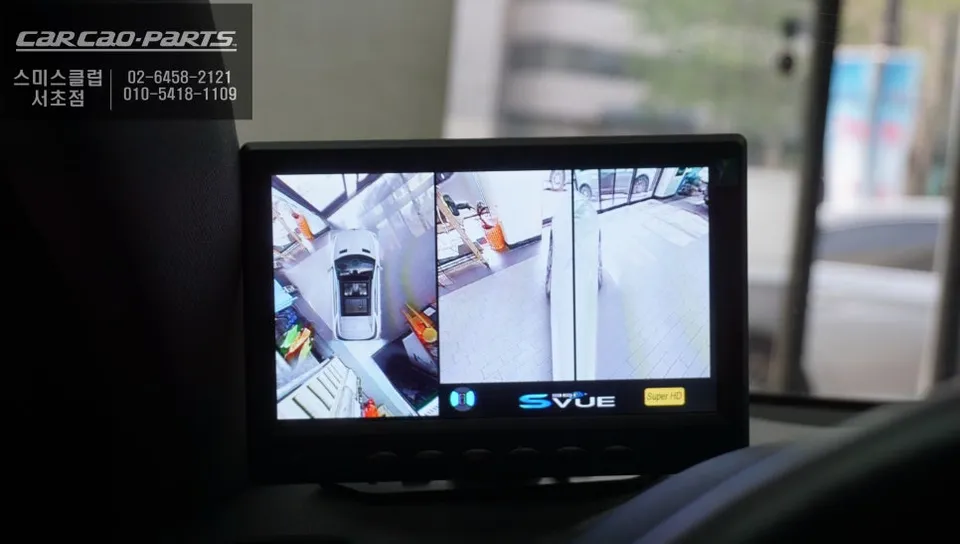

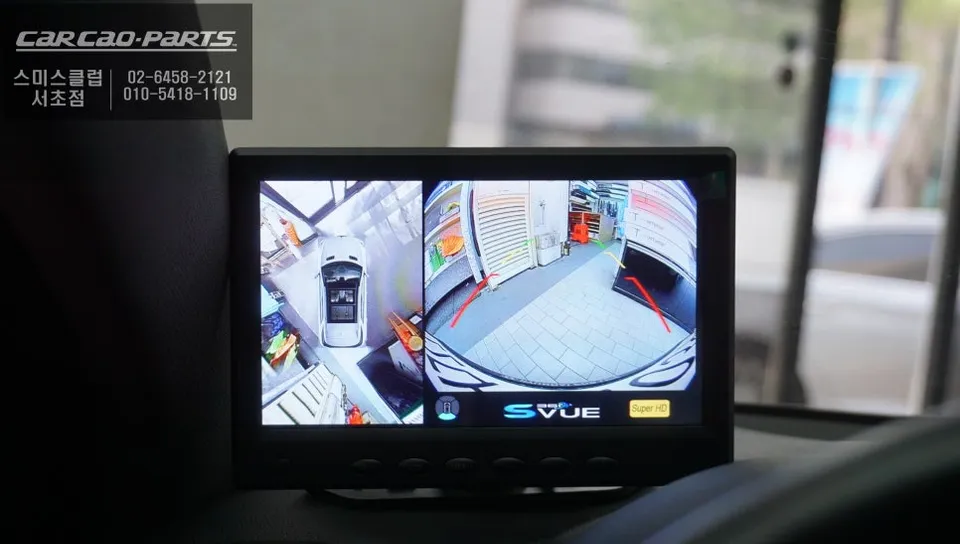

- Monitor Integration: The 7-inch AHD monitor is integrated into the dashboard, providing a clear display of the surround view feed when the vehicle is in reverse or when activated manually.
Before the installation, the Hyundai i30 relied solely on a basic rear camera, leaving side and front blind spots unaddressed. This often led to cautious and tense parking situations, especially in tight urban environments. Post-installation, the driver gains a comprehensive 360-degree view, significantly boosting confidence and safety during all parking maneuvers.
Frequently Asked Questions
Q. How much does Surround View Camera cost for a Hyundai i30?
The installation featured in this review cost in Korean Won, which typically converts to a range of $800-$1500 USD for similar systems in the US, depending on the specific components and installer.
Q. How long does Surround View Camera last on a Hyundai i30?
Surround View Camera systems are generally durable and can last for many years, often matching the lifespan of the vehicle's electronics, provided they are installed correctly and protected from extreme impacts. Regular cleaning of the camera lenses is recommended for optimal performance.
Q. Is Surround View Camera worth it for a Hyundai i30?
A Surround View Camera system is highly beneficial for Hyundai i30 drivers who frequently navigate tight parking spaces or live in congested areas, as it significantly reduces the risk of minor collisions and enhances parking confidence. The investment provides substantial value through increased safety and peace of mind.
Q. How is Surround View Camera done on a Hyundai i30?
Installation involves mounting four high-definition cameras on the front, rear, and sides of the i30, connecting them to a central processing unit, and integrating a display monitor. A crucial step is precise calibration to ensure the merged camera views accurately represent the vehicle's surroundings.
Q. What is the best Surround View Camera option for a Hyundai i30?
For the Hyundai i30, systems featuring 1080P SUPER HD cameras and AHD output, like the 2D Super View package with a 7-inch AHD monitor, offer the best clarity and detail for parking assistance. This combination provides superior image quality, especially in varied lighting conditions.
