Tesla Model S Surround View Camera Review — Cost & Results
Service Price
$approx. $1,500+
Estimated price · Actual price may vary by shop
Tesla Model S 360 camera installation: ~$1,500+. Eliminates blind spots for safer parking and maneuvering.
Tesla Model S Surround View Camera: Enhancing Visibility and Confidence
The Tesla Model S, while a marvel of electric engineering, presents a unique visibility challenge for some drivers. Its sleek, low rear profile, combined with its substantial size, can create significant blind spots, particularly when reversing or navigating tight spaces. This is a common concern voiced within owner communities. To address this, many Model S owners opt for an aftermarket surround view camera system, often referred to as a 360 camera or bird's-eye view camera. This technology aims to eliminate blind spots by providing a comprehensive, top-down view of the vehicle's surroundings, significantly boosting driving confidence and safety, especially in challenging urban environments.
Understanding the Surround View Camera System
A surround view camera system, also known as an around view monitor, utilizes four ultra-wide-angle cameras (typically 185 degrees) strategically placed on the front, rear, and sides of the vehicle. These cameras capture real-time video feeds that are then processed by a sophisticated software unit. This software stitches the individual camera views together to create a seamless, top-down (bird's-eye) perspective of the car and its immediate environment. This synthesized view is displayed on a dedicated monitor, allowing drivers to see areas normally hidden from view. It's particularly invaluable for novice drivers or anyone navigating narrow alleyways, unpaved roads, or crowded parking lots. For the Model S, the extended length of the vehicle means side blind spots can be quite pronounced, making it difficult to accurately gauge distance from adjacent vehicles or obstacles.
Installation Process and Considerations
The installation of a surround view camera system on a Tesla Model S involves several key steps:

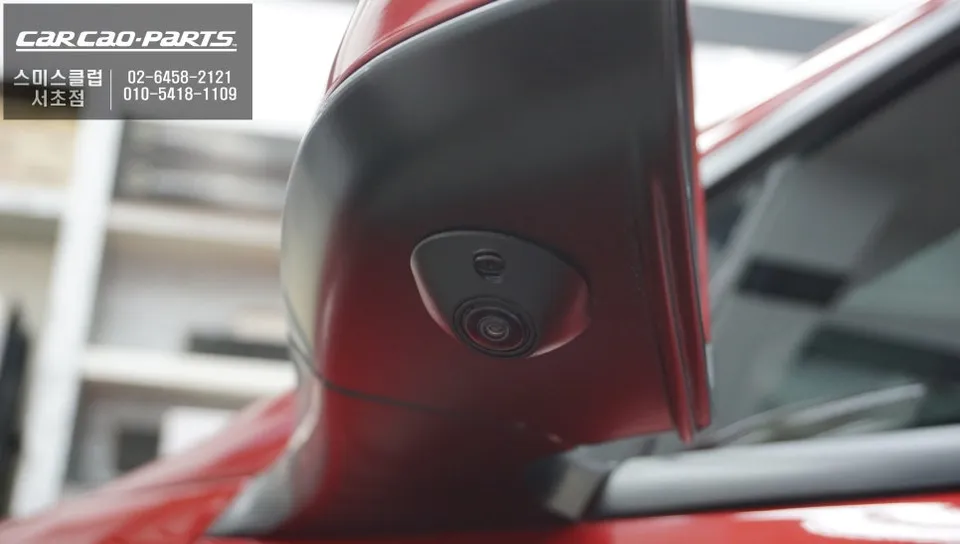

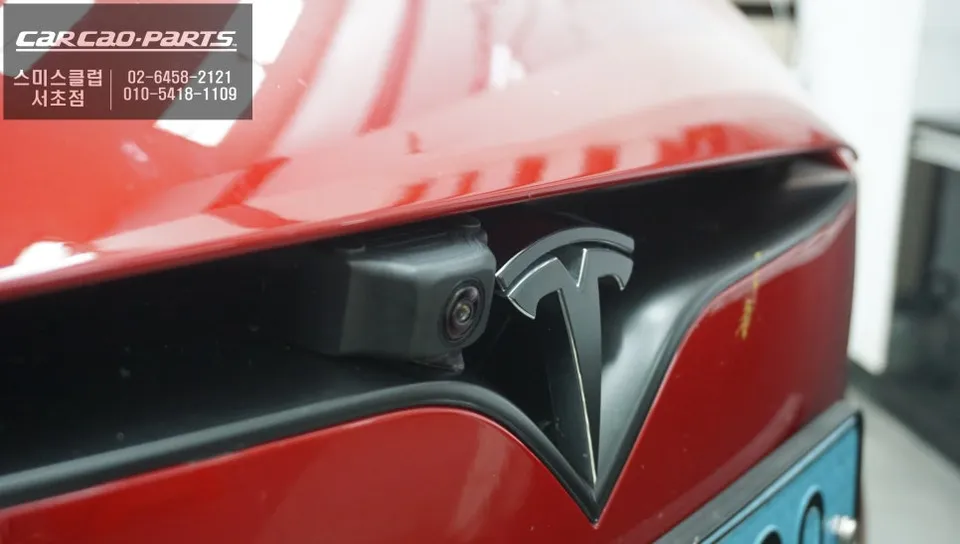

- Camera Placement: Four 185-degree ultra-wide-angle cameras are meticulously mounted. The front camera is typically installed in the lower bumper or grille area, the rear camera on the trunk lid, and the side cameras on the lower sections of the fenders or doors.
- Wiring and Integration: All camera feeds are routed to a central control unit. This unit also integrates with the vehicle's power supply and, crucially, the gear selector signals (Reverse and Drive) to enable automatic display switching. For electric vehicles like the Model S, careful attention must be paid to high-voltage wiring.
- Calibration (Crucial Step): After physical installation, a critical process called 'empty load calibration' or 'vehicle calibration' is performed. This involves inputting the Model S's precise dimensions (height, width, length) into the system. The software then adjusts the angle and perspective of each camera feed to ensure the stitched top-down view is accurate and free from distortion. Improper calibration can lead to a warped or misaligned bird's-eye view.
- Monitor Setup: A dedicated monitor (often a 5-inch unit that attaches above the existing rearview mirror) is installed. This monitor displays the synthesized 360-degree view and can often be controlled via touch or physical buttons to cycle through various viewing modes.
- Testing: Final tests are conducted both stationary and during a short drive to confirm all camera views are functioning correctly, the automatic switching logic (e.g., displaying the rear view when in Reverse) works as intended, and the overall image quality is optimal.
The entire process for a Model S, including calibration, typically takes around 4 to 6 hours, and sometimes requires an overnight stay for the vehicle due to the complexity, especially with EV wiring. Maintenance is generally straightforward, involving regular cleaning of the camera lenses and ensuring the camera mounts remain secure. With proper care, these systems can last 5-7 years before potential component replacements, such as the monitor or control unit, might be necessary.
Frequently Asked Questions
Q. How much does a 360 camera installation cost for a Tesla Model S?
In the US, a surround view camera system for a Tesla Model S typically costs around $1,500 USD and can range upwards of $3,500 depending on features and monitor size. The original installation context mentioned a price range of approximately 1.5 to 3.5 million Korean Won (roughly $1,100-$2,600 USD at the time of writing) for a 5-inch monitor base configuration.
Q. How long does a surround view camera installation take on a Tesla Model S?
Installation typically takes about 4 to 6 hours for a Tesla Model S, often requiring the vehicle to be left overnight due to the complexity of wiring, especially for EVs. Proper maintenance involves regularly cleaning the camera lenses and checking mount security to ensure longevity, which can extend the system's life to 5-7 years without major issues.
Q. Is an aftermarket 360 camera worth it for a Tesla Model S?
Yes, an aftermarket 360 camera system is highly beneficial for Tesla Model S owners, especially those who frequently navigate tight urban spaces or are less confident with parking. It significantly enhances safety and convenience by eliminating blind spots, offering peace of mind and reducing the risk of minor collisions.
Q. How is a surround view camera system installed on a Tesla Model S?
Installation involves mounting four ultra-wide-angle cameras (front, rear, sides), integrating their wiring with the vehicle's power and signals, and performing a crucial calibration process. This calibration ensures the system accurately stitches the camera feeds into a seamless top-down bird's-eye view displayed on a monitor.
Q. What is the difference between OEM and aftermarket surround view cameras for a Tesla Model S?
OEM systems are integrated from the factory, offering seamless compatibility but limited options. Aftermarket systems like the OmniView NS provide more flexibility in features and monitor size, often at a lower initial cost, and can be retrofitted to vehicles without the factory option, making them a practical choice for enhancing older or base model Teslas.
Q. What should I know before getting Surround View Camera on a Tesla Model S? (common regrets and mistakes)
The most common regret is not getting the calibration done correctly, leading to a distorted or inaccurate bird's-eye view. To avoid this, ensure you choose an installer with specific experience in vehicle calibration and Tesla electrical systems, as improper calibration significantly diminishes the system's usefulness.
