Audi Q5 LED Upgrade Review — Enhanced Brightness & Color

Audi Q5 HID Headlight Upgrade: Addressing Dimming and Aging

An Audi Q5 recently came into our shop with a non-functional driver's side headlight. After 10 years of use, the original HID bulb had reached the end of its lifespan. For HID systems, it's crucial to inspect not only the bulbs but also the ballast, which can be susceptible to moisture. In this case, diagnostics confirmed a failed bulb, leading to the decision to upgrade to a J-Light D-Series HID-compatible LED bulb.

The primary goal of a headlight performance upgrade is to improve visibility and enhance night driving safety. Upgrading to LED bulbs offers a trifecta of benefits: increased brightness, improved color temperature, and a modern aesthetic enhancement. The typical cost for such an upgrade ranges from ₩800,000 to ₩1,800,000, with installation usually completed within an hour.

Headlight Inspection and Fault Diagnosis

The diagnostic process began with a thorough examination of the Audi Q5's lighting system. Because HID headlights rely on the interplay between the bulb and the ballast, pinpointing the exact component failure is essential. Our tests identified that the bulb itself had failed due to age.

The original bulbs showed clear signs of approximately 10 years of service. The bulb surfaces had become cloudy (a phenomenon known as 'blooming'), indicating a loss of internal gas – a natural sign of end-of-life. While HID bulbs generally outlast halogen bulbs (typically 3-5 years), exposure to moisture and temperature fluctuations can also lead to ballast failure.

Removing the Old Bulbs and Preparing for Upgrade

Upon removing the faulty bulb, the internal condition confirmed significant aging. The once-clear glass had turned opaque, a testament to the diminished vacuum inside. Headlight bulbs endure some of the harshest conditions in a vehicle, subjected to intense heat (over 3,000K), constant vibration, and moisture ingress over time.

The physical removal of the bulb was straightforward; it involved a 90-degree twist once access to the headlight housing was gained. However, years of use had resulted in carbon buildup, requiring careful cleaning to ensure a secure and stable connection for the new LED bulb.

Introducing the J-Light D-Series LED Upgrade

The chosen upgrade is the J-Light D-Series LED bulb, specifically designed for HID systems. Its key advantage is 1:1 compatibility with the original specification while offering significantly enhanced performance. The identical form factor allows for direct installation into the existing socket without any need for further modifications.

The most striking change is the color temperature shift. Moving from the original yellowish HID (around 3,000K) to a crisp white LED (around 6,000K) instantly elevates the vehicle's overall appearance. This upgrade delivers not only functional improvements but also a significant aesthetic boost. Furthermore, the light output is increased by approximately 40-50% compared to the original HID, providing much clearer visibility during nighttime driving.

LED Bulb Installation and Alignment

Proper beam alignment is paramount during the installation of new LED bulbs. HID systems are engineered with precise focal points within the projector lens. Ensuring the LED bulb is seated correctly is critical for optimal light projection and to prevent dazzling oncoming traffic.

Installation Process:

1. Carefully remove the old HID bulb after accessing the headlight assembly.
2. Clean any carbon buildup or debris from the bulb socket and housing.
3. Insert the new J-Light D-Series LED bulb, ensuring it locks securely into place.
4. Adjust the bulb for precise beam alignment to ensure proper light cutoff and prevent glare.
5. Reassemble any removed components and test the new headlights.

Final Inspection and Performance Verification

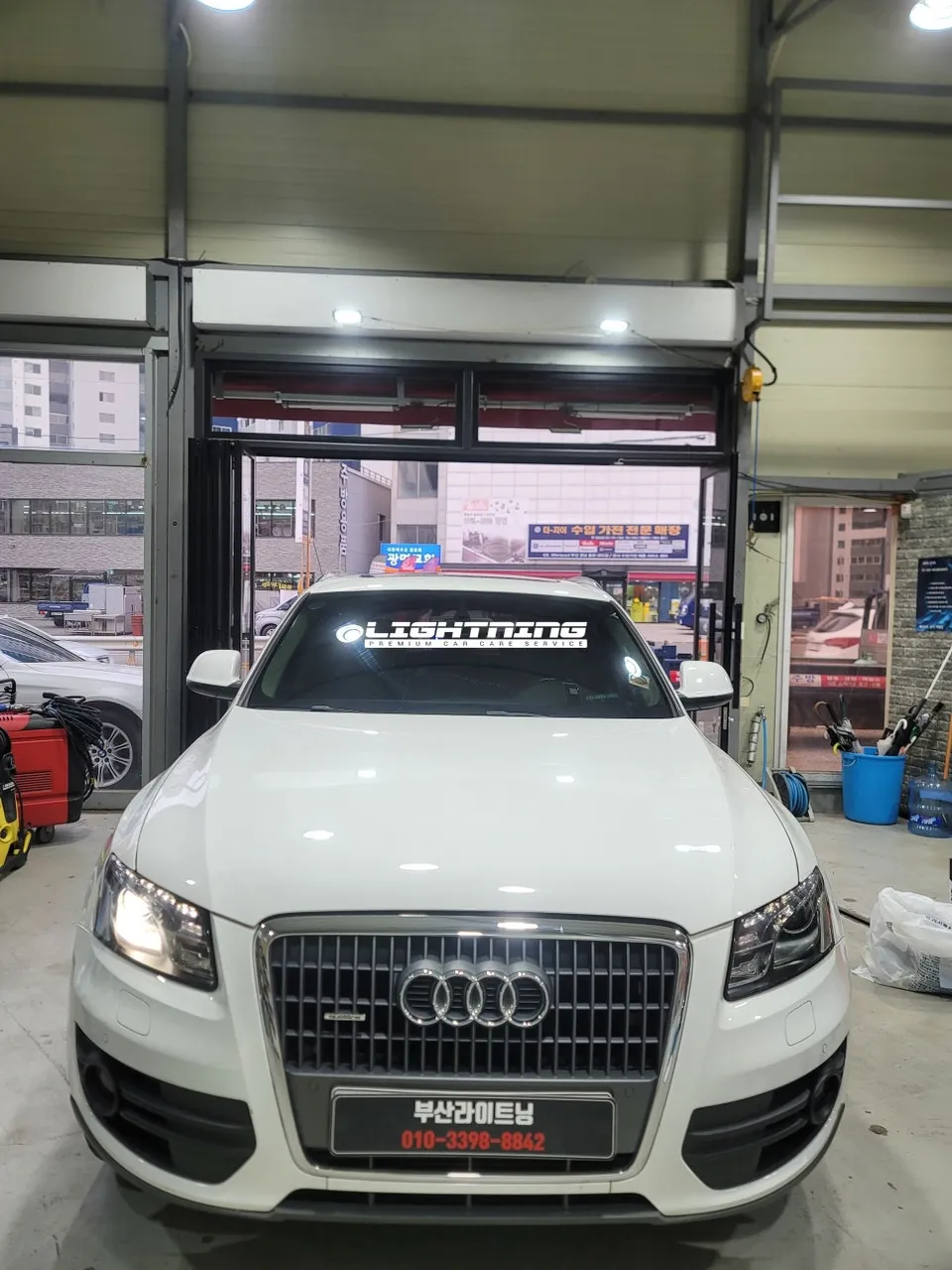

After installation, a comprehensive inspection was performed. This included checking the electrical connections, ensuring the dust caps were properly sealed, and verifying the beam pattern on a wall. The difference was immediately apparent: the new LED bulbs provided a brighter, cleaner light with a sharp cutoff, significantly improving the Q5's nighttime illumination.
