Audi S3 Wheel Repair Review — Stunning Black Polish Restoration

Audi S3 Diamond Cut Wheels: The Importance of Proper Restoration

The Audi S3, a compact sports sedan, is instantly recognizable by its distinctive diamond cut wheels. These bright, sharp designs are integral to the car's aggressive aesthetic, and any damage can significantly detract from its overall appeal. Diamond cut wheels, typically made from aluminum, are particularly susceptible to environmental factors, leading to oxidation and corrosion over time. Restoring these wheels effectively requires more than just a simple repaint; it necessitates a combination of precision machining and multi-layer coating.

Furthermore, the original wheels for an Audi S3 are quite expensive, making professional restoration a far more sensible and cost-effective option than purchasing new ones. In severe cases, internal corrosion can even lead to air leaks, posing a safety risk. This review details how corroded diamond cut wheels were transformed into a stunning black polish finish, breathing new life into the S3.

Pre-Service Inspection: Addressing Corrosion and Scratches

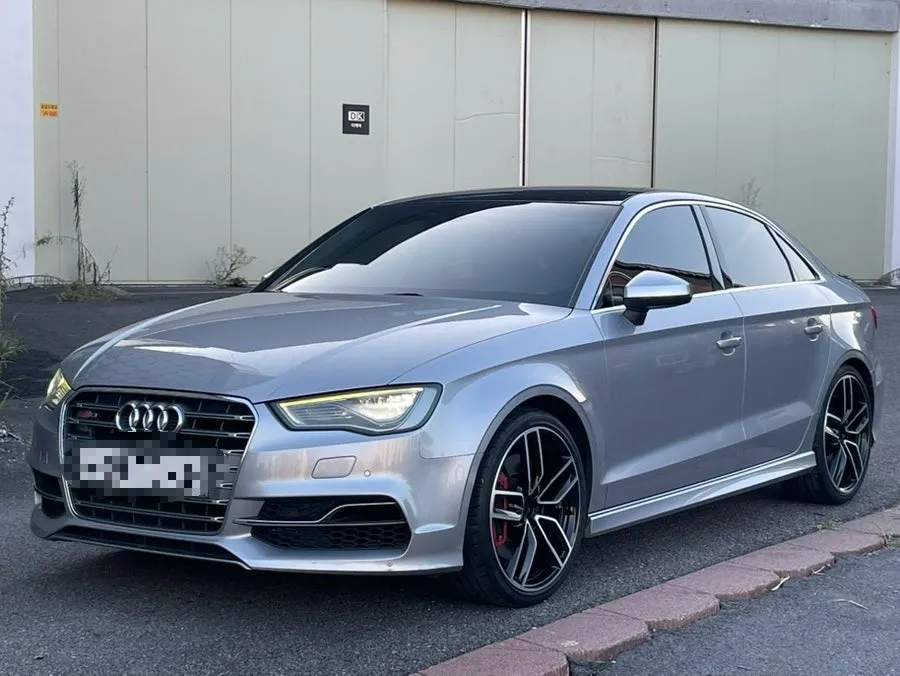

Before the restoration process began, two primary issues were identified. Firstly, all four wheels exhibited widespread scratches across their entire faces. The original gunmetal finish had lost its luster due to this surface damage. Secondly, and more critically, was the internal wheel corrosion. Aluminum's susceptibility to moisture and road salt means corrosion can begin from the inside out. This can result in a slow air leak from the tire bead area.

Initially, the client considered a gloss black powder coat over the original gunmetal background. However, after consultation, they opted for a more sophisticated black polish finish (black background with exposed diamond cut sections). This choice aimed to maintain the car's original character while adding a unique, captivating two-tone effect.

The Wheel Restoration Process: A 3-Step Coating System

Many wheel repair shops in the Cheonan area typically require several days for restoration due to drying and curing times. A key factor in the client's decision to choose this particular service was their promise of same-day completion.

How it works:

1. Complete Stripping and Black Powder Coating: The initial step involves thoroughly stripping the existing paint and clear coat. This ensures optimal adhesion for the new coatings, preventing future peeling. Once stripped, all four wheels are treated to a base coat of black powder coating. Powder coating is a superior method that uses electrostatically charged particles, which are then cured under high heat. This results in a remarkably uniform finish with exceptional hardness and adhesion compared to traditional liquid paint. The wheels are cured at 200 degrees Celsius for 20 minutes.
2. CNC Diamond Cut Machining: This is the most critical stage. The powder-coated wheels are mounted onto a specialized CNC diamond cutting lathe designed for automotive wheels. The machine meticulously shaves off a very thin layer from the surface in multiple passes. This process removes the black powder coat from the outer layer, exposing the underlying silver aluminum material. Achieving the precise diamond cut pattern requires consistent machining depth; too deep and it resembles a scratch, too shallow and the silver doesn't show adequately. Experienced technicians carefully calculate and set the depth for a flawless result, creating the striking two-tone effect with the silver diamond patterns vividly contrasting against the black background.
3. Final Protective Clear Coat: The newly machined aluminum surface is vulnerable to oxidation and requires protection. A specialized transparent clear coat for wheels, known as acrylic powder clear, is applied. This final layer undergoes another high-temperature curing process. This essential clear coat prevents oxidation and protects the intricate diamond cut finish, ensuring its longevity and brilliance.

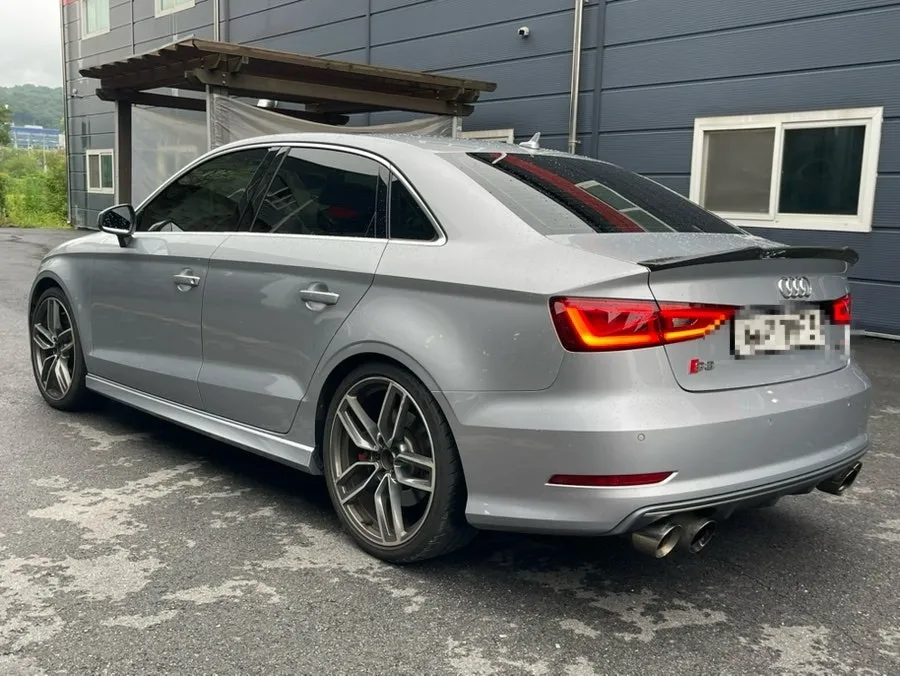

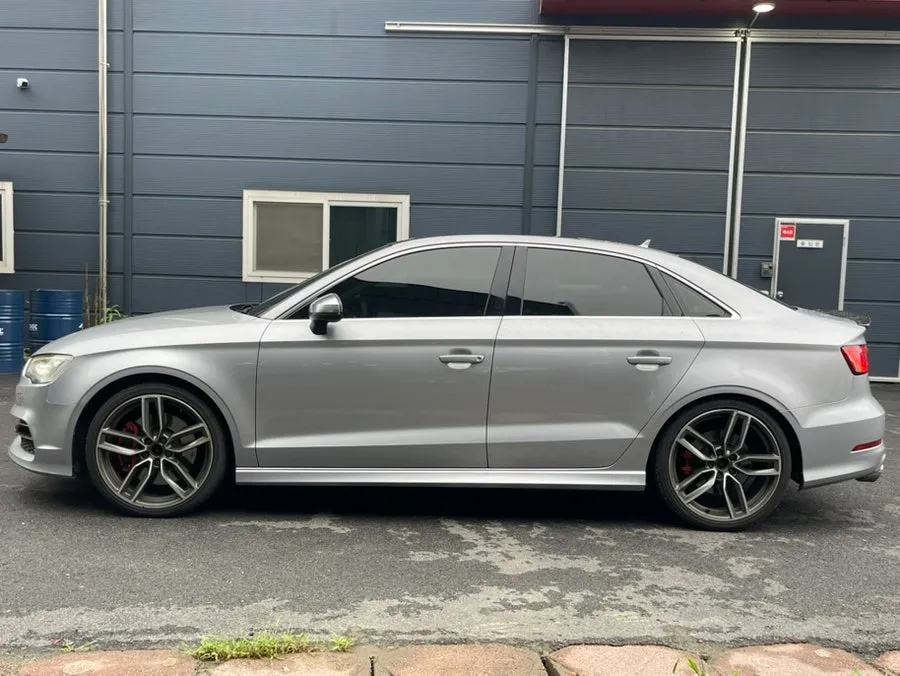

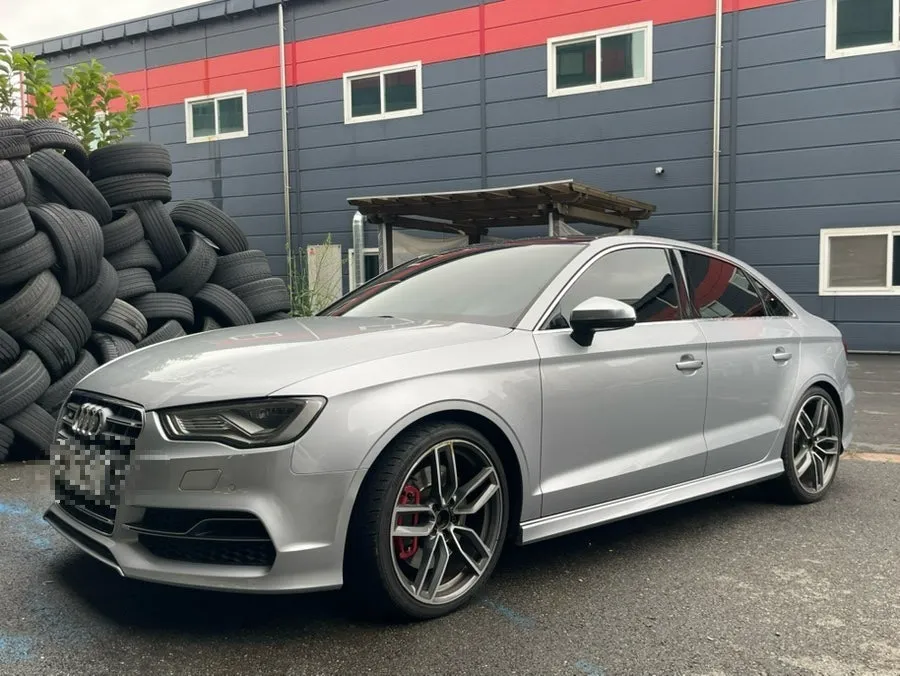

The result is a set of wheels that not only look brand new but possess a depth and character that surpasses their original finish. The black polish technique, combined with expert restoration, has revitalized the Audi S3's sporty stance.
