BMW 5 Series Ceramic Coating Review — Restored from Paint Damage

From Paint Damage to Polished Perfection: The BMW 5 Series Transformation

When faced with scratches and scuffs on a BMW 5 Series, the typical recommendation from body shops is a full repaint. However, this approach often comes with a high cost and the risk of color mismatch, especially on older vehicles. This case study explores how a BMW 5 Series, initially facing a "needs repainting" diagnosis, was expertly restored using advanced polishing techniques, avoiding the need for new paintwork.

Understanding Paint Correction vs. Repainting

The choice between repainting and paint correction hinges on the severity of the damage. Repainting involves stripping the original paint and applying a new coat. While effective for deep damage, it's expensive, can lead to color inconsistencies, and carries the risk of dust contamination during the process. Paint correction, on the other hand, utilizes polishing to remove imperfections from the existing clear coat without removing paint. This method preserves the original paint's integrity and color match, maintaining the vehicle's overall aesthetic balance. It requires significant skill and precision to avoid causing further damage.

Assessing Damage: When Paint Correction is Viable

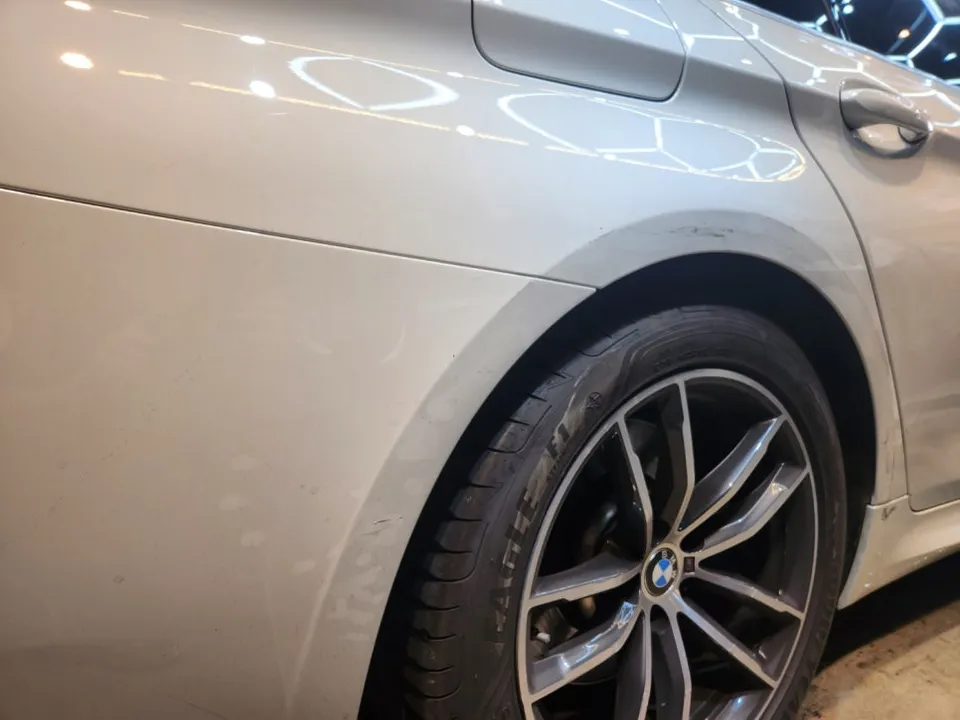

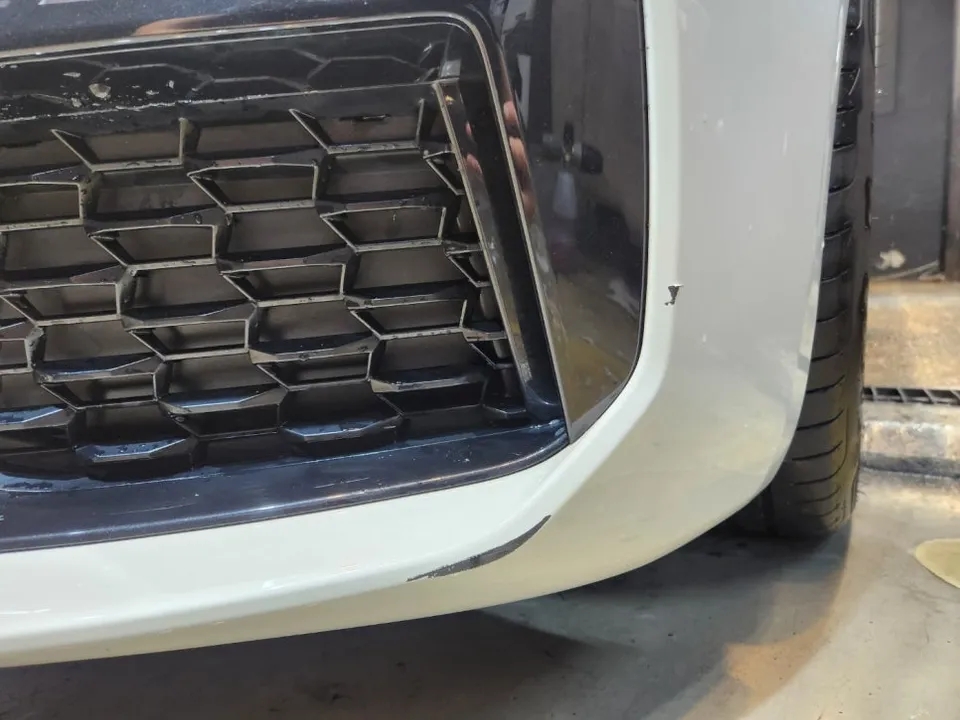

The BMW 5 Series in this review presented with scratches and scuffs on the fender and bumper. Crucially, the underlying paint layer was intact, and the body panels were not deformed. These conditions are ideal for paint correction. The key criteria for opting for paint correction over repainting include:

1. The body panel is not significantly dented or creased.
2. The original paint layer is still present, not completely removed.
3. The damage is primarily superficial, such as scratches and swirl marks.

If a panel is severely deformed or the paint is completely gone, repainting becomes the necessary solution. For this BMW 5 Series, the damage was limited to the surface, making expert polishing the optimal choice.

The Precision of the Polishing Process

The success of paint correction lies in meticulous execution. The process begins with careful sanding to level deep scratches, a critical step that demands extreme precision to avoid removing too much clear coat. Following sanding, a multi-stage polishing process is employed. This BMW 5 Series underwent a three-stage polishing regimen:

1. Stage 1 (Single Polish): This step uses a machine polisher with a compounding pad to level the surface after sanding and remove deeper imperfections, preparing the paint for finer polishing.
2. Stage 2 (Dual Polish): A finer polish and pad combination is used to refine the finish, removing any minor hazing or swirl marks left by the initial compounding stage.
3. Stage 3 (Finishing Polish): The final stage employs a very fine polish and pad to achieve a high-gloss, swirl-free finish, bringing out the paint's maximum clarity and depth.

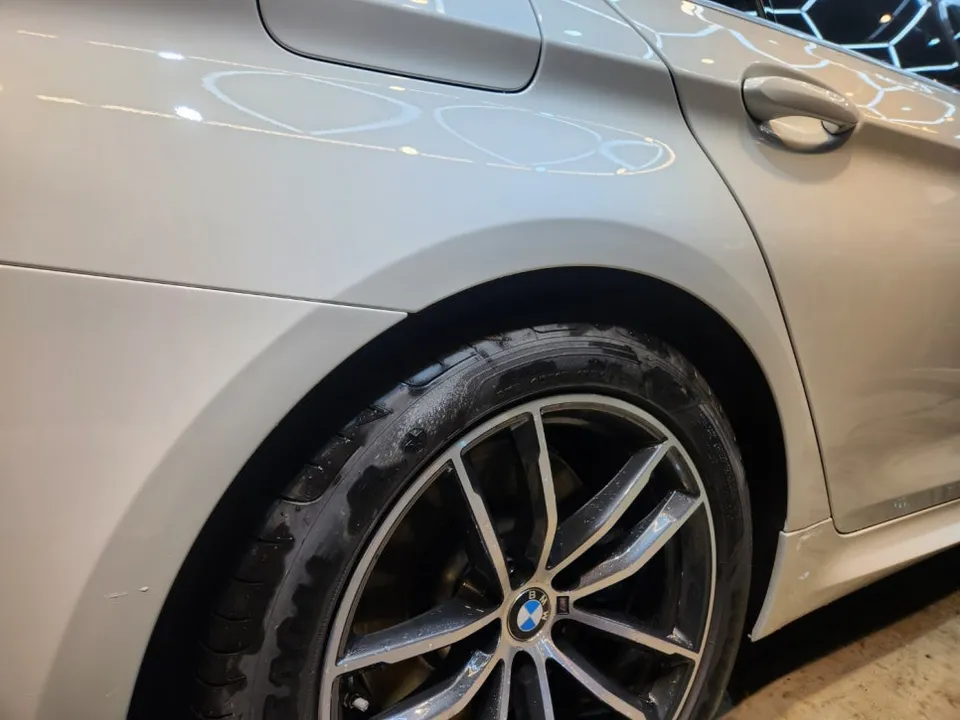

Each stage requires careful control of machine speed, pressure, and polish type to achieve optimal results without compromising the paint's integrity. The final result is a flawless finish that rivals, and often surpasses, that of a new paint job, all while preserving the original factory finish.
