BMW G30 5 Series 3D Surround View Camera upgrade enhances parking and low-speed safety. Professional installation ensures seamless integration and a f
Upgrading Your BMW G30 5 Series with a 3D Surround View Camera

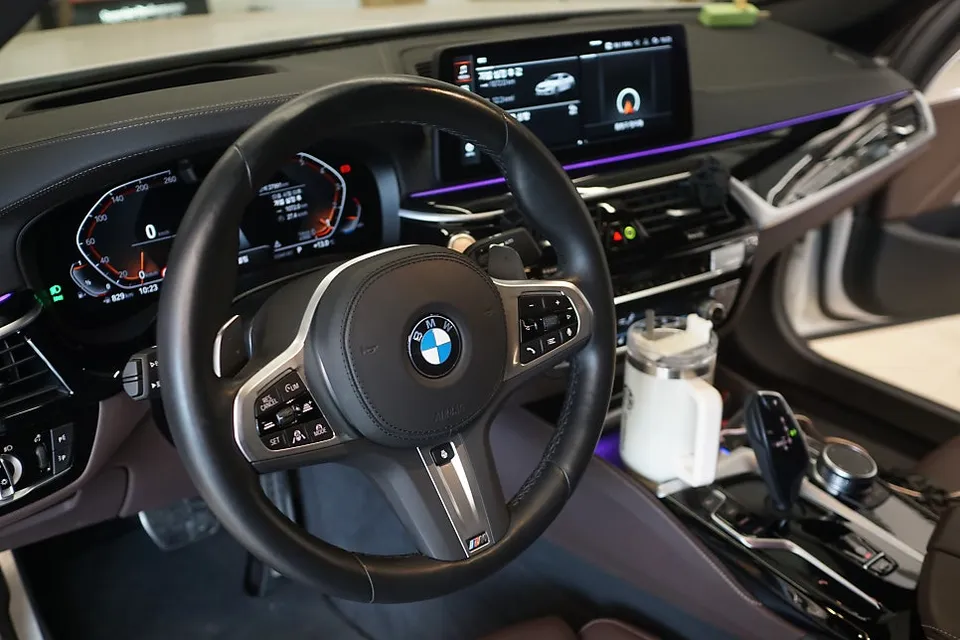

This guide details the installation of a 3D Surround View Camera system on a 2021 BMW G30 5 Series M Sport package. The vehicle, a white business sedan with a black grille, lacked the original surround view feature. This upgrade significantly enhances safety and confidence during parking and low-speed maneuvers.
Assessing the Need and Pre-Installation Checks

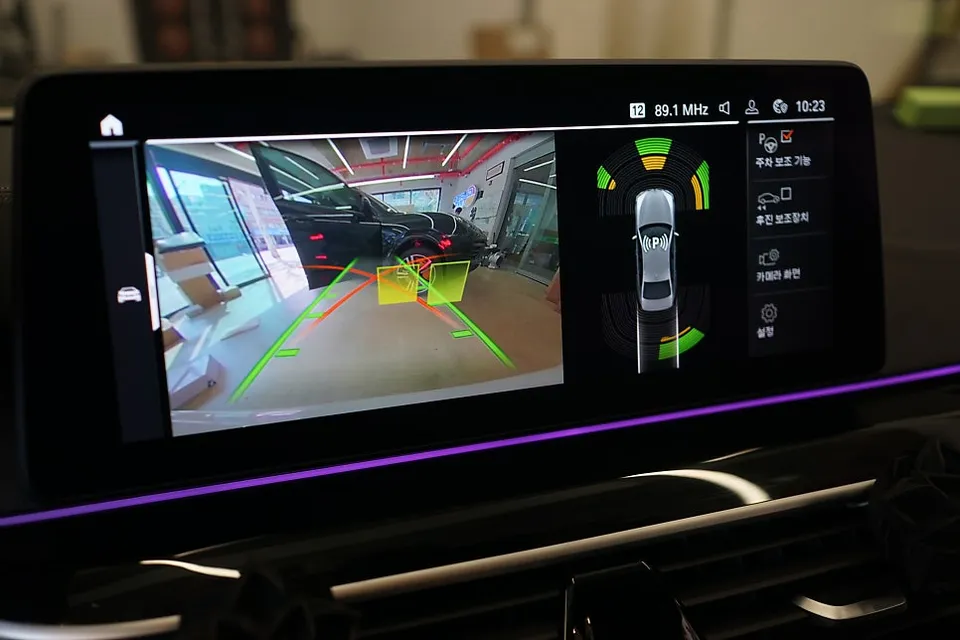

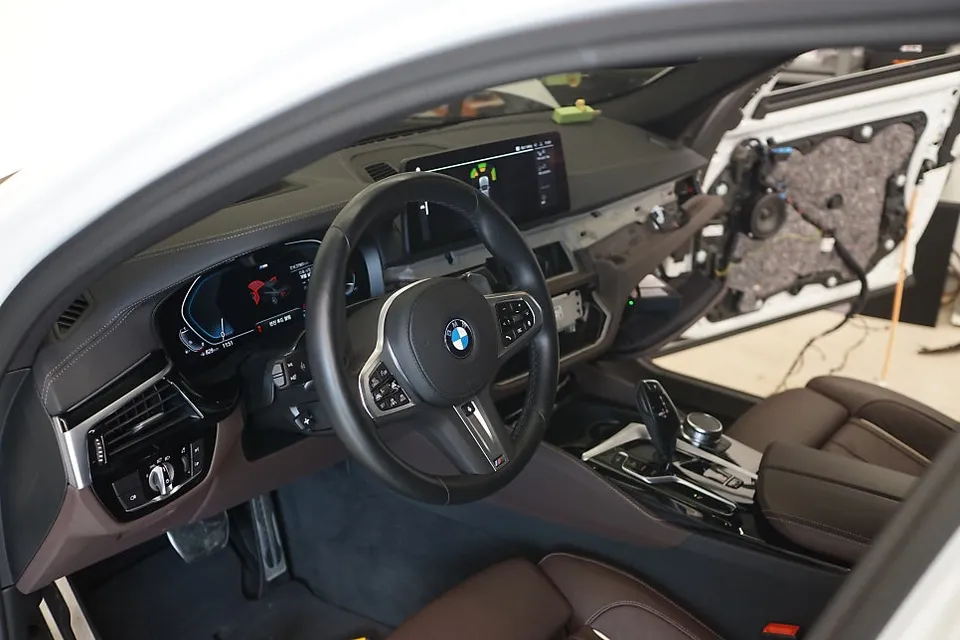

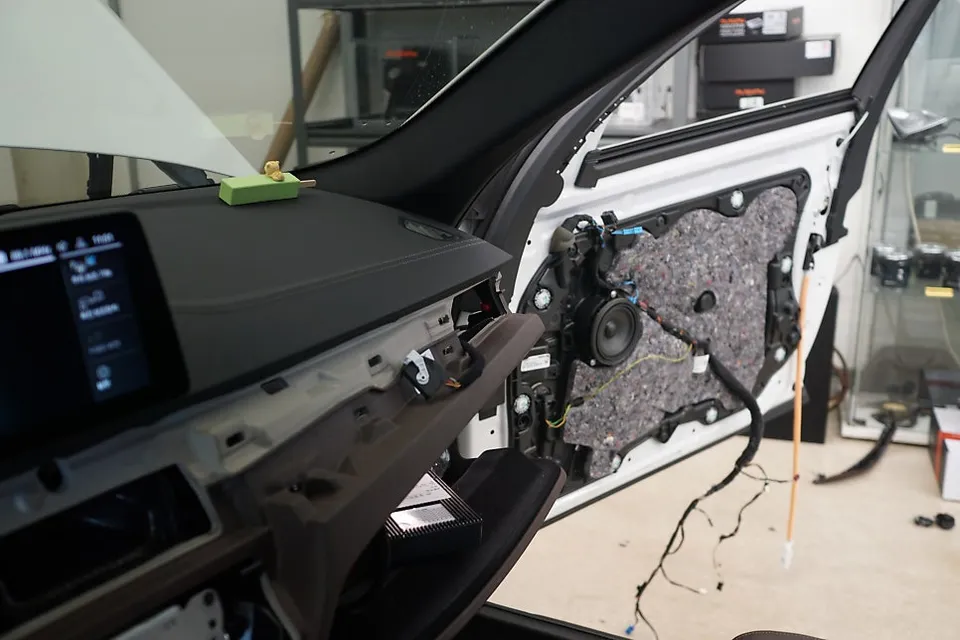

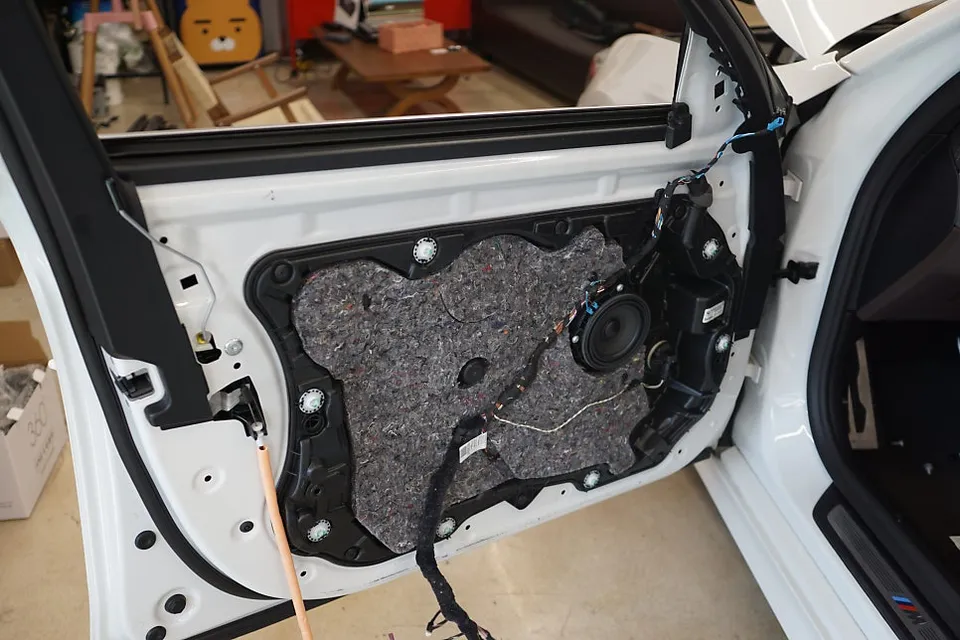

The factory-installed rear camera on the G30 5 Series offers limited visibility, displaying only the rear view with basic parking assist lines. In today's urban driving environment, a 360-degree view is crucial for safe operation. The process begins with carefully removing the door panels to access the speaker and soundproofing components, ensuring they remain undamaged. This step is critical for planning the camera wiring routes, adding complexity to the installation.
Integrating the Surround View System

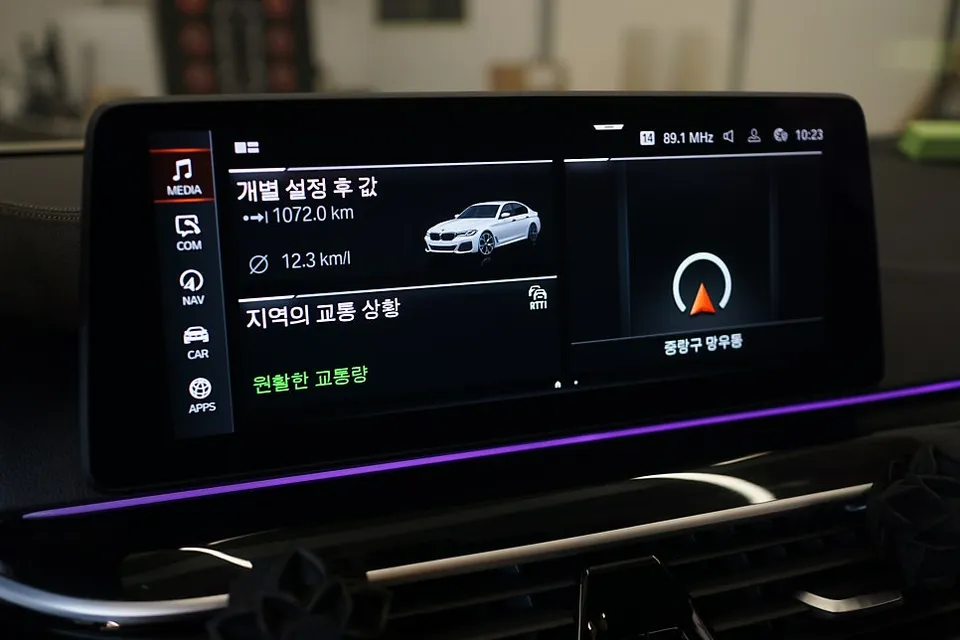

The core of the surround view system is located beneath the center display unit. This module acts as the central hub for all camera connections. Seamless integration requires not just physical connections but also signal synchronization and voltage stabilization to ensure long-term reliability. Rigorous testing of each circuit's resistance and signal timing is performed to prevent issues like screen freezing or delays during driving.
Front Camera Installation
The front camera is installed after disassembling the front grille. Precise drilling, using speed-controlled tools and coolant, is essential to avoid cracking the reinforced plastic grille material. The camera, approximately 15mm in diameter, is designed to fit discreetly between the grille's patterns. To ensure stability and durability against vibrations, high-strength bonding adhesive is used, requiring a 24-hour curing period. Waterproofing and dustproofing are also critical for this externally mounted component.
Rear Camera Integration
In this installation, the original rear camera was retained alongside the new high-definition camera. The new camera boasts a resolution of 1080p or higher, offering approximately four times the clarity of the standard 480p rear camera. Its compact design and wide 170-degree field of view allow it to be centrally mounted on the upper bumper, covering blind spots on the sides and front of the vehicle.
Side Camera Installation
The side cameras are integrated into the side mirror housings. This involves carefully disassembling the mirror units to create precise openings for the cameras. The goal is to achieve a factory-like finish, ensuring the cameras are securely mounted and aesthetically pleasing. Wiring is routed through the mirror assembly and into the vehicle's interior, connecting to the main control unit.
System Calibration and Testing
Once all cameras are installed, the system undergoes a crucial calibration process. This involves projecting a grid onto the ground and using specialized software to stitch the images from all cameras into a seamless 360-degree view. The accuracy of this calibration directly impacts the effectiveness of the surround view system. Final testing confirms that the display functions correctly on the center screen, providing a clear and accurate representation of the vehicle's surroundings.
Frequently Asked Questions
Q. How much does a Surround View Camera cost for a BMW 5 Series G30?
The cost for this specific installation in Korea was not explicitly stated in the provided text. Typical US pricing for a professional surround view camera installation on a BMW 5 Series can range from $1,500 to $3,000, depending on the system and vehicle specifics.
Q. How long does a Surround View Camera system last on a BMW 5 Series G30?
With proper installation and quality components, a surround view camera system can last for many years, often matching the lifespan of the vehicle's other electronic components. Regular cleaning of the camera lenses is recommended to maintain optimal performance.
Q. Is a Surround View Camera worth it for a BMW 5 Series G30?
A surround view camera system is highly beneficial for drivers who frequently navigate tight parking spaces or drive in congested urban areas, significantly improving situational awareness. The enhanced safety and convenience it offers provide excellent value for peace of mind.
Q. How is a Surround View Camera installed on a BMW 5 Series G30?
Installation involves mounting cameras in the front grille, rear bumper, and side mirrors. The process includes precise drilling, secure mounting with adhesives, routing wiring through the vehicle's interior, connecting to the central display unit, and finally, system calibration for a seamless 360-degree view.
Q. What is the best Surround View Camera option for a BMW 5 Series G30?
The best option often involves a system designed for seamless integration, offering high-definition resolution and wide viewing angles, similar to the 3D system described. Prioritizing professional installation ensures optimal performance and a factory-like appearance.
