BMW 5 Series G60 Wheel Repair Review: Diamond Cut Restoration

Restoring the Intricate Diamond Cut Wheels of the BMW 5 Series G60

The new BMW 5 Series G60 is distinguished by its sleek and precise wheel designs. A common fitment, the 938M wheel, is a large 20-inch wheel featuring a delicate diamond cut finish. This intricate pattern is easily susceptible to damage from minor scratches, which can mar the sophisticated matte diamond angles. Consequently, BMW 5 Series owners often opt for diamond cut wheel repair over simple repainting when their wheels sustain damage. This review details a recent repair performed by O-neul-ui-ka (Today's Car) in Seosan on a BMW 5 Series G60 with 938M wheels, highlighting the specialized techniques required for this advanced wheel type.

The Unique Challenges of Repairing 938M Diamond Cut Wheels

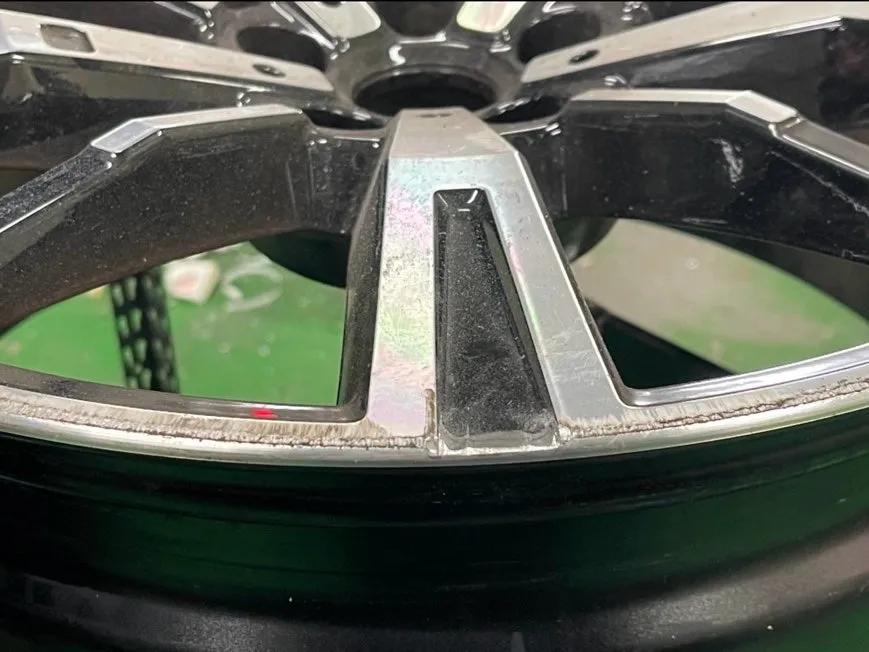

The complexity of the 938M wheel extends beyond its size. The edges of the diamond cut are exceptionally thin and sharp, making repairs difficult even for minor damage that spans a wide area. When the diamond cut's angle is compromised, restoring the original pattern necessitates recalibrating the entire wheel's curvature. In this specific case, the impact had already distorted the diamond cut edges, preventing proper angle definition. Such damage cannot be fixed with basic polishing; it requires recutting the angles and repainting the damaged background sections.

The Precision Process: Diamond Cut Machining and Refinishing

The O-neul-ui-ka Seosan team, with their accumulated expertise in 938M wheel repair, began by meticulously resetting the machining angles. This stage demands extreme caution, as any error can permanently alter the wheel's form. The machining process involves adjusting the depth and angle of each facet to millimeter precision, accounting for the unique characteristics of diamond cut wheels. This intricate setup alone can take approximately 2-3 hours.

Following the machining, the background areas of the wheel, which are inevitably affected during the diamond cutting process, require repainting to prevent corrosion and further degradation. This is achieved through powder coating, a process where powdered particles are electrostatically applied and then baked. Powder coating offers a uniform finish and exceptional durability, making it ideal for the fine details of diamond cut wheels.

The final stages involve meticulous cleaning of the wheels to remove any dust or debris from the machining process, ensuring a flawless paint surface. The wheels are then preheated to around 180 degrees Celsius before powder coating. After the application of a clear acrylic coating, the wheels undergo a 20-minute curing process in an autoclave at the same temperature. This hardens the coating to a level exceeding 3H on the hardness scale, more than double that of conventional paint.

The completed wheels are then remounted with tires, and wheel balancing is precisely adjusted to eliminate vibrations during high-speed driving. Finally, BMW M stickers are applied to their exact positions using double-sided tape. The result is a perfectly restored 938M wheel, with the diamond cut angles accurately recreated and the background finish flawlessly applied.
