BMW X5 G05 Surround View Camera Installation Review
Service Price
$150+
Estimated price · Actual price may vary by shop
BMW X5 G05 Surround View Camera installation provides 2K resolution, 4-channel recording, and seamless integration with native features for enhanced s
Why Your BMW X5 G05 Needs a Surround View Camera
The BMW X5 G05 is renowned for its performance and spacious interior, but its substantial size can create significant blind spots, making parking in tight urban environments a challenge. In cities like Seoul, even minor parking errors can lead to costly repairs. To address this, many X5 owners are opting for Surround View Camera installations. This review details a recent installation at Today's Car Seocho, a specialist in imported car upgrades.
Expert Installation for Your BMW X5
Today's Car Seocho specializes in imported car tuning and convenience features, with a strong focus on BMW Surround View Camera systems. They prioritize seamless integration with the vehicle's original systems, ensuring a factory-like finish. Serving BMW, Audi, and Porsche owners in the Seocho area, they have successfully completed hundreds of Surround View Camera installations on various luxury vehicles.
2K Surround View Camera Integrated with Your BMW's Native Display
The installation on this BMW X5 G05 utilized the S-VUE 2K Surround View system. A key advantage is its direct integration with the car's existing native monitor, eliminating the need for separate screens or aftermarket navigation units. The system leverages the LVDS cable for high-definition video signal transmission, enabling a crisp 2K resolution display. Unlike older analog systems, LVDS offers superior clarity, especially in low-light conditions, with minimal signal noise.

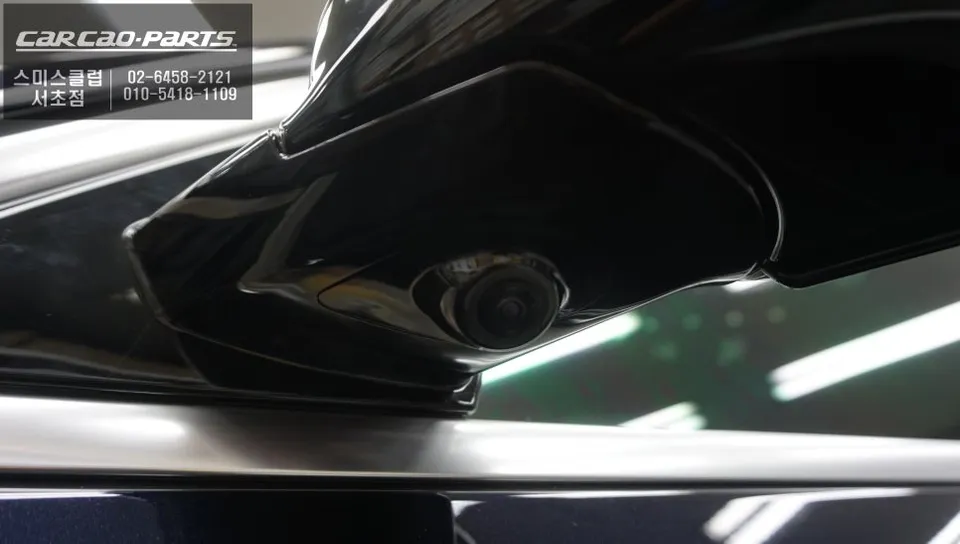

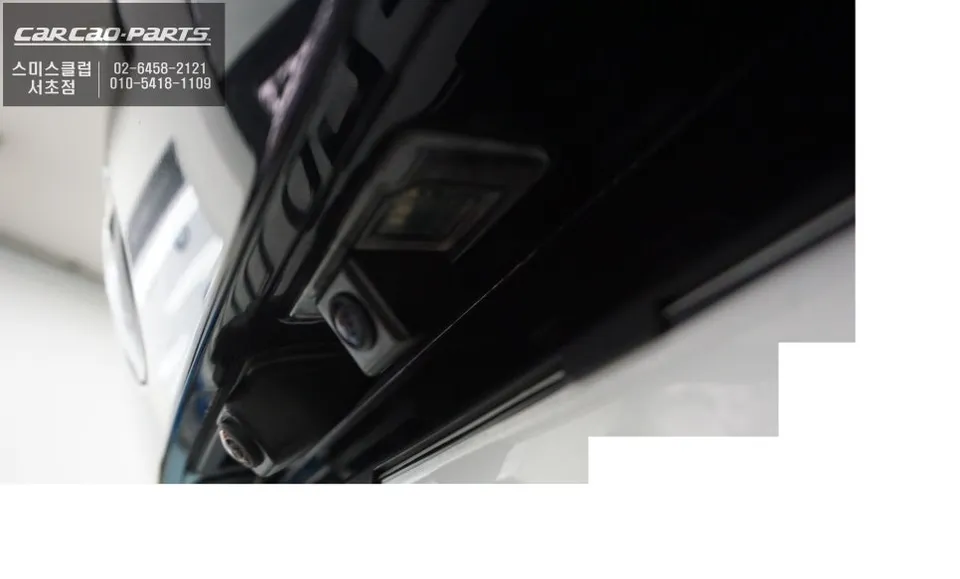

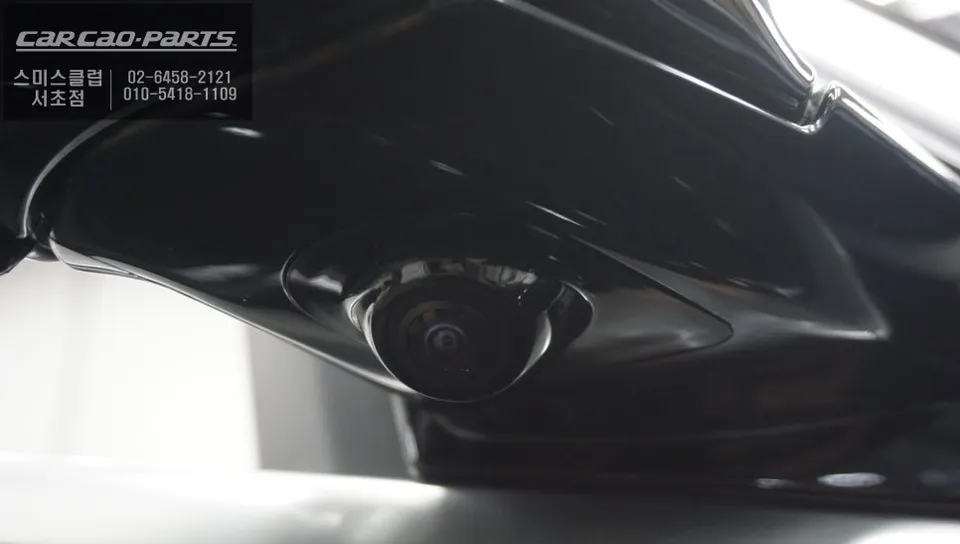

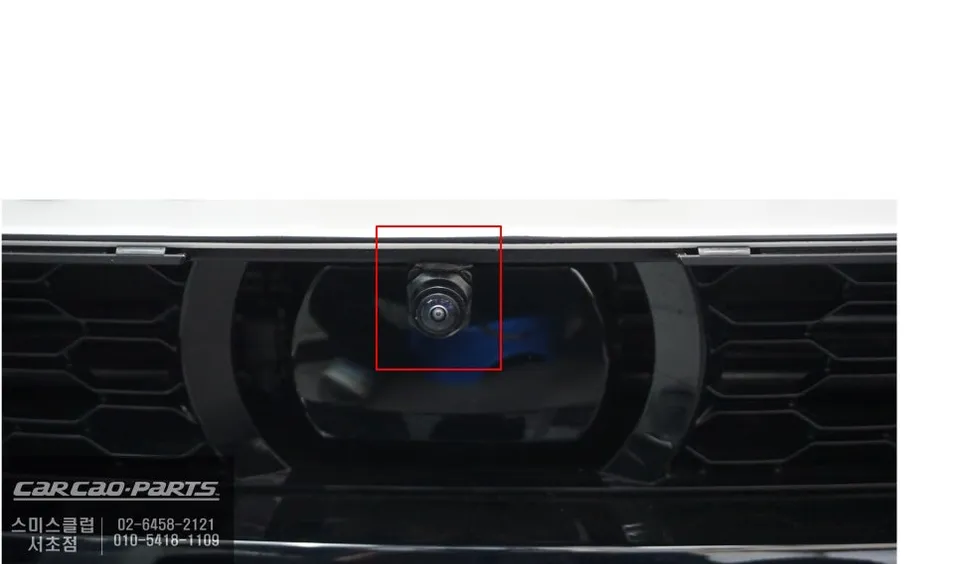

The four cameras are strategically placed on the vehicle's exterior: front bumper, side mirrors, and rear bumper. For a large vehicle like the X5, optimal placement at these four points is crucial for achieving a true 360-degree view. Today's Car Seocho uses integrated cameras with custom mounts to maintain the vehicle's aesthetic integrity.
4-Channel Recording for Enhanced Security
Beyond just parking assistance, the S-VUE 2K system offers a significant security benefit: real-time recording from all four cameras. This feature acts as a comprehensive dashcam, capturing footage of any incidents that occur while parked or during driving, especially in blind spots. The recorded data is stored internally and can be accessed via USB or a dedicated app, providing invaluable evidence in case of accidents or vandalism.
Seamless Integration with BMW's Original Features
A major differentiator from generic aftermarket systems is the perfect synchronization with the BMW's original features. The parking guide lines on the monitor dynamically adjust as the steering wheel is turned (PAS - Power Assisted Steering integration), mimicking a factory-installed option. Furthermore, the system is fully compatible with the BMW X5's original PDC (Parking Distance Control) sensors. Detected obstacles are displayed simultaneously on the Surround View monitor, combining visual and sensor data for highly accurate parking maneuvers.
Intuitive Control with Jog Dial and Turn Signals
The user interface is designed for intuitive operation, utilizing the car's original controls. Various viewing modes can be selected using the steering column jog dial and hazard light button. The system also includes an optional trigger function that automatically displays the corresponding side camera view when the turn signal is activated, further enhancing situational awareness.
Installation Process:
- Camera Placement: Four cameras are precisely mounted on the front, rear, and sides of the vehicle.

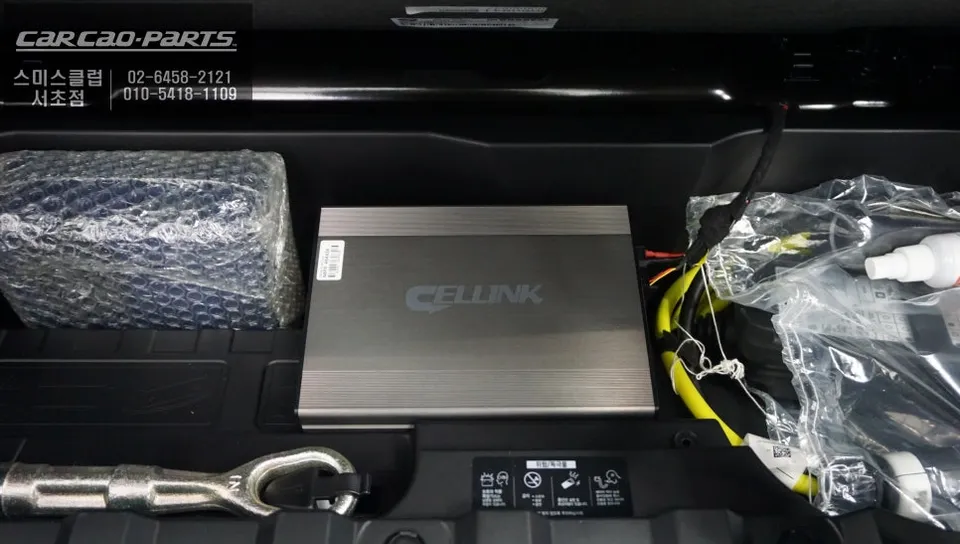

- Wiring Integration: Cameras are connected to the central control unit and integrated with the vehicle's native display via LVDS.
- System Calibration: The system is calibrated to ensure accurate 360-degree stitching and PAS line functionality.
- Function Testing: All features, including recording, PAS, and turn signal triggers, are thoroughly tested.
Frequently Asked Questions
Q. How much does a Surround View Camera cost for a BMW X5 G05?
The S-VUE 2K Surround View system installed in this BMW X5 G05 review cost approximately 1,500,000 Korean Won. Typical US pricing for similar high-quality Surround View Camera systems can range from $800 to $2,500, depending on the brand and features.
Q. How long does a Surround View Camera last on a BMW X5 G05?
With professional installation and proper care, a Surround View Camera system can last for many years, often matching the lifespan of the vehicle's other electronic components. Regular cleaning of the camera lenses is recommended to maintain optimal image quality.
Q. Is a Surround View Camera worth it for a BMW X5 G05?
A Surround View Camera system is highly beneficial for BMW X5 G05 owners who frequently navigate tight parking spaces or drive in congested urban areas, significantly reducing the risk of minor collisions and parking-related damage. It provides unparalleled peace of mind and enhances overall driving safety.
Q. How is a Surround View Camera installed on a BMW X5 G05?
Installation involves precisely mounting four cameras (front, rear, sides) onto the vehicle's exterior. These cameras are then wired to a central control unit, which integrates with the car's native display using an LVDS connection for high-definition output. Finally, the system is calibrated for accurate 360-degree stitching and synchronized with the vehicle's steering and parking sensors.
Q. What is the best Surround View Camera option for a BMW X5 G05?
The S-VUE 2K system reviewed here offers excellent integration with the BMW X5's native display and features like PAS and PDC sensors, making it a top choice for seamless functionality. For those prioritizing advanced recording capabilities and a factory-like appearance, this system provides a compelling solution.
