Cadillac Escalade 360 Camera Install: Before & After

Enhancing Your Cadillac Escalade with a 3D Surround View Camera

The Cadillac Escalade, with its commanding presence and spacious interior, can present parking challenges for some drivers. While many Escalades come equipped with a factory surround view system, some owners find its resolution and clarity lacking, especially in low-light conditions or complex parking scenarios. This review explores an aftermarket solution: integrating a high-definition 3D surround view camera system with an existing Android head unit. This upgrade aims to overcome the limitations of the OEM system, offering a significantly improved visual experience and enhanced parking convenience. We'll detail the installation process, showcase the before-and-after transformation, and discuss the overall value proposition for Escalade owners.

The Installation Process: Bringing 3D Vision to Your Escalade

Integrating a 3D surround view camera system into a Cadillac Escalade, particularly when paired with an aftermarket Android head unit, involves a meticulous process. This upgrade requires careful handling of vehicle electronics and precise camera placement to achieve a seamless, birds-eye view. The installation typically focuses on leveraging the existing Android head unit as the display for the new camera system, enhancing its functionality without replacing the entire infotainment setup.

Installation Process:

1. Android Head Unit Preparation: The existing Android head unit is carefully removed from the dashboard. A specialized chipset for the 3D surround view system is then integrated with the head unit, ensuring compatibility and enabling the new camera feed.
2. Camera Wiring: Four cameras (front, rear, and two sides) are essential for the 360-degree view. The wiring for each camera is meticulously routed through the vehicle's existing channels, ensuring a clean and hidden installation. This involves running cables from each camera location to the central chipset connected to the head unit.
3. Camera Mounting: The side cameras are typically mounted discreetly below the side mirrors, often utilizing existing mounting points. A separate front camera is installed, usually within the grille area, and a dedicated rear camera is added, even if the vehicle has a factory backup camera, to provide the necessary feed for the surround view system. All wiring is concealed for a factory-like finish.
4. System Integration and Testing: Once all cameras are physically installed and wired, the system is connected to the Android head unit. The software is configured to correctly stitch the images from the four cameras into a cohesive 3D birds-eye view. Thorough testing is performed to ensure all camera angles are accurate and the display functions correctly when the vehicle is in reverse or when activating the parking view.

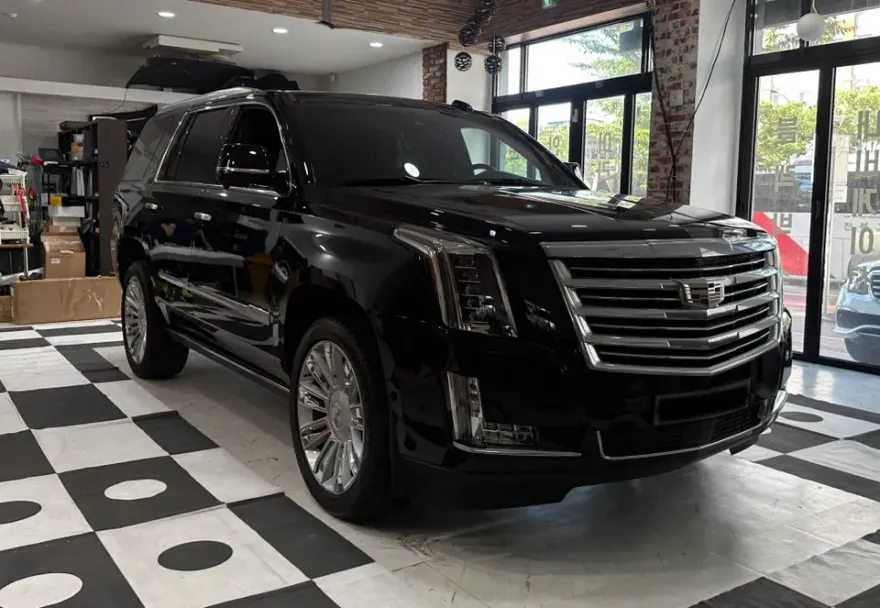

Before and After: A Transformed Parking Experience

The impact of a 3D surround view camera system on a Cadillac Escalade is immediately apparent. Before the installation, drivers might rely solely on the factory backup camera or side mirrors, often struggling with blind spots and the sheer size of the vehicle. After the upgrade, the large Android head unit displays a crystal-clear, 360-degree view of the vehicle's surroundings. When shifting into reverse, the system seamlessly presents a top-down perspective, often referred to as a 'bird's-eye view,' alongside the traditional rear camera feed. This comprehensive visual aid significantly reduces the anxiety associated with maneuvering in tight spaces, parking garages, or crowded lots. The enhanced clarity, even in low-light conditions, provides a level of confidence and safety previously unavailable. Furthermore, the integration often complements existing parking assist systems (PAS and PDC), offering a more intuitive and complete parking solution.

Cost and Durability: The cost for a 3D surround view camera system, including installation and integration with an Android head unit, typically starts in the range of 500,000 Korean Won (approximately $360-$400 USD, depending on exchange rates). This price can vary based on the specific system chosen and the complexity of the installation. The durability of these systems is generally good, with most cameras and associated electronics offering a warranty of one to two years from the manufacturer. Proper installation, ensuring all wiring is protected and cameras are securely mounted, is key to long-term reliability. Maintenance is minimal, usually involving occasional cleaning of the camera lenses to ensure a clear view.
