Hyundai Grandeur GN7 Surround View Camera Review

Enhancing Your Hyundai Grandeur GN7 with a Surround View Camera System

The Hyundai Grandeur GN7, especially in its larger form factor, can present parking challenges in tight urban environments. While the factory offers a Parking Assist Package, many owners, particularly those with taxi variants or who opted out of this package, find themselves needing enhanced visibility. This review details the retrofit of a comprehensive surround view camera system, including front, rear, and side cameras, along with advanced parking assistance features, to significantly improve maneuverability and safety. The work was performed in South Korea, and the parts are genuine Hyundai Mobis components.

Comprehensive Parking Assistance Features

The goal of this upgrade is to replicate and even enhance the factory's Parking Assist Package. This includes several key functionalities:

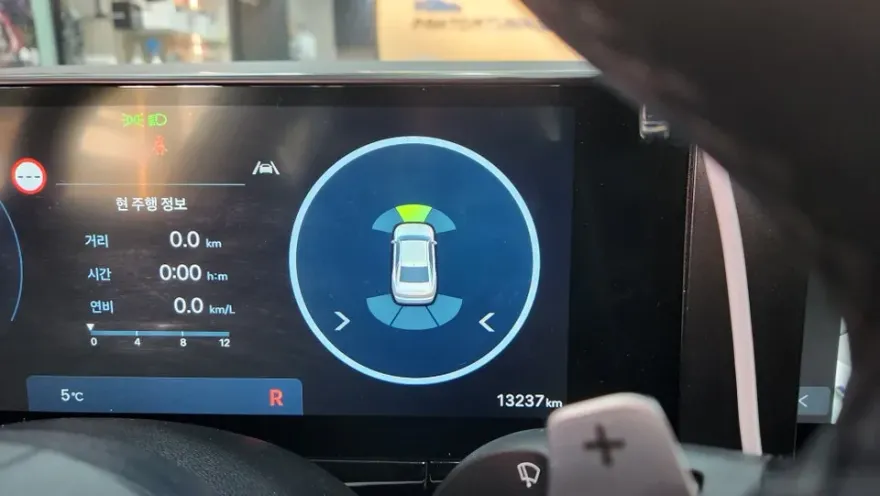

• Side Parking Distance Warning: Provides multi-stage warnings for pedestrians and objects when parking or exiting tight spots.
• Surround View Monitor (SVM): Utilizes high-definition cameras and digital video transmission for a clear, bird's-eye view of the vehicle's surroundings, crucial for safe parking.
• Rear Parking Collision-Avoidance Assist: Detects and warns of potential collisions with pedestrians or objects when reversing, automatically applying brakes if necessary.
• Rear-side View Monitor: Displays the rear-side view in the cluster when the turn signal is activated, enhancing lane change safety.

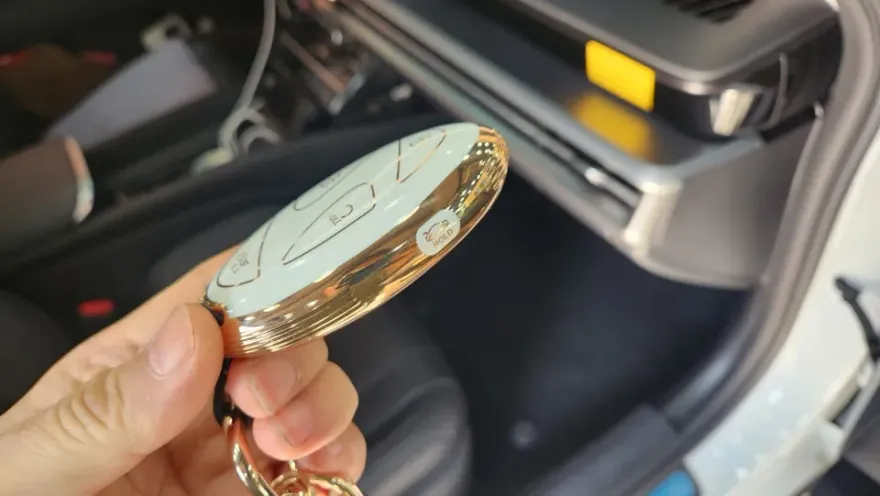

• Remote Smart Parking Assist (RSPA): Allows remote parking and exiting of the vehicle using the smart key, ideal for confined spaces.

Installation Process:

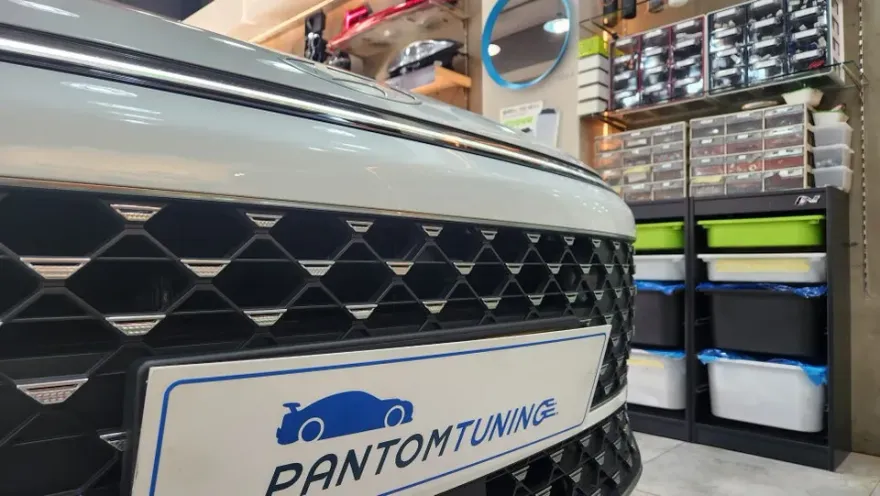

1. Front Camera Installation: The front camera is meticulously installed in the front bumper grille using genuine brackets and connectors for a factory-like appearance and integration.
2. Side Camera Mounting: Two side cameras are fitted to the lower part of the side mirrors, requiring replacement of the mirror assembly to ensure optimal viewing angles of the vehicle's sides. Special connectors are used to link the cameras to the doors, allowing for independent replacement of the mirror unit if damaged.
3. Module and Sensor Integration: A high-cost ADAS parking assist module (over 1 million KRW) is installed, typically in the trunk trim due to its size, weight, and heat generation. This module processes signals from all cameras and sensors. Additional front and rear bumper sensors are also mounted.
4. Camera Calibration: After all components are installed, the cameras undergo a precise calibration process using a specialized calibration board to ensure accurate image rendering and functionality of the surround view system.

Before and After Results: A Dramatic Improvement

Before the installation, the GN7 Grandeur, particularly for a taxi driver, relied solely on the basic rear camera. This proved insufficient for navigating narrow alleys and crowded areas due to the car's size. After the retrofit, the driver gains access to a crystal-clear, wide-angle view of the vehicle's entire perimeter. The system displays a dynamic bird's-eye (3D) view, which can be rotated with touch controls, offering unparalleled situational awareness. The steering-linked parking lines (PAS) function correctly, and the front camera automatically activates when shifting into Drive, providing immediate visibility of the front obstacles. The rear-side monitor, displayed on the instrument cluster when signaling, adds another layer of safety. The integration of side sensors further enhances the warning system. The RSPA function, activated via a modified smart key, provides the convenience of remote parking. The overall visual output is sharp, bright, and significantly aids in confident maneuvering, transforming the driving experience.

Durability and Maintenance Considerations

Using genuine Hyundai Mobis parts ensures high durability and reliability, comparable to factory-installed systems. These components are designed to withstand typical automotive environmental conditions. Maintenance primarily involves keeping the camera lenses clean from dirt, mud, or snow, which can be done with a simple wipe. The integrated system is designed for longevity, and the professional installation ensures all connections are secure and weatherproof. The installer also provides after-sales service for their work.

Is the Surround View Camera System Worth It?

While the factory-installed Parking Assist Package costs approximately 1.43 million KRW (around $1,000-$1,100 USD), a post-purchase retrofit can cost more than double this amount, largely due to the high price of the ADAS module alone. However, for owners who frequently navigate challenging parking situations or wish to significantly enhance their vehicle's safety and convenience features, the investment can be justified, especially if planning to keep the car long-term. The system's comprehensive functionality, including the 360-degree view, parking aids, and remote parking, offers substantial benefits that outweigh the cost for many users. The installation is guaranteed not to affect the vehicle's warranty, and the system itself is reliable.
