Ford Explorer Surround View Camera Review — Enhanced Safety
Service Price
$approx. $1,500+
Estimated price · Actual price may vary by shop
Ford Explorer Surround View Camera installation offers 360° visibility and 4-channel recording, enhancing parking safety.
Ford Explorer: Eliminating Blind Spots with Surround View Camera
The Ford Explorer, a large SUV, often presents challenges with its size and limited rear visibility, creating significant blind spots. To address this, a Surround View Camera system is a crucial upgrade. This installation combines a 2D Super View Surround View system, integrating with the factory monitor, and BSM wide-angle mirrors. Together, these components effectively eliminate blind spots, enhancing driver confidence.
360° Coverage with Four Cameras

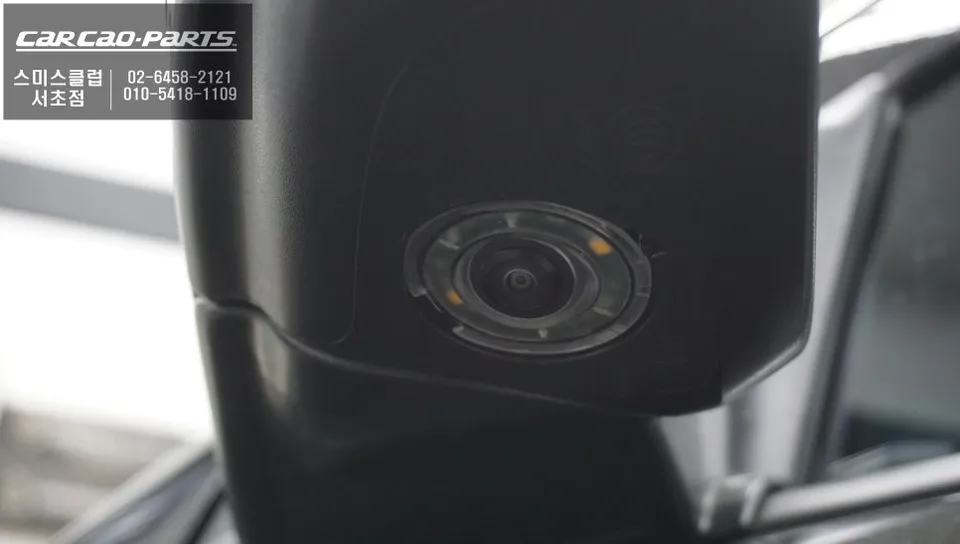

The Surround View Camera system for the Ford Explorer utilizes four cameras: front, rear, left, and right. These cameras feature Wide Dynamic Range (WDR) for optimal performance in varying light conditions. A key advantage is the use of under-lamp integrated cameras for the side views, eliminating the need for additional drilling and preserving the vehicle's exterior integrity.

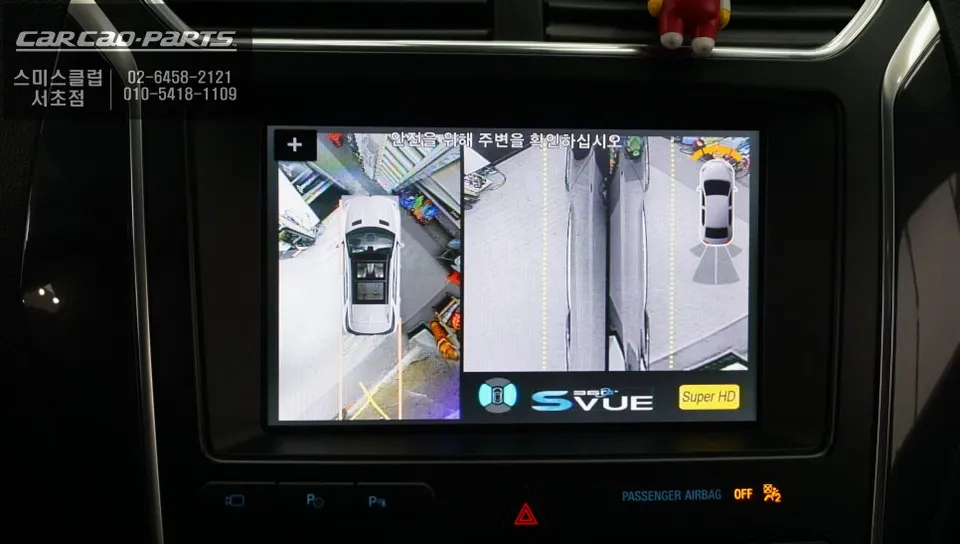

After installation, a specialized calibration process is performed using a dedicated pattern. This meticulous calibration ensures the seamless stitching of the four camera feeds into a single, top-down (sky view) image. This 360° composite view allows the driver to clearly identify obstacles around the vehicle in real-time, significantly reducing the risk of collisions during parking maneuvers.
Seamless Integration with Parking Assist System (PAS)
A standout feature of this system is its integration with the vehicle's Power Assist Steering (PAS). When the vehicle is shifted into reverse (R), the display automatically switches to the top-down view. Upon shifting to drive (D), it reverts to the factory display. This automatic switching provides a natural and intuitive driving experience without requiring manual intervention.
Unlike some aftermarket systems that display static parking lines, this system leverages the factory PAS data to show dynamic guidelines. These lines adjust in real-time based on the steering angle, offering a precise prediction of the vehicle's path and aiding in accurate parking.
Integrated 4-Channel Dashcam Functionality
Beyond its primary function, the Surround View Camera system includes a video recording feature, effectively acting as a 4-channel dashcam. It captures footage from all four cameras simultaneously, providing comprehensive 360° coverage of the vehicle's surroundings. This is invaluable for documenting incidents in parking lots or on the road, serving as crucial evidence.
Additionally, a dedicated button allows for viewing the front camera feed exclusively. The system also incorporates a trigger function that automatically displays the relevant side camera view when the turn signal is activated, further enhancing safety during lane changes.
Ford Explorer Surround View Camera Installation Process:

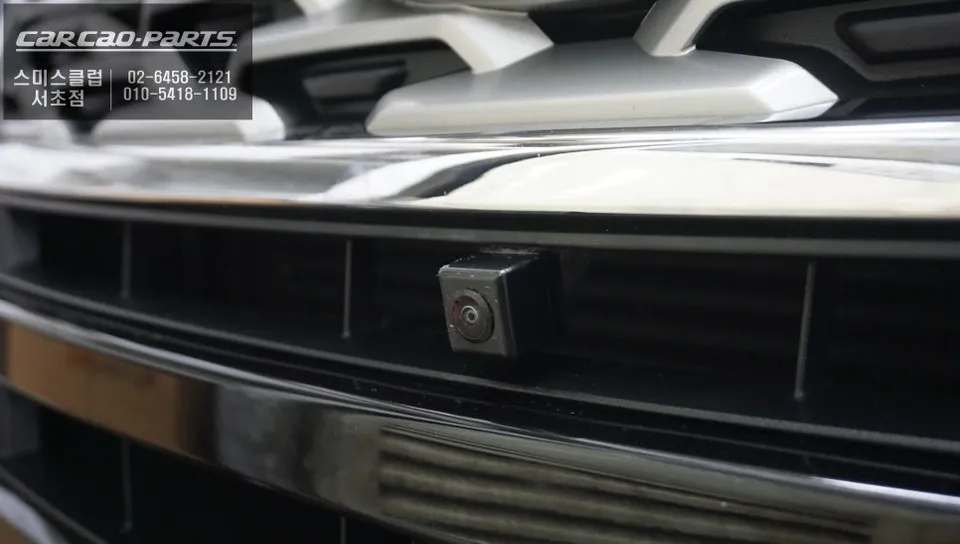

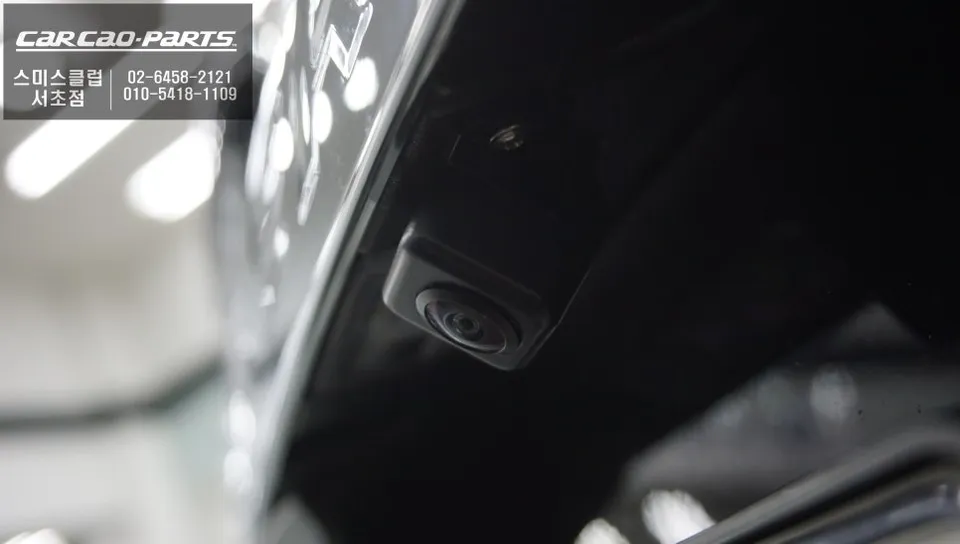

- Camera Placement: Precise calculation and mounting of each camera – front grille, rear, and under-lamp side cameras – ensuring optimal angles for accurate image stitching.
- Wiring and Integration: Connecting the cameras to the vehicle's factory navigation or digital cluster via a compatible interface, maintaining the original interior aesthetics.
- Calibration: Applying a specialized calibration pattern and performing manual adjustments to create the seamless 360° top-down view.
- Testing: Verifying all functions, including PAS integration, dynamic lines, and recording capabilities.
Frequently Asked Questions
Q. How much does Surround View Camera cost for a Ford Explorer?
The specific cost for this Ford Explorer Surround View Camera installation was not provided in Korean Won. Typical US installations can range from $500 to $1500 depending on the system's features and complexity.
Q. How long does Surround View Camera last on a Ford Explorer?
Surround View Camera systems are generally durable and can last for many years with proper installation and care. Regular cleaning of the camera lenses is recommended to maintain optimal performance.
Q. Is Surround View Camera worth it for a Ford Explorer?
A Surround View Camera system is highly beneficial for Ford Explorer owners who frequently navigate tight spaces or are concerned about blind spots. It significantly enhances parking safety and reduces the risk of minor collisions.
Q. How is Surround View Camera done on a Ford Explorer?
Installation involves mounting four cameras (front, rear, sides) and integrating them with the vehicle's factory display. The process includes precise camera placement, wiring, and a critical calibration step to stitch the images into a seamless 360° view.
Q. What is the best Surround View Camera option for a Ford Explorer?
The best option integrates seamlessly with the factory display and offers dynamic parking lines, like the system reviewed which uses PAS data. Look for systems with WDR cameras and under-lamp side camera integration for a clean installation.
