Why Your Ford Mustang Needs a 3D Surround View Camera

Parking can be a stressful experience, especially in tight spots. If you find yourself feeling anxious every time you park your Ford Mustang, consider installing a 3D Surround View Camera system. This advanced system provides a real-time, 360-degree view around your vehicle, capturing blind spots that are impossible to see with standard mirrors or even a basic backup camera. This significantly enhances collision prevention and makes maneuvering much easier. Let's explore how this system is installed and how it operates.

Key Specifications:
Vehicle: Ford Mustang
Service: 3D Surround View Camera System (including interface and high-definition board)
Camera Configuration: 4 cameras (front, rear, left, right)
Output: HDMI 720P High Resolution
Additional Features: 4-channel video recording, wireless jog dial control

Understanding How Surround View Cameras Work

Often referred to as "Top View," a 3D Surround View system synthesizes footage from four strategically placed cameras (front, rear, left, and right) to create a bird's-eye perspective of your vehicle and its surroundings. Unlike a standard rearview camera that only shows what's behind you, the Surround View system offers a comprehensive composite image. Achieving this seamless view requires precise camera placement and a crucial calibration process.

The Installation Challenge: Camera Placement

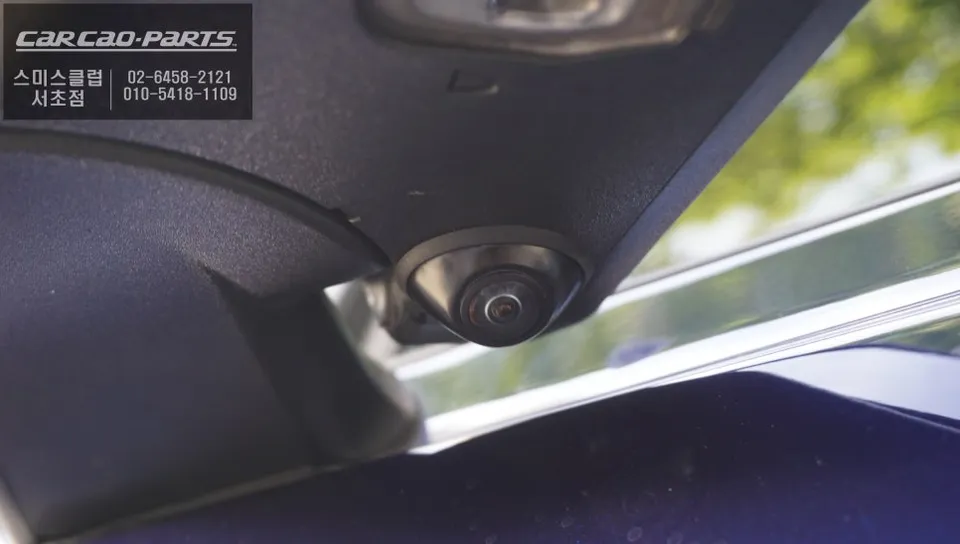

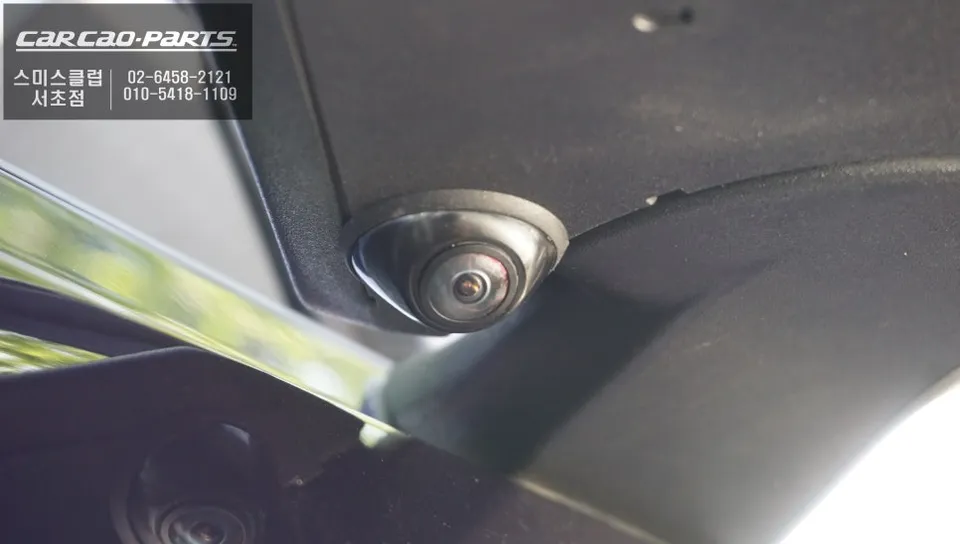

Installing a Surround View system on a Ford Mustang presents unique challenges, particularly with the side cameras. These cameras are often integrated into the side mirrors or require precise mounting within the vehicle's body panels, demanding meticulous alignment. While front and rear cameras are generally more accessible, the side cameras necessitate careful disassembly and reassembly of interior trim and potentially exterior panels to ensure a secure and accurate fit. Improper mounting can lead to vibrations that blur the image or distort the crucial top-down view.

The Importance of a High-Definition Board

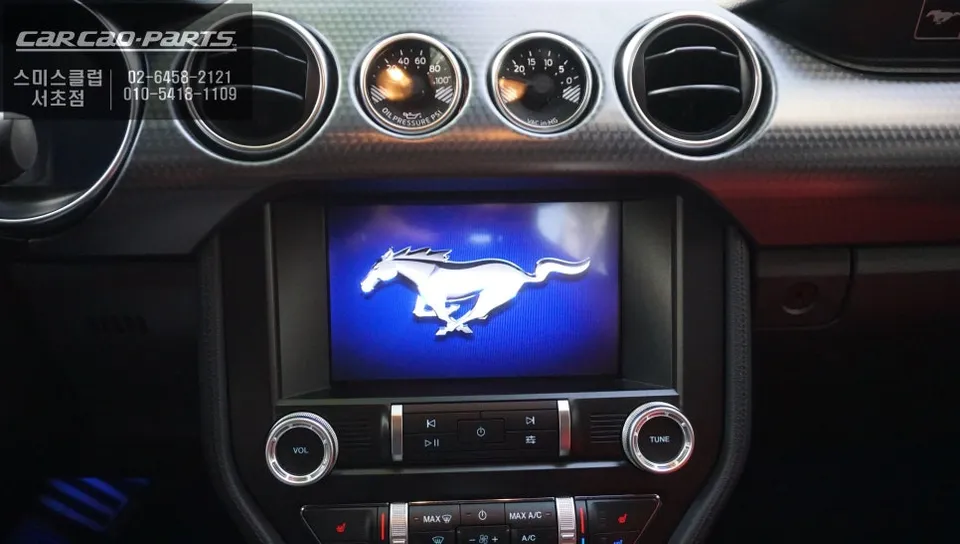

The visual clarity of a Surround View system heavily depends on the quality of its processing board. Systems typically output video in CVBS (lowest resolution, ~480p), AHD (~720p), or HDMI (highest resolution, 720p+). This Mustang installation utilized an HDMI board, delivering a crisp 720P high-resolution output optimized for the vehicle's native display. This superior clarity allows drivers to clearly distinguish obstacles in blind spots, directly contributing to increased safety compared to lower-resolution systems.

Achieving the Perfect Top-Down View: Auto-Calibration

Once all four cameras are installed, the critical "Auto-Calibration" process begins. This procedure stitches together the individual camera feeds into a single, accurate top-down composite image. It involves placing a specific calibration pattern around the vehicle and programming the system to recognize and align these visual markers. A precise calibration is essential for generating the true bird's-eye view; inaccuracies can result in a distorted or misaligned image. This step underscores the need for experienced technicians.

Surround View System Operation

After installation, the system operates intuitively. When the vehicle is shifted into reverse (R), the display automatically switches to the top-down view combined with the rear camera feed. Shifting into drive (D) typically brings up the top-down view alongside the front camera feed, providing continuous situational awareness.
