Honda CR-V Dash Cam Installation Review — Enhanced Safety

Honda CR-V: Addressing Missing Blind Spot Sensors with Advanced Dash Cam Solutions

The Honda CR-V offers a comfortable and stable driving experience, but it notably lacks integrated blind spot detection systems in its standard configuration. To address this, we performed a comprehensive safety upgrade on a Honda CR-V, integrating a 4-channel dash cam system, a crucial blind spot detection solution, and a supplementary battery. This installation significantly enhances both driving awareness and parking security.

The owner of this CR-V sought a solution to the anxiety of not detecting vehicles approaching from the rear blind spots, especially during parking maneuvers. Our approach involved installing the S-RADAR system, which combines wide-angle mirrors with radar sensors, ensuring a seamless integration without compromising the vehicle's original aesthetics.

Comprehensive Blind Spot Detection: Wide-Angle Mirrors and S-RADAR Sensors

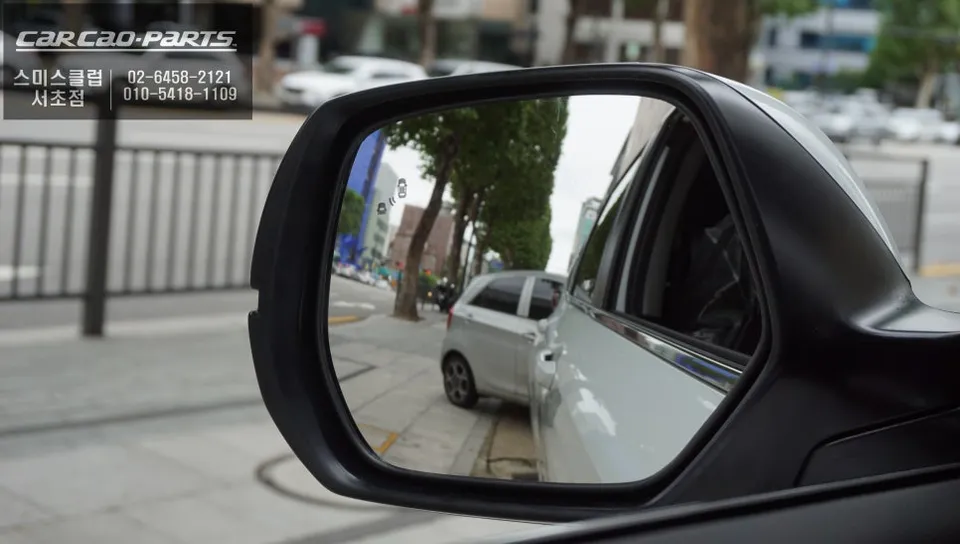

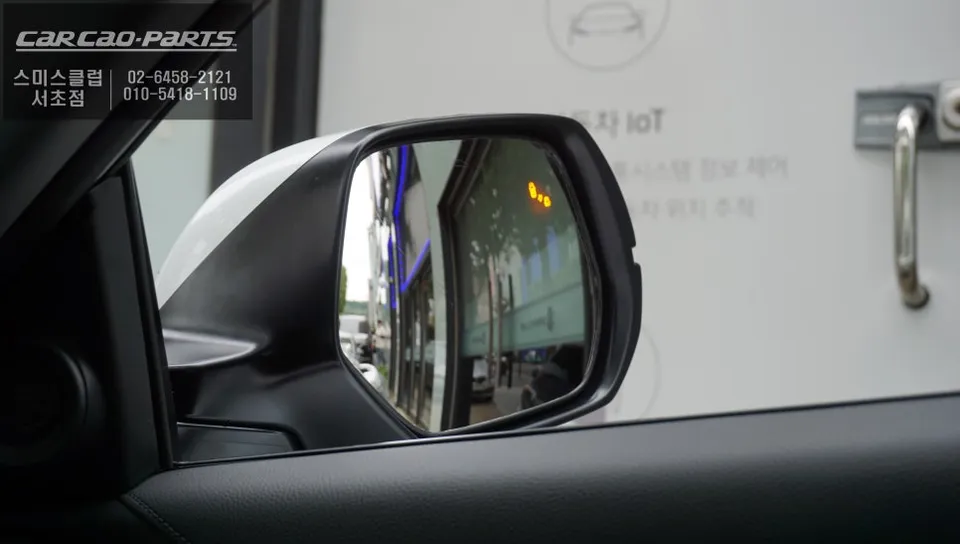

The blind spot detection system operates through two key components. The first is the Wide-Angle Blind Spot Detection Mirror. This is not just a standard mirror; it's a specialized component designed with an integrated automotive-shaped indicator light within the mirror frame. When a vehicle is detected in the rear blind spot, this indicator illuminates, providing a clear visual cue to the driver that another car is present. This is particularly effective in covering blind spots during lane changes and turns.

The second component is the S-RADAR Sensor. These sensors are discreetly embedded into the bumper using the original mounting points, avoiding any unsightly external modifications. The system is intelligently designed to ignore stationary objects like walls or poles, focusing solely on detecting moving objects within a 5-7 meter range. Upon detecting a moving vehicle, the system alerts the driver with an audible warning and activates the indicator light on the mirror. Its ability to disregard stationary vehicles minimizes false alarms, making it exceptionally practical for real-world parking scenarios.

Precision Installation: From Mirrors to Sensors

The installation of the blind spot detection system requires meticulous attention to detail. It begins with the careful removal of the original side mirrors. The mirror frames are then precisely fitted with the indicator lights, ensuring they are seamlessly integrated and clearly visible when illuminated without being obtrusive.

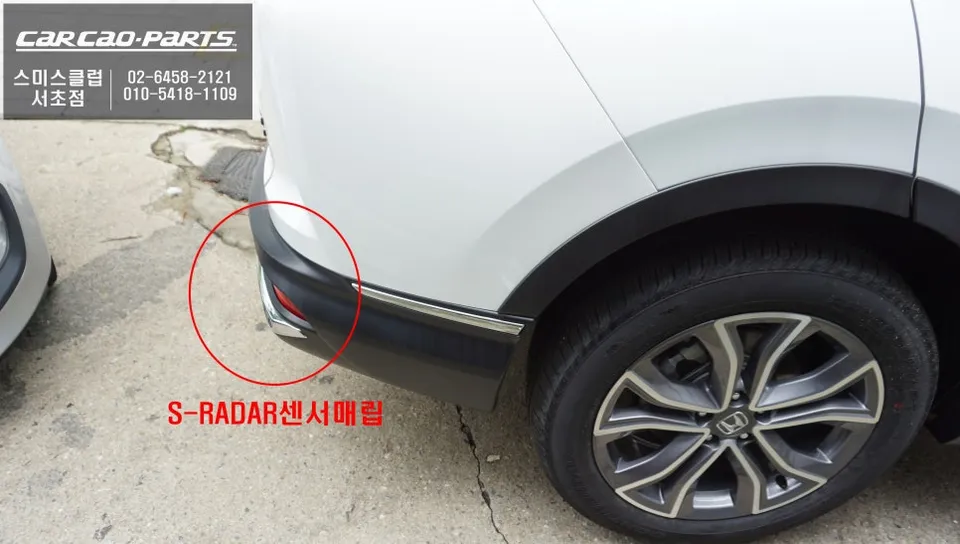

Wiring from the dash and sensors is routed and managed with utmost care, following factory guidelines for a clean and organized setup. The S-RADAR sensor modules are mounted on the lower part of the bumper, utilizing original mounting points to avoid any drilling. Achieving the correct detection angle and height for the sensors is critical for reliable performance.

Wiring is routed through the hood and fender areas, meticulously aligned with the vehicle's existing wiring harnesses. While these areas are not typically visible to the driver, precise installation here is key to the system's long-term reliability and functionality.

4-Channel Dash Cam for Parking Security and Incident Recording

While the blind spot sensors enhance collision avoidance, a dash cam is essential for capturing evidence of any incidents that occur while the vehicle is parked. The Thinkware QXD8000 4-channel dash cam serves this purpose effectively. This system goes beyond basic front and rear recording, incorporating side-view cameras to provide comprehensive 360-degree Full HD recording, ensuring no angle is missed during parking or driving.

The 4-channel setup includes front, rear, left, and right cameras, offering complete situational awareness. This multi-channel recording is invaluable for documenting parking lot incidents, hit-and-runs, or any other events that might occur when the vehicle is unattended. The system's continuous recording, even in parking mode, ensures that crucial footage is always captured.

The integration of the blind spot detection system and the 4-channel dash cam transforms the Honda CR-V into a significantly safer vehicle. The combination provides drivers with enhanced awareness of their surroundings, reducing the risk of accidents and ensuring that critical evidence is recorded, offering peace of mind both on the road and when parked.
