Hyundai Grandeur HG Lighting Upgrade Review: Cost & Results

Hyundai Grandeur HG Headlightアイライン Issues: A Common Problem

Many Hyundai Grandeur HG owners encounter a specific issue with their headlights: theアイライン, also known as the eyebrow or parking light, can weaken or stop illuminating altogether. This problem often starts on the passenger side and eventually affects the driver's side as well. As the condition progresses, the brightness of the surrounding circle eye (DRL) can also diminish. Discovering this before a mandatory vehicle inspection can be stressful, but fortunately, a full headlight replacement isn't always necessary. A more cost-effective solution exists.

Understanding the Cause and Repair Options

Theアイライン malfunction in the Grandeur HG is a known design flaw. It typically arises from moisture ingress or oxidation of electrical contacts within the small LED modules or wiring inside the headlight assembly. This issue tends to worsen over time, with the passenger side usually failing first due to its exposure to more moisture. Initially, the light may just dim, but if left unaddressed, it can lead to complete failure. When faced with this problem, owners have two main options: replacing the entire headlight unit or repairing the internal modules. A full headlight replacement for the Grandeur HG can range from approximately ₩2.5 million to ₩3.5 million (roughly $1,900 - $2,600 USD). In contrast, module repair is significantly more affordable, typically costing between ₩400,000 and ₩800,000 (around $300 - $600 USD), and can often be completed within 1-2 hours, allowing for same-day service.

Module Repair Process and Outcome

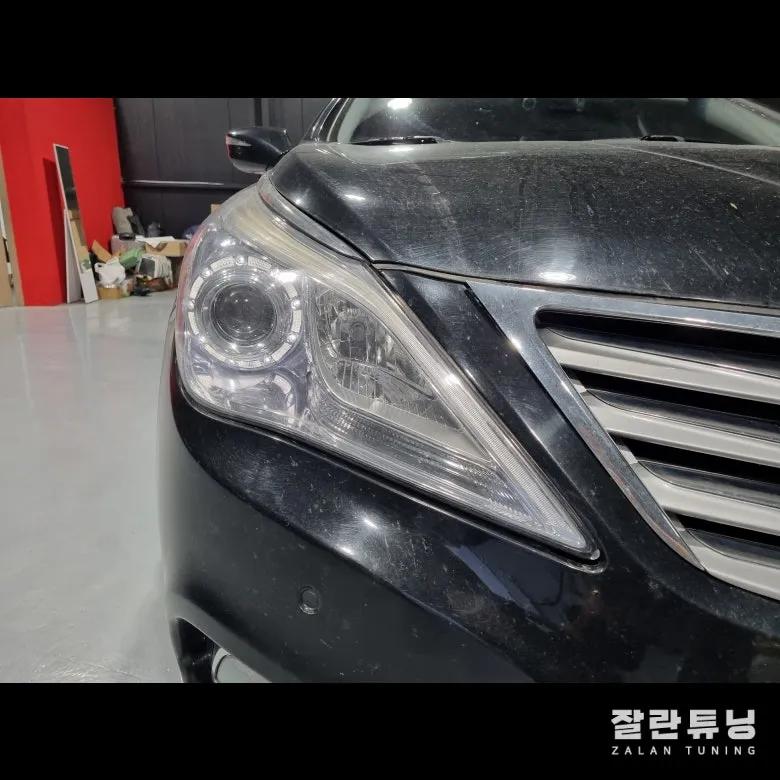

This review details a module repair performed at 'Today's Car Anseong Branch' for a Grandeur HG owner preparing for a vehicle inspection. The owner opted for repair to avoid the high cost of full replacement. Upon inspection, the passenger sideアイライン was barely illuminated, and the driver's side was noticeably dimmer, with the circle eye also affected. The repair process involves carefully disassembling the headlight, removing the sealant, and accessing the internal modules. Faulty LED modules or wiring are replaced, or connections are reconditioned. Crucially, new sealant is applied to restore waterproofing and prevent future moisture issues. The entire process for this vehicle took approximately two hours. After the repair, theアイライン on both headlights shone brightly and evenly, restoring the circle eye's illumination to normal. The vehicle successfully met the brightness standards required for the inspection, saving the owner substantial costs while ensuring safety.

Installation process:

1. Headlight assembly is removed from the vehicle.
2. The original sealant is carefully removed to access internal components.
3. Damaged LED modules and wiring are repaired or replaced, and electrical contacts are cleaned and resealed.
4. New, high-quality sealant is applied to ensure a watertight finish.
5. The headlight is reinstalled, and functionality is tested.

The primary advantage of module repair is its cost-effectiveness. While full replacement can cost millions of Korean Won, module repair is a fraction of that price. The shorter repair time also means less inconvenience. For older vehicles or those with specialized headlights, sourcing replacement units can be difficult, making module repair the most viable solution. Ensuring yourアイライン functions correctly is vital not only for passing mandatory inspections but also for safety, as it helps alert other drivers to your vehicle's presence at night.
