Hyundai Grandeur HG Lighting Upgrade Review

Hyundai Grandeur HG: Addressing Common Ailine LED Issues

The Hyundai Grandeur HG remains a popular choice for many drivers, but it's not immune to common electrical issues. One frequent problem involves the 'iline' (eyeline) and parking light LEDs, particularly on the passenger side. This often leads to dimming or complete failure, making the car appear less striking and potentially causing issues during vehicle inspections. This review details a common repair scenario for the Grandeur HG's iline LEDs, focusing on diagnosis, repair, and restoration of original quality, as performed at a specialized shop in the Pyeongtaek/Anseong region of South Korea.

Understanding Grandeur HG Ailine LED Failure

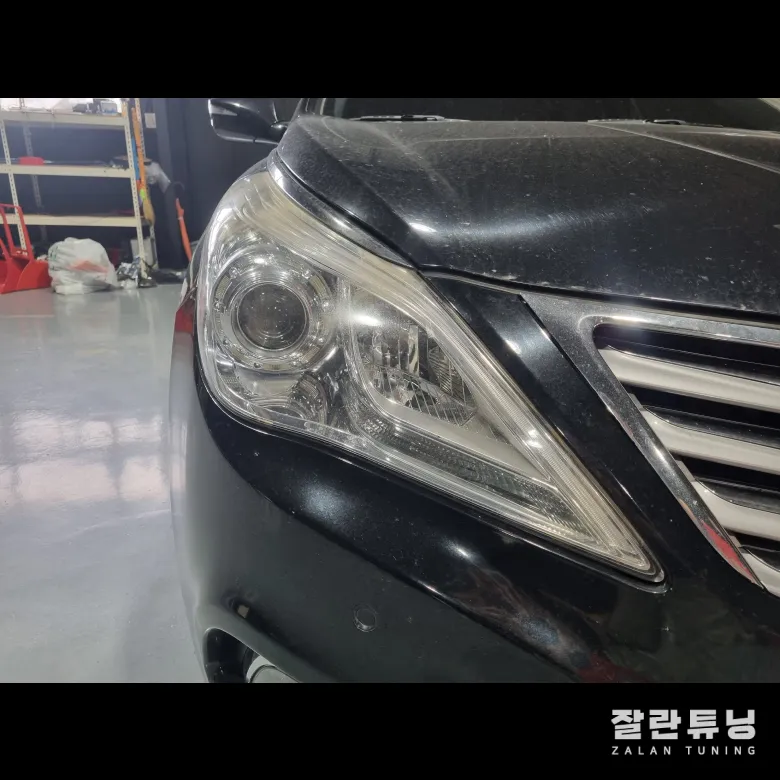

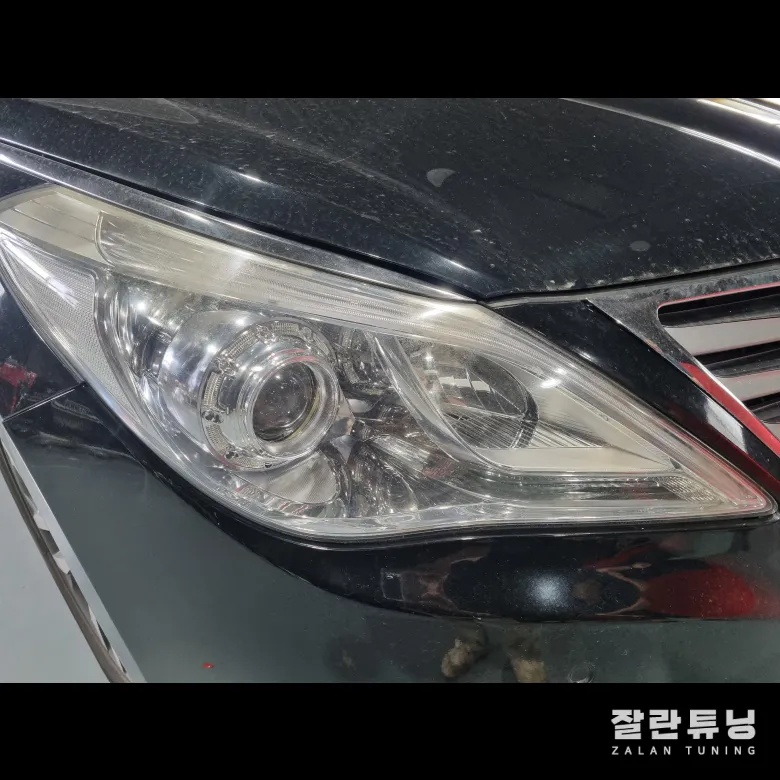

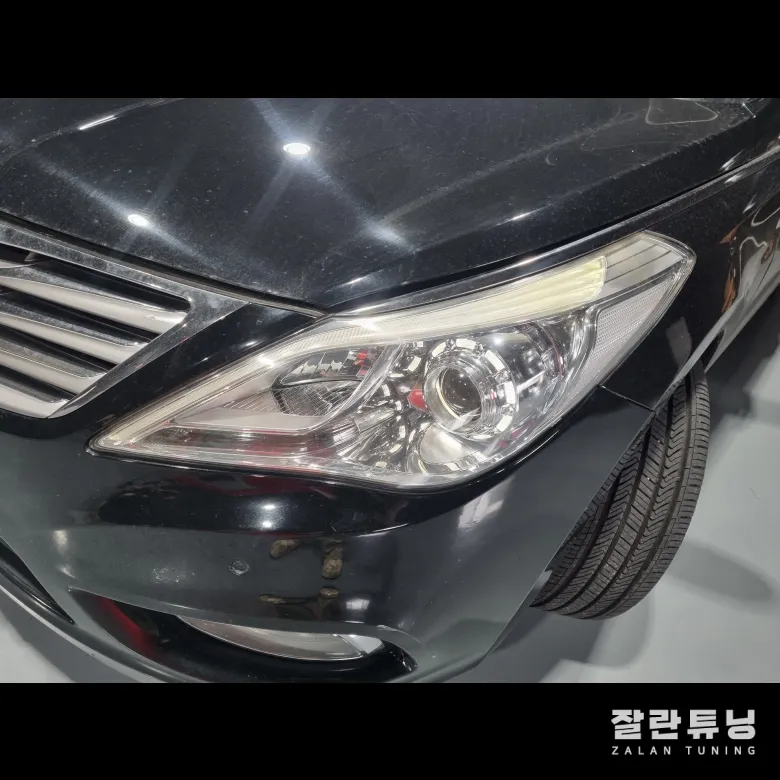

The Grandeur HG's iline consists of a distinctive LED strip that frames the headlights, and when it malfunctions, the accompanying 'circle eye' (pupil-like) light also fails to illuminate. A common symptom is one side going completely dark while the other appears dim. The root cause is often similar for both sides, though the passenger side is statistically more prone to failure. This is often attributed to its more exposed position, making it susceptible to damage from high-pressure car washes or accidental contact, which can compromise internal circuitry. The driver's side, while more protected, may suffer from gradual degradation leading to reduced brightness over time due to heat and age.

Diagnosis and Repair Process for Ailine LEDs

At specialized repair shops like the one in Pyeongtaek/Anseong, the diagnostic process begins by activating both iline LEDs to assess light intensity differences. A complete failure on one side typically indicates a short circuit in the internal wiring or a faulty socket connection. If both sides appear dim, it often points to the natural end-of-life for the LEDs themselves. In the case reviewed, the passenger side iline had completely failed (short circuit), while the driver's side showed partial dimming (LED degradation).

The repair procedure involves carefully removing the front bumper to access and detach the headlight assembly. During this process, the physical condition of the headlight unit is inspected for cracks or deformation. Fortunately, this particular Grandeur HG had no external damage, allowing the repair to focus on internal components. If the headlight lens itself were cracked, it would incur additional costs.

The repair focused on replacing the LED driver – the circuit responsible for regulating the LED's brightness – on the passenger side. For the driver's side, a recalibration of the existing driver's internal chips was performed to restore proper function. This component-level repair is significantly more cost-effective than replacing the entire original headlight assembly, which can cost between ₩1,500,000 to ₩2,500,000 (approximately $1100-$1800 USD) per side. This type of repair can often be completed for about half that cost.

Restoring Original Quality and Passing Inspection

Following the repair, both iline LEDs were tested to ensure consistent brightness and the correct color temperature (6500K white), matching original factory specifications. The result was a perfect restoration, making the repaired lights indistinguishable from new units, including the 'circle eye' illumination. This is crucial, as exterior lighting is a common reason for failing mandatory vehicle inspections in South Korea. Previously, a failed light often meant a costly full replacement. However, with specialized repair services like this, owners can achieve a cost-effective solution that restores their vehicle's lighting to its intended performance and ensures compliance with inspection standards.

Installation Process:

1. Remove the front bumper to gain access to the headlight assembly.
2. Carefully detach the headlight unit by unfastening retaining screws.
3. Inspect the headlight housing for any physical damage.
4. Diagnose and access the internal LED driver or LED modules.
5. Replace or repair faulty internal components (e.g., LED driver, LED chips).
6. Reassemble the headlight unit and reinstall the bumper.
7. Test all lighting functions for proper illumination and consistency.
