Hyundai Santa Fe DM Body Repair & Painting Review

Understanding Headlight Issues in the Hyundai Santa Fe DM

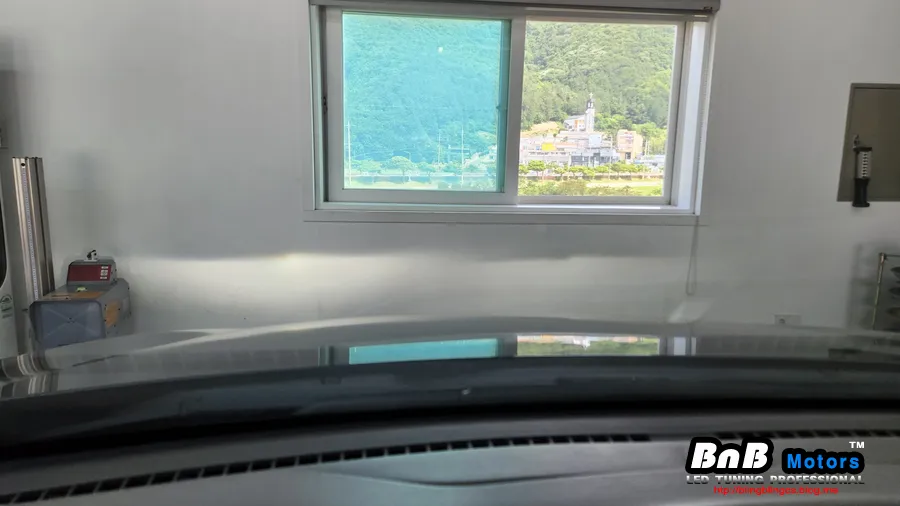

A common reason for failing a vehicle inspection, even when the headlights appear to be working, is insufficient light output. This was the case for a Hyundai Santa Fe DM recently brought in for inspection. While the lights were on, their brightness didn't meet the required standards, leading to a failed inspection. This issue significantly impacts nighttime visibility and safety. In this particular Santa Fe DM, the passenger side headlight showed more severe degradation than the driver's side, though visually, the difference was subtle. The root cause identified was the aging of the internal reflector, a critical component responsible for directing light onto the road.

The Impact of Reflector Aging on Headlight Performance

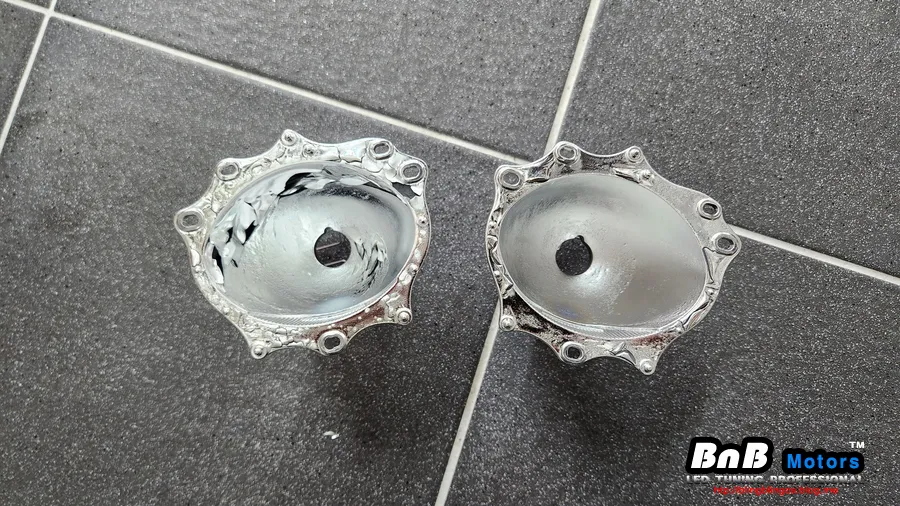

The headlight reflector's primary function is to gather light from the bulb and focus it forward. However, due to the heat generated by the bulbs and often poor heat dissipation within the headlight assembly, the reflective coating on the reflector can degrade over time. This degradation, known as 'dimming' or 'fading,' causes the surface to become cloudy or even peel, drastically reducing the amount of light that can be reflected. Simply replacing the bulb won't solve this problem, as the light emitted by a new bulb will still be diminished by the compromised reflector. Other factors, like a dirty or yellowed headlight lens, can also contribute to reduced light output.

Reflector Restoration Options for Your Santa Fe DM

When faced with a dim headlight issue, there are typically two main approaches to restoring the reflector: refurbishment or replacement with new parts. Refurbishment involves restoring the existing reflector's chrome coating. Alternatively, one can opt for new, imported replacement reflectors. The choice between these options often depends on the severity of the damage, the availability of parts, and budget considerations. For the Santa Fe DM, addressing the reflector aging is crucial not just for passing inspections but also for ensuring safe driving conditions at night.

Installation Process:

1. Careful disassembly of the headlight unit to access the internal reflector.
2. Cleaning and preparation of the reflector surface.
3. Application of a new reflective coating (e.g., chrome plating) or replacement with a new reflector unit.
4. Reassembly of the headlight unit, ensuring proper sealing.
5. Testing of the headlight output and aim.

The cost for this type of repair in Korea, where this service was performed, can range from approximately ₩40,000 to ₩80,000, which is roughly $30-$60 USD at current exchange rates. This is a significantly more affordable solution than replacing the entire headlight assembly.
