Hyundai Tucson LED Lighting Upgrade: A Detailed Review

When your Hyundai Tucson's headlights aren't performing optimally, it can be a safety concern and an inconvenience. This review details a specific case involving a Hyundai Tucson LM model that experienced a failure in its passenger-side high beam. While the original context of this repair was in South Korea, the principles of diagnosing and resolving lighting issues, especially with aftermarket modifications, are universally applicable to car owners in the US and UK considering similar upgrades.

Diagnosing and Resolving a Custom Headlight Issue

The owner of this Hyundai Tucson LM presented with a non-functional high beam on the passenger side. This wasn't the first time the vehicle had experienced this issue, as the owner had previously sought assistance elsewhere. Upon inspection, it was clear the headlights were not factory standard but had been modified. The owner sought a quick resolution and found our service. Typically, we advise owners to return to the original installer for warranty work on aftermarket parts. However, given the owner's prior difficulties and our ability to perform an immediate inspection, we took on the diagnostic challenge.

Our initial step involved consulting the vehicle's wiring diagrams to understand the standard operation. For the Tucson LM, the high beam activation should normally deactivate the low beam power. We detected abnormal power supply to the passenger-side high beam. This led us to suspect either an incorrect wiring job during the custom installation or an inadequate component capacity. We meticulously examined the wiring harness.

The Root Cause: Insufficient Diode Capacity

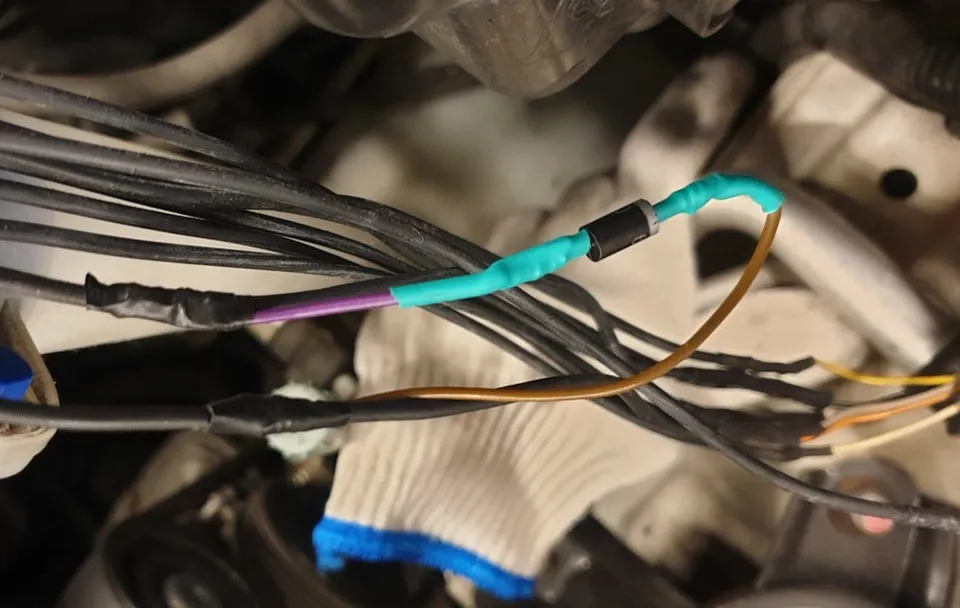

Upon carefully removing the wiring tape, we pinpointed the problem: a faulty diode within the custom headlight assembly. Aftermarket headlights often require additional components to handle different power demands compared to stock units. In this instance, the diode used by the previous installer lacked the necessary capacity. The low beam LEDs alone can draw over 1 Ampere of current, and the installed diode was unable to cope, leading to its failure. This likely explains the recurring issues the owner had experienced.

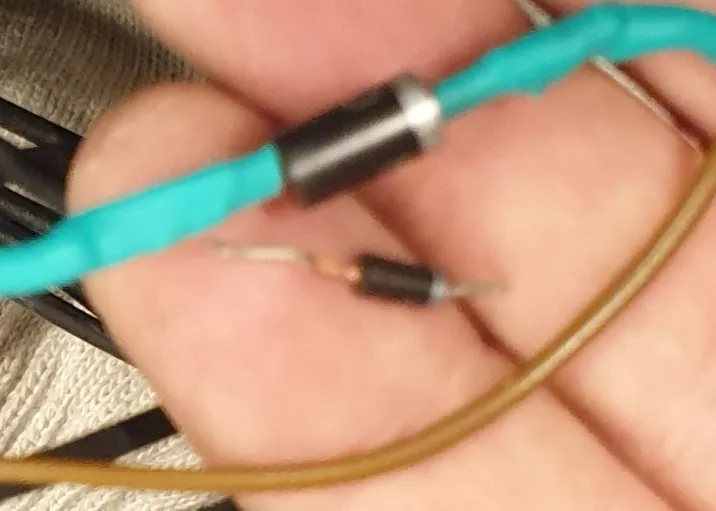

To rectify this, we removed the faulty diode and replaced it with a high-quality component featuring sufficient current tolerance. The new diode was visibly larger, suggesting a more robust and stable performance. Following the replacement, we secured the wiring with protective corrugated tubing and thoroughly explained the repair process to the owner. A diagnostic scan was performed to check for any fault codes; any historical codes unrelated to the current issue were cleared.

Before and After: Restoring Full Functionality

After completing the diode replacement and ensuring all wiring was properly managed, we tested the passenger-side high beam multiple times. It functioned correctly, restoring full lighting capability to the Hyundai Tucson. This case highlights that while custom lighting upgrades can enhance a vehicle's appearance, they can also introduce complex issues if not installed with appropriate components and expertise. The estimated cost for this specific repair, based on the original context in South Korea, would be in the range of ₩95,000 to ₩145,000 (approximately $75–$115 USD). This price reflects the diagnostic effort and the replacement of a critical component.

Is a Lighting Upgrade Worth It for Your Tucson?

Considering an LED lighting upgrade for your Hyundai Tucson? The decision hinges on your priorities. If you're seeking improved visibility, a modern aesthetic, and potentially longer bulb life, upgrading to high-quality LED headlights or taillights can be a worthwhile investment. However, it's crucial to weigh this against the potential costs and the complexity of installation, especially if opting for non-standard or 'tuned' components. The 'before and after' results can be dramatic, offering significantly brighter and clearer illumination compared to older halogen or even some HID systems.

Installation Process:

1. Diagnosis: Identify the specific lighting issue, whether it's a bulb failure, wiring problem, or component malfunction within an aftermarket unit.
2. Component Replacement: Remove the faulty part (e.g., diode, ballast, bulb) and install a new, appropriately rated component.
3. Wiring and Protection: Ensure all electrical connections are secure and protected, often using materials like corrugated tubing or heat shrink.
4. Testing and Verification: Test all lighting functions (low beam, high beam, turn signals) and clear any diagnostic trouble codes.

The durability of LED lighting upgrades is generally excellent, with many products rated for tens of thousands of hours. However, as demonstrated, the longevity can be compromised by improper installation or the use of substandard components. Regular checks of your lighting system are recommended, especially after any modifications.
