Kia Carnival 4th Gen Soundproofing Review: Road Noise Reduction

Transforming the Kia Carnival 4th Gen with Enhanced Soundproofing

The Kia Carnival 4th Gen is celebrated for its spacious interior and versatility, making it a popular choice for families and road trips. However, its large cabin can also amplify external noises, including road noise, tire friction, and vibrations from the undercarriage. These intrusive sounds can detract from the driving experience, especially on longer journeys. To address this, a comprehensive soundproofing package was applied to a 7-seater X-Line model, focusing on the floor and external fender areas. This review details the installation process, the materials used, and the resulting improvements in cabin quietness and overall comfort.

The Soundproofing Process: Quieting the Cabin

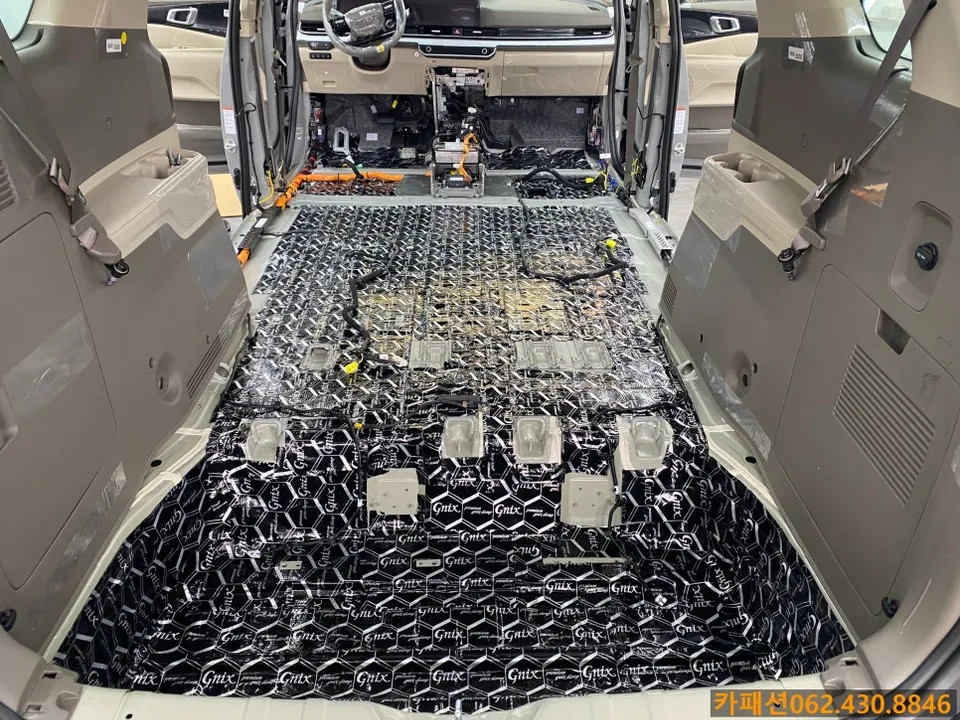

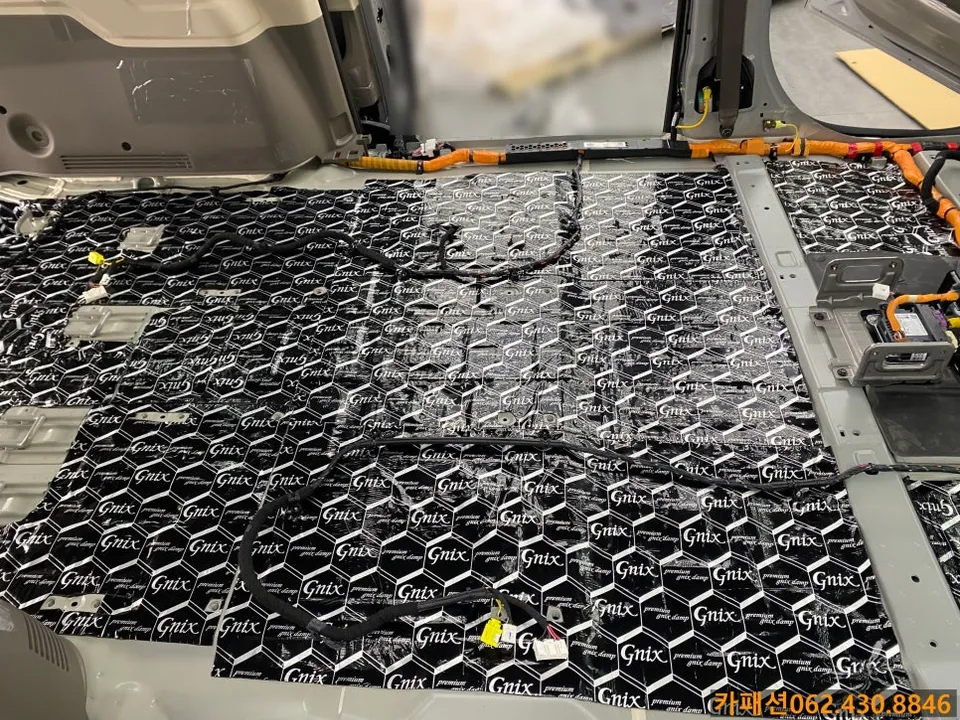

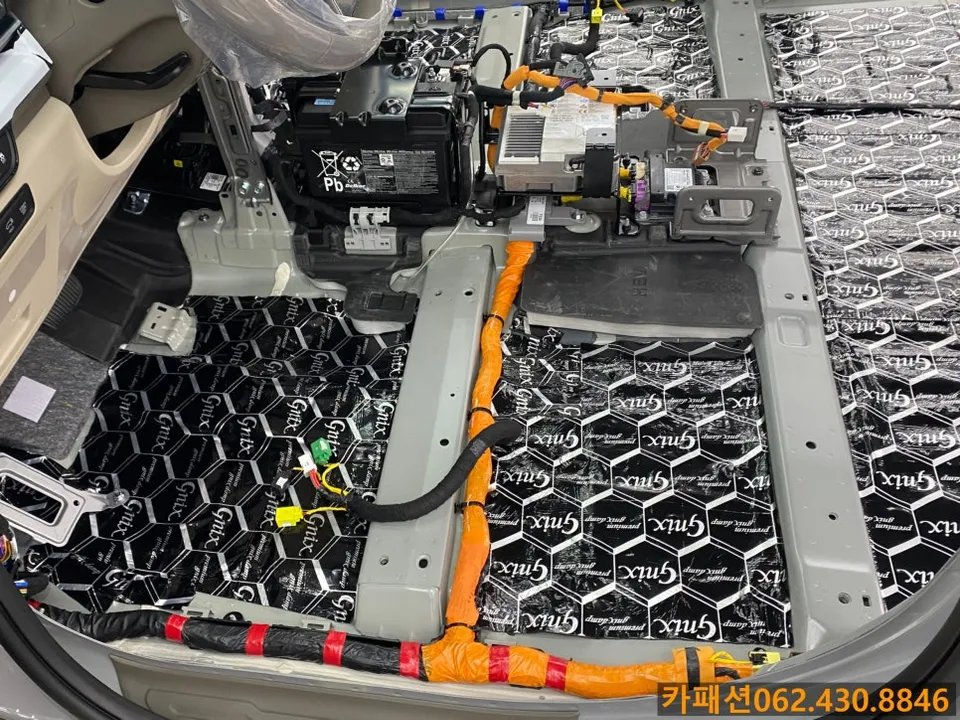

The core of this upgrade involved meticulous sound deadening and sound absorption applied to the vehicle's floor and wheel wells. The goal is to significantly reduce road noise and vibrations that penetrate the cabin. The installation process began with applying vibration-damping pads to the entire floor pan. These pads are crucial for reinforcing the metal structure and dissipating energy from road impacts and engine vibrations. Following this, the external fender areas, including the wheel wells, were treated. This step is vital for minimizing low-frequency noise and the unpleasant resonance that occurs when driving on rough surfaces. The result is a dramatically quieter and more refined driving environment, highly recommended for owners sensitive to noise or those who frequently undertake long drives. The benefits of this type of soundproofing are long-lasting, offering sustained satisfaction.

Installation process:

1. Surface Preparation: Thoroughly clean and degrease all target areas, including the floor pan and wheel wells, to ensure optimal adhesion of sound-deadening materials.
2. Vibration Damping: Apply specialized butyl rubber or mass-loaded vinyl (MLV) sheets directly to the metal surfaces. These materials are strategically placed to cover as much of the panel as possible, especially over structural ribs and flat areas prone to vibration.
3. Sound Absorption: Install closed-cell foam or mass-loaded vinyl (MLV) over the damping material. This layer acts as a barrier to block airborne sound waves and further dampen vibrations.
4. Seam Sealing: Ensure all seams and edges of the applied materials are properly sealed to prevent air gaps, which can allow noise to penetrate.
5. Reassembly: Carefully reassemble all interior panels, ensuring they fit snugly without rattling.

Beyond Soundproofing: Enhancing Interior Luxury and Utility

While the primary focus was on soundproofing, this Kia Carnival 4th Gen also received upgrades to its interior aesthetics and functionality. A marble-patterned floor liner was installed, providing a luxurious look that mimics natural stone. This material is custom-fitted to the vehicle, ensuring a precise and clean installation. It's durable, resistant to moisture and stains, making it easy to clean spills and maintain a fresh interior, unlike standard fabric flooring. For the front section, a quilted, embossed vinyl was used, offering both a stylish appearance and ease of maintenance. Additionally, the 2nd-row seating area can be equipped with LED footrests, featuring the Carnival lettering and ambient lighting, enhancing the cabin's atmosphere and aiding safe entry and exit in low light. For those needing extra storage, a Landmaster SD roof box was fitted. Its aerodynamic design minimizes wind noise at high speeds, and its robust construction ensures durability. The waterproof seals protect cargo from the elements, and a convenient touch-sensitive opening mechanism adds to its user-friendliness. An internal LED light further improves usability.

Key Considerations:

When considering soundproofing, it's essential to understand that the most effective results come from a combination of materials targeting different types of noise and vibration. Simply applying a single layer of material is often insufficient. Professional installers use their expertise to identify critical areas and apply the right combination of sound-deadening mats, sound-absorbing foams, and sound-blocking barriers. The specific application for the Kia Carnival 4th Gen floor and fender areas aims to tackle the most common sources of road noise, leading to a noticeable improvement in cabin tranquility.
