Kia Carnival Dash Cam Installation: 24-Hour Recording Solution

Solving Kia Carnival Battery Drain from Dash Cams

Many Kia Carnival owners experience battery drain after just a few days of parking, often due to constant power draw from dash cams and other electronic accessories. This common issue can be resolved with a dedicated dash cam battery system. This guide details how a specialized solution was implemented for a Kia Carnival to ensure uninterrupted 24-hour recording without impacting the vehicle's main battery.

Diagnosing the Power Drain and Choosing the Right Solution

The primary culprits for battery drain in vehicles like the Kia Carnival are typically the continuous power consumption of a dash cam and, in some cases, other accessories like power-retractable side steps. Dash cams, designed for continuous recording, draw power even when the engine is off, which can quickly deplete the main battery, especially in larger vehicles with higher power demands. While issues with other accessories might require separate professional attention, the dash cam's power needs can be effectively managed with an independent power source.

ACC Charging: The Smart Way to Power Your Dash Cam

Unlike systems that directly charge from the main battery, which can strain the vehicle's electrical system, the recommended approach utilizes an ACC (Accessory) charging method. This means the dash cam's dedicated battery only charges when the car's ignition is turned on. This method prevents the main battery from being burdened while ensuring the auxiliary battery is fully charged during drives. It's an ideal solution for large SUVs like the Kia Carnival, maintaining the integrity of the original electrical setup.

Cellink Neo 8+ Slim: Optimized for the Kia Carnival

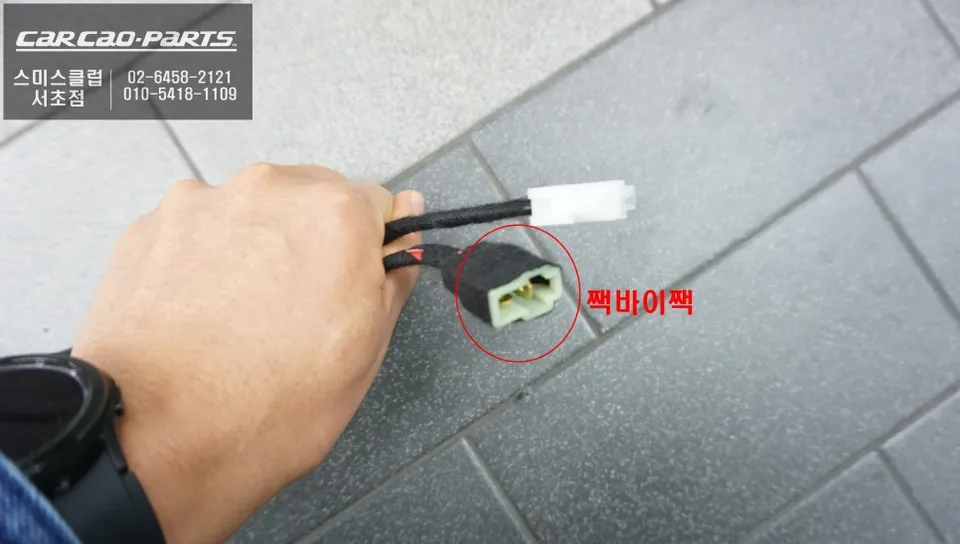

The Cellink Neo 8+ Slim, a lithium iron phosphate battery, is specifically chosen for its compact design, allowing for seamless installation under the driver's seat without compromising space. The installation process uses a plug-and-play (connector-type) wiring system, eliminating the need for complex soldering or modifications to the vehicle's original wiring. This ensures a safe and reversible installation.

Performance and 24-Hour Recording Capability

With a charging current of 7.5A, the Cellink Neo 8+ Slim fully charges in approximately one hour of driving. Crucially, when fully charged, it can power a dash cam consuming 320mA for over 24 hours continuously. This provides robust security and recording capability during parking, alleviating all concerns about main battery depletion.

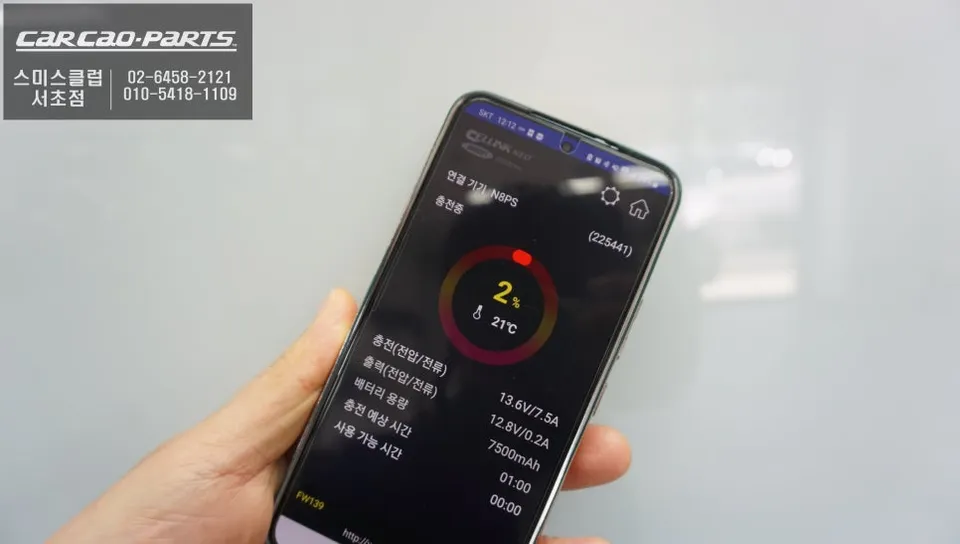

Smart Monitoring via Bluetooth App

The Cellink Neo 8+ Slim features Bluetooth connectivity, allowing users to monitor the battery's status, charging progress, and estimated dash cam recording time via a dedicated smartphone app. This real-time data provides peace of mind and allows for easy management of the system.

Installation Process:

1. Identify and access the space under the driver's seat for battery placement.
2. Locate and safely tap into the vehicle's ACC power line for charging the auxiliary battery.
3. Connect the battery using the provided plug-and-play wiring harness, ensuring all connections are secure.
4. Organize wiring neatly and test the system to confirm proper charging and dash cam operation.

Benefits of the Auxiliary Battery System

The most significant benefit for the Kia Carnival owner is the restored peace of mind. Knowing that the vehicle can be parked for extended periods without the risk of a dead battery, while still having continuous dash cam surveillance, transforms the ownership experience. The system effectively isolates the dash cam's power draw, preserving the main battery for essential vehicle functions.
