Kia Carnival KA4 S-Closer Retrofit Review

Upgrading Your Kia Carnival KA4 with S-Closer (Ghost Door)

Many Kia Carnival KA4 owners find the front doors a bit stiff to close, a minor inconvenience that can be easily addressed. Unlike the power-assisted rear sliding doors, the front doors on the KA4 lack a feature that automatically pulls them shut with a gentle push. This review explores the installation of an S-Closer system, often referred to as a "Ghost Door" function, which adds this convenience. Based on real owner experiences and installation photos from Korea, we’ll cover what this factory option retrofit entails, its benefits, and the installation process.

Why Add S-Closer to Your Carnival KA4?

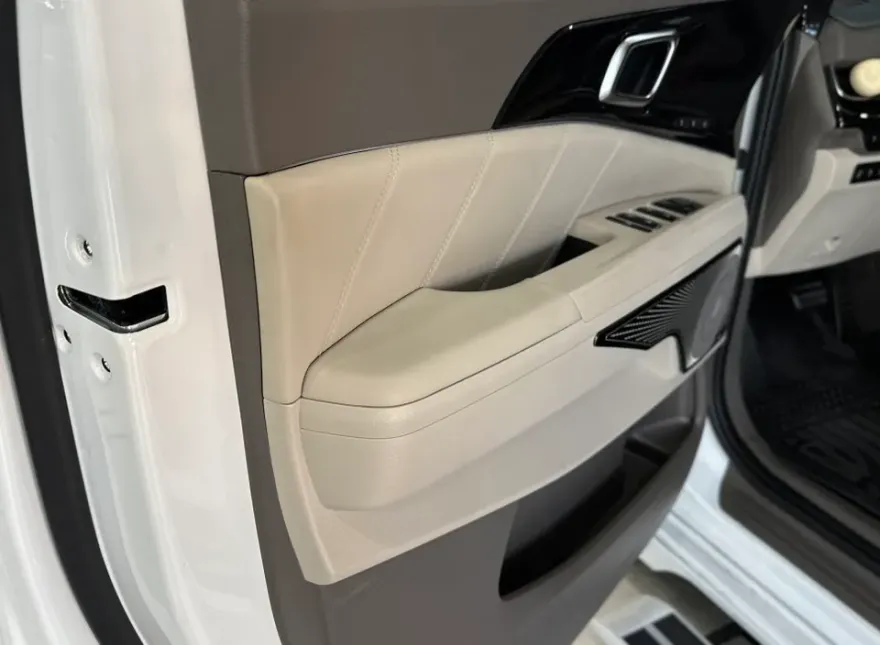

The primary reason to consider an S-Closer system for your Kia Carnival KA4 is to enhance the user experience. The front doors can sometimes require a firm push to latch properly, which can be particularly noticeable for drivers who are smaller in stature, or for parents managing children. By retrofitting this system, the doors will automatically pull themselves fully closed once you give them a gentle nudge. This "Ghost Door" effect makes closing the doors effortless and smooth, adding a touch of premium convenience that wasn't originally available as a factory option. The installation uses a "genuine type" bracket, meaning it integrates with the existing door latch mechanism without compromising the original components.

Kia Carnival KA4 S-Closer Installation Process

The installation of the S-Closer system on a Kia Carnival KA4 is a detailed process typically completed by specialized technicians. Here’s a breakdown of the steps involved:

1. Door Trim Removal: The first step involves carefully removing the interior door panels from both the driver and passenger front doors. This must be done with precision to avoid damaging the trim or underlying components.

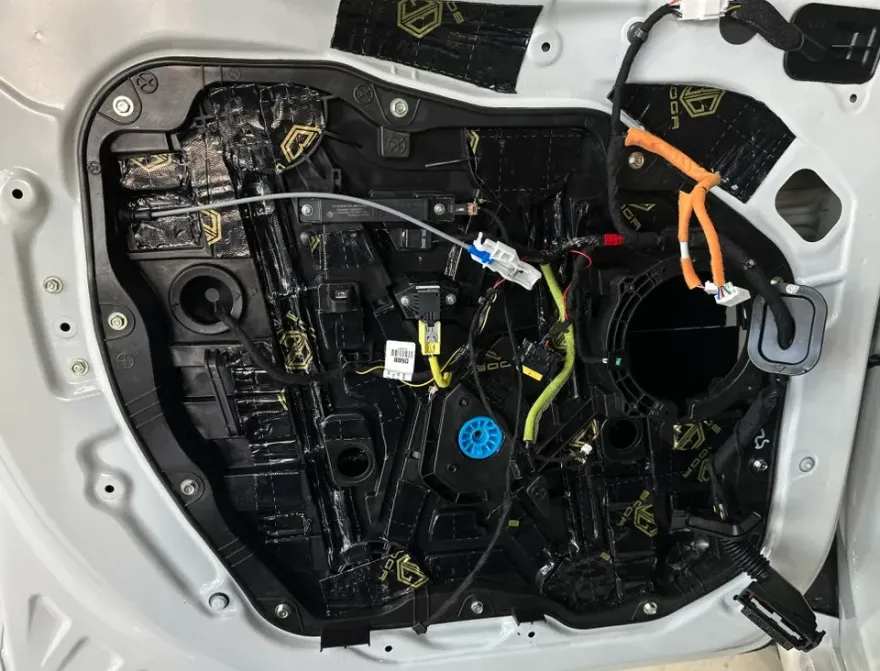

2. Inner Panel and Glass Mechanism Disassembly: After the trim is off, technicians will remove inner door panels and parts of the glass operating mechanism to gain access to the door's core structure.

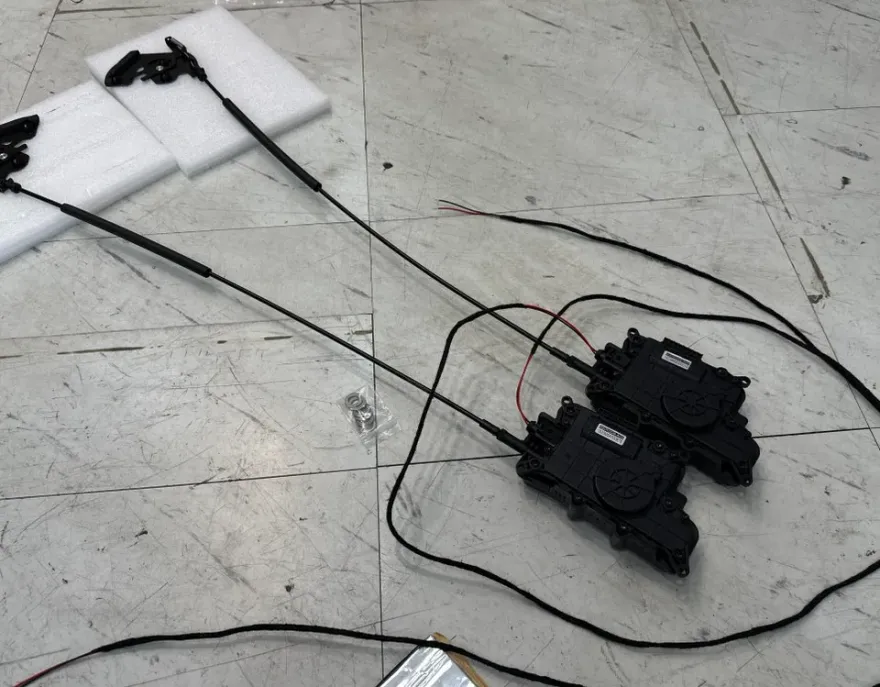

3. S-Closer Component Installation: A custom-designed bracket, specific to the Carnival KA4, is used to mount the S-Closer's main motor and actuator onto the original door latch. This bracket ensures a secure fit and proper integration with the factory latch.
4. Internal Modification and Wiring: Minor internal modifications may be necessary to accommodate the new components and ensure a flush fit. Crucially, the wiring for the S-Closer system is meticulously connected to the vehicle's electrical system.
5. Final Assembly and Testing: Once all components are installed and wired, the door panels and interior trim are reassembled. The system is then thoroughly tested to ensure the doors close smoothly and automatically without any gaps or unusual noises.

The entire process typically takes around 2 hours to complete. While this specific installation was performed at a facility in Korea, the parts and process are generally consistent for this type of retrofit.

Cost and Value of OEM Options Retrofit

In Korea, the cost for retrofitting the S-Closer system on the Kia Carnival KA4's front doors generally starts in the range of 300,000 KRW (approximately $220 USD, subject to exchange rate fluctuations). It's important to note that the final OEM options cost can vary based on the specific product used, the installer's labor rates, and any additional services requested. While this is a dealer option retrofit, it's not a factory-installed option from Kia itself but rather a high-quality aftermarket upgrade designed to mimic OEM functionality. For owners who value convenience and a smoother door-closing experience, especially in family settings, this upgrade can be considered a worthwhile investment, enhancing the daily usability of the vehicle.
