Kia K5 Lighting Module Repair: Save Money on Tail Light Issues

Common Kia K5 Tail Light Problems and Solutions

Many Kia K5 owners, particularly those with the first generation (TF), experience recurring tail light illumination failures. This issue often goes beyond a simple bulb replacement, leading to a frustrating cycle of repairs. The root cause is typically damage to the internal lighting module, meaning a full tail light unit replacement might not be a permanent fix. Symptoms include both tail lights failing to illuminate or flickering, which can lead to a failed vehicle inspection. While replacing the entire unit is an option, repairing the internal module offers a cost-effective solution that restores the lights to their original functionality.

Diagnosis and Repair Process for K5 Tail Lights

A recent K5 presented with complete failure of both rear tail lights, posing a significant safety risk as brake lights were not functioning. Diagnostic tests revealed damage to the electronic components within the module, not just a burnt-out bulb. This type of internal circuit board damage necessitates a specialized repair rather than a standard bulb change. Attempting to fix it with a new unit risks the same problem reappearing within months due to underlying design flaws.

Understanding the Tail Light Module Failure

The K5's tail light assembly consists of an LED module, an outer lens, and an internal circuit board. In the first-generation K5, the circuit board is susceptible to corrosion and cracked solder joints due to moisture ingress and temperature fluctuations, often attributed to inadequate factory waterproofing. Replacing the entire unit with an identical one doesn't address this vulnerability, leading to repeated failures. This highlights why module repair is the superior approach.

Detailed K5 Tail Light Module Repair Steps

The repair process at our facility begins with carefully removing the tail light unit from the vehicle. We then meticulously separate the outer lens to access the internal module. This delicate procedure ensures the original integrity of the assembly is maintained.

Circuit Board Restoration and Component Check

Damaged areas on the circuit board are cleaned using specialized solutions to remove corrosion, ensuring proper solder connections. We then perform a thorough inspection of individual electronic components, including capacitors, resistors, and the LED driver IC chip. Any faulty components are replaced.

A common point of failure is the LED driver, which regulates current to the LEDs. If this chip is damaged, the tail lights will not illuminate regardless of the bulb condition. Our repair process specifically addresses and replaces these critical components.

Reassembly and Waterproofing

Following the successful repair of the internal components, the module is reassembled. Crucially, new waterproof silicone sealant is applied around the lens and module junction. This step is vital to prevent future moisture intrusion and repeat the damage that caused the initial failure.

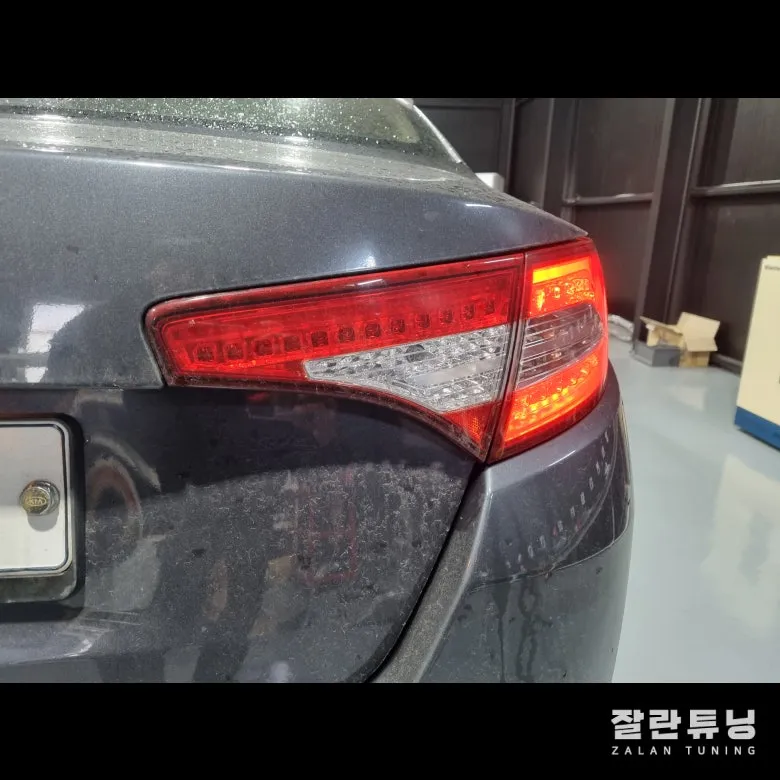

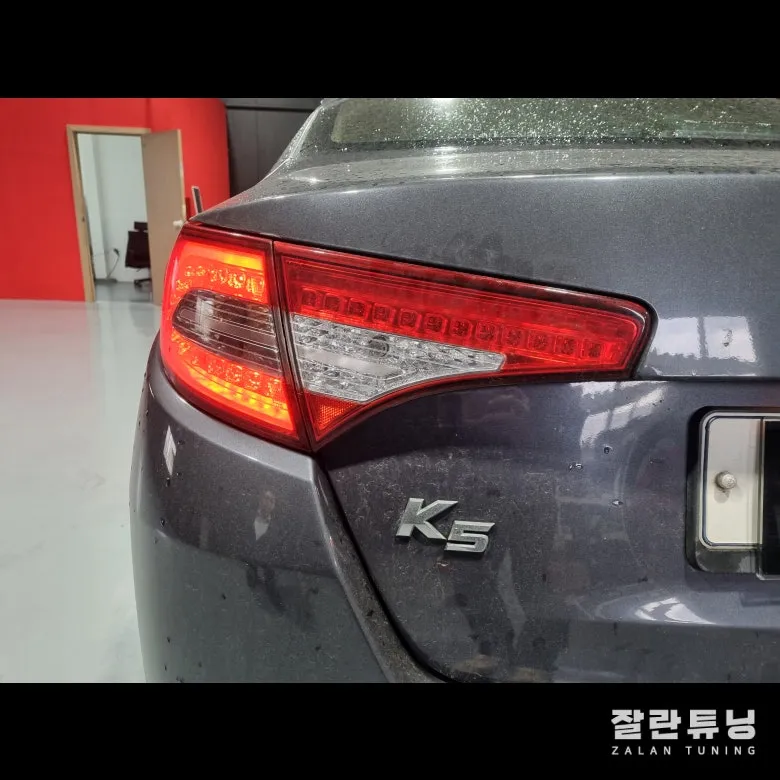

This comprehensive repair not only fixes the immediate issue but also aims to prevent recurrence, providing a long-lasting and reliable solution for your Kia K5's tail light problems.
