Kia K7 LED Headlight Upgrade Review: Enhanced Night Visibility

Kia K7 YG Headlight LED Upgrade: Solving Nighttime Visibility Issues

Are you experiencing insufficient brightness from your 2016 Kia K7 YG's HID headlights during nighttime drives? This case study details a complete conversion from the original HID system to a newer full LED headlight unit. The upgrade involves not just replacing the lights but also modifying the interior junction box and wiring harness. The entire process typically takes about 6-7 hours and costs between ₩1.5 million and ₩2.5 million, including parts and labor.

Key aspects covered in this review:

① Reasons for the upgrade and initial checks
② Diagnosis of the existing headlight system
③ Component removal and wiring preparation
④ Installation of new LED lights and electrical connections
⑤ Interior junction box replacement and functional testing
⑥ Final appearance and overall assessment

Diagnosing the Kia K7 Headlight System: Why Switch to LED?

The 2016 Kia K7, at its release, featured HID headlights as a premium option. While advanced for its time, the brightness has diminished over the years, leading to common complaints about nighttime visibility. This particular vehicle exhibited uneven dimming, with one side becoming significantly darker than the other.

A thorough inspection by the detailing shop revealed a substantial drop in light output from the left headlight. A simple bulb replacement wouldn't suffice; the decision was made to upgrade to the full LED headlight units found in the 2019 model. LED technology offers a lifespan over 50% longer than HID and provides a 20-30% increase in brightness.

Despite their complex appearance, LED headlights are structurally straightforward. They utilize numerous small LED chips arranged behind a lens and reflector system to focus and direct light. Unlike HID systems, LEDs generate less heat, contributing to greater long-term reliability.

Removing the Old Headlights and Trim Components

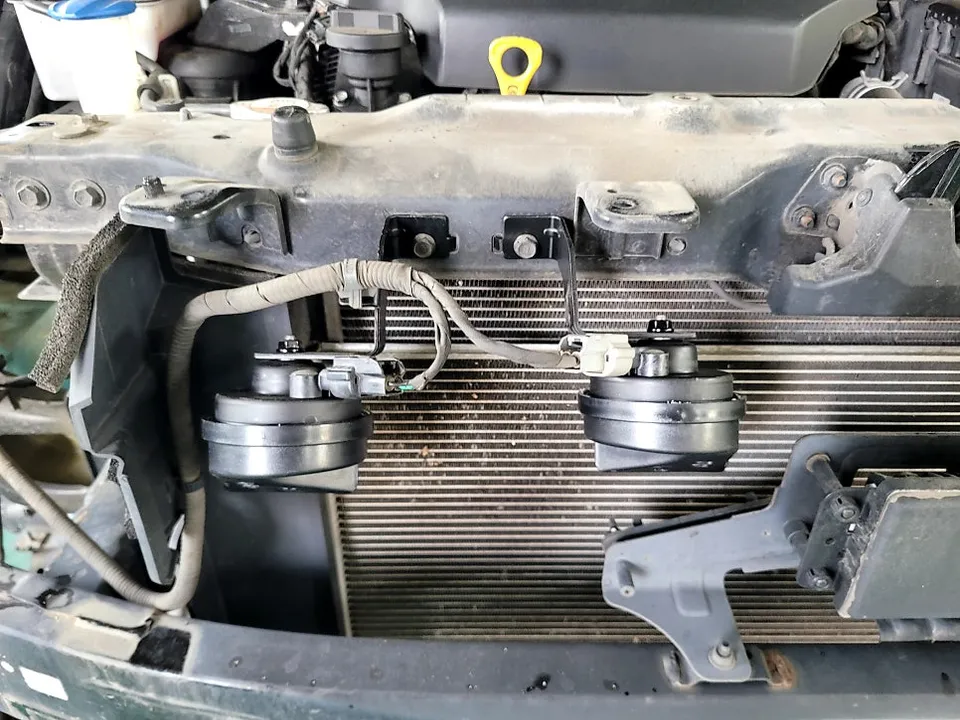

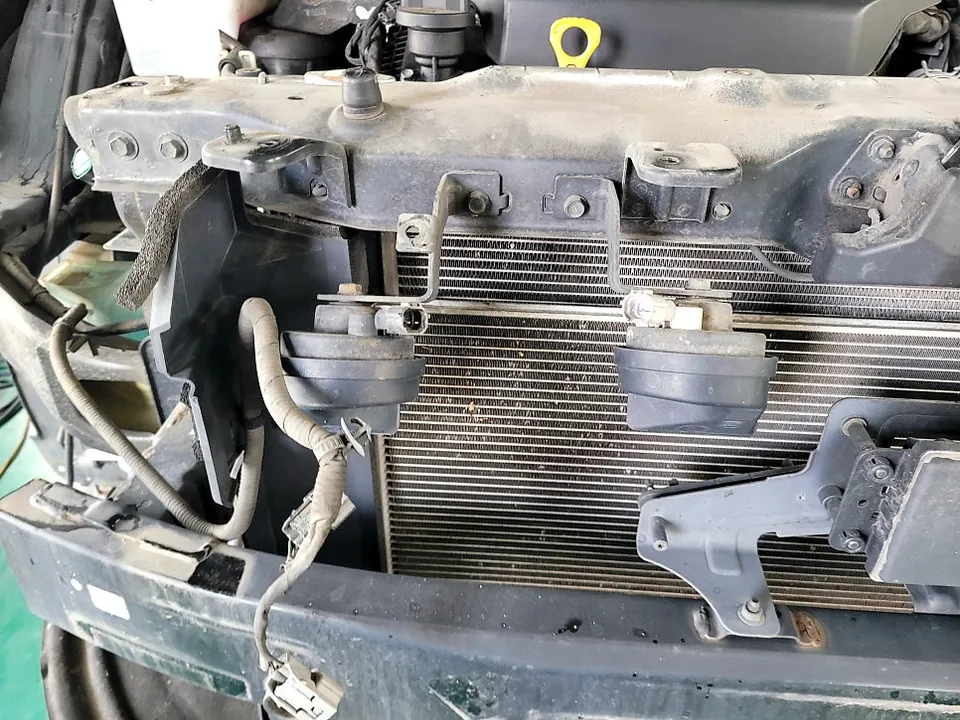

The initial step involves removing the front bumper. The K7's bumper is secured at 6-8 points, requiring a methodical approach, typically starting from the center and working outwards. Once the bumper is off, the three bolts securing the headlight units become accessible.

Before disconnecting the headlight connectors, it's crucial to note their original positions. The wiring configurations differ significantly between HID and LED systems. Incorrectly connecting the ground (-) or power (+) wires can lead to malfunctions.

The chrome trim pieces, often referred to as 'eyebrows,' are also removed. Being from the 2016 model, these showed signs of age-related discoloration. Replacing them with the newer style trim enhances the vehicle's visual appeal.

Installing LED Headlights and Completing the Wiring

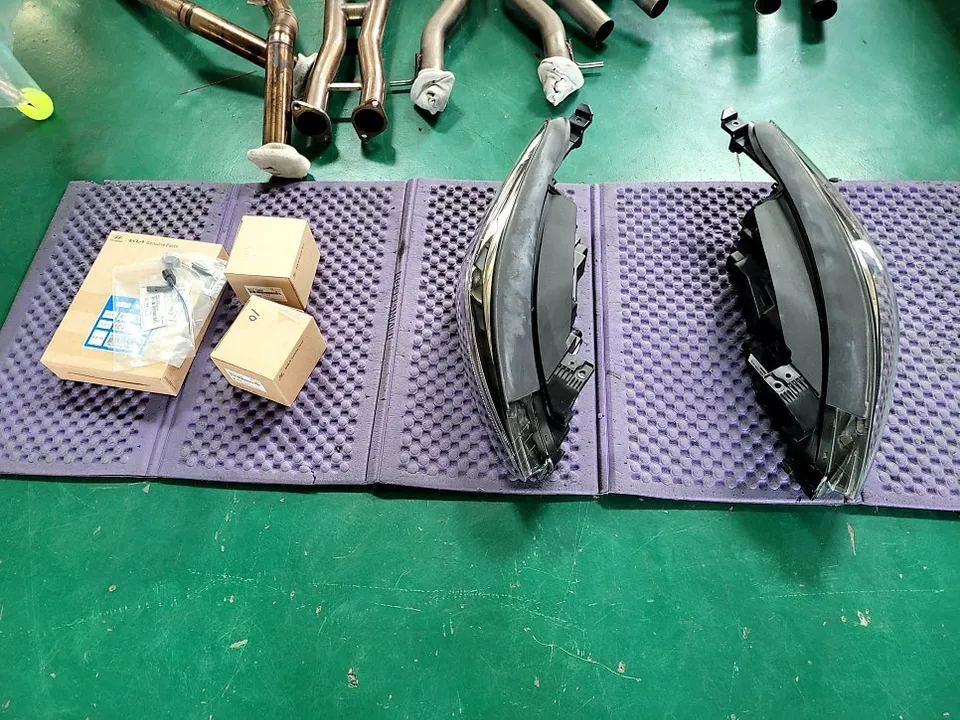

The new LED headlight units are carefully fitted into place. It's essential to handle the lens surface with care, ideally using lint-free gloves to prevent fingerprints, as the surface is sensitive. The unit is slid into position and secured with the three bolts, tightened just enough to be snug, avoiding over-tightening which could damage the metal threads.

The most intricate part of the HID-to-LED conversion is the wiring. HID systems require a high-voltage ballast, resulting in thicker wiring, whereas LED systems operate on low-voltage DC, using thinner wires. Any additional wiring is connected using solder and sealed with heat-shrink tubing for a secure connection.

The wiring isn't a simple plug-and-play; it requires a jumper cable approach. This means the power from the original HID connector is rerouted to supply the new LED headlights. All wiring is then routed through protective corrugated tubing to prevent damage from friction within the engine bay. This wiring stage typically takes about 1.5 hours for both headlights.

Following the wiring completion, an immediate function test is performed. With ambient lights dimmed, the headlights are activated to ensure both sides illuminate equally and that the turn signals operate correctly.
