Kia PV5 Tow Hitch Installation Review — Enhanced Capability

Kia PV5 Tow Hitch Installation: Why Electric Vehicles Need Them

The rise of camping culture has led to a surge in inquiries about tow hitch installations. For new electric models like the Kia PV5, the need to tow trailers or cargo is becoming more common. Many PV5 owners wonder if tow hitches can be fitted to EVs due to their unique structures. The Kia PV5 can indeed be equipped with a tow hitch, and proper installation ensures the safety of the electric vehicle's battery system.

PV5 Features and the Necessity of a Tow Hitch

The Kia PV5, a new compact electric vehicle launched in 2024, boasts a minimalist and futuristic design. Unlike traditional gasoline cars, the PV5's battery is located beneath the chassis. This requires careful consideration during tow hitch installation to protect the battery and manage the electrical wiring. The rear bumper and internal components present specific challenges for installers.

For PV5 owners planning camping or road trips, a tow hitch is essential for towing trailers or cargo. However, it requires professional installation that accounts for the vehicle's distinct structural characteristics, differing from standard gasoline cars.

Kia PV5 Tow Hitch Installation Process

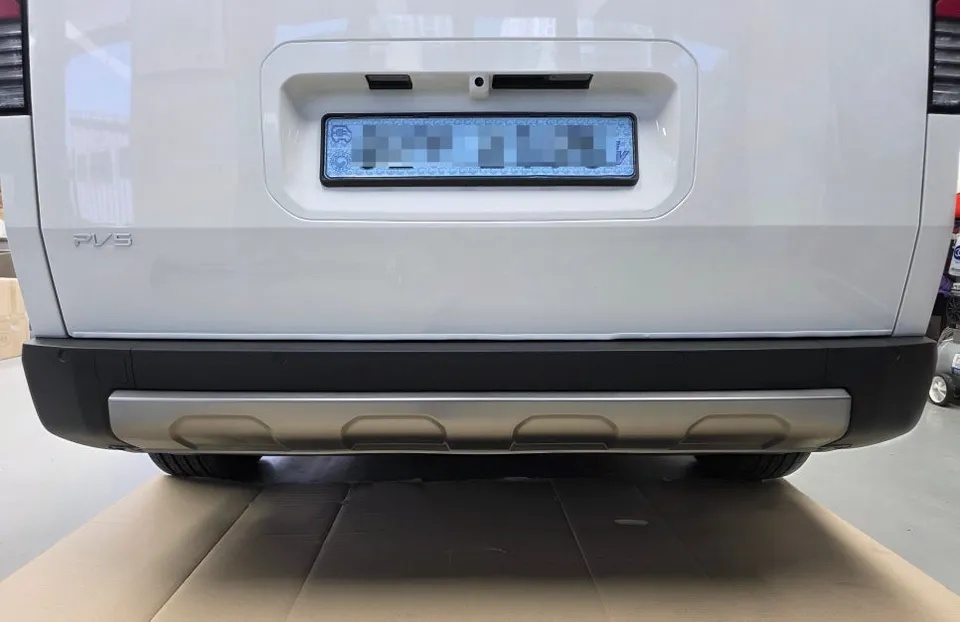

The installation begins with disassembling the rear bumper. The bumper and its associated parts are removed to access the mounting points for the tow hitch. Extreme care must be taken to avoid damaging the battery wiring and electrical connectors, especially given the battery's central placement beneath the chassis. The installer must have a precise understanding of the battery's location before proceeding.

Installation process:

1. Carefully remove the rear bumper and associated components.
2. Identify and prepare the designated mounting points on the chassis, ensuring clearance from the battery pack and wiring.

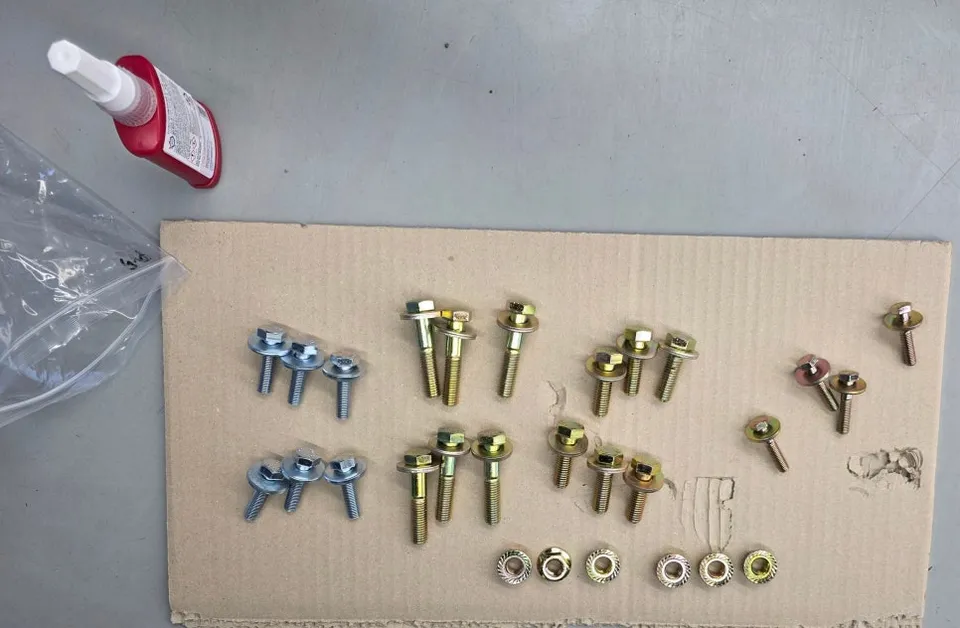

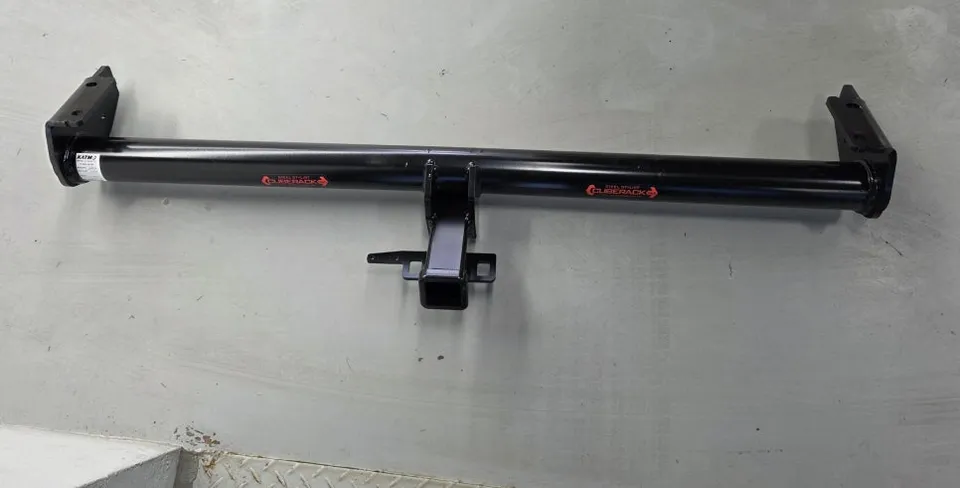

3. Securely attach the tow hitch receiver using high-strength bolts, washers, and thread-locking compound (like Loctite) to prevent loosening.
4. Connect the trailer wiring harness to the vehicle's electrical system, ensuring compatibility with the trailer's lighting and braking functions.

Hitch Type vs. European Style: Understanding the Differences

Tow hitches generally fall into two main categories: the hitch type, used in this PV5 installation, and the European-style hook type. Understanding their differences is key to making the right choice.

The hitch type offers superior resistance to vertical load. This means it efficiently distributes stress on the vehicle's chassis, even when carrying heavy cargo or trailers. It is also relatively affordable and known for its durability. Compared to European-style hitches, the installation process is typically less complex.

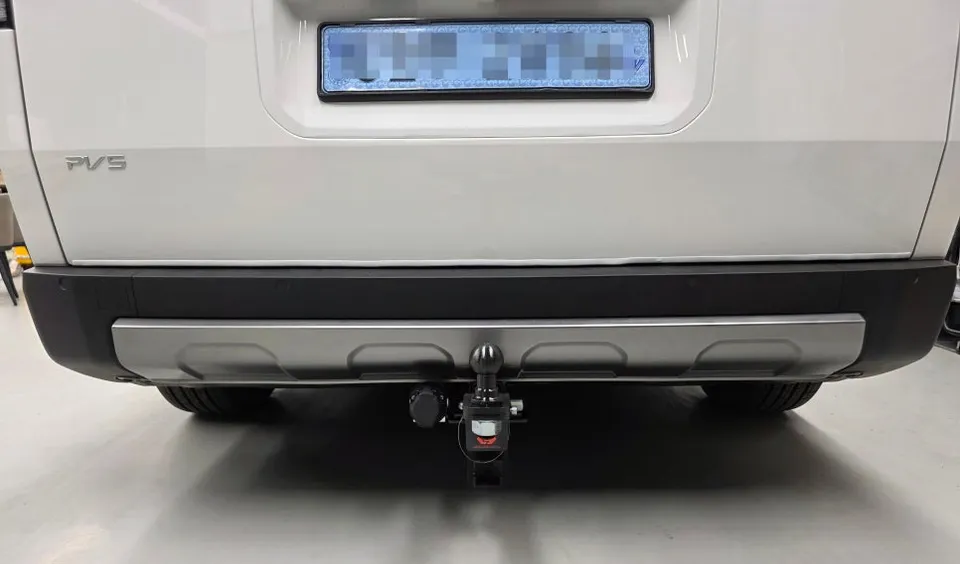

A potential drawback of the hitch type is that the ball mount protrudes when not in use. Covering it with a rubber cap can improve aesthetics and prevent dirt accumulation.

Kia PV5 Electrical System Integration

A crucial aspect of the Kia PV5 tow hitch installation is the electrical wiring. This connects the trailer's lights, brake signals, and turn indicators to the vehicle's electrical system. For this PV5, a European standard 7-pin connector was used for the wiring.

Wiring involves more than just connecting wires; it requires consideration of trailer weight, brake signal detection, and circuit protection. Proper integration ensures all trailer functions operate correctly and safely with the PV5's advanced electrical system.
