Kia Stinger Speaker Upgrade Review — Enhanced Audio Clarity
Service Price
$150+
Estimated price · Actual price may vary by shop
Kia Stinger speaker upgrade with AVI G5 components: ₩1,500,000. Achieved clearer highs and tighter bass.
Beyond DSP: Why Speaker Upgrades Matter for Your Kia Stinger
Even with a high-quality DSP amplifier installed, some Kia Stinger owners find the audio experience still lacking. While the DSP enhances signal processing and power, the limitations of factory speakers can prevent optimal sound reproduction. The factory speakers, often made with paper cones and weak magnets, struggle to translate the refined signals from the DSP into clear, accurate sound. This can result in a muffled or 'boomy' sound profile, even after significant amplification. This review details the process of upgrading the factory speakers to the AVI G5 component system to overcome these limitations.
Key aspects covered:
1. Differences between factory and component speakers.
2. Door sound deadening and mid-woofer installation.
3. The impact of tweeter replacement.
4. Final DSP tuning and overall sound quality.
5. Speaker upgrade cost details.

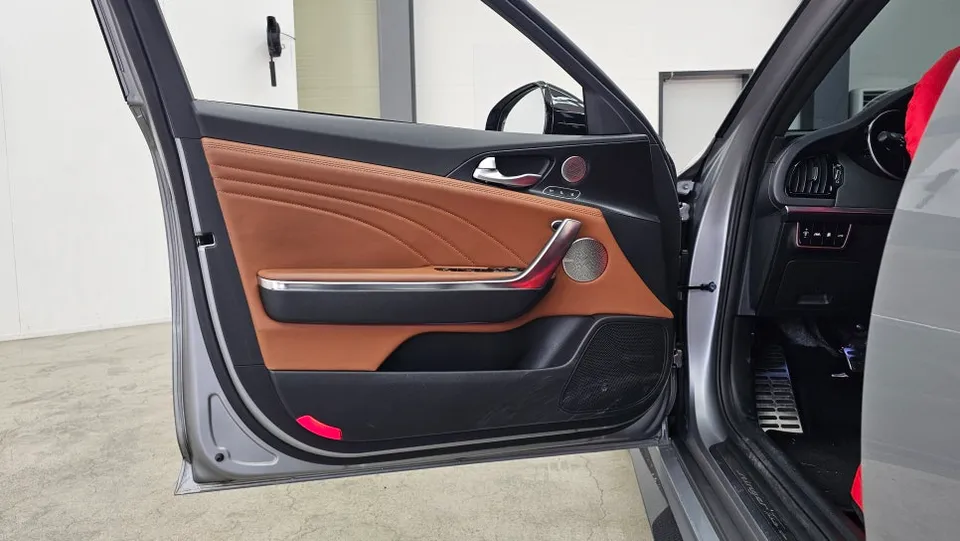

Unveiling Factory Speaker Limitations: The Door Trim Removal

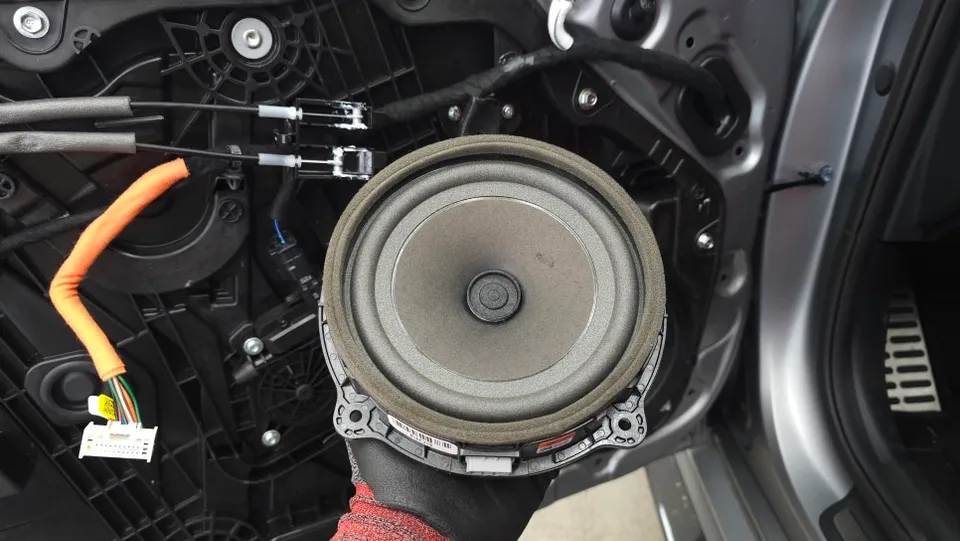

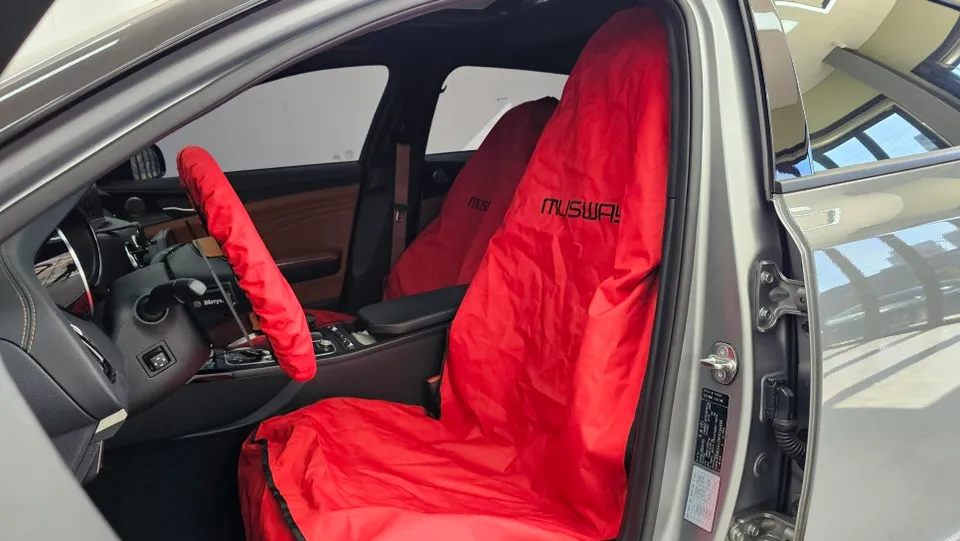

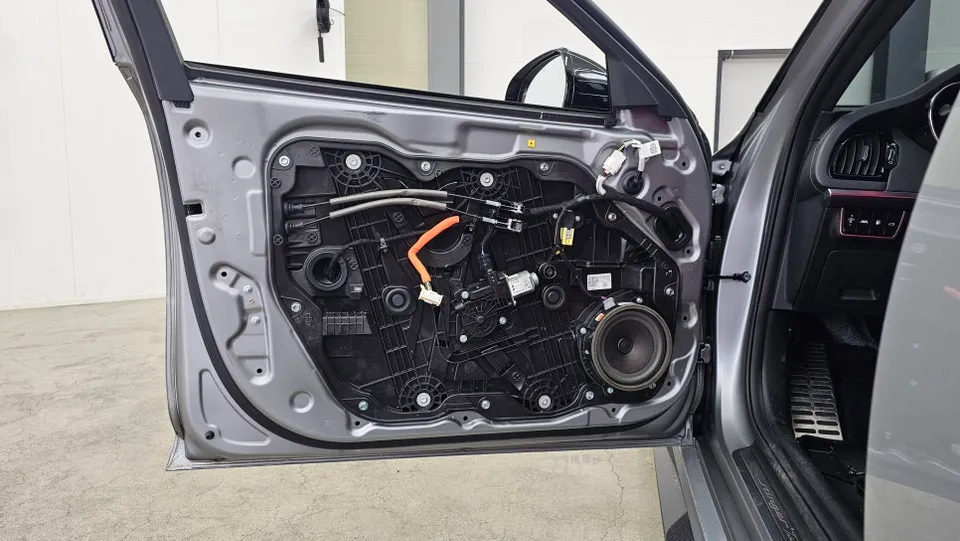

The process begins with meticulous protection of the Stinger's interior, covering seats and the center console with protective mats. The door trim panels are then carefully removed to access the factory speaker components. Beneath the trim, the factory mid-woofer reveals its limitations: a small magnet, a thin paper cone, and a basic plastic frame. This construction is a primary contributor to the characteristic 'boomy' low-frequency response. Furthermore, the factory sound deadening in the Stinger's doors is minimal, allowing vibrations to transfer through the door panel, creating unwanted resonance and a 'buzzing' background noise, especially during bass-heavy passages.
Enhancing Door Acoustics: Sound Deadening and Custom Mounting
Crucial to any speaker upgrade is reinforcing the door's acoustic environment. High-performance sound deadening material is applied extensively to the inner door panel to suppress vibrations. This not only prevents the panel from resonating but also improves the speaker's output by reducing energy loss, potentially increasing sound pressure levels by 3-5 dB. Following sound deadening, a custom-made birch wood mounting bracket is installed. This bracket is precisely engineered for the Kia Stinger's door structure, utilizing factory bolt holes for a secure, vibration-minimizing fit. The natural damping properties of wood further contribute to a cleaner sound by absorbing unwanted energy.
AVI G5 Mid-woofer Installation: From Boom to Tight Bass

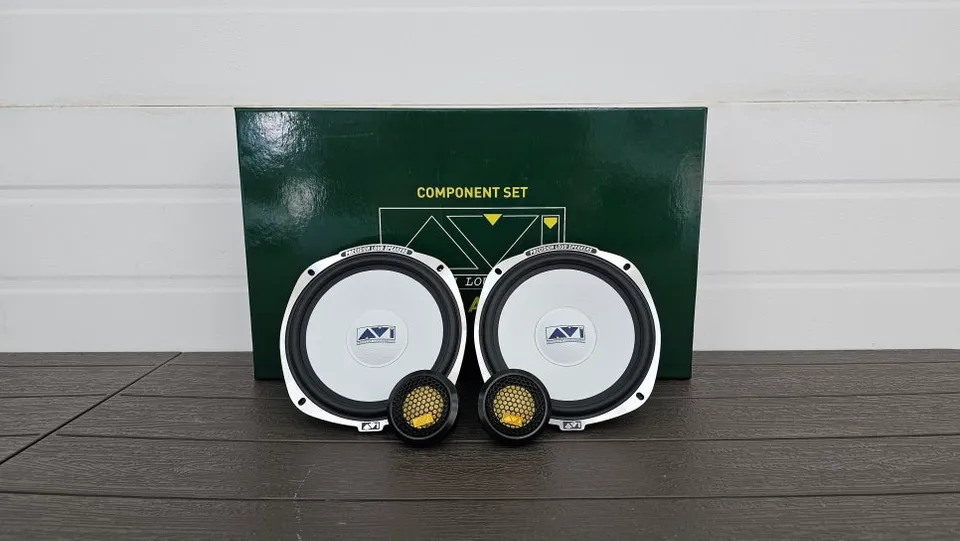

The chosen upgrade is the AVI G5 component speaker system. Its mid-woofers feature a reinforced composite cone material and significantly larger magnets compared to the factory units. This design allows for a much tighter, more impactful bass response, transforming the previous 'boom' into a defined 'thump'. The mid-woofer is securely mounted to the custom bracket, with damping material applied between the speaker and the bracket to prevent any sympathetic resonance. A Fast Ring seal is then installed around the mid-woofer. This crucial step creates an airtight seal between the speaker and the door trim, preventing air leaks that degrade bass performance and improving overall mid-bass clarity and efficiency.
Tweeter Upgrade: Restoring High-Frequency Detail
The factory tweeters, located in the upper door panel, suffer from similar limitations. Their basic design often leads to harsh, distorted, or unclear high frequencies, especially at higher volumes, hindering the separation of instrumental details. The AVI G5 tweeters are installed in the factory locations. Featuring silk dome diaphragms, these tweeters provide a smooth, detailed high-frequency response without sounding harsh. They maintain excellent clarity and resolution above 8kHz, significantly improving the perception of cymbals, vocals, and other high-frequency elements in the music.
Following the physical installation, the DSP is retuned to optimize the new speaker system's performance. This final step ensures seamless integration between the new speakers and the amplifier, maximizing the clarity, detail, and overall sonic enjoyment for the Kia Stinger owner.
Frequently Asked Questions
Q. How much does a car audio system upgrade cost for a Kia Stinger?
This specific AVI G5 speaker upgrade for the Kia Stinger cost ₩1,500,000 (approximately $1100 USD). A typical comprehensive car audio system upgrade for a similar vehicle in the US can range from $800 to $3,000 depending on the components and complexity.
Q. How long does a car audio system last on a Kia Stinger?
High-quality car audio components, like the AVI G5 speakers installed, are designed to last for many years, often exceeding 10 years with proper installation and use. Regular cleaning of speaker grilles and avoiding excessive volume levels can help maintain their longevity.
Q. Is a car audio system upgrade worth it for a Kia Stinger?
A speaker upgrade is highly recommended for Kia Stinger owners seeking improved audio fidelity, especially after installing a DSP amplifier. It significantly enhances clarity, detail, and bass response, providing a more immersive listening experience.
Q. How is a car audio system upgrade done on a Kia Stinger?
The upgrade process involves: 1. Protecting the interior and carefully removing door trim panels. 2. Applying sound deadening material to the inner door panel. 3. Installing custom mounting brackets and the new AVI G5 mid-woofers. 4. Replacing factory tweeters with new units. 5. Sealing the speaker with a Fast Ring and performing final DSP tuning.
Q. What is the best car audio system option for a Kia Stinger?
For Stinger owners who have already upgraded their DSP, replacing the factory speakers with a quality component set like the AVI G5 is the most impactful next step. This combination delivers significantly improved clarity and tighter bass compared to relying solely on the DSP with stock speakers.
