Mercedes-Benz A200 Fuel Leak Diagnosis: The Copper Washer Culprit

A Mercedes-Benz A200 hatchback was brought in due to a strong fuel odor, a clear indicator of a potential leak. The owner had previously received a diagnosis of an injector issue from another workshop but sought a definitive solution and thorough repair. Upon opening the hood, the pungent smell of fuel was immediately apparent, signaling the source of the problem.

Vehicle: Mercedes-Benz A200 Hatchback
Service Performed: Injector Copper Washer Replacement, Fuel Return Hose Replacement
Primary Cause: Mismatched Injector Copper Washer Specification
Estimated Time: Approximately 8-10 hours (including fuel return hose path tracing)
Service Location: Today's Car Cheonan Branch

Visual Inspection Reveals Soaked Injectors

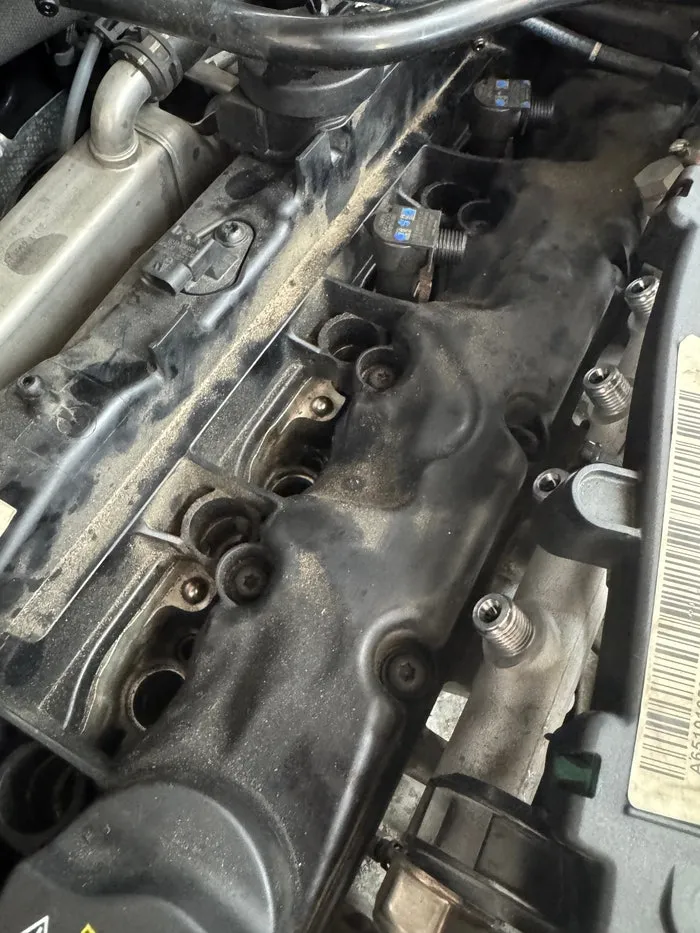

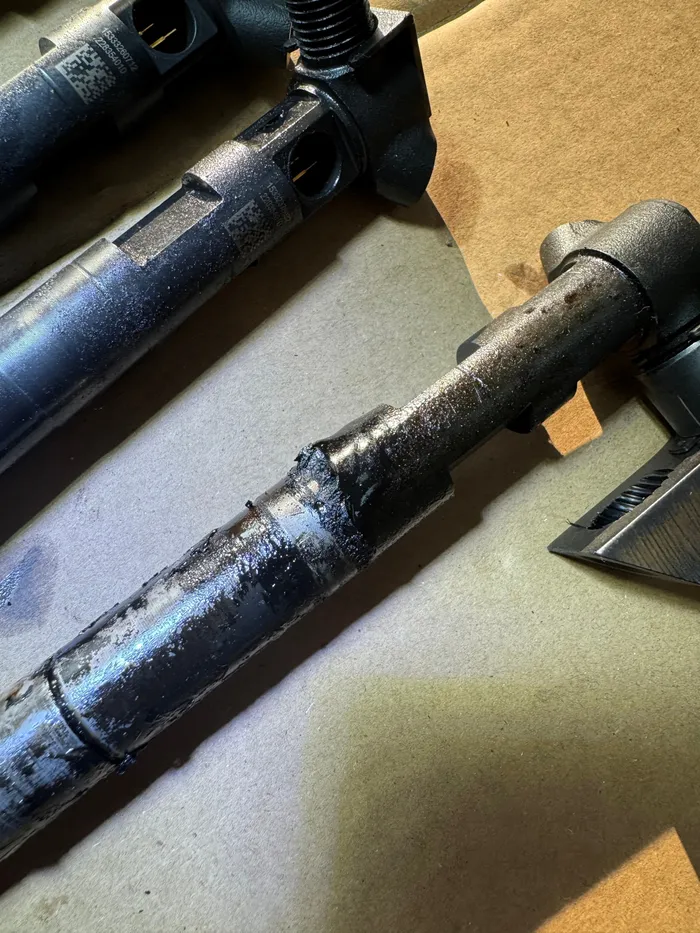

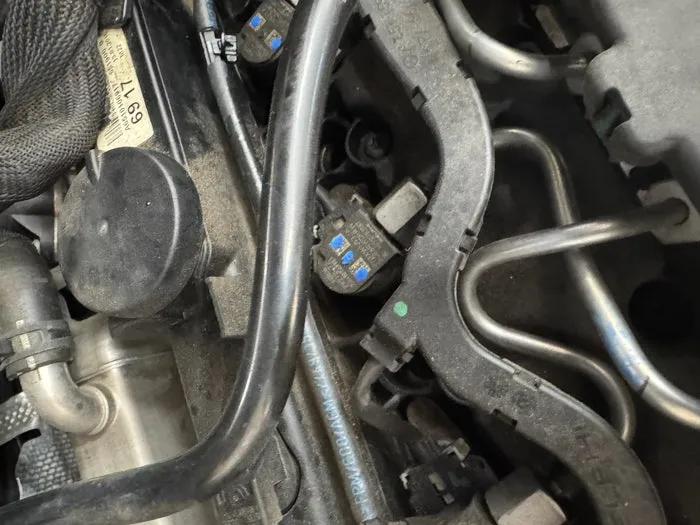

The fuel return hose appeared wet, and clear signs of fuel seepage were visible around the injectors. Upon disassembling the injectors, the issue became starkly evident. One of the four injectors was significantly dirtier than the others, appearing as if it had been submerged in mud. This heavily contaminated injector was identified as the origin of the fuel leak.

The Root Cause: Mismatched Copper Washers Leading to Leaks

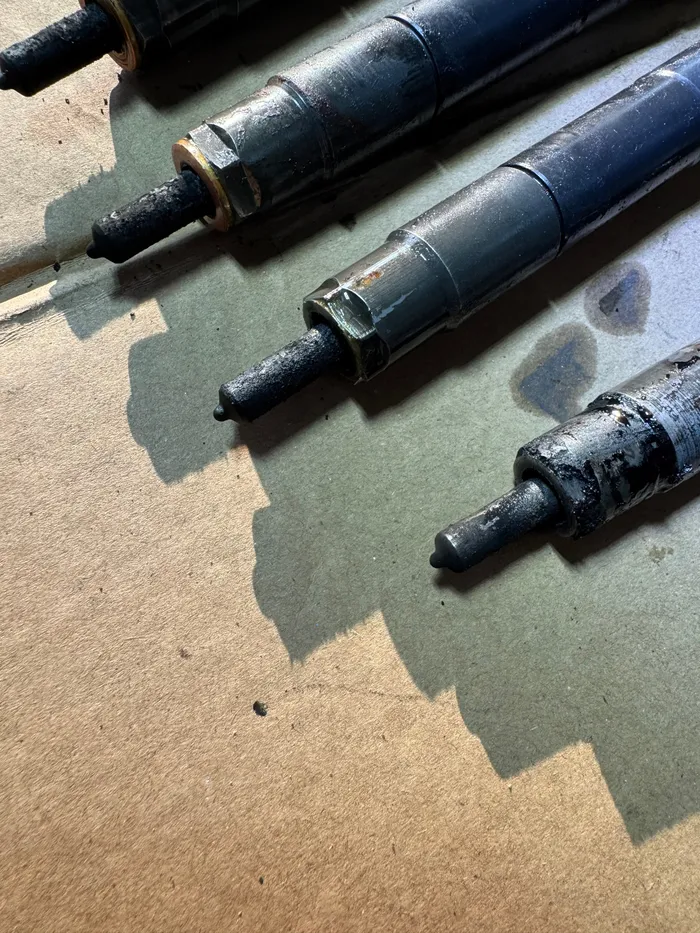

A closer examination of the injectors revealed the problem lay with the copper washers. These small, copper seals are crucial for maintaining a tight seal under high pressure. Comparing the suspect washer to a new one highlighted a distinct difference. It was discovered that one injector had been fitted with a different brand of copper washer, incompatible with the others. This mismatch, particularly in a high-pressure fuel system, directly leads to leaks.

The owner recalled having this specific injector's copper washer replaced previously, but it appears an incorrect, non-compatible part was used, leading to the current issue. The significant pressure exerted on this component means even a slight deviation in specification can compromise the seal.

Replacement Process: Standardizing All Injectors

Recognizing the critical nature of precise component specifications, especially in high-pressure areas, the decision was made to replace the copper washers on all four injectors. The process involved meticulously cleaning each injector before fitting new, correctly specified copper washers. All four were standardized to the same brand and specification.

Applying a thin layer of anti-seize lubricant during reinstallation is a vital step, ensuring easier disassembly in the future should further maintenance be required. This attention to detail prevents future complications.

Unexpected Complication: Fuel Return Hose Damage

During the injector service, an unforeseen issue arose when the fuel return hose snapped during reinstallation. While the hose was already in poor condition, its failure during the repair process was unexpected. Replacing the return hose proved to be a more involved task than initially anticipated, requiring the tracing of its entire path, which necessitated the removal of the ECU (Engine Control Unit).

Tracing the Hose: Uncovering Hidden Damage

Following the fuel return hose's route revealed evidence of previous work where the hose had been pinched. Although it hadn't ruptured at that point, it was a potential failure point. Further tracing uncovered a damaged section near the injector connection, which was the actual point of breakage. The aged material of the hose, combined with the previous pinching, led to its failure.

The entire fuel return hose was replaced to ensure a complete and reliable repair, addressing both the immediate leak and the underlying condition of the hose. This comprehensive approach guarantees the integrity of the fuel system.
