Mercedes-Benz CLA 250 Surround View Camera Installation Review
3D Surround View Camera installation on Mercedes-Benz CLA 250. Seamless integration with factory monitor for enhanced parking. Approx. 4-6 hours.
Elevate Your Mercedes-Benz CLA 250 with 3D Surround View
The Mercedes-Benz CLA 250 now boasts enhanced parking confidence with the installation of a 3D Plus View system. This premium parking option provides a 360-degree real-time view around the vehicle, seamlessly integrating with the factory monitor. This review details the installation process, highlighting the benefits of this high-definition surround view system.
A surround view camera system significantly improves parking convenience and collision prevention. For sedans like the CLA 250, which can have considerable blind spots, this feature is invaluable. Unlike basic low-resolution backup cameras, the 3D Plus View system utilizes an LVDS IN/OUT method for a high-definition experience directly through the Mercedes-Benz's original display, maintaining factory aesthetics and video quality.
Pre-Installation Inspection and Compatibility Check
The cornerstone of a successful 3D Plus View installation is perfect compatibility with the factory infotainment system. Before any work begins, the Mercedes-Benz CLA 250's original monitor specifications and existing camera systems are thoroughly inspected. Since this model did not come equipped with a factory surround view, the new system must be meticulously designed to integrate with the vehicle's architecture. This involves verifying the placement for the main ECU module, the electronic interface connection method, and the vehicle's power supply. Ensuring that both the factory touchpad and monitor function correctly without electrical interference is paramount. Given the advanced electronic specifications of this particular CLA generation, multiple compatibility tests were conducted.
Leveraging experience from over 930 import car installations, a specialized approach for the Mercedes-Benz CLA 250 is applied. This ensures an "OEM-like" result, where components are not merely fitted but integrated through optimized wiring and installation paths tailored to the specific vehicle model.
Precision Camera Installation with OEM Mount Replacement

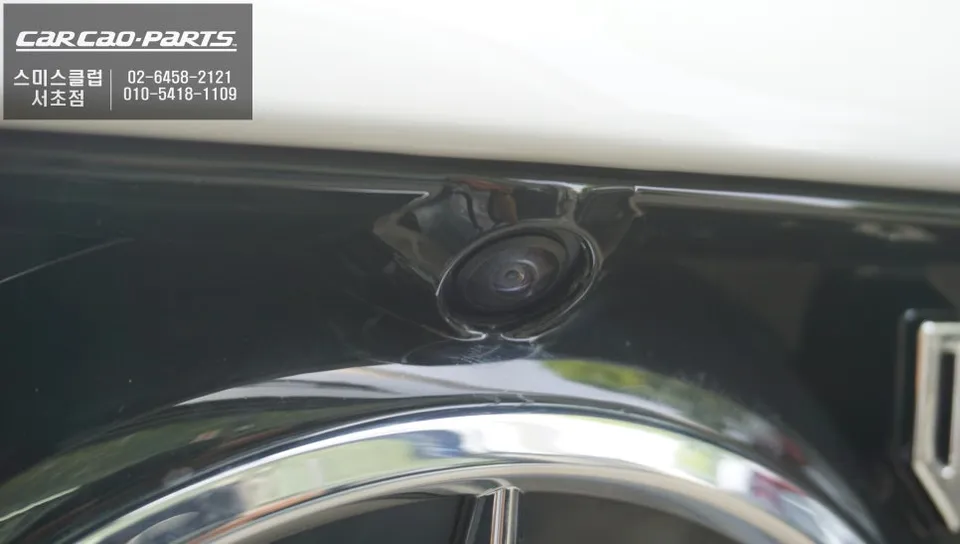

The 3D Plus View system comprises four cameras: front, left, right, and rear. Each requires a precise installation method. The front camera is integrated by replacing the lens within the original surround view housing, utilizing the pre-designed space in the CLA 250's bumper. The angle of the wide-angle lens is critical; even a slight deviation can cause distortion in the top-view synthesis.

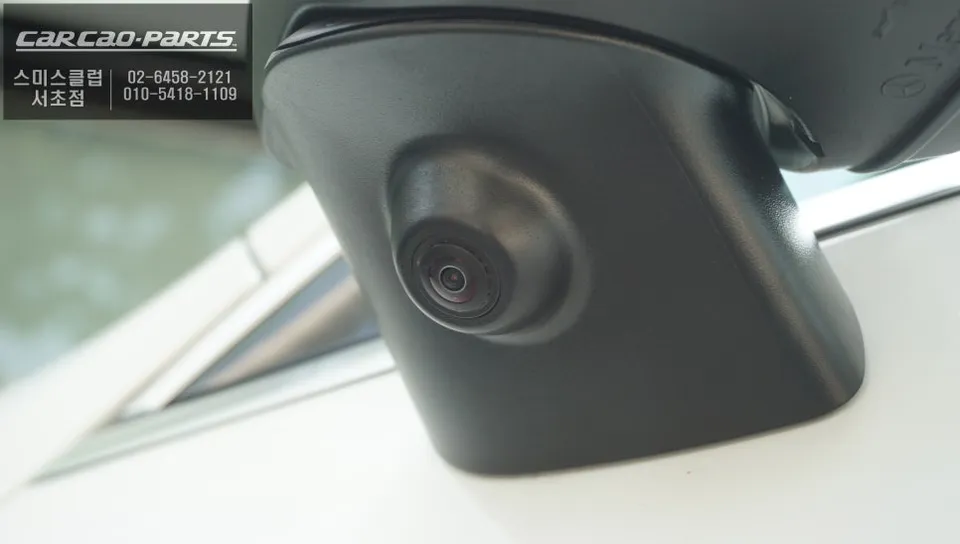

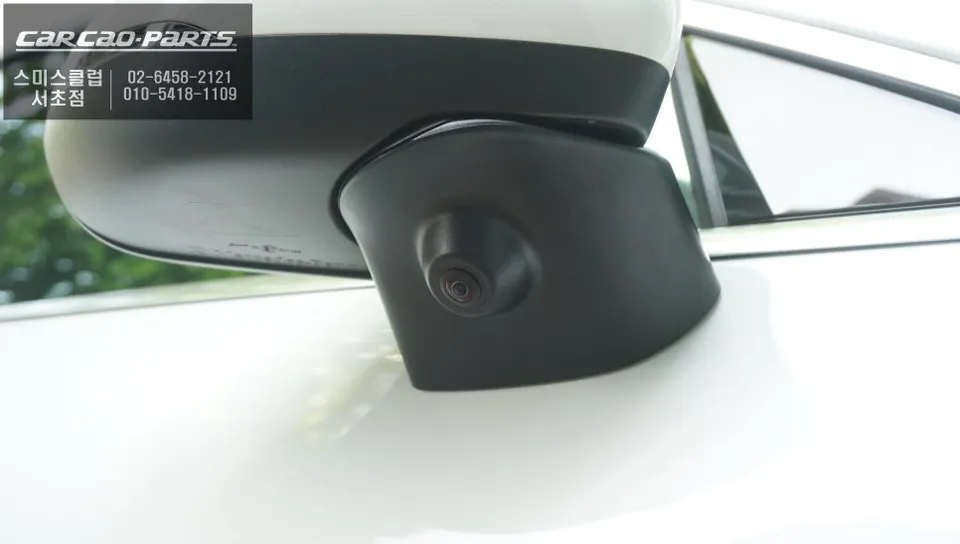

Side cameras (left and right) are installed using a 1:1 replacement of the original mounts. This ensures they fit precisely into the factory sensor or camera holder locations, leaving no visible signs of modification and preserving the vehicle's exterior appearance. These wide-angle lenses (approximately 170 degrees) provide a clear view of the vehicle's wheels and surrounding areas.
The rear camera replaces the factory license plate LED module. The camera lens is precisely positioned within the LED bezel, allowing for installation without altering the vehicle's exterior.
ECU Integration and Advanced Calibration
Synthesizing the video feeds from four distinct camera angles into a single, seamless top-view image requires sophisticated signal processing handled by the main ECU module. This module is typically concealed within the dashboard or under the driver's seat area.
Following ECU installation, the crucial step is auto-calibration. The vehicle is positioned over a specially marked calibration pattern or platform, allowing the system to learn the precise angles and distances of each camera. Accurate calibration is essential to prevent distortion in the top-view display and ensure correct object positioning.
For the Mercedes-Benz CLA 250, this calibration process, along with the entire installation, typically takes approximately 4-6 hours to ensure all components function optimally and the visual output is perfectly aligned.
Frequently Asked Questions
Q. How much does a Surround View Camera cost for a Mercedes-Benz CLA 250?
The installation featured in this review, a 3D Plus View system for the Mercedes-Benz CLA 250, was performed in Korean Won. In the US, a comparable high-definition surround view camera system installation typically ranges from $1,200 to $2,500, depending on the vehicle and system complexity.
Q. How long does a Surround View Camera system last on a Mercedes-Benz CLA 250?
A professionally installed surround view camera system, like the 3D Plus View, is designed to last for the lifespan of the vehicle, typically 5-10 years or more with proper care. Regular cleaning of the camera lenses and ensuring connections remain secure will help maintain optimal performance.
Q. Is a Surround View Camera worth it for a Mercedes-Benz CLA 250?
A surround view camera system is highly beneficial for Mercedes-Benz CLA 250 owners who frequently navigate tight parking spaces or want to mitigate blind spots. It offers significant value by enhancing safety, preventing minor collisions, and providing unparalleled parking convenience.
Q. How is a Surround View Camera installed on a Mercedes-Benz CLA 250?
Installation involves precisely mounting four cameras (front, rear, left, right) using OEM-style replacements for factory mounts. 1. The main ECU module is installed and connected to the vehicle's electrical system. 2. Cameras are carefully positioned and secured to ensure accurate field of view. 3. An auto-calibration process using a special pattern is performed to align camera perspectives for a seamless 360-degree view on the factory monitor.
Q. What is the best Surround View Camera option for a Mercedes-Benz CLA 250?
The 3D Plus View system, as detailed in this review, offers a high-definition, seamlessly integrated solution that rivals factory options. For those seeking the most integrated and visually accurate experience, a system utilizing LVDS connections and OEM-style mounting is recommended over generic aftermarket kits.
