Mercedes-Benz E-Class W212 Tail Light Repair Review

Mercedes-Benz E-Class W212 Tail Light Malfunction Explained

Maintaining the pristine look of your Mercedes-Benz E-Class W212 is crucial, whether it's a new purchase or a pre-owned gem. A common concern for owners of this model is a malfunctioning tail light, particularly the rear lamps. This issue, often a persistent problem for W212 owners, can manifest as a failure to illuminate. If you're experiencing this, you're not alone. This guide details a repair process for a Mercedes-Benz E-Class W212 tail light issue performed at the Ojun-car Geojedo branch, offering a solution to restore your vehicle's safety and aesthetics.

Diagnosing and Repairing the W212 Tail Light

The root cause of tail light illumination failure in the Mercedes-Benz E-Class W212 often stems from aging LED modules or internal circuit problems. Over time, LED chips can degrade, moisture ingress can lead to corrosion, or external impacts might cause connection issues. Symptoms can range from one side not lighting up to flickering. Addressing this promptly is vital for nighttime driving safety and to avoid potential citations for faulty lighting. Ignoring it can lead to more severe damage and further complications.

The specific W212 featured here presented with an illumination failure on the driver's side outer tail light. After researching various repair options, the owner sought a definitive solution. At Ojun-car Geojedo, we proposed a precise diagnosis and a cost-effective repair strategy. The process began with the careful removal of the tail light assembly to pinpoint the exact cause of the malfunction. Both visual inspection and diagnostic equipment were employed to identify the precise location and nature of the fault.

Cost-Effective Module-Level Repair

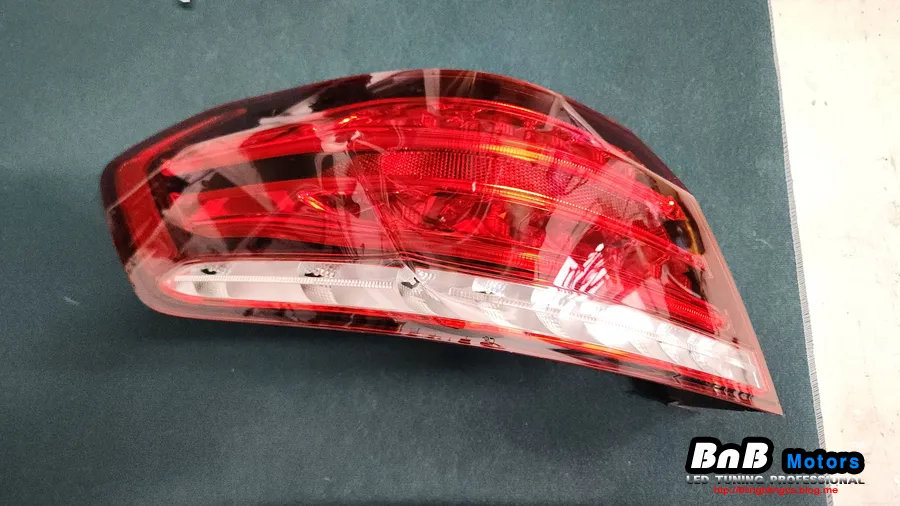

Our diagnosis revealed that repairing the specific faulty LED module was sufficient, eliminating the need for a complete tail light replacement. Opting for module-level repair significantly reduces costs compared to a full assembly swap. This approach allows for the restoration of the tail light to like-new condition without unnecessary expense. Our skilled technicians meticulously removed the damaged LED chip and replaced it with a new component, ensuring precise soldering and thorough circuit checks.

Installation process:

1. Carefully remove the affected tail light assembly from the vehicle.
2. Disassemble the tail light to access the internal LED modules.
3. Identify and desolder the faulty LED module.
4. Solder in a new, compatible LED module.
5. Reassemble the tail light and test all functions before reinstallation.

Post-Repair Testing and Final Inspection

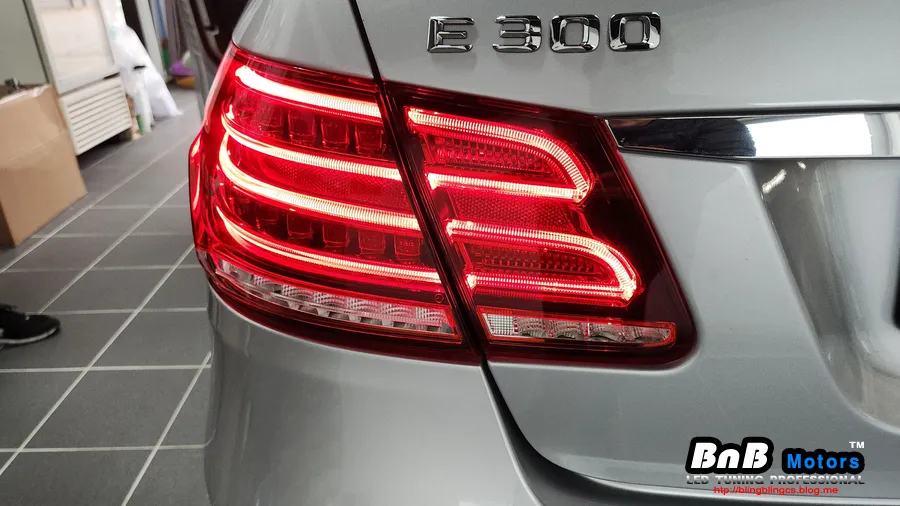

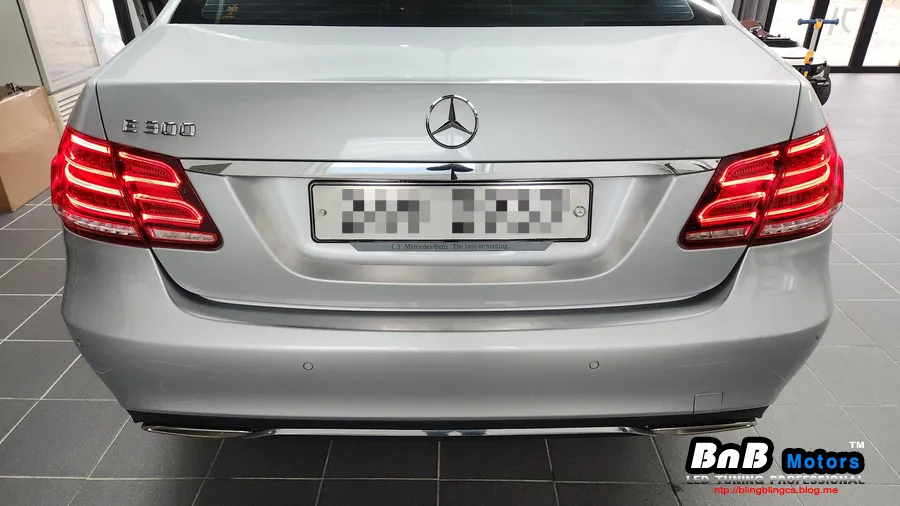

Before reassembling the tail light, extensive testing was conducted to ensure the repaired LEDs illuminated correctly and that no other issues were present. Once confirmed, the tail light was carefully reinstalled onto the Mercedes-Benz E-Class W212. A final inspection on the vehicle confirmed that all lighting functions were fully restored. Ojun-car Geojedo prioritizes transparency throughout the repair process and stands by the quality of our work with thorough post-repair checks.

Mercedes-Benz E-Class W212 Tail Light Repair: Cost and Time

The cost for repairing tail light illumination issues on a Mercedes-Benz E-Class W212 varies based on the specific cause and extent of the damage. For module-level repairs, costs typically range from approximately ₩100,000 to ₩300,000 (roughly $75-$225 USD), depending on the parts used and the complexity of the repair. This is significantly less than the cost of a full tail light replacement, which could easily exceed ₩500,000 (over $375 USD) for genuine Mercedes-Benz parts. The repair time is usually within a few hours, allowing for same-day service in most cases.
