Mercedes-Benz E-Class W212 Car Audio Upgrade Review

Revitalizing Your Mercedes-Benz E-Class W212's Sound System

Are you looking to elevate your in-car listening experience with richer, clearer audio in your Mercedes-Benz E-Class W212? Many owners find the factory speaker system lacks the depth and clarity they desire. This review details a car audio upgrade using the AVI SQ6.5C speaker system, focusing on the installation process, before-and-after results, and the overall value for W212 owners. The service was performed in South Korea, with an estimated installation time of around 3 to 4 hours. Typical costs for a speaker replacement of this nature range from approximately ₩500,000 to ₩1,000,000 (roughly $370-$740 USD, depending on exchange rates), though this can vary based on the specific vehicle and chosen components.

Assessing the Stock Sound and Upgrading Components

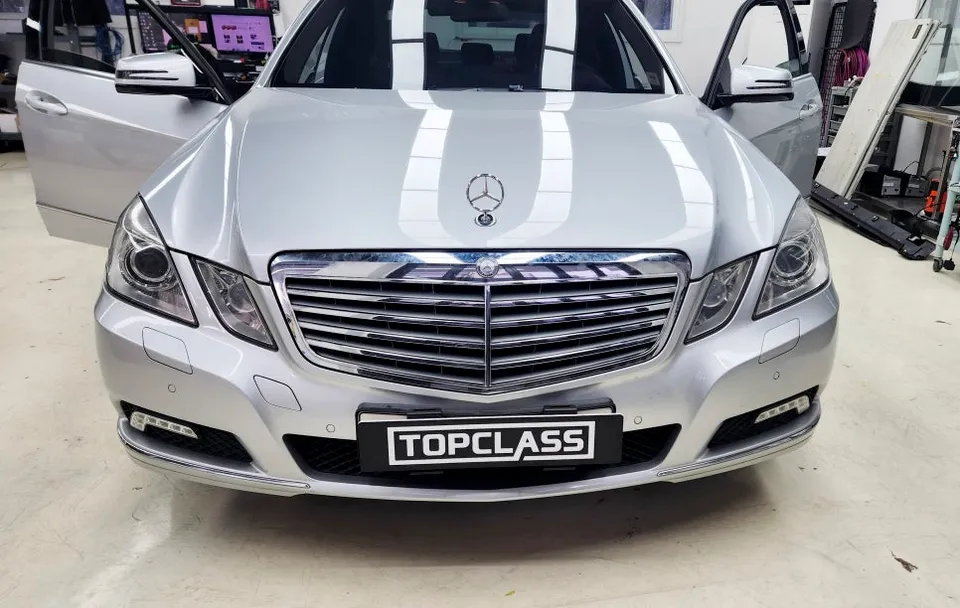

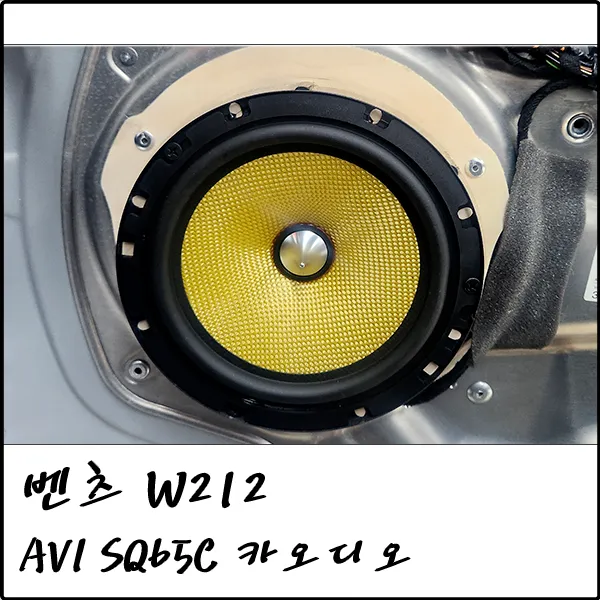

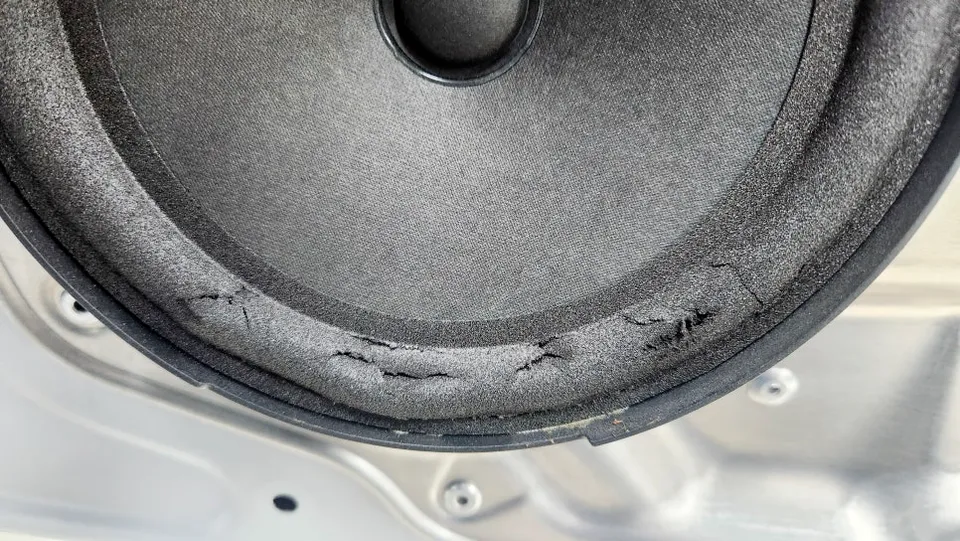

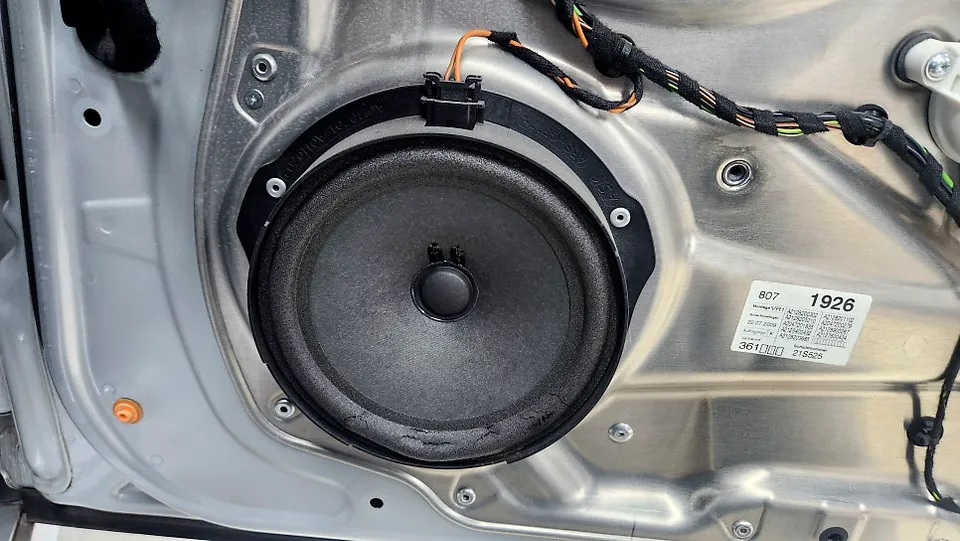

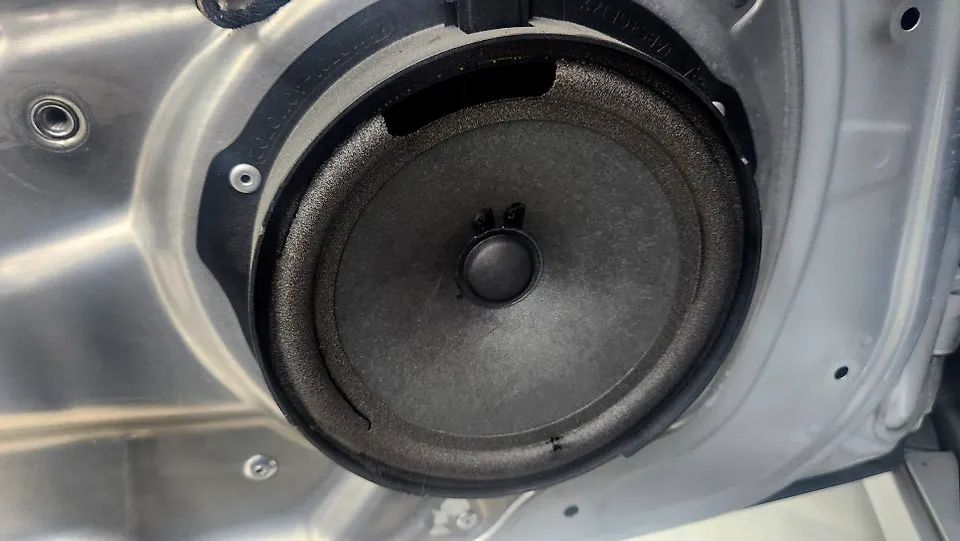

The Mercedes-Benz E-Class W212 featured in this review presented common issues associated with aging factory audio systems: diminished sound quality and unwanted noise. Upon removing the original speakers, it was evident that the speaker surrounds (edges) were deteriorated on both units. This natural wear and tear significantly impacts audio performance, leading to sound distortion and, in severe cases, audible static. The speaker surround is crucial for controlling the diaphragm's movement and maintaining an airtight seal, both vital for accurate sound reproduction. For this upgrade, the AVI SQ6.5C speaker system was selected. This Canadian-made system is known for its suitability as an entry-level upgrade and includes 6.5-inch mid-woofers, tweeters, and a passive crossover network. Its distinctive yellow cone is visually appealing, and despite being an entry-level option, it delivers a well-balanced sound profile that offers a marked improvement over the stock speakers, providing cleaner and more defined audio. The tweeters are designed to reproduce high frequencies with precision, contributing to a fuller, more immersive soundstage.

The Importance of Door Sound Deadening in Audio Upgrades

Effective car audio installation for any vehicle, including the E-Class W212, necessitates proper door sound deadening. The internal cavities of car doors are often acoustically untreated, allowing vibrations from the new speakers to escape or resonate, causing rattles and unwanted noise. Applying sound deadening material, such as vibration-damping mats, to the door panels is essential. This process suppresses panel resonance and reduces the intrusion of external road noise. Furthermore, it helps to control the internal acoustics of the door, ensuring the speaker's sound is delivered cleanly without coloration from the enclosure. This sound deadening is not merely about noise reduction; it's a critical step in maximizing the performance and clarity of your new car audio components. The installation process for the AVI SQ6.5C involved meticulous application of these materials to the W212's doors.

Installation: Tweeters, Crossovers, and Final Touches

The installation of the tweeter speakers is strategically placed near the listener's ears for optimal high-frequency delivery. In this W212, the tweeters were precisely fitted and secured into the A-pillar covers, ensuring a direct path for clear, crisp treble. The AVI XF-45AV 2-way passive crossover network was also securely mounted within the door structure. This crossover is a vital component, responsible for dividing the incoming audio signal into appropriate frequency ranges for the mid-woofer and tweeter, ensuring each driver operates optimally. The 'crossover point' – where the frequencies are split – is carefully set to create a seamless transition between the speakers, resulting in a natural and cohesive sound. Following the component installation, a comprehensive sound test was conducted to verify the improved audio quality. The AVI SQ6.5C system transformed the auditory experience in the Mercedes-Benz E-Class W212, offering a level of detail and clarity unattainable with the original factory speakers.

Installation Process:

1. Removal of factory door panels and speakers.
2. Application of sound deadening material to door inner and outer skins.
3. Installation of new 6.5-inch mid-woofer drivers in the factory locations.
4. Custom fabrication and mounting of new tweeters in the A-pillar covers.
5. Wiring and secure mounting of the passive crossover networks.
6. Reassembly of door panels and final audio system testing.
