Mercedes-Benz E-Class W213 Ambient Lighting Review

Completing the Mercedes-Benz E-Class W213 Interior with Ambient Lighting

The Mercedes-Benz E-Class W213 sets a high standard for premium sedans, with its expansive cockpit being a central part of the driving experience. However, many owners notice that the ambient lighting on the upper part of the instrument cluster is intentionally omitted from the factory build. While this might be due to safety standards, it's a common point of dissatisfaction for many E-Class owners, especially those who have experienced older Mercedes models or higher trims. This review explores the process and benefits of adding genuine ambient lighting to the instrument cluster, transforming the new E-Class into a more complete interior.

Understanding the Difference: Standard vs. Full Ambient Lighting

A closer look at the standard Mercedes-Benz E-Class W213 instrument cluster reveals that ambient lighting is only present on the lower section. While there's a subtle LED glow, the upper area remains blank. This isn't just a missing LED; it means the acrylic panel designed to diffuse the light is also absent. Comparing this to a genuine Mercedes-Benz instrument cluster frame with full specifications highlights the difference. The full spec frame includes a total of four LEDs and two acrylic screens. The standard W213 version omits two LEDs and one acrylic panel from the upper section. This omission significantly impacts the visual experience, particularly in multi-color mode, where the interplay of light across the upper and lower sections creates a much more dynamic and immersive atmosphere.

Installation Process: Adding Genuine Ambient Lighting

The process of adding ambient lighting to the upper instrument cluster is more involved than simply attaching LEDs; it requires replacing the entire instrument cluster frame. Here’s a breakdown of the typical installation:

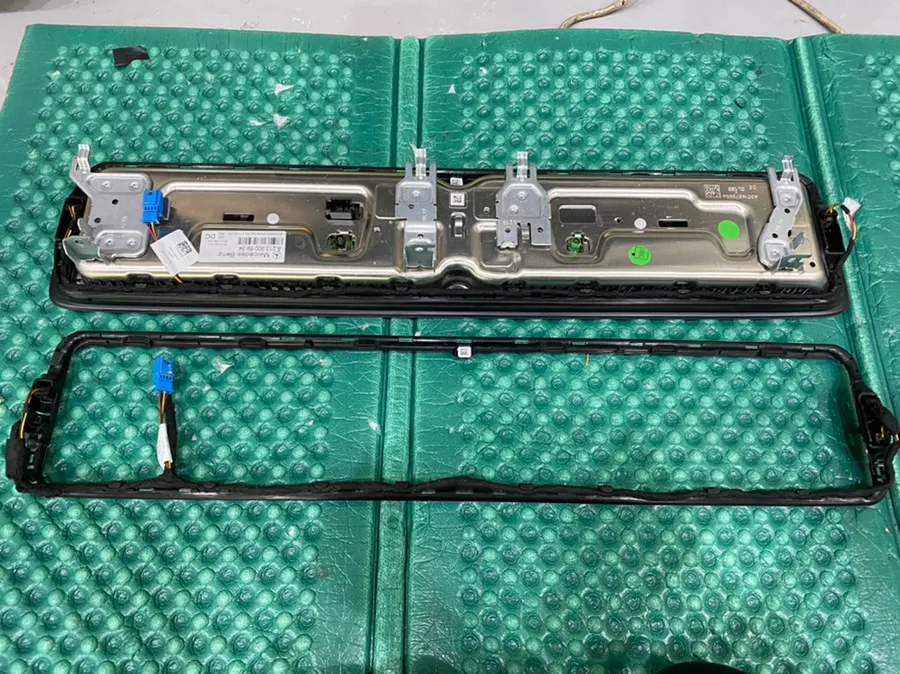

1. Disassembly and Inspection: The instrument cluster assembly is carefully removed from the vehicle. It's crucial to disconnect the various connectors in the correct order to avoid any damage. The current state is documented with photos, and the location of each connector is noted. The existing frame is then inspected, revealing the empty sockets for the upper LEDs on the standard version.
2. Replacement with Full Spec Frame: A genuine Mercedes-Benz instrument cluster frame (full specification) is prepared. This frame comes equipped with all four LEDs and two acrylic panels, enabling complete ambient light expression across the entire cluster. The key difference is the inclusion of the two upper LEDs and one acrylic panel. The replacement involves removing the old frame and installing the new one. It's vital to ensure all components, especially the acrylic panels, fit precisely.

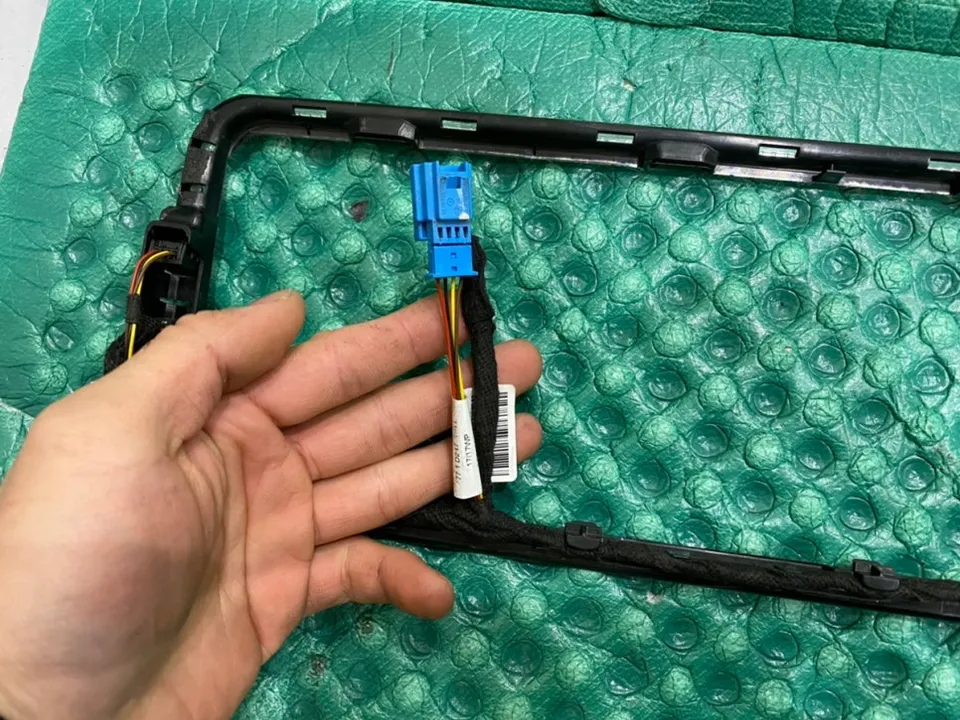

3. Connector Reconnection and Functionality Test: After the frame is replaced, the connectors are reattached. The genuine Mercedes-Benz frame is designed for a plug-and-play connection, meaning no modifications to the existing wiring are necessary. Once the connectors are securely in place, the LEDs in the upper section should illuminate correctly. The vehicle's power is turned on immediately after installation to test the ambient lighting, verifying that the upper LEDs respond properly and that color transitions are smooth.

The use of genuine Mercedes-Benz parts ensures quality and reliability, maintaining the premium feel of the vehicle. While this specific installation was performed in Korea, the process and parts are consistent with what would be used globally. The estimated cost for this genuine ambient light retrofit in Korea starts around 150,000 KRW, which is approximately $110 USD, though actual US prices may vary significantly due to market factors and labor rates.
