Mercedes-Benz E350 Dash Cam & Battery Review

Mercedes-Benz E350: Upgrading Safety with Dash Cam and Auxiliary Battery

For comprehensive protection against accidents and vehicle security during parking, a dash cam alone is often insufficient. This case study details the installation of a QHD high-definition dash cam and a smart auxiliary battery system on a Mercedes-Benz E350. We'll explore how this upgrade enhances front and rear video recording capabilities and ensures stable power for parking surveillance, elevating the safety features of this premium sedan.

Pre-Installation Inspection and Vehicle Analysis

Our process began with a thorough inspection of the Mercedes-Benz E350's electrical system. This included assessing the main battery capacity, locating the fuse box, and planning the optimal placement for components in the trunk. Adhering to the fundamental principle that voltage stability is paramount when installing both a dash cam and an auxiliary battery, we proceeded with meticulous planning.

Given the E350's sophisticated electronic control units, incorrect wiring could lead to subsequent malfunctions. Therefore, we consulted the vehicle's manual to determine the most appropriate power distribution method. We also prepared a heavy-duty fuse holder (rated up to 80A) to prevent overcurrent issues.

Dash Cam Installation: Building a QHD Recording System

The primary component installed was the QXD7000 dash cam. Its standout feature is the QHD (2560x1440) resolution for both front and rear recording, offering approximately 1.78 times more pixels than standard FHD (1920x1080) for significantly clearer license plate identification. The integrated HDR (High Dynamic Range) technology ensures clear recording of license plates and traffic signals even in challenging lighting conditions, such as direct sunlight or entering/exiting tunnels.

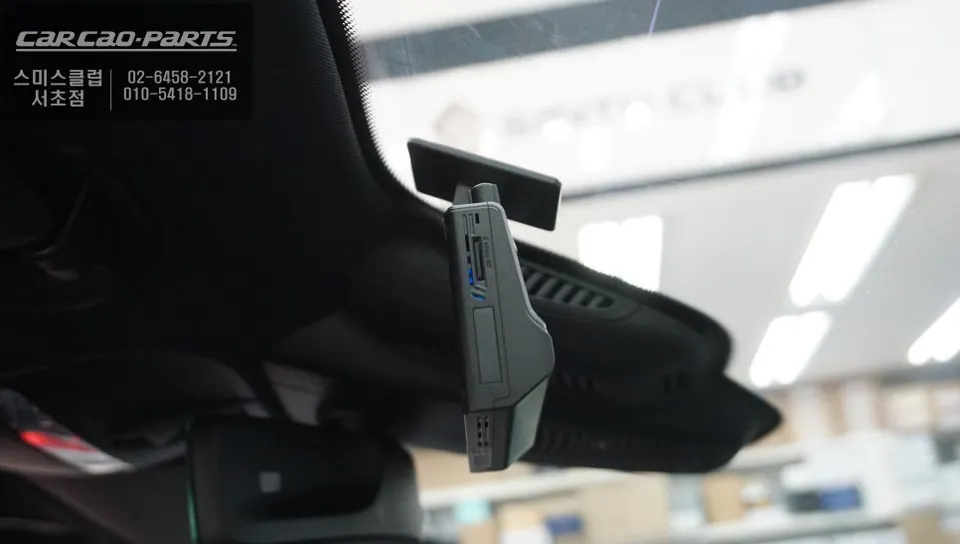

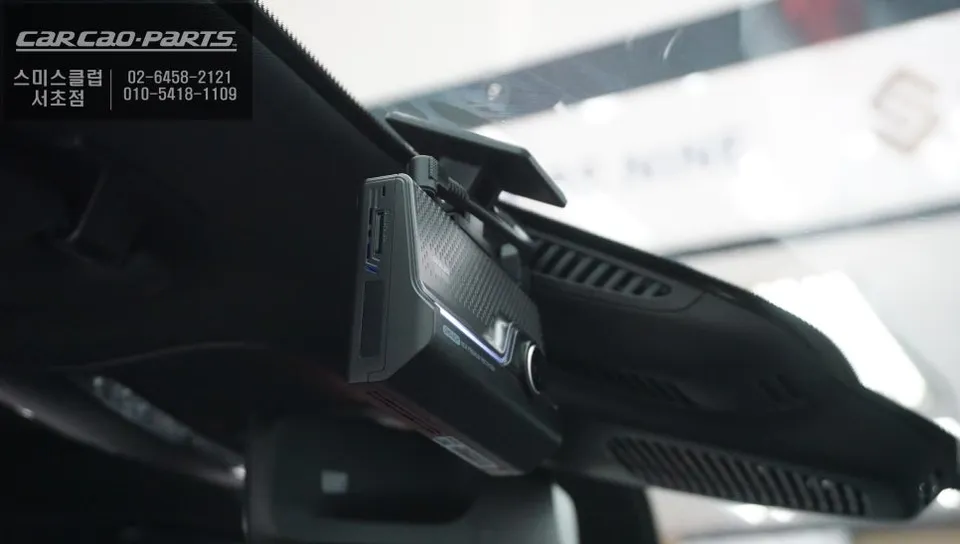

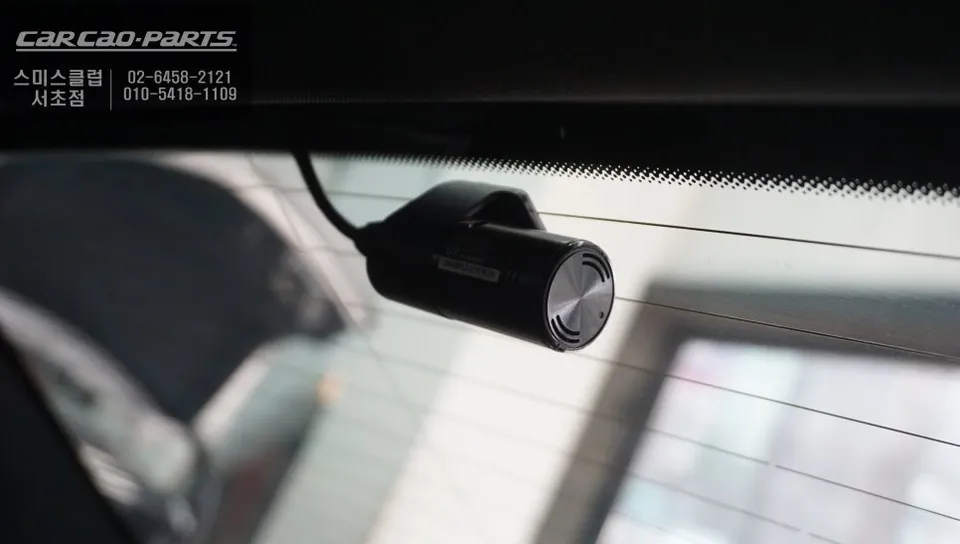

The dash cam cameras were discreetly mounted on the E350's windshield, behind the rearview mirror. Wiring was meticulously routed along the headliner and pillars for a clean, factory-installed look. The sensor and GPS receiver were secured near the main fuse box, enabling the dash cam to automatically begin recording upon vehicle ignition.

Auxiliary Battery Installation: Enhancing Parking Security

Concerns about vehicle fires or engine starting failures due to main battery over-discharge are common when dash cams rely solely on the car's primary battery. Dash cams continuously consume around 3-5A of current while recording, potentially draining the main battery by over 80% after just three days of inactivity in a closed garage.

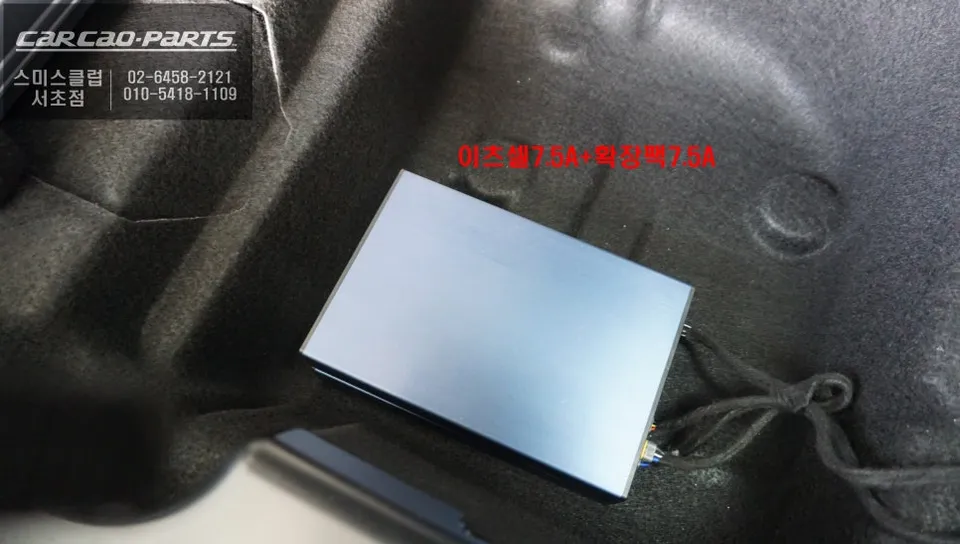

To address this, we installed an independent smart auxiliary battery (ItzCell 15A) in the trunk. This LiFePO₄ (Lithium Iron Phosphate) battery boasts a lifespan five times longer than conventional lead-acid batteries and eliminates fire or explosion risks, offering over 2,000 charge-discharge cycles.

The ItzCell 15A features a slim design (25cm width, 15cm height), fitting neatly into a corner of the trunk. With a capacity of 12V 15Ah (180Wh), it can power the dash cam for approximately 60 hours of continuous recording, ensuring the dash cam operates safely without draining the vehicle's main battery.

Wiring and Voltage Stabilization

A critical aspect of connecting the auxiliary battery to the vehicle's fuse box is managing voltage drop. Insufficiently thick wiring in the vehicle's interior can cause voltage to decrease due to resistance as current flows. For luxury vehicles like the E350, the operating voltage range for electronic control units is strictly maintained at 12V ± 1V.

To counteract this, we used high-gauge wiring (4mm² or thicker, equivalent to AWG 6) for the connection from the auxiliary battery to the fuse box, ensuring minimal voltage loss and stable power delivery to the dash cam system.

Installation Process:

1. System Assessment: Inspected the E350's electrical system, including battery capacity and fuse box location.
2. Dash Cam Mounting: Installed QHD front and rear cameras discreetly behind the rearview mirror and on the windshield.
3. Wiring Integration: Routed all wiring neatly along the headliner and pillars, connecting to the fuse box and GPS receiver.
4. Auxiliary Battery Installation: Mounted the ItzCell 15A auxiliary battery in the trunk and connected it to the fuse box with heavy-gauge wiring.
5. Final Testing: Verified all connections, ensured stable voltage, and confirmed automatic recording activation upon ignition.
