Understanding Mercedes-Benz EQE Fuel Filler Flap Damage

The fuel filler flap, while seemingly minor, is crucial for daily use. For vehicles like the Mercedes-Benz EQE, its design makes it susceptible to damage, especially during parking maneuvers. Accidentally leaving the flap open while reversing and hitting a parking pillar or wall can cause instant damage. This is a common issue for the Mercedes-Benz EQE X294 model due to its specific structure.

Beyond the inconvenience, a damaged fuel filler flap affects the driving experience, allowing external noise to enter and detracting from the vehicle's aesthetics. Prompt repair is essential, but official service centers often face lengthy delays due to parts procurement issues, sometimes extending wait times significantly.

Why Official Center Wait Times Can Reach 2 Months

The fuel filler flap on the Mercedes-Benz EQE is not a simple replacement part. Its complex design, integrated into the vehicle's unique architecture, coupled with its status as an imported component, leads to limited domestic stock. Even authorized centers may need 6-8 weeks to source parts from overseas, with total wait times exceeding two months in some cases.

However, not all damage necessitates a trip to the official center. Minor flap damage can often be resolved swiftly with a direct part replacement. The key lies in accurately assessing the damage and acting quickly.

Mercedes-Benz EQE X294 Fuel Filler Repair Process

This case study details a repair performed at Today's Car Goyang branch on a damaged Mercedes-Benz EQE fuel filler flap. The vehicle sustained damage after the flap was left open during reversing and struck a pillar. A thorough inspection confirmed that only the external flap was damaged, with the underlying frame intact.

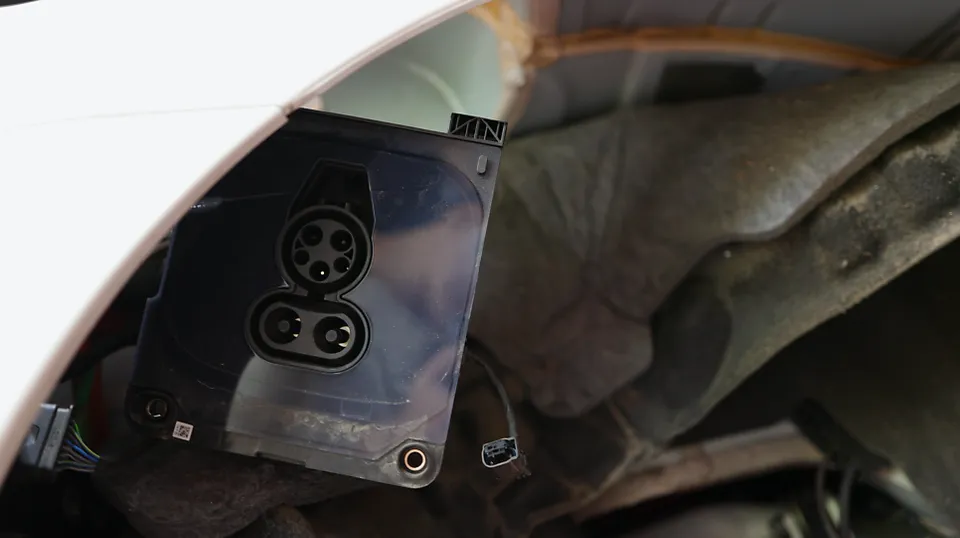

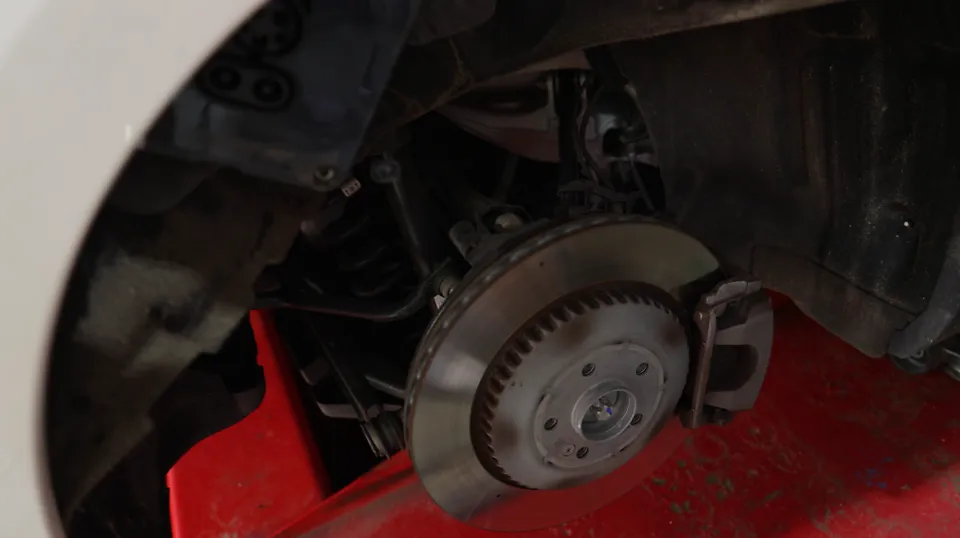

Accessing the damaged part typically involves working from the trunk area. However, the EQE's specific construction made this approach impossible. An alternative solution was devised: accessing the flap through the wheel well area.

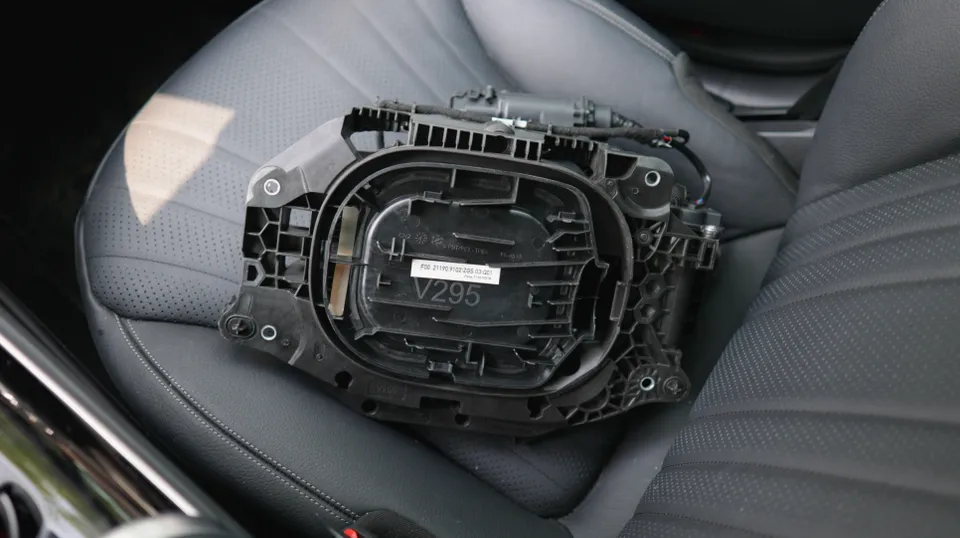

By carefully removing the wheel well lining, a narrow access point was created. This allowed for the precise replacement of only the damaged external flap, leaving the intact mounting frame untouched. This method proved to be the most efficient in terms of both cost and time.

Repair Methods Vary by Damage Severity

Fuel filler damage generally falls into two categories. The first is flap damage, where only the external cover is affected. This can typically be repaired with a part replacement within 1-2 days, costing approximately 500,000 to 800,000 Korean Won for the part.

The second category is structural damage, where the mounting frame is bent or compromised. This requires frame repair or replacement, which is complex and often beyond the scope of external repair shops. In such cases, official center service is recommended, with costs exceeding 2,000,000 Korean Won.

The repair at Today's Car Goyang branch involved only flap damage, allowing for a swift replacement. The process took approximately 4-6 hours, and while not completed on the same day, the vehicle was fully restored within two days—a significant time saving compared to official center wait times.

When and How Does Mercedes-Benz EQE Fuel Filler Damage Occur?

This type of damage is more common than one might think. The highest risk occurs when reversing with the fuel filler flap open, particularly in tight parking spaces or when using automated parking systems. The EQE's unique fuel filler placement, differing from conventional vehicles, can increase the likelihood of such mistakes.
