Mercedes-Benz S-Class W222 Dash Cam Installation Review

Upgrade Your Mercedes-Benz S-Class W222 with a Premium Dash Cam and Auxiliary Battery

For owners of the luxurious Mercedes-Benz S-Class W222, maintaining the vehicle's integrity extends to its electronic systems. Many S-Class owners find themselves needing to replace or upgrade their factory-installed dash cam (Starview) due to malfunctions or a desire for enhanced features. When opting for an aftermarket solution, integrating an auxiliary battery becomes crucial, especially for ensuring uninterrupted parking surveillance without draining the main vehicle battery. This guide details a professional installation of the FineVu LXQ600 dash cam and a Carecell CZ8A auxiliary battery on a Mercedes-Benz S-Class W222, highlighting the benefits and process.

Why an Auxiliary Battery is Essential for Your S-Class W222

The factory dash cam on many high-end vehicles, including the Mercedes-Benz S-Class W222, can be costly to repair or replace. Aftermarket options offer superior performance and value, but their continuous operation, particularly during parking mode, necessitates a dedicated power source. Without an auxiliary battery, the vehicle's primary battery is at risk of depletion, rendering the parking recording function unreliable. For a vehicle like the S-Class W222, which demands robust security, an auxiliary battery is not just recommended but essential for continuous, worry-free recording.

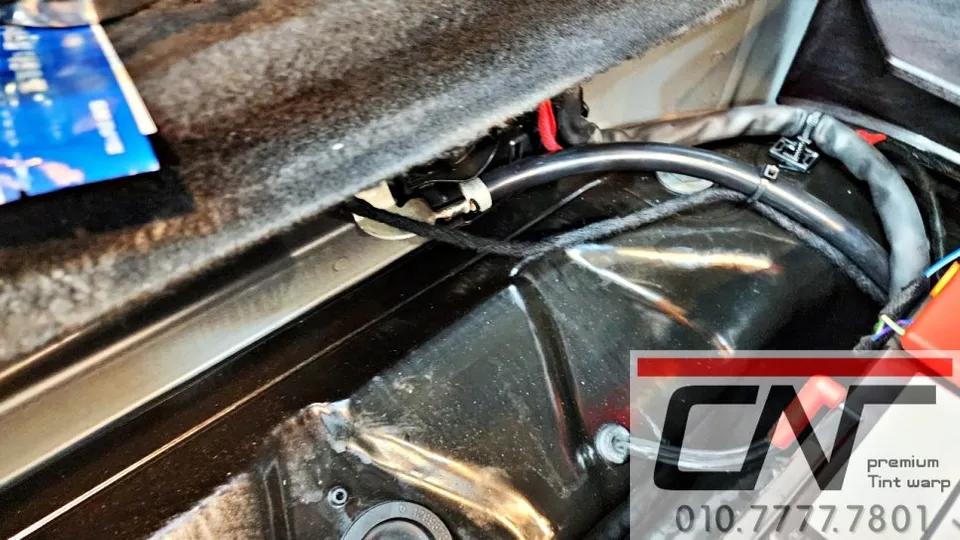

Our installation process prioritizes a clean and efficient setup. The Carecell CZ8A auxiliary battery is discreetly housed in the trunk's lower storage compartment, allowing for easy access for future maintenance or service. We connect the auxiliary battery directly to the vehicle's main power supply, ensuring optimal charging speed and stable power delivery, a more reliable method than using junction boxes which can add complexity and potential points of failure.

Key Components: FineVu LXQ600 Dash Cam and Carecell CZ8A Battery

The chosen setup features the FineVu LXQ600 dash cam, boasting a sharp QHD front camera and FHD rear camera. Its 'Night Vision' technology provides exceptional clarity in low-light conditions, ensuring no detail is missed. Compared to other premium brands, FineVu offers a sleek design and an intuitive touchscreen interface, making it easy to adjust settings like parking mode duration, motion detection sensitivity, and SD card formatting directly from the device. The Carecell CZ8A auxiliary battery enhances safety with its integrated temperature sensor, which actively monitors charging and prevents overheating by cutting off power if necessary. This advanced safety feature significantly reduces the risk of malfunction compared to older ceramic fuse systems. All wiring is meticulously managed, utilizing factory lines where possible and incorporating sound-dampening materials to prevent any rattles, ensuring a factory-like finish.

Installation Process:

1. Component Placement: The FineVu LXQ600 dash cam is mounted discreetly on the windshield, and the Carecell CZ8A auxiliary battery is installed in the trunk's lower storage area.
2. Power Connection: The auxiliary battery is hardwired to the vehicle's main power system for efficient charging, while the dash cam is connected to both the auxiliary battery and the vehicle's power for continuous operation.
3. Wiring Management: All cables are routed neatly along existing vehicle harnesses, secured with clips, and insulated with sound-dampening tape to prevent noise and ensure a clean aesthetic.
4. System Configuration: The dash cam is configured to utilize the auxiliary battery's power, with parking mode set to unlimited duration for maximum security.

By activating the 'Auxiliary Battery Mode' within the dash cam's settings and setting the cutoff timer to 'Unlimited,' you maximize the parking recording functionality while safeguarding your S-Class W222's main battery. This combination provides peace of mind, knowing your vehicle is protected both while driving and parked.
