Mercedes-Benz S580 Wheel Repair Review - Deep Damage Fixed

Mercedes-Benz S580 W223 Wheel Repair: Welding Restores Deep Damage

A common reality after purchasing a new car is encountering wheel damage during driving. The owner of this Mercedes-Benz S580 W223 was concerned about scratches on their genuine 20-inch wheels. Not only were there scratches around the entire circumference, but one section was deeply gouged from an impact, making simple painting insufficient. At Today's Car Gangnam, we addressed this by performing welding and repair to restore the wheel perfectly.

Initial Assessment: Diagnosing the Damage

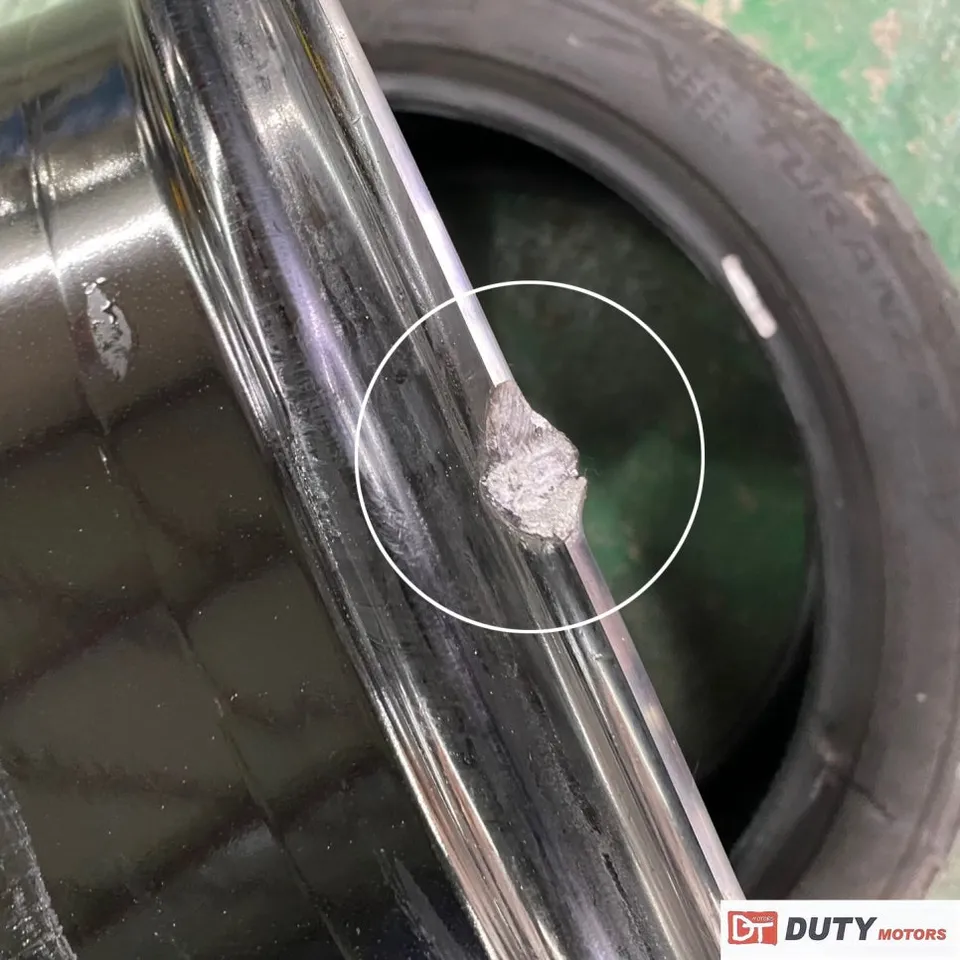

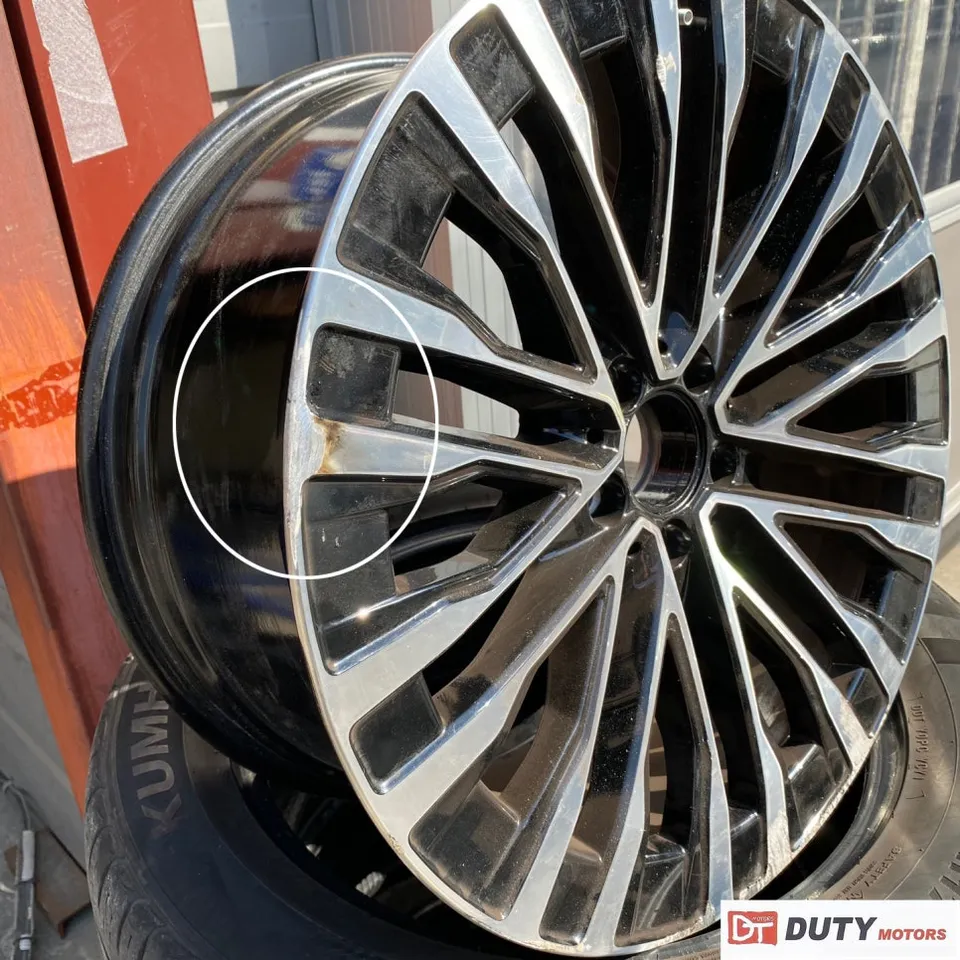

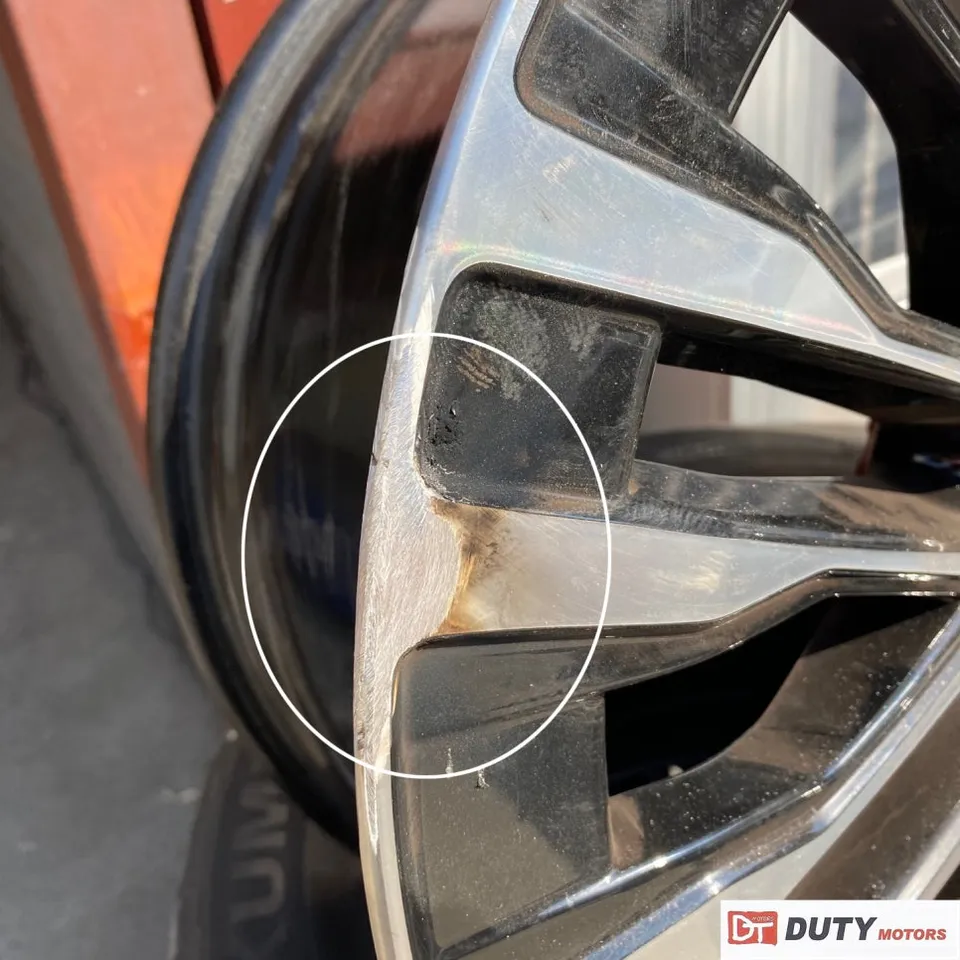

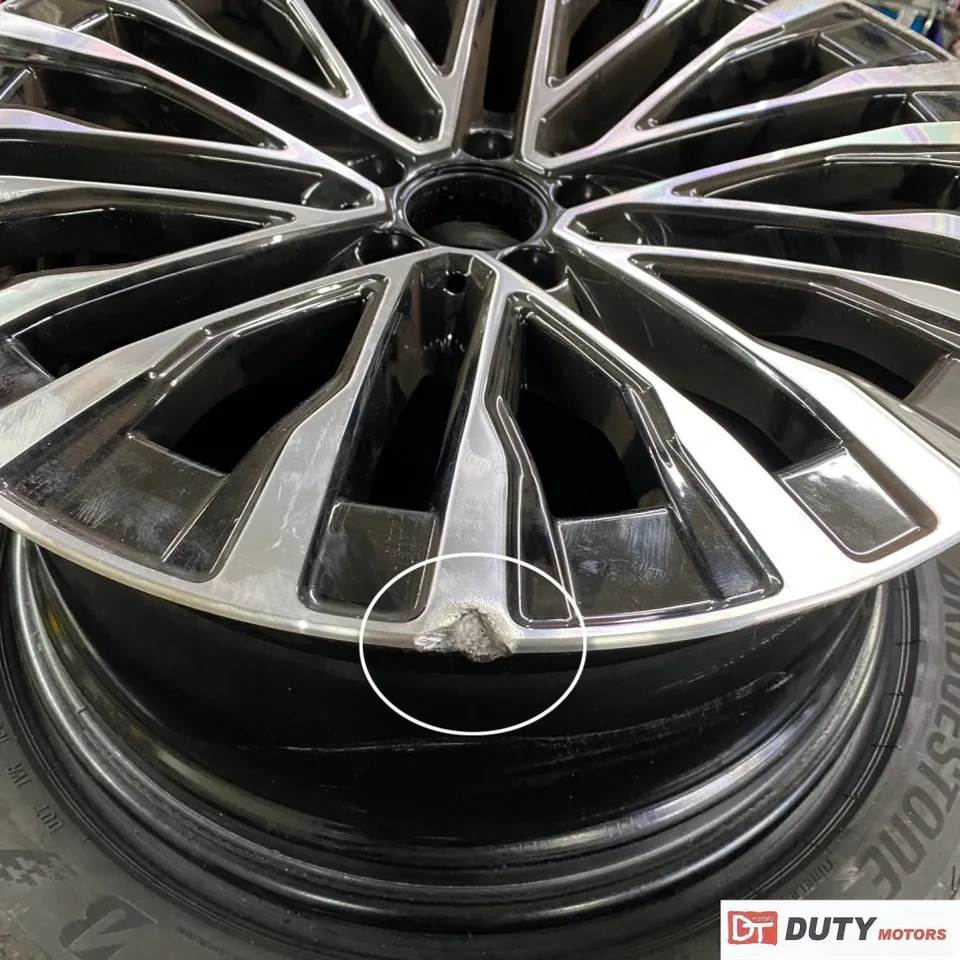

Upon receiving the Mercedes-Benz S580's genuine 20-inch wheels, we first diagnosed their condition. Inspecting the entire wheel revealed multiple scratches. Notably, at the 2 o'clock position, there was not just a surface scratch but a deep indentation in the aluminum. This level of damage meant that painting alone could not guarantee durability. A typical service center might recommend a full wheel replacement, which can cost approximately ₩2-3 million and involve significant downtime. However, utilizing welding and repair techniques allows for substantial savings in both cost and time.

Welding Process: Fundamental Restoration of Damaged Areas

The welding process began, essentially fusing metal to repair the damaged sections. A crucial aspect of this technique is that simply welding over the damaged area can result in an uneven surface and visible inconsistencies from different angles. Therefore, the technician must weld not only the damaged spot but also the surrounding area to create a uniform, smooth curve.

After welding, the wheel's appearance showed a significant return to its original form. However, this is not the final step; the subsequent stages are critical for the wheel's longevity.

Heat Treatment and Painting: Enhancing Strength and Finish

Following welding, the most critical phase is heat treatment. This process involves slowly cooling the metal heated during welding to harden the surface. Skipping this step can lead to paint peeling, especially under high temperatures experienced during driving or summer parking. This phenomenon, known as 'paint chipping,' would necessitate re-service sooner rather than later.

At Today's Car Gangnam, our technicians dedicate ample time to heat treatment, carefully controlling the temperature to relieve internal stress in the aluminum and increase the hardness of the welded area. This process alone typically takes 3-4 hours.

The painting stage involves smoothing the heat-treated surface before applying primer, base coat, and clear coat. We finished the wheel in the genuine Mercedes-Benz "silver-black" color.

Natural Curing and Tire Installation

After painting, the wheels undergo natural curing. For the paint to fully harden, it requires a slow drying process in a controlled temperature and humidity environment, rather than just using a heat gun. Inadequate curing can result in a lifted or thin paint surface. We typically allow 48-72 hours for this natural drying process.

Additionally, the owner requested a tire change for this service. We replaced the tires that were removed from the wheels with new ones. We installed the standard size 255/40R20 Bridgestone tires, ensuring the driving feel returns to its original state.

Finally, after re-mounting the tires, wheel balancing is essential. The welding and heat treatment process can subtly alter the wheel's weight distribution. Dynamic balancing ensures the wheel spins smoothly and without vibration.
