Porsche Macan 3D Surround View Camera Installation Review

Porsche Macan: Enhancing Parking Safety with Surround View

Driving moments can be nerve-wracking, especially when navigating tight parking spaces with blind spots or worrying about unseen vehicles in adjacent lanes. For a premium vehicle like the Porsche Macan, its larger size and limited visibility can exacerbate these concerns. To address this anxiety, our client opted for a premium 3D Surround View camera system, a choice that goes beyond mere functionality to ensure complete driving safety.

At Today's Car, we specialize in integrating advanced safety technologies seamlessly into luxury vehicles. This review of the Porsche Macan 3D Surround View camera installation will detail how this sophisticated system is implemented, providing a clear, bird's-eye view for unparalleled parking assistance.

Why Install a Surround View Camera? The Safety Difference

Blind spots during parking are often larger than drivers perceive. The front, rear, and sides of the vehicle can all present visibility challenges that human eyes alone struggle to overcome. Even in a premium car like the Macan, its structural design inherently creates these blind zones, posing a constant risk of collision regardless of driver experience.

A 3D Surround View system fundamentally solves this issue. By installing four cameras—one front, one rear, and one on each side—the system captures comprehensive 360-degree video. This footage is then processed and stitched together to create a top-down, bird's-eye perspective, much like a drone view. This allows drivers to detect obstacles in all directions in real-time, significantly reducing the risk of accidents during parking maneuvers.

Porsche Macan 4-Camera Installation Process

The core of this installation lies in achieving perfect integration with the Macan's original monitor. It's not just about adding cameras; it's about making them work harmoniously with the car's existing infotainment system.

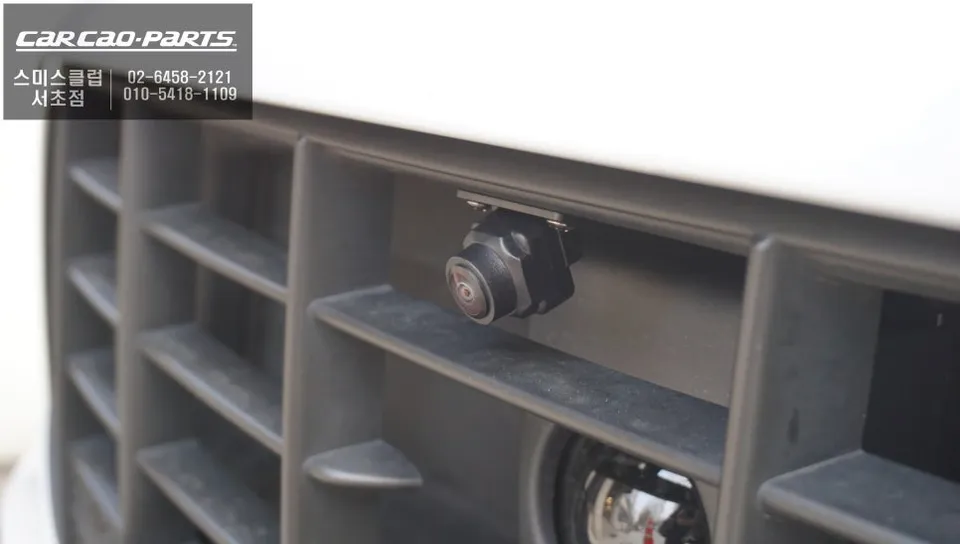

1. Front Camera Placement: The front camera is strategically mounted on the upper part of the bumper. This high position ensures a clear view of the vehicle's front, crucial for forward parking.

2. Rear Camera Integration: Installing the rear camera required careful consideration as the Macan already has a factory backup camera. In this case, we added a dedicated Surround View rear camera while retaining the original. This dual-camera setup offers flexibility, allowing the driver to select which rear camera view to display.

3. Side Camera Mounting: The side cameras, often the most intricate part, are installed by precisely drilling into the side mirror housings. Achieving the correct angle without damaging the vehicle's bodywork is paramount.

4. Wiring and Management: Wiring from the side cameras is routed through protective tubing and integrated along the original wiring paths. This ensures a clean, factory-like appearance and simplifies future maintenance.

High-Definition LVDS Video and Touch Integration

After the cameras are physically installed, the critical step is synthesizing their feeds into a single, cohesive image. This involves installing specialized calibration patterns and running an auto-calibration process to accurately stitch the four distinct camera views.

The system utilizes LVDS (Low-Voltage Differential Signaling) for high-definition video output. Unlike standard analog signals, LVDS provides a much clearer and sharper image, preserving the premium quality expected on the Macan's display. This advanced technology ensures a superior visual experience compared to systems that rely on compressed video signals.

Furthermore, the system seamlessly integrates with the Macan's touchscreen interface. Drivers can intuitively select various viewing modes—such as front, side, rear, or the 3D bird's-eye view—directly via touch, adapting the display to their specific parking needs.
