Porsche Taycan Wheel Repair Review: M4T Color Match
Service Price
$75–115
Estimated price · Actual price may vary by shop
Before

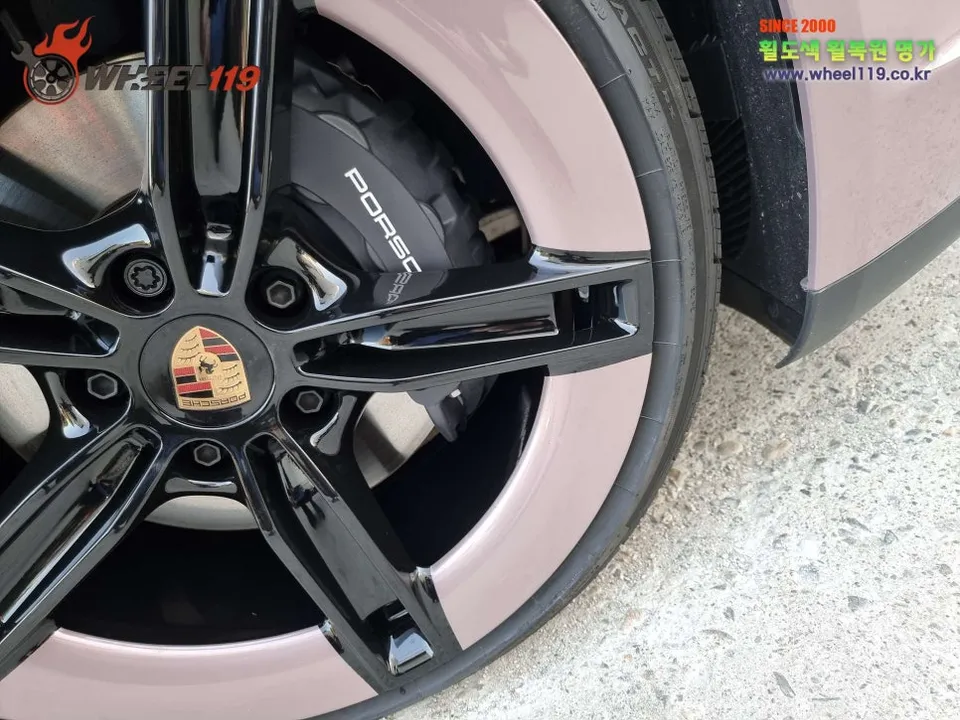

After
Process photos
Porsche Taycan wheel repair with M4T color match using 4-coat method. 7-hour service, same-day pickup.
Porsche Taycan Mission-E Wheel Restoration: The Process
Vehicle: Porsche Taycan Wheel Design: Mission-E Service Details: Wheel repair and custom color painting Painting Method: Powder coating + Water-based liquid coating (4 coats) Time Required: Approximately 7 hours (same-day completion possible) Service Location: Today's Car Gangnam Branch
The Porsche Taycan, being an electric vehicle, features distinctive wheel designs. While the Mission-E wheels are common, the precise color can vary slightly between models. This particular case involved a challenging Taycan wheel repair focused on accurately replicating the M4T color. M4T is a unique finish made with water-based paint, differing significantly from standard automotive paints.
Why Taycan Wheels Require a Two-Stage Painting Process
Restoring Porsche Taycan wheels goes beyond simple repainting. Unlike typical wheel painting (sanding → primer → color coat), the Taycan Mission-E wheels necessitate a combination of powder coating (applying a powder coating electrostatically) and water-based liquid coating (using water-soluble paint). This dual approach is crucial because genuine Taycan wheels have a special protective coating. Matching the finish's texture and gloss level, not just the color, is essential for a factory-like appearance. Powder coating enhances durability, while the water-based liquid coating refines the final gloss and color fidelity.
The 4-coat method is also vital. A 'coat' refers to a layer of paint. This process involves applying a thin layer, drying it, then applying the next, and repeating this cycle four times. This meticulous layering prevents paint runs and brush marks that can occur with thicker applications, ensuring a uniform and high-quality finish.
Assessing the Damage: Before the Repair

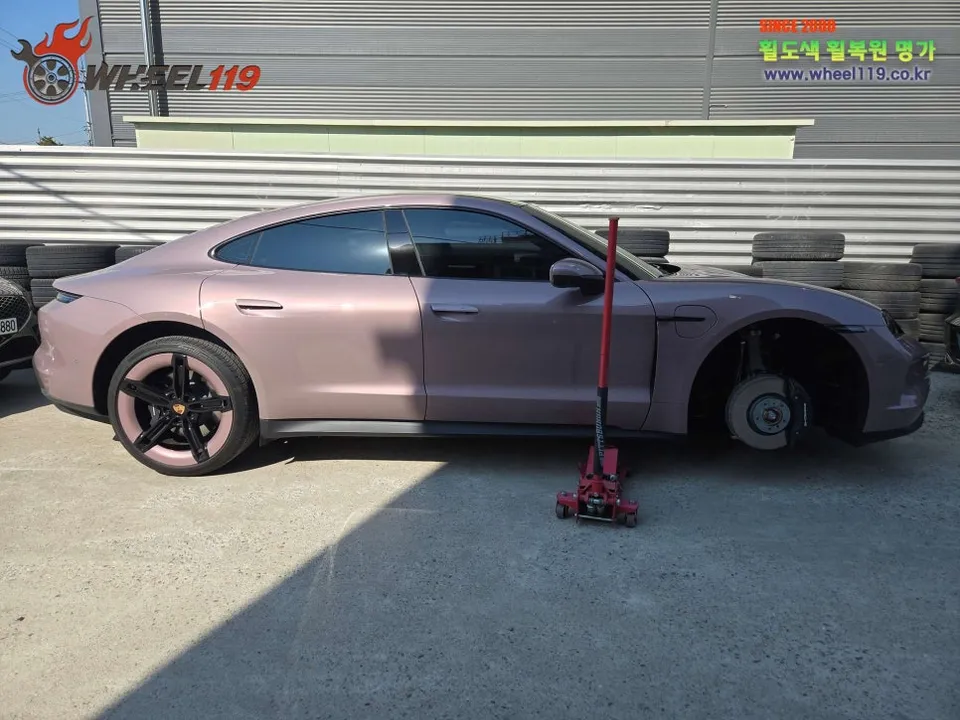

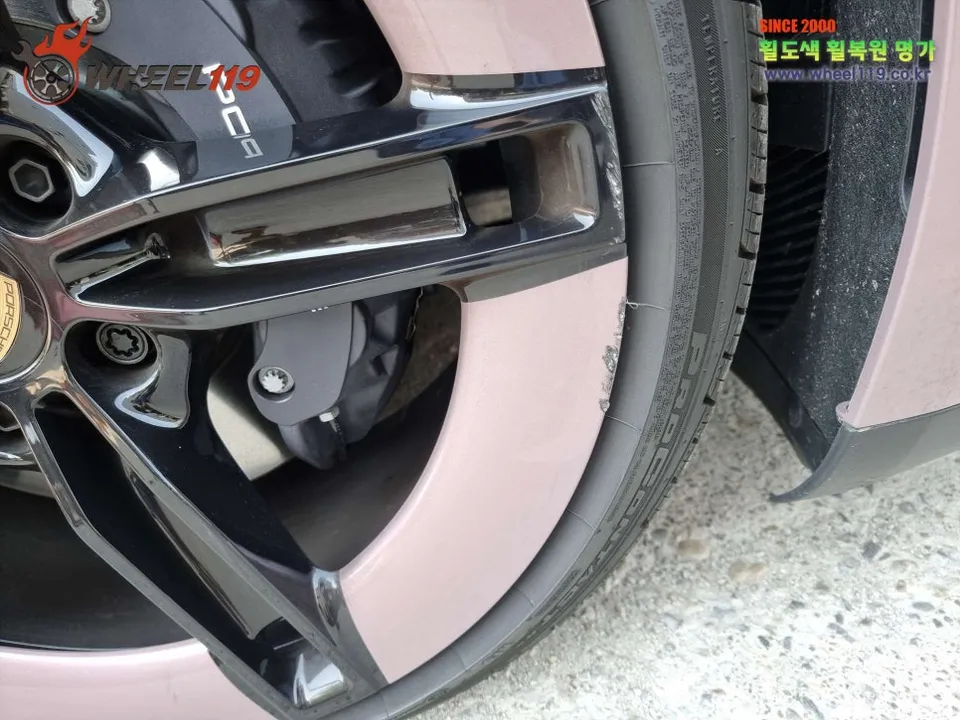

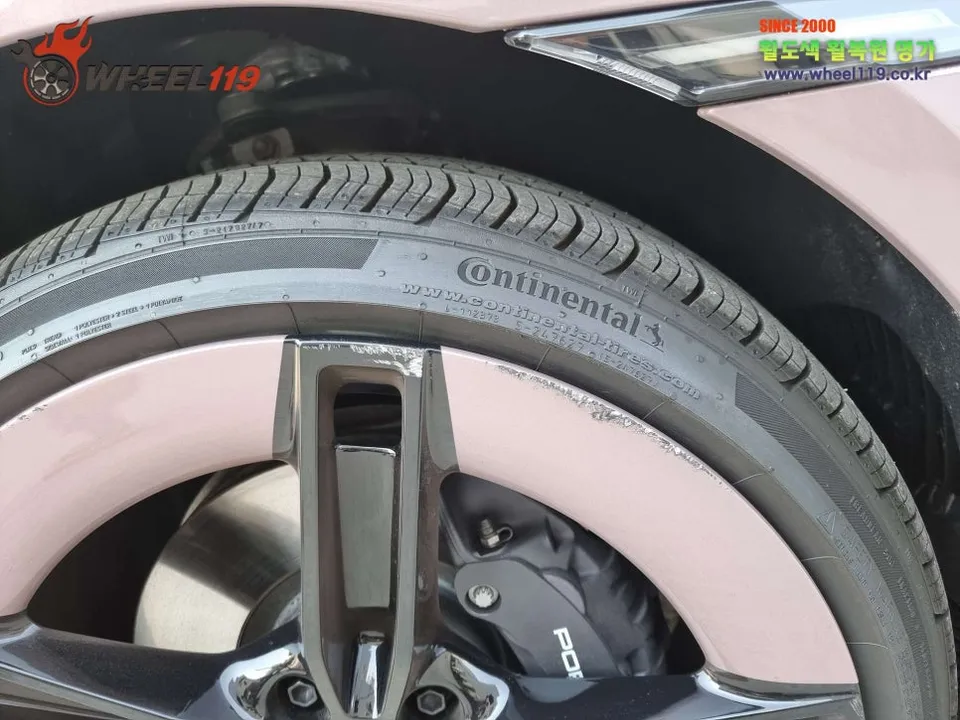

Upon arrival, the Taycan had scratches on one of the right-side wheels. These weren't superficial marks but areas where the coating had peeled off, leaving dull patches. Such damage cannot be fixed with simple polishing; it requires removing the entire existing paint layer with sandpaper and starting the refinishing process from scratch.
The Core of Porsche Wheel Refinishing: M4T Color Matching
Recreating the M4T, a genuine Porsche color code, using water-based paint presented a significant challenge. Standard automotive paint suppliers typically do not stock M4T water-based paint. Accurate color matching is achievable only through premium paint brands like Glasurit, which offer precise color mixing capabilities. The process involves taking a color sample from the original wheel or comparing it with Porsche's official color data. Then, using the paint manufacturer's color formula, base and accent colors are mixed. Even slight deviations during this mixing stage can result in a noticeable color difference post-repair.
The 7-Hour Porsche Wheel Refinishing Workflow
1. Sanding and Primer Application (Approx. 2 hours 30 minutes) This initial stage involves removing the old paint and preparing the surface. Using sandpaper grits from 600 to 1000, the surface is smoothed and activated for optimal primer adhesion. Skipping or rushing this step in Porsche wheel repair can lead to premature paint peeling later.

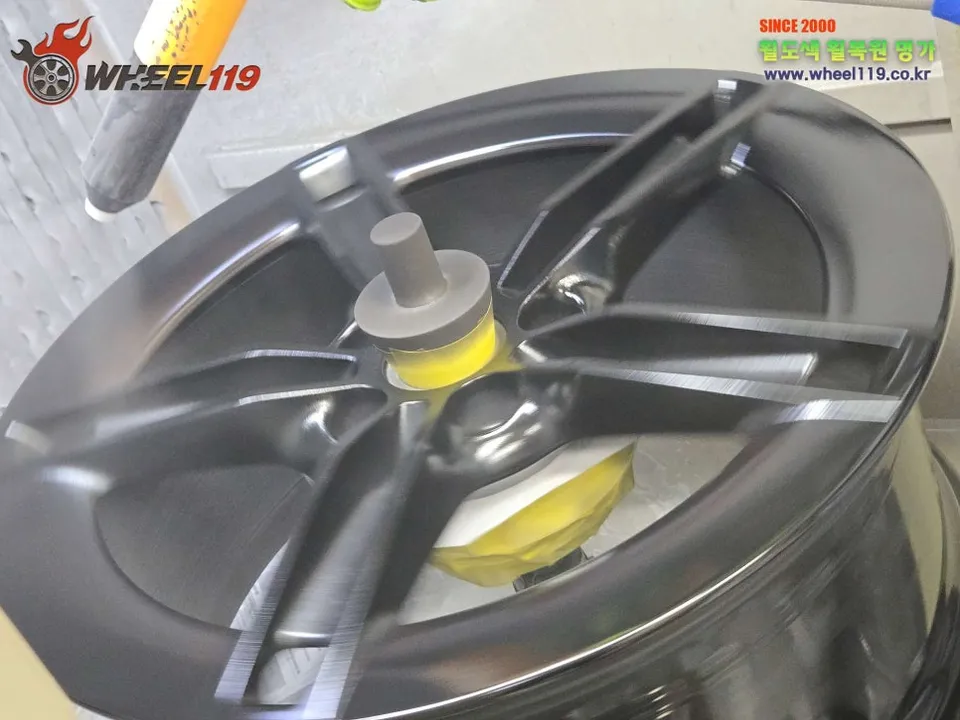

2. Powder Coating (1-2 coats) (Approx. 1 hour 30 minutes) Powder coating is applied electrostatically to create a durable base layer.

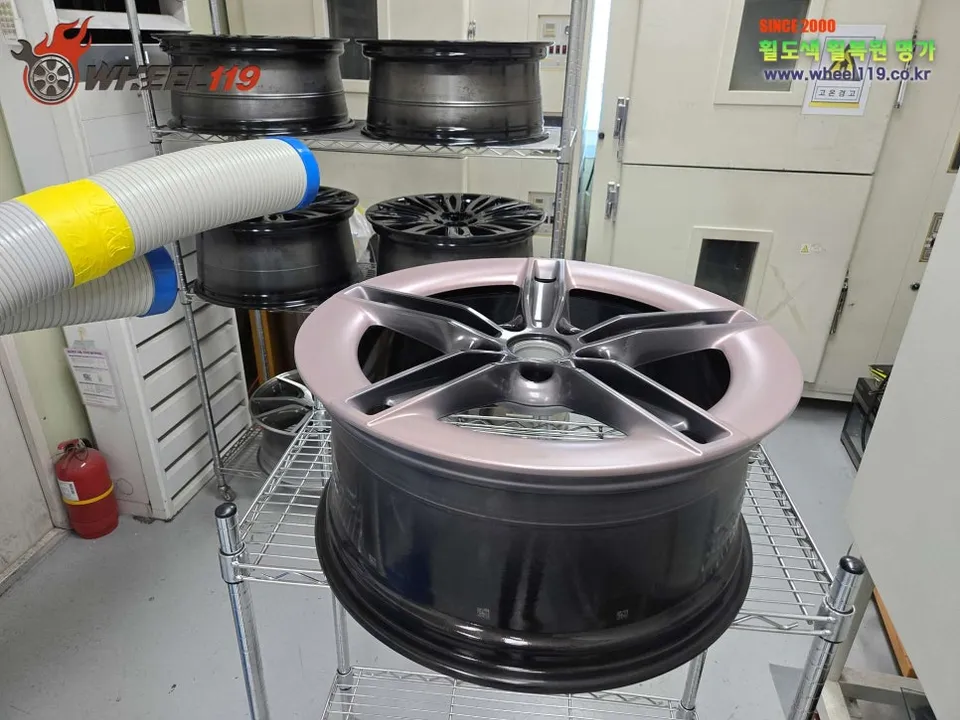

3. Water-Based Liquid Coating (2-3 coats) (Approx. 2 hours) This stage focuses on achieving the precise M4T color and desired gloss level. Multiple thin layers are applied and dried sequentially.
4. Clear Coat and Curing (Approx. 1 hour) A final clear coat is applied for protection and enhanced gloss, followed by a curing process to ensure maximum hardness and durability.
Frequently Asked Questions
Q. How much does wheel repair cost for a Porsche Taycan?
This specific service in Korea cost approximately 7 hours of labor. Typical wheel repair costs in the US can range from $150 to $400 per wheel, depending on the damage and finish.
Q. Can curb rash be fully repaired on Porsche Taycan wheels?
Yes, curb rash and other cosmetic damages on Porsche Taycan wheels can be fully repaired through professional refinishing processes like the one described. Regular cleaning with mild soap and water, and avoiding harsh chemicals, will help maintain the repaired finish.
Q. Is wheel repair or replacement cheaper for a Porsche Taycan?
Wheel repair is significantly cheaper than replacement for a Porsche Taycan, often saving owners thousands of dollars. Repair is ideal for cosmetic damage like curb rash or minor bends, preserving the original wheel's integrity and value.
Q. How is wheel curb rash repaired on a Porsche Taycan?
Wheel curb rash repair on a Porsche Taycan involves several steps: 1. The damaged area is carefully sanded down to remove imperfections and feather the edges. 2. Primer is applied to create a smooth, uniform surface. 3. The wheel is painted using specialized techniques, like the 4-coat process described, to match the original finish precisely. 4. A protective clear coat is applied, and the wheel is cured to ensure durability.
Q. What is the difference between wheel refinishing and full replacement for a Porsche Taycan?
Wheel refinishing restores the original wheel's appearance and structural integrity, addressing issues like curb rash and fading, at a fraction of the cost of new wheels. Full replacement involves purchasing entirely new wheels, which is necessary only for severely damaged or compromised wheels.
